KEY FEATURES

  • 7.4 cu. ft. Ultra Large Capacity
  • ThinQ® Technology
  • Sensor Dry
  • FlowSense™ Duct Clogging Indicator
  • ENERGY STAR® Certified
  • Closet Depth

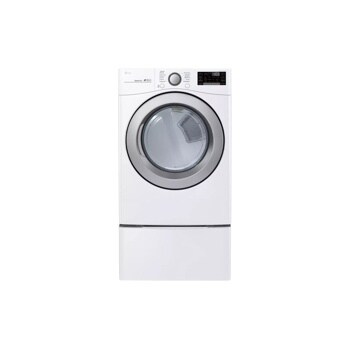

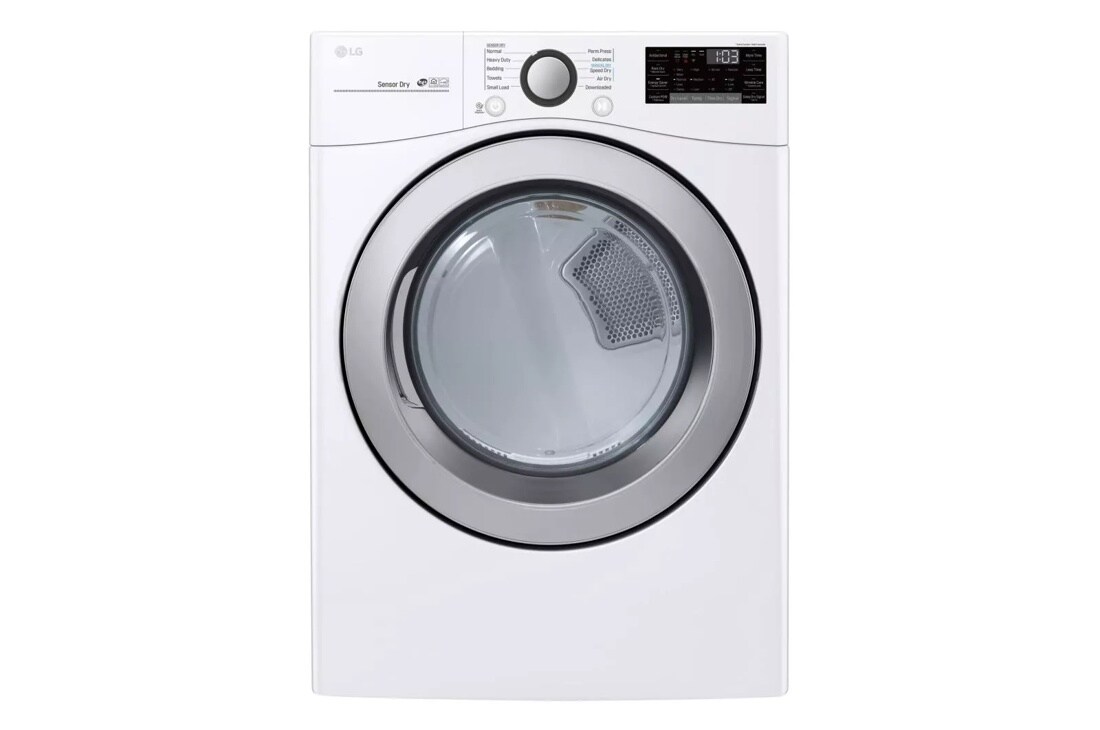

7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Electric Dryer

SUMMARY

    • Type
    • Front Load Dryer
    • Capacity
    • 7.4 cu. ft.

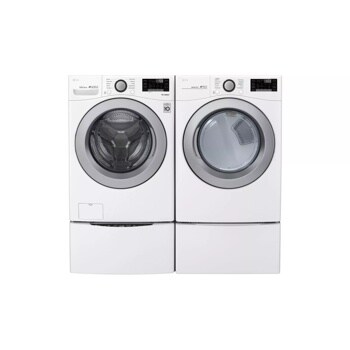

    • Matching Washer
    • WM3500CW
    • Sensor Dry
    • Yes
    • Colors
    • White (W)

APPEARANCE

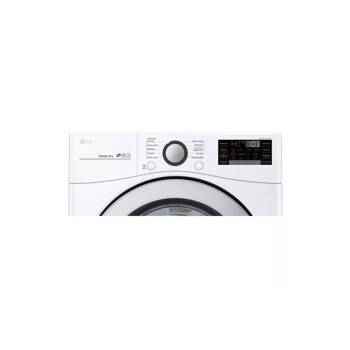

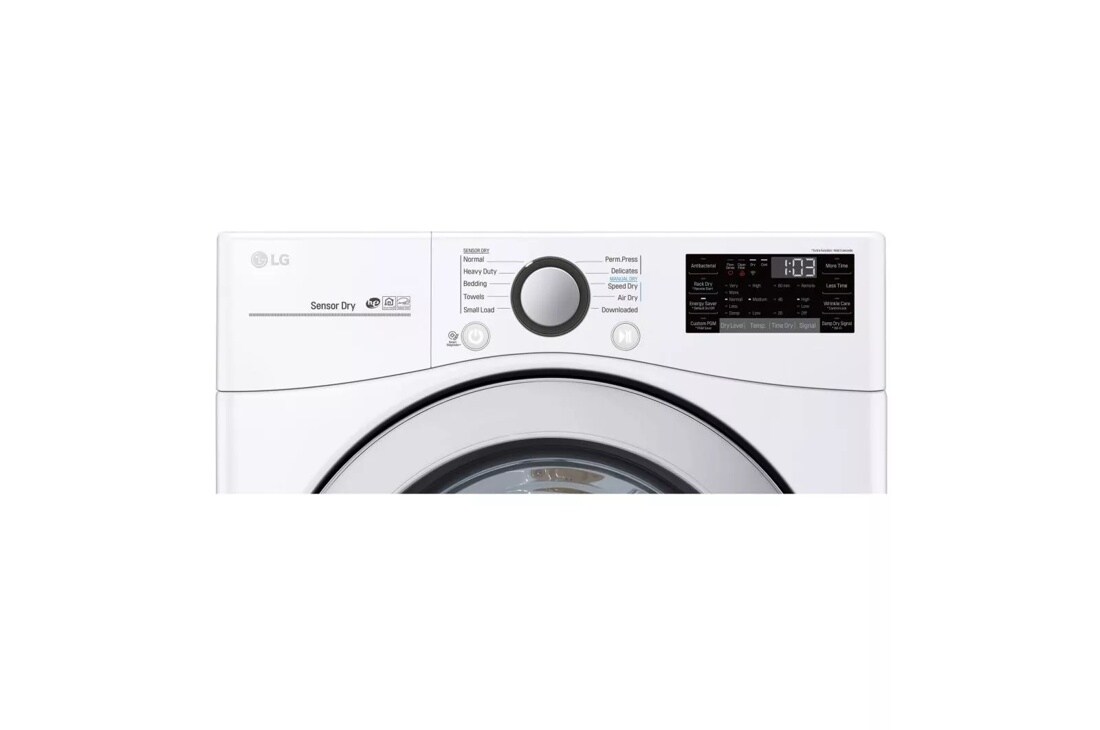

    • Intelligent Electronic Controls with LED Display
    • Yes
    • Dial-A-Cycle™
    • Yes
    • Touch Buttons
    • Yes

DRYER PROGRAMS

    • No. of Programs
    • 10
    • Programs
    • Normal, Heavy Duty, Bedding, Towels, Small Load, Perm Press, Delicates, Speed Dry (Manual Dry), Air Dry (Manual Dry), Downloaded

DRYER OPTIONS

    • No. of Options
    • 11
    • Options
    • More Time, Less Time, Damp Dry Signal, Wrinkle Care, Control Lock, Custom Program, PGM Save, Wi-Fi Connect, Anti-Bacterial, Energy Saver, Remote Start
    • Temperature Settings
    • High, Medium, Ultra Low
    • Drying Levels
    • Very Dry, Normal Dry, Damp Dry
    • Manual Dry Times
    • 60 min., 40 min., 20 min., More Time/Less Time

FABRIC CARE FEATURES

    • Sensor Dry
    • Yes
    • Precise Temperature Control with Variable Heater
    • Yes

CONVENIENCE FEATURES

    • 3 Minute Installation Check
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • End of Cycle Signal
    • Yes
    • Reversible Door
    • Yes
    • FlowSense™ Duct Clogging Indicator
    • Yes
    • Wrinkle Care Option
    • Yes
    • Child Lock
    • Yes
    • Venting Option
    • 4 Way Venting
    • 4 Adjustable Legs
    • Yes
    • Remaining Time Display/Status Indicator(s)
    • Yes

THINQ® SMART FEATURES

    • SmartDiagnosis™
    • Yes
    • Wi-Fi
    • Yes
    • Remote Start
    • Yes
    • Cycle Monitoring and Notification
    • Yes
    • Energy Monitoring
    • Yes (WiFi)

ENERGY

    • ENERGY STAR® Qualified
    • Yes
    • CEF
    • 3.94

MATERIALS AND FINISHES

    • Aluminized Alloy Steel Drum
    • Yes
    • Tub Rear
    • Painted
    • Cabinet
    • Painted Steel
    • Door
    • Round w/ silver painted trim
    • All Available Colors
    • White (W)

POWER SOURCE

    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 240V, 30 Amps
    • Type
    • Electric
    • BTU Rating
    • 10,000 Feet

OPTIONS

    • LP Conversion Kit
    • LPK1
    • Side Venting Kit
    • 383EEL9001B
    • Pedestal
    • WDP4W
    • Pedestal (WxHxD)
    • 27" x 14 1/8" x 30 3/4" (50 1/2" D with door open)

DIMENSIONS/CLEARANCES/WEIGHTS

    • Product (WxHxD)
    • 27" x 38 11/16" x 30"
    • Depth with Door Open
    • 51"
    • Carton (WxHxD)
    • 29 19/32” x 43 3/8” x 31 3/8”
    • Weight (Product)
    • 122
    • Weight Carton
    • 135.2

WARRANTY

    • Parts & Labor
    • 1 Year

UPC CODES

    • UPC
    • 048231024983

What people are saying

Rated 3 out of 5 by from They don’t make them like they used to The dryer and all it’s options and space is awesome! But we’ve had more issues with drying things all the way than our other dryers. Sensor is fine, but it’s been tricky trying to figure it out and ultimately deal with it. For being 2 years old it seems weird. My other dryers this problem was the beginning of the end, but we could just switch to time dry and get a few more years out it. Our other recurring problem is lint build up pushing the trap up (yes we clean it each time) and eventually the trap starts catching clothing and destroying it. Eventually said clothing pulls the trap out and it goes through the tumbling in the dryer and breaks. We are on lint trap #2 in 2 a year and a half. Finally bought a dryer cleaning attachment so I can try to prevent it. Never had this problem on my old dryers.
Date published: 2022-09-05
Rated 1 out of 5 by from Flawed design of lint filter Have gone through three lint filters since owning this product. Flawed design that LG doesn’t want to address. Damages clothes by getting caught on the corner of filter and twists them in up in a ball.
Date published: 2022-06-26
Rated 1 out of 5 by from Disappointed Called company and talked to several girls one which had a crying baby through the whole conversation. The paint is peeling off this dryer. High price and poor quality for sure and they don’t care. Was also unable to upload a photo on this site
Date published: 2022-05-07
  • y_2022, m_10, d_4, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_543
  • loc_en_US, sid_MD05981659, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 7ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Why was this product discontinued?

Asked by: jcp2020
There are many reasons as to why products are discontinued ranging from newer models that are more energy efficient replacing older models, declining sales for a product, or that the materials for manufacturing that product are no longer available or that newer materials for manufacturing a more cost-effective product become available. The decision to discontinue a product is made at the corporate level and regrettably, we are not privy to those decisions. The LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled Electric Dryer, Model # DLE3500W is a 2018 model...^IFV
Answered by: Ivanf
Date published: 2021-04-28

Can the DLE3500W be stacked with the WM3500CW

Asked by: Picks52
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled Electric Dryer, Model # DLE3500W can be stacked onto the ENERGY STAR® Qualified LG 4.5 cu. ft. Ultra Large Smart Wi-Fi Enabled Front Load Washer, Model # WM3500CW using the 27" LG Laundry Stacking Kit, Model # KSTK1...^IFV
Answered by: Ivanf
Date published: 2020-10-22

What are the overall dimensions of the washer & dryer are stacked?

Asked by: GMN1
The ENERGY STAR® Qualified LG 4.5 cu. ft. Ultra Large Smart wi-fi Enabled Front Load Washer, Model # WM3500CW which is the matching washer for the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled Electric Dryer, Model # DLE3500W has a height of 39" and the dryer has a height of 38 11/16" so their combined heights (77 11/16" or 77.6875") will be the total height when stacked. Both the dryer and washer have a width of 27". The washer has a depth of 30 1/4" and the dryer has a depth of 30"...^IFV
Answered by: Ivanf
Date published: 2020-04-09

Is there a dryer rack available for this model?

Asked by: Captseth
The LG Drying Rack, Part # 3750EL1001A is an optional accessory for the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Electric Dryer, Model # DLE3500W that has to be purchased separately...^IFV
Answered by: Ivanf
Date published: 2020-04-09

I’m looking for a replacement electric dryer for my LG TROMM DLE 2516IW need one exactly the same size as space is an issue. I can’t find one with a 27 inch depth and I want a full size dryer not compact.

Asked by: Zoey39
The DLE2516W has the following dimensions: (WxHxD)27” x 38 3/4” x 29 15/16”. The DLE3500W has the following dimensions: (WxHxD) 27" x 38 11/16" x 30". We do not currently offer any dryers with those exact dimensions.
Answered by: ChrisPSM
Date published: 2020-01-31

I need installation guide for dryer vent asap

Asked by: Sandyschooner
Installation information can be found in the Owner's Manual, which is downloadable on our website at: https://www.lg.com/us/support/product/lg-DLE3500W.ABWEEUS
Answered by: ChrisPSM
Date published: 2020-01-22

Just bought the model DLE3500W dryer. It has a rack dry setting but mine did not come with the rack, should it have?

Asked by: Raven1
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Electric Dryer, Model # DLE3500W is compatible with the LG Drying Rack, Part # 3750EL0001A. This is available for purchase separately.
Answered by: ChrisPSM
Date published: 2020-01-02

What models can this dryer be stacked with?

Asked by: TM131
The DLE3500W dryer has the following dimensions: (WxHxD) 27" x 38 11/ 16" x 30". This dryer has been tested for clearances of 1 inch (2.5 cm) on the sides and rear. Recommended clearances should be considered for the following reasons: Additional clearances should be considered for ease of installation and servicing. Additional clearances should be considered on all sides of the dryer to reduce noise transfer. For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable. The ENERGY STAR® Qualified LG 4.5 cu. ft. Ultra Large Smart wi-fi Enabled Front Load Washer, Model # WM3500CW has the following W x H x D dimensions are 27" x 39" x 30 1/4". Combined they have a width of 27", depth of 30 1/4", and height of 77 11/16". ^CP
Answered by: ChrisPSM
Date published: 2020-06-26
