• Smart ThinQ™ Technology
  • 7.3 cu. ft. Ultra Large Capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle

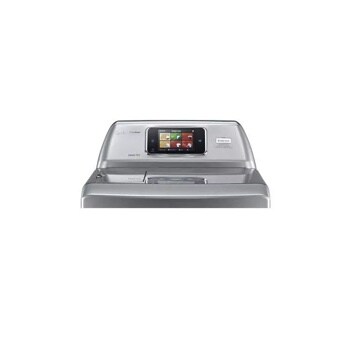

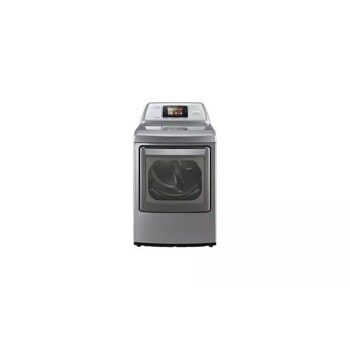

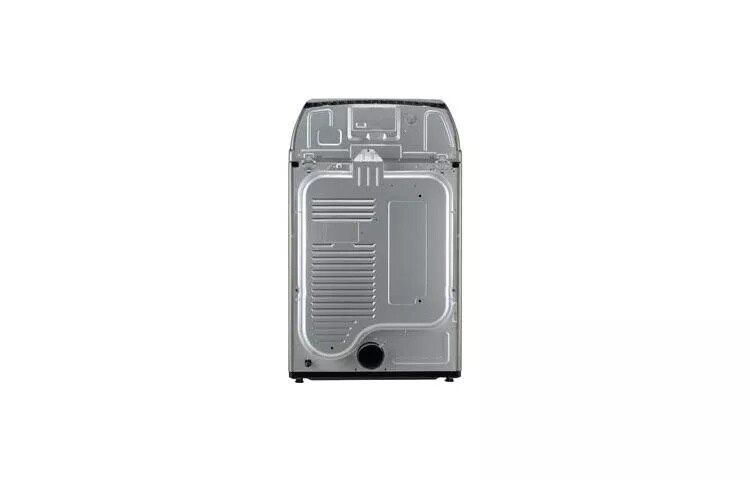

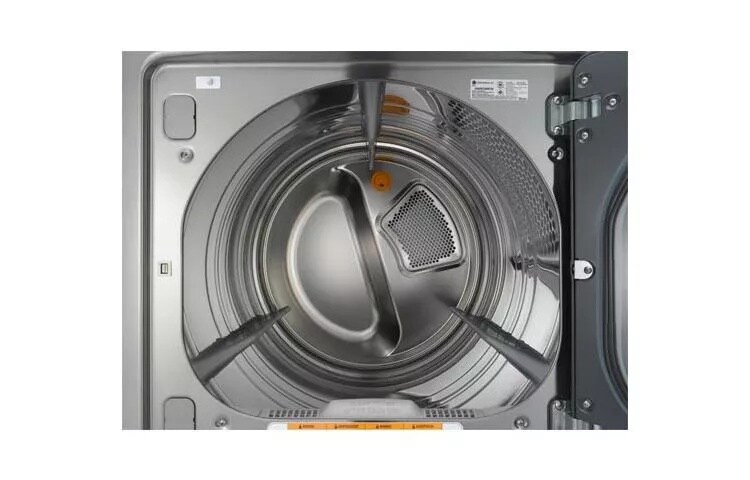

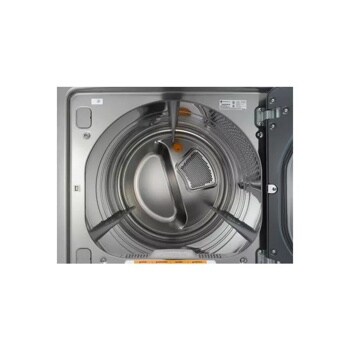

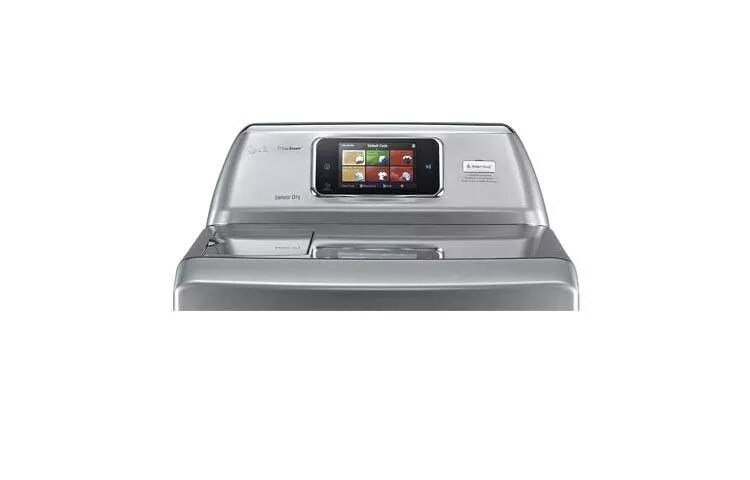

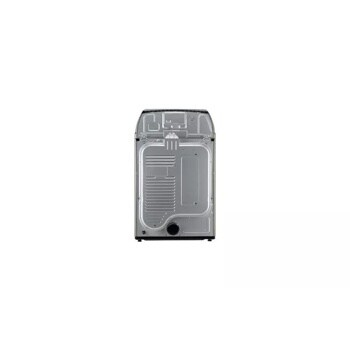

7.3 cu. ft. Ultra Large Capacity SteamDryer™ with Smart ThinQ™ Technology (Electric)


    • Dryer Type
    • Electric
    • SteamDryer™
    • Yes


    • Capacity
    • 7.3 cu. ft.


    • Design Look
    • Rear Control
    • Intelligent Electronic Controls with Dual LED Display
    • Yes
    • Dial-A-Cycle™
    • Yes


    • No. of Programs
    • 14
    • Programs (Sensor Dry)
    • Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
    • Programs (Manual Dry)
    • Speed Dry, Air Dry, Rack Dry
    • No. of Options
    • 9
    • Options
    • More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, EasyIron™, Damp Dry Signal, End of Cycle Signal
    • Temperature Settings
    • High, Medium High, Medium, Low, Ultra Low
    • Drying Levels
    • Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
    • Manual Dry Times
    • 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time


    • SteamFresh™ Cycle
    • Yes
    • SteamSanitary™ Cycle
    • Yes
    • ReduceStatic™ Option
    • Yes
    • EasyIron™ Option
    • Yes
    • Sensor Dry
    • Yes
    • Precise Temperature Control with Variable Heater
    • Yes


    • LoDecibel™ Quiet Operation
    • Yes
    • SmartThinQ™ Technology
    • Yes
    • SmartDiagnosis™
    • Yes
    • FlowSense™ Duct Clogging Indicator
    • Yes
    • Anti-Bacterial Cycle
    • Yes
    • Wrinkle Care Option
    • Yes
    • Remaining Time Display/Status Indicator(s)
    • Yes
    • End of Cycle Signal
    • Yes
    • Child Lock
    • Yes
    • 3 Minute Installation Check
    • Yes
    • Drying Rack
    • Yes
    • Drum Light
    • Yes
    • Venting Option
    • 4 Way Venting
    • Leveling Legs
    • 4 Adjustable Legs
    • Reversible Door
    • Yes


    • NeveRust™ Stainless Steel Drum
    • Yes
    • Top Plate
    • Painted Steel
    • Cabinet
    • Painted Steel
    • Control Panel
    • Plastic
    • Transparent Glass Door
    • Yes
    • Available Colors
    • Graphite Steel


    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 240V, 30 Amps
    • Type
    • Electric


    • LP Conversion Kit
    • 4948EL4002B
    • Side Venting Kit
    • 3911EZ9131X


    • Product (WxHxD)
    • 27" x 45 3/8" x 28 3/8" (50 1/4" D with door open)
    • Carton (WxHxD)
    • 29 1/2” x 48” x 31 1/4”
    • Weight (Product/Carton)
    • 133.2 lbs./145.5 lbs.


    • Limited Warranty
    • 1 Year Parts and Labor
    • UPC
    • 048231012270

What people are saying

Rated 2 out of 5 by from Disappointed customer I bought the front load washer and dryer thinq the dryer doesn’t dry my clothes it always came out damp and it have no heat when I open the dryer door it also takes forever and I always have to add more time I’m thinking of returning I’m not satisfied can anyone help me to understand this I’m frustrated
Date published: 2020-11-25
Rated 5 out of 5 by from Like the capacity I like that the dryer is capable of drying small to large loads. The best is that there is plenty of room to dry 2 Queen size pillows without deforming them. My quilts dry without a problem.
Date published: 2017-09-23
Rated 5 out of 5 by from This dryer makes me happy Couldn't ask for a better dryer. My clothes are handled kindly and not beaten up. Everything dries quickly and quietly.
Date published: 2015-04-03
  • y_2022, m_12, d_3, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.34
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_MD05015420, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 8ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Zigbee Module

Where can I get the ZigBee Module for this? None of my smartthinq appliances came with one.
Asked by: CntryDoe
We appreciate your interest in the operations of this washing machine. A ZigBee modem relates to different utility companies. The manufacturer does not supply this device. However, it may be possible to obtain them online, or at your local Radio Shack. It may also be possible that the utility company may carry them.
Answered by: NeilE
Date published: 2015-02-04

Why doesn't dryer door come straight down instead of opening from the side?

I have always liked dryers that have the door that comes straight down so I can then use it as a mini-folding table as the clothes come out of the dryer. It also prevents any problems with the door hitting anything as it does potentially with it opening from the side. Can this dryer door be adjusted to come straight down?
Asked by: ConsiderThis
I agree totally. I would have much preferred the door opening straight down --- as I used it as a mini-folding table also. Unfortunately however, it appears you can only modify the door to open from left-to-right or from right-to-left. The geometry of the door precludes it from opening straight down (That was one of the first things I checked before purchasing it). I purchased it anyway however, because you can't really find a high-quality machine whose door opens straight down anymore. I can tell you however, that after using the machine for a while, you get used to it. So, it's not really a big deal...but it would have been better had they designed it so the door had a straight down installation option in addition to its current configuration.
Answered by: DirtyNoMore
Date published: 2014-07-05

Do you have a SmartApp for Windows 8.1 phones, or is it just for iphones?

Looking to purchase a new dryer, but if the SmartApp does not work with Windows phones, I don't see a need to buy this feature. Thanks!
Asked by: Johnboy1966
To the best of my knowledge, the SmartApp features only work with Android-like phones. I have a Windows phone myself and therefore cannot use the SmartApp features. This, to me, is the biggest downside to the machine. Other than that however, it is the best dryer I have ever owned. I really like it.
Answered by: DirtyNoMore
Date published: 2014-10-04

Difference between several models

I am having trouble finding the models from the website in local stores and getting a little confused. This is all for electric dryers. I looked at the dlex8500V, 8000v, 6001v and can not see difference in these as far as features. Is is because some were discontinued as I found out from Home Depot for the 8500? If so can you advise what years these model were manufactured and which model supersedes the next?
Asked by: JayMoorheadMN

Does this appliance work with straight wifi?

To restate the question, I read in the manual about Zigbee and utility provided smart grid. Then I read about wifi and the setup procedures look like I can just connect to my wifi. Is Zigbee and SmartGrid required to enjoy the connectivity features of this appliance?
Asked by: RickG
