7.3 cu. ft. Ultra Large Capacity Dryer with Front Control Design and SteamFresh™ Cycle

  • DLEY1201V

  • Graphite Steel

Key Features

  • Ultra Large 7.3 cu. ft. Capacity
  • Front Control Design
  • SteamFresh™ Cycle
  • Smart Diagnosis™
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

A revolutionary spin on laundry.

A revolutionary spin on laundry.

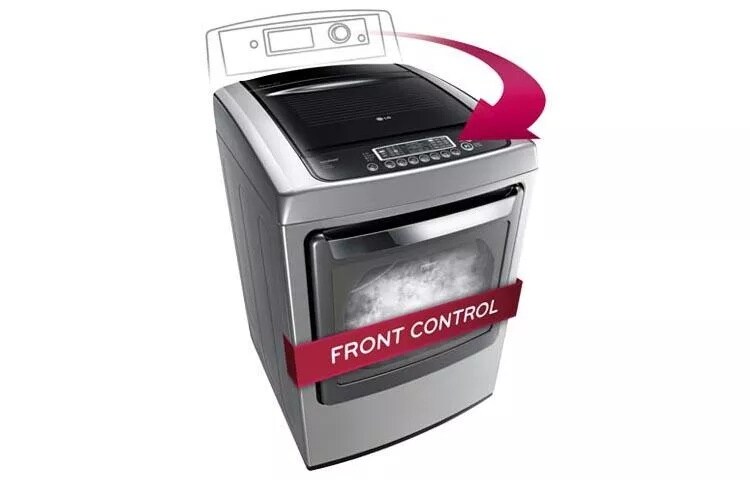

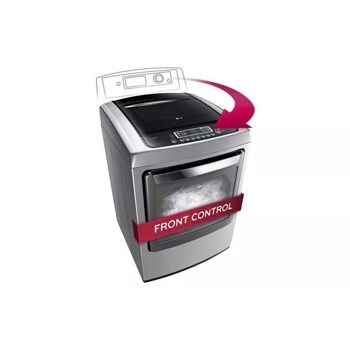

LG puts a modern design spin on the traditional top load laundry pair. By moving the control panel from the back to the front, the buttons and LED display are easier to read and use. This simple change makes for a more intuitive and functional design and a look that is unlike anything you’ve ever seen.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

SUMMARY
Dryer Type Electric
SteamDryer™ Yes
CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE
Design Look Front Control
Front Electronic Control Panel with LED Display Yes
DRYING PROGRAMS
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Small Load, Bulky/Bedding, Anti-Bacterial, Towels, Delicates, SteamFresh™, Wrinkle Free
Programs (Manual Dry) Speed Dry, Air Dry
No. of Options 7
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
Wrinkle Free Cycle Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Aluminized Alloy Steel Drum Yes
Top Plate Plastic
Cabinet Painted Steel
Control Panel Plastic
Chrome Edged Diamond Glass Door Yes
Available Colors White (W), Graphite Steel (V)
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2" x 43 7/10" x 31 1/4"
Weight (Product/Carton) 121.7 lbs. / 139.6 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 013376

What People Are Saying

Rated 4.8 out of 5 by 209 reviewers.
Rated 5 out of 5 by The washer and dryer, are an awesome pair! Love the dryer, the clothes are never over dried. I don't have to decide how many minutes it will take, the dryer does it perfectly! The lint filter is easy to clean, and put back. It looks great in the laundry room, and it is quiet! Thanks LG! August 1, 2014
Rated 3 out of 5 by can't hear buzzer I cannot hear the music when the dryer stops and I go in and the clothes aren't dry and now they are all wrinkled. I even had the panel replaced and still can't hear it unless I am in the laundry room. So I have to set the timer on my stove for about the same time as the dryer runs. This is just wrong. They should have volume control. July 31, 2014
Rated 5 out of 5 by Love this Dryer Love the front controls and how easy it is to use. Love the steam dry option. Very efficient and effective. I like that the dryer can determine when the clothes are dry and turns off on its own to save electricity. July 12, 2014
Rated 5 out of 5 by Great Dryer This dryer is a great design. It dries quickly and the steam feature is a bonus. ! love my new laundry! It is large for a large household. And yes I do appreciate the little tune. July 11, 2014
Rated 5 out of 5 by Great product. Just purchased my LG dryer about 4 months ago and am very happy with the product. The dryer is very quite, easy to use and has many great features. I was a little worried about the water line attached to the rear of the dryer for the Steam feature but have tried the feature and had no issues. July 10, 2014
Rated 5 out of 5 by This product is the value for money. This product is very innovative with easy to read front controls. It also features a steam feature at an affordable price. July 5, 2014
Rated 5 out of 5 by Efficient, quiet and good features We have gone through 3 different brands of dryers in our 44 years. This one is by far the best. It has lots of automatic cycles as well as manual selection. It even has a feature to warn if your filter or exhaust pipe is restricted or plugged up. When it finishes, it even plays a little song to let you know it's done. The only negative thing is that sometimes the clothes are not all the way dry. July 4, 2014
Rated 5 out of 5 by Happy So Far... We did a lot of research on washers/dryers for our recent bathroom/laundry room remodel. The reviews on this unit, along with it's matching washer, were excellent. We needed a dryer that had the option to vent out the side. This particular unit actually has FOUR vent options - the traditional back, either side OR the bottom. That is primarily what made the final decision for us. We ultimately went with the bottom vent option. You DO need to purchase an adapter kit to use this option. We ordered it online and it was relatively easy to install, if you are handy. The most difficult part was lining up the vent in the dryer with the vent in the floor because it was in a confined space. We purchased the silver/chrome option. Looks amazing. Matches our color scheme perfectly. Makes the units look like "furniture" instead of an "appliance". Very nice to look at and we've received tons of compliments. Definitely worth the extra money. We've been very happy with this dryer. The sleek design, with the controls on the front, is beautiful. It is also functional - it makes a nice place to fold the laundry right as you take it out of the machine. The drum size is great - easily holds all size loads as well as king size bedspreads and multiple blankets. Functions are very easy to figure out. We've found, coupled with the matching washer, that drying times don't even take as long as predicted when you select a cycle (It will give you a time estimate). It will sense that the load is already dry and shut off sooner. Wonderful! The only "issue" I've had - and this could be the "user", rather than the "machine" - is trying to figure out the "steam" cycle. We thought this would be good for freshening up/clearing out germs for certain items - namely bigger blankets that aren't meant to be washed regularly. I've found that all it seams to do is make big wet spots on them then I end up having to run them through a dry cycle. Again, that may be me doing something wrong rather than the dryer cycle actually malfunctioning. Other than that, we've been VERY happy with the purchase. Looks beautiful and works great. I would definitely recommend this product to anybody. June 24, 2014
2 3 4 5 ... 8 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

18 Questions & 24 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back



3 answers

water in let

does the water hook up need to be done in order the dryer to work correctly if we are not planning to use the steam option
Category: I own this product
10 months ago
User Name:
Filmfan

Please wait while more information about Filmfan is loaded.
Additional information about Filmfan could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
No. Consumer Report said the steam feature was of limited value. We did not have the installer hook it up. Dryer works fine without it.
Gender: male
8 months ago
User Name:
CDGS
Louisville, KY, USA

Please wait while more information about CDGS is loaded.
Additional information about CDGS could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I do not have the water hooked up to my dryer and it runs perfect. I do not believe you have to have it connected.
Gender: male
10 months ago
User Name:
Anonymous
Fort Riley, KS, USA
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
The water feed to the dryer is only for steam so if you don't use steam you don't need to hook up the cold feed.
Gender: male
10 months ago
User Name:
Willow
St. Petersburg, FL, USA

Please wait while more information about Willow is loaded.
Additional information about Willow could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Is L G 4.6 cu ft top load washer capable to wash a king size comforter?
Category: I do not own this product
1 year, 1 month ago
User Name:
bpon

Please wait while more information about bpon is loaded.
Additional information about bpon could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
If the wash tub isn't over 2/3 full, I wouldn't hesitate. HOWEVER, if it's a down comforter, there are a couple things to consider. One, each time you wash a down comforter, it loses it loft & hence insulation. Two, would worry more about drying a down comforter than washing it; takes time & low heat.
Gender: female
9 months ago
User Name:
Becker
Indiana, USA

Please wait while more information about Becker is loaded.
Additional information about Becker could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I don't have a king size, just a queen and that fits easily so I expect you will have no trouble with a King.
Gender: male
11 months ago
User Name:
Willow
St. Petersburg, FL, USA

Please wait while more information about Willow is loaded.
Additional information about Willow could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

How do I remove the inner door frame in order to reverse the door?

The instruction manual only says to use a flat head screw driver to remove the inner door frame. It doesn't say how to do this. When I start to pry the inner door off, it feels like I am going to bend the plastic and ruin the door frame.
Category: I own this product
Interested in: Troubleshooting

Products related to my question


8 months ago
User Name:
KathyKilman0910
Buford, GA, USA

Please wait while more information about KathyKilman0910 is loaded.
Additional information about KathyKilman0910 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Be sure that you removed all of the screws and don't try to pull out the plastic hinge parts. You have to remove the frames before you do that. I took a plastic screwdriver and went around the frame lifting a little bit at a time. After a certain point, the whole frame was very easy to remove (basically separated on its own).
Gender: male
8 months ago
User Name:
Paul824
San Jose, CA, USA

Please wait while more information about Paul824 is loaded.
Additional information about Paul824 could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
We appreciate your interest in this dryer. There should be 12 screws, located around the edges of the door, which must be removed before the sections of the door can be separated. Very little “prying” should be required, once the screws have been extracted.
8 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
My dryer must be vented on the right side.
Category: I do not own this product
1 year ago
User Name:
suziland

Please wait while more information about suziland is loaded.
Additional information about suziland could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
You can buy a side vent kit accessory for it.
Gender: male
11 months ago
User Name:
Willow
St. Petersburg, FL, USA

Please wait while more information about Willow is loaded.
Additional information about Willow could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Your new dryer is shipped to vent to the rear.
It can also be configured to vent to the bottom or side (right-side venting is only available on electric models).
An adapter kit, part number 383EEL9001B, may be purchased
from your LG retailer. This kit contains the necessary duct
components to change the dryer vent location.
LG Parts:
http://www.lg.com/us/support/parts-accessories
1 year ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Is there a "Y" hose from the cold water hook up that goes to the washer and dryer?
Or is there a place to add like distilled water into the dryer
Category: I do not own this product
11 months ago
User Name:
Russ4cards
Louisville, KY, USA

Please wait while more information about Russ4cards is loaded.
Additional information about Russ4cards could not be loaded.
+3points
3out of 3found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The dryer comes with a hose and Y connector so it connects directly to the cold fill hose for the washer.
Gender: male
11 months ago
User Name:
Willow
St. Petersburg, FL, USA

Please wait while more information about Willow is loaded.
Additional information about Willow could not be loaded.
+3points
3out of 3found this answer helpful.
HelpfulNot Helpful

Answer:
Yes, a "Y"-connector and hose are included :)
11 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+2points
2out of 2found this answer helpful.
HelpfulNot Helpful
