BH9230BW

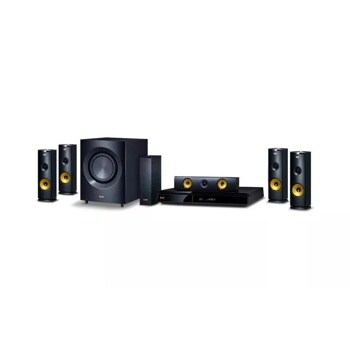

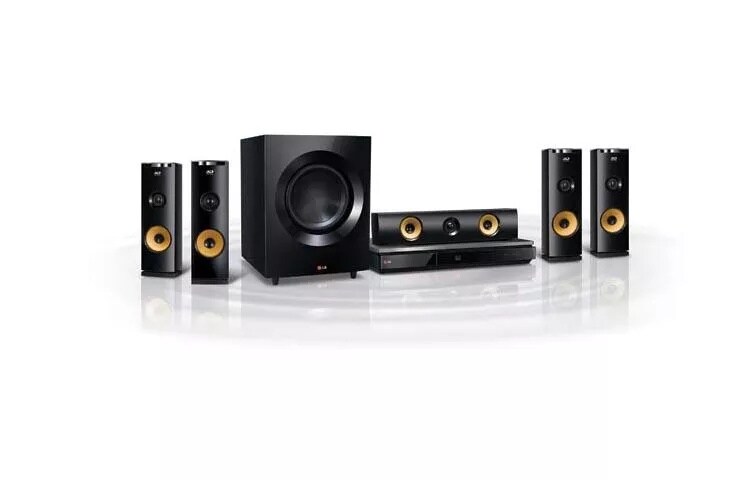

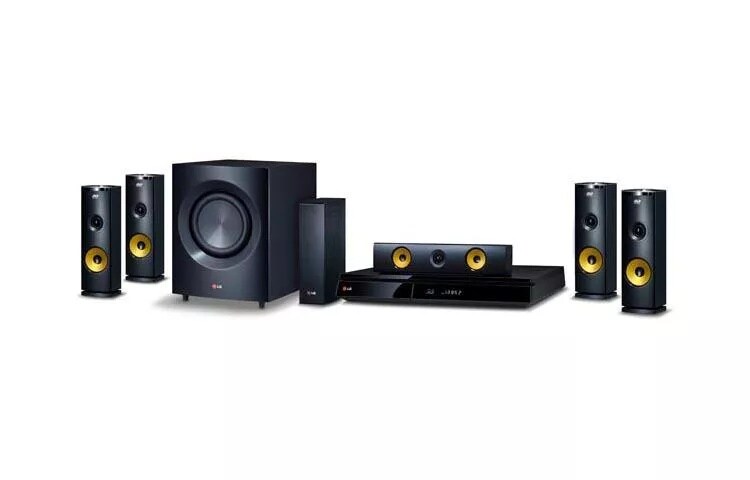

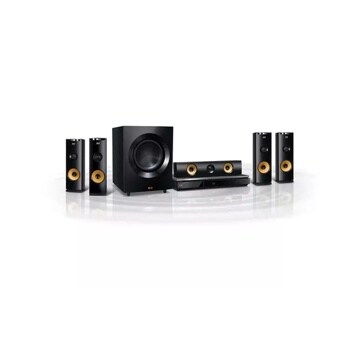

3D-Capable 9.1 Ch Aramid Fiber Blu-ray Disc™ Home Theater System with Smart TV

KEY FEATURES

  • Aramid Fiber
  • LG Smart TV
  • 9.1 Channel Immersive Sound
  • 3D Blu-ray
3D-Capable 9.1 Ch Aramid Fiber Blu-ray Disc™ Home Theater System with Smart TV

GENERAL

    • Channels
    • 9.1
    • Total Power
    • 1460 Watts

FEATURES

    • 2D & 3D Playback
    • Yes
    • Premium Content & LG Apps
    • Yes
    • Auto Volume Leveler
    • Yes
    • Built-in Wi-Fi®
    • Yes
    • LG AV Remote App
    • Yes
    • Aramid Fiber Speakers
    • Yes (yellow)
    • Silk Dome Tweeters
    • Yes
    • DSP
    • Yes
    • Gracenote®
    • Yes
    • SIMPLINK™ (HDMI™ CEC)
    • Yes
    • External HDD Playback
    • Yes
    • Private Sound Mode
    • Yes
    • USB Direct Recording
    • Yes

SUPPORTED MEDIA

    • Blu-ray
    • Yes
    • CD / CD-R / CD-RW
    • Yes
    • DVD / DVD±R / DVD±RW
    • Yes

SIZE & WEIGHT

    • Main Unit Dimensions (WxHxD)
    • 17.6" x 2.6" x 11.6"
    • Front Speaker Dimensions (WxHxD)
    • 3.5" x 11.6" x 3.3"
    • Center Speaker Dimensions (WxHxD)
    • 14.2" x 3.2" x 2.8"
    • Rear Speaker Dimensions (WxHxD)
    • 3.5" x 11.6" x 3.3"
    • Subwoofer Dimensions (WxHxD)
    • 9.9" x 13.2" x 13.7"
    • Shipping Dimensions (WxHxD)
    • 28.0" x 17.2" x 15.6"
    • Net Weight
    • 23.1 lbs
    • Shipping Weight
    • 27.3 lbs

VIDEO FORMAT

    • MPEG2
    • Yes
    • MPEG4 AVC (H.264)
    • Yes
    • SMPTE VC1 (VC-9)
    • Yes
    • MKV
    • Yes
    • AVCHD
    • Yes
    • M4V
    • Yes
    • WMV
    • Yes
    • FLV
    • Yes
    • 3GP
    • Yes
    • MPEG-1
    • Yes
    • MP4
    • Yes
    • MOV
    • Yes
    • VOB
    • Yes

SPEAKER

    • Type
    • 4 Satellite

AUDIO FORMAT

    • LPCM
    • Yes
    • Dolby Digital
    • Yes
    • Dolby Digital Plus
    • Yes
    • Dolby TrueHD
    • Yes
    • DTS
    • Yes
    • DTS-HD High Resolution Audio
    • Yes
    • DTS-HD Master Audio
    • Yes
    • MPEG 1/2 L2
    • Yes
    • MP3
    • Yes
    • WMA
    • Yes
    • AAC
    • Yes
    • FLAC
    • Yes

CONNECTIVITY

    • Wi-Fi® Built-In
    • Yes
    • Wi-Fi® Direct
    • Yes
    • NFC
    • Yes
    • Bluetooth®
    • Yes
    • DLNA Certified®
    • Yes
    • Audio Inputs
    • Yes
    • HDMI® Out
    • 1
    • HDMI® Input
    • 2
    • Optical Inputs
    • 1
    • Ethernet (RJ45)
    • 1
    • USB
    • 1
    • Portable Audio In (3.5mm)
    • 1
    • Wireless Rear Speakers
    • Yes
    • Made for iPod® / iPhone® / iPad®
    • Yes

TUNER

    • Tuner Type
    • FM

INCLUDED ACCESSORIES

    • Remote Control
    • CB3
    • FM Antenna
    • 1
    • Speaker Wires
    • 6
    • DLNA Bundle Disc
    • 1
    • Wireless Rear Speaker Receiver
    • 1
    • Batteries
    • 2 (Size AAA)

WARRANTY / UPC

    • Limited Warranty
    • 1 Year Parts and Labor
    • UPC
    • 719192589278

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I'm trying to get plex app downloaded to this device. How would I go about trying to do that

Asked by: Jggomez
The LG 3D-Capable 9.1 Ch Aramid Fiber Blu-ray Disc™ Home Theater System with Smart TV, Model # BH9320BW comes with preloaded apps but does not have the capability of downloading new additional compatible apps...^IFV
Answered by: LGJoel
Date published: 2019-01-04

How would i go about getting a replacement remote for this system?

Asked by: Luigui
Hello Luigui, please see the provided link to order the replacement remote. ^AC http://lge.andrewselectronics.com/search/electronic-parts/parts/9/AKB73775604
Answered by: Amber C
Date published: 2018-05-15

R u still selling htisproduct??

Asked by: tommyshu
Regrettably, the LG 3D-Capable 9.1 Ch Aramid Fiber Blu-ray Disc™ Home Theater System with Smart TV, Model # BH9230BW was discontinued a while back and is no longer available for sale...^IFV
Answered by: LGJoel
Date published: 2018-01-18

A few ?? Wi-Fi and Bass

I have this system, and I was using the internet, then all of a sudden it went away, when I tried to get back on it says checking network. I went through the setup again and it recognizes the wireless network, but keeps asking for the password. I have checked, double and triple checked and I am putting in the correct password. Also, is there a way to increase the subwoofer bass output? It goes from -42 to like +6, the other speakers all go higher, and I can barely hear Bass from the subwoofer.
Asked by: JefferyC
I recommend LAN wiring the unit to prevent issues. These surround sound systems have never worked well with Wireless
Answered by: Kev78
Date published: 2014-03-08

My smart share locks up whenever I try to play a file.

I just set up this unit. First thing I did was update to the newest software. When I try to play a file over the network as soon as I click enter to play the file the unit locks up on a white screen. I have tried multiple file types from multiple different servers all with the same result. I have tried .mkv .mp4 avi all with the same result. It locks. Then the only button that works is the sound effects button and the system remains on a pure white screen until I unplug the unit. The servers/pc all work with other devices.
Asked by: indymodo
i would contact LG about it. I have never had that issue but I use strictly use MP4 format
Answered by: Kev78
Date published: 2014-03-08

Are wall mounts available for the front and rear speakers?

Asked by: Neils
They are but I found them on amazon. Sorry I do not have a link
Answered by: Kev78
Date published: 2014-03-08

speaker stands

What adjustable speaker stands are compatible with the threads on the back?
Asked by: badgarlic
3/8" thread common ones.
Answered by: Kev78
Date published: 2014-03-08

1. Do these speakers come with speaker grilles/covers to protect them and how long are the speakers wires?

I'm considering purchasing the LG BH9230BW HT System
Asked by: Jetman24
Speaker wires are approximately 15 feet long each. Speakers do not need grills.
Answered by: Kev78
Date published: 2014-03-08
