Discontinued
AF115
Full HD Home Cinema Projector
  • LCOS
  • Full HD 1080p
  • 2 HDMI™ Inputs
  • 30,000:1 Advanced Contrast Ratio Enhancement
Full HD Home Cinema Projector

Projection

  • Display Technology
    0.61” LCOS
    Native Resolution
    1080p (1920x1080)
  • Brightness (ANSI-Lumens)
    1500
    Contrast Ratio (FOFO)
    30,000:1
  • Noise (High Brightness)
    25dB
    Noice (Economic)
    21dB
  • Uniformorty
    > 90 %
    Projection Lens (Focus)
    Manual
  • Projection Lens (Zoom)
    Manual 1.8x
    Projection Image (Standard)
    60”@ 1.8m
  • Projection Image (Throw Ratio)
    1.36/2.46
    Projection Offset
    ±120%
  • Lamp
    220W
    Life time
    Economic Mode 3,500 Hrs
  • Warranty
    2 years parts and labor

General Specification

  • Menu Language
    English/French/Spanish/Korean/German/Italian/Swedish/Chinese Simplified/Polish/Portuguese/Brazilian/Portuguese/Japanese/Russian/Greek/Arabic/Turkish/Taiwanese
    Aspect Ratio Correction
    Auto/16:9/4:3/Just Scan/Cinema Zoom
  • Dimension (WxHxD, mm)
    14.4" x 17.6" x 6.8"
    Weight
    21.4 lbs.
  • Power Consumption
    300W Max
    Stand by Power
    < 1W
  • Power Supply
    AC DC Adaptor(100~240 free voltage), 50/60Hz
    Input Signal Compatibility - Digital (HDMI)
    Up to 1080p (60Hz/50Hz/24Hz)
  • Input Signal Compatibility - RGB
    Up to UXGA (1600x1200, 60Hz), 1080p
    Input Signal Compatibility - Component Video
    1080p/1080i/720p/576p/576i
  • Input Signal Compatibility - Composite Video
    NTSC-M/NTSC 4.43/PAL/PAL-M/PAL-N/SECAM

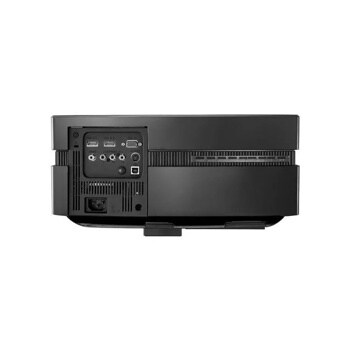

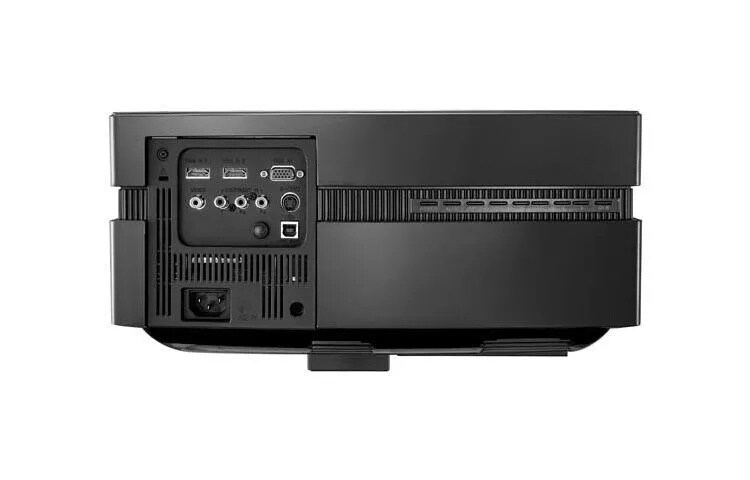

Input / Output Terminals

  • RGB in
    1
    Composite(AV) in
    1
  • S video
    1
    Component (YPbPr)
    1
  • HDMI
    2 (Ver 1.3)
    USB
    1 (type A)

Special Features

  • Digital Keystone Correction
    Advanced
    Quick Power on/off
    Yes
  • Auto Sleep
    Yes
    Blank
    Black, Blue, Green, Logo, Captured image
  • Image Flip
    Horizontal / Vertical
    Color Temperature
    Yes
  • Lens Shift
    Vertical
    Over Scan
    Yes
  • Black Level Control
    Yes
    Expert control
    Yes
  • Picture Quality Certification
    HQV/ISF

Design

  • Cabinet Color
    Black
    Local Key
    Yes
  • Kensington Lock
    Yes
    Lamp
    Bottom Side

Accessory

  • Manual
    CD
    Remote control
    Yes
  • RC Battery
    AAA
    Cable
    VGA Cable, Power Cord
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

How does one reset the lamp timer, when the lamp has been replaced?&nbsp;

Asked by: DanielBeck
Our offices, in the United States, do not have product information for Denmark. In order to obtain such information, it is recommended to check our subsidiary&rsquo;s website, at http://www.lg.com/dk/support/kontakt-kundesupport.
Answered by: NeilE
Date published: 2018-09-30

Would the projector keep shutting off if my bulb needs to be replaced?

My projector continuously shuts down after being on for less then a few minutes or less. The lights that flash are red and orange which according to the manual says that it is of heated (flashing red and orange lights). Could this be due to the bulb needing to be changed or is there something else wrong with my projector?
Asked by: Confused1
My AF115 started doing this suddenly and I was skeptical that a bulb was the problem. But I ordered a replacement from the recommended retailer MCM Electronics. Just installed the bulb today 1-23-15, this did indeed fix my projector and wow I forgot how bright it was new (still looked good with the old bulb too though). The bulb I received from MCM was a Philips bulb just like the OEM. Original bulb lasted for 3700 hours if anyone is curious.
Answered by: Talarue
Date published: 2015-01-24

Trouble Displaying 1080p 60hz with AMD Raedom HD 7900 Series

I am unable to display to 1080p 60hz to my AF115. However, 1080p at 30hz works. I am able to display that resolution to my monitors, so i know its not a cable or graphics card issue. Another note, when i do hook up the projector to my laptop, that resolution does work. I am stumped.
Asked by: bdigital100
We regret the inconvenience you have experienced with this projector. The availability of these different settings and resolutions are dependent upon the source of the signal and the connection being used. We would be more than happy to assist in this matter. Please contact our Customer Interactive Center at 800-243-0000 for assistance with this matter.
Answered by: NeilE
Date published: 2014-01-22

What size bolts/screws are needed for the bottom ceiling mount?

I have an AF115 projector
Asked by: TxProj
M4 bolts/screws are needed. Maximum 12mm long.
Answered by: TxProj
Date published: 2013-10-22

New Model

Are you guys going to replace the CF181D projector is so then when would the new model come out?
Asked by: Anonymous
LG Electronics is a company that thrives on innovation. Our products and technologies enhance lives and introduce our customers to a whole new world of creative designs. We are committed to finding new ways to make your life better and easier-through simple user interfaces, stylish designs and intelligent, state-of-the-art technology. Each unit has special design features and specifications. You may visit our website at www.lg.com to review all information on all of our newest models.
Answered by: LGJoel
Date published: 2013-10-22

IS AF115 3D CAPABLE?

I would like to know if the lg AF115 is 3d capable, and if so what are the neccessary equipment i must have so i will be able to watch 3d movies?
Asked by: Flynn
Yes, this projector is 3D capable.
Answered by: LGJoel
Date published: 2013-10-22

the AF115 says its 3d is it polarized or active?

Asked by: Anonymous
Its listed as LG cinema 3D so that means its passive ( movie theatre glasses) Hopefully its correct because i just ordered one mainly because of that!
Answered by: ysoltys
Date published: 2013-10-22

Where do you find new bulbs for this projector?

Asked by: Anonymous
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. The part number for this lamp assembly is ABA37111501.
Answered by: NeilE
Date published: 2013-10-22
