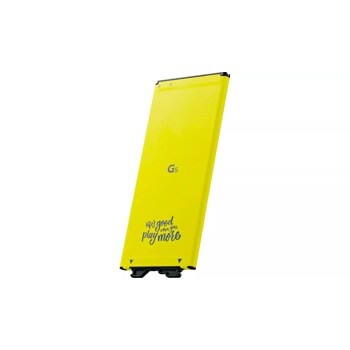

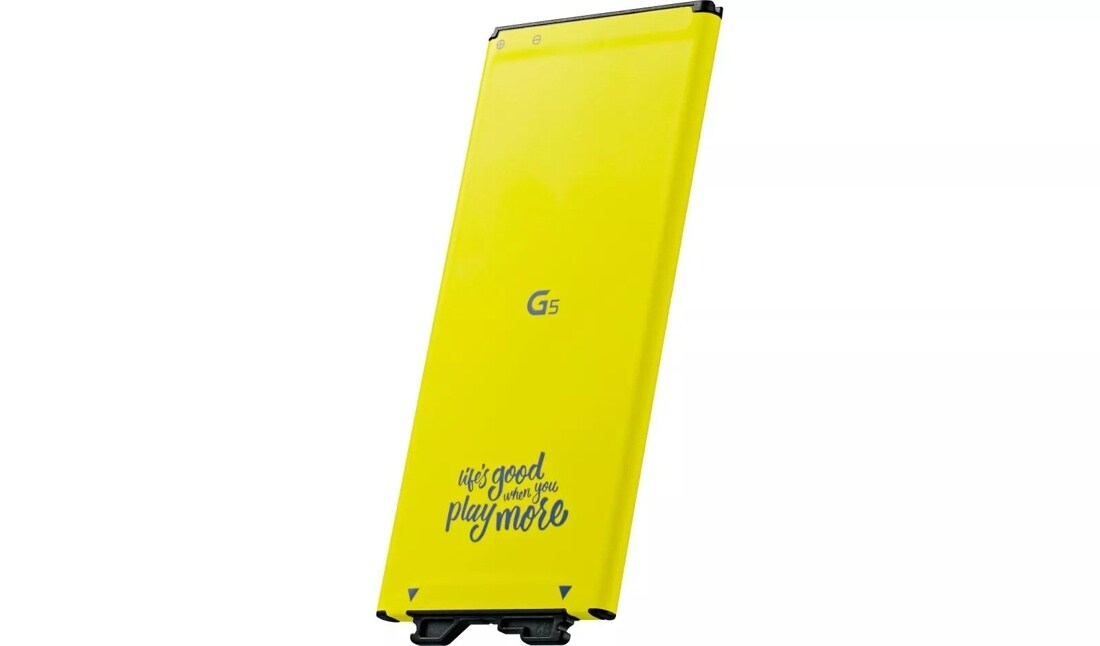

LG G5™ Battery
DISCONTINUED
LG G5™ Battery
BL-42D1F
Key features
- Removable 2,800mAh Battery
- Quick Charge 3.0*
- Conveniently Charge Your LG G5
Specifications
TECHNICAL SPECIFICATIONS
WARRANTY/UPC
BATTERY CLASSIFICATION & TYPE
See All
TECHNICAL SPECIFICATIONS
Charge Cut-off Current
20 mA
Weight
Average 1.64 oz. (LSL: 1.47 oz., USL: 1.80 oz.)
Charge Current
Standard 1,350 mA (32 ~ 113°F) Maximum 3,105 mA (32 ~ 113°F) to 4.30 V Maximum 1,890 mA (32 ~ 113°F) to 4.40 V
Charge Voltage
4.40 V
End Voltage
2.70 V
Nominal Voltage
3.85 V
Temperature Range
Storage less than 1 month: -4 ~ 140°F Storage less than 3 months: -4 ~ 113°F
Internal Resistance
Average 67 mΩ (LSL: 47 mΩ, USL: 93 mΩ)
Capacity
Minimum 2,700 mAh/Typical 2,800 mAh
Discharge Current
Standard 540 mA (32 ~ 140°F) Maximum 2,700 mA (32 ~ 140°F)
TECHNICAL SPECIFICATIONS
Charge Cut-off Current
20 mA
Weight
Average 1.64 oz. (LSL: 1.47 oz., USL: 1.80 oz.)
Charge Current
Standard 1,350 mA (32 ~ 113°F) Maximum 3,105 mA (32 ~ 113°F) to 4.30 V Maximum 1,890 mA (32 ~ 113°F) to 4.40 V
Charge Voltage
4.40 V
End Voltage
2.70 V
Nominal Voltage
3.85 V
Temperature Range
Storage less than 1 month: -4 ~ 140°F Storage less than 3 months: -4 ~ 113°F
Internal Resistance
Average 67 mΩ (LSL: 47 mΩ, USL: 93 mΩ)
Capacity
Minimum 2,700 mAh/Typical 2,800 mAh
Discharge Current
Standard 540 mA (32 ~ 140°F) Maximum 2,700 mA (32 ~ 140°F)
WARRANTY/UPC
Limited Warranty
90 Days Limited Replacement
BATTERY CLASSIFICATION & TYPE
Battery Type
LG L424695L1
Battery Classification
Lithium Ion Battery
