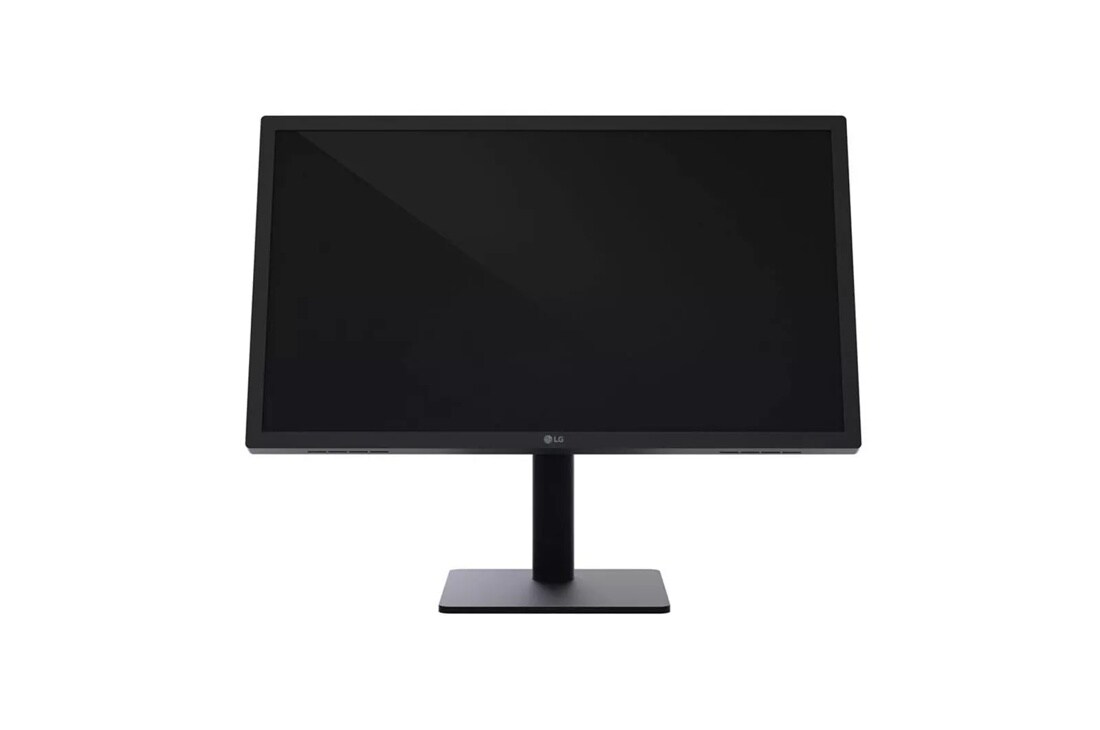

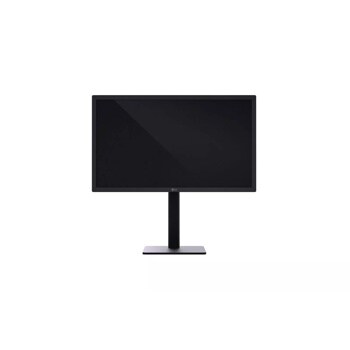

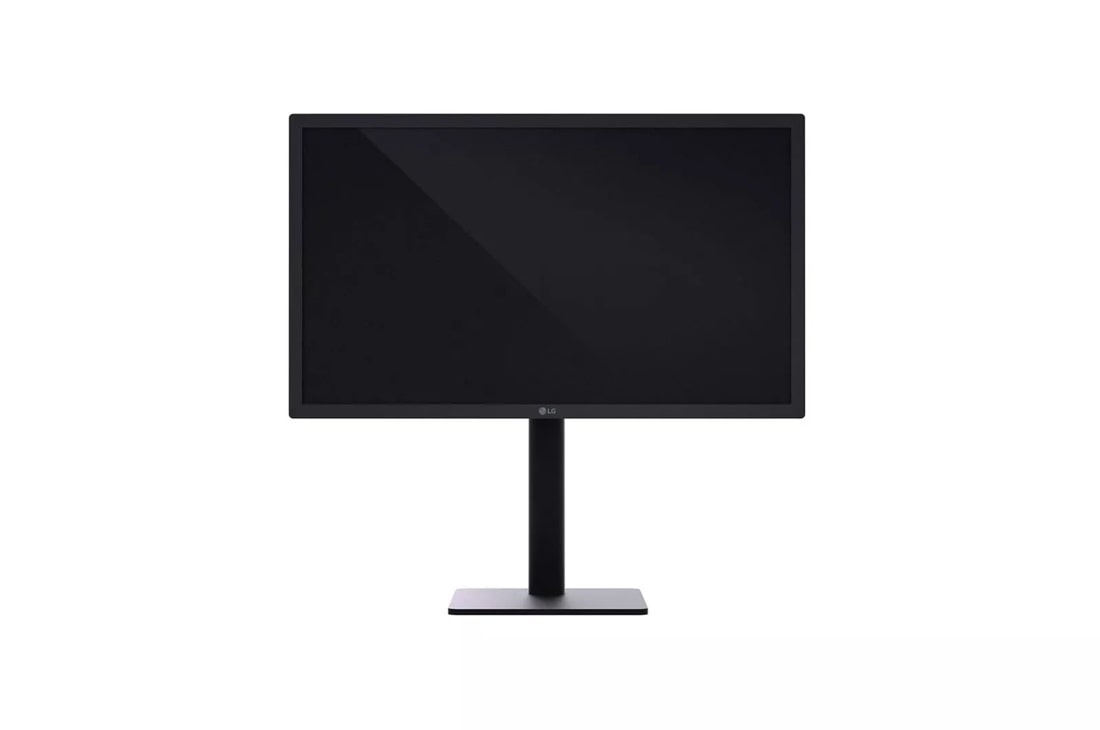

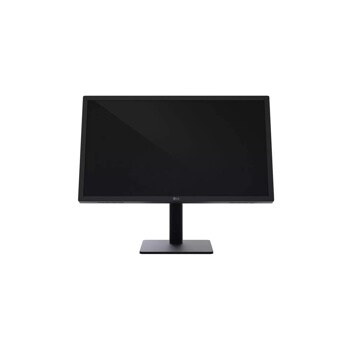

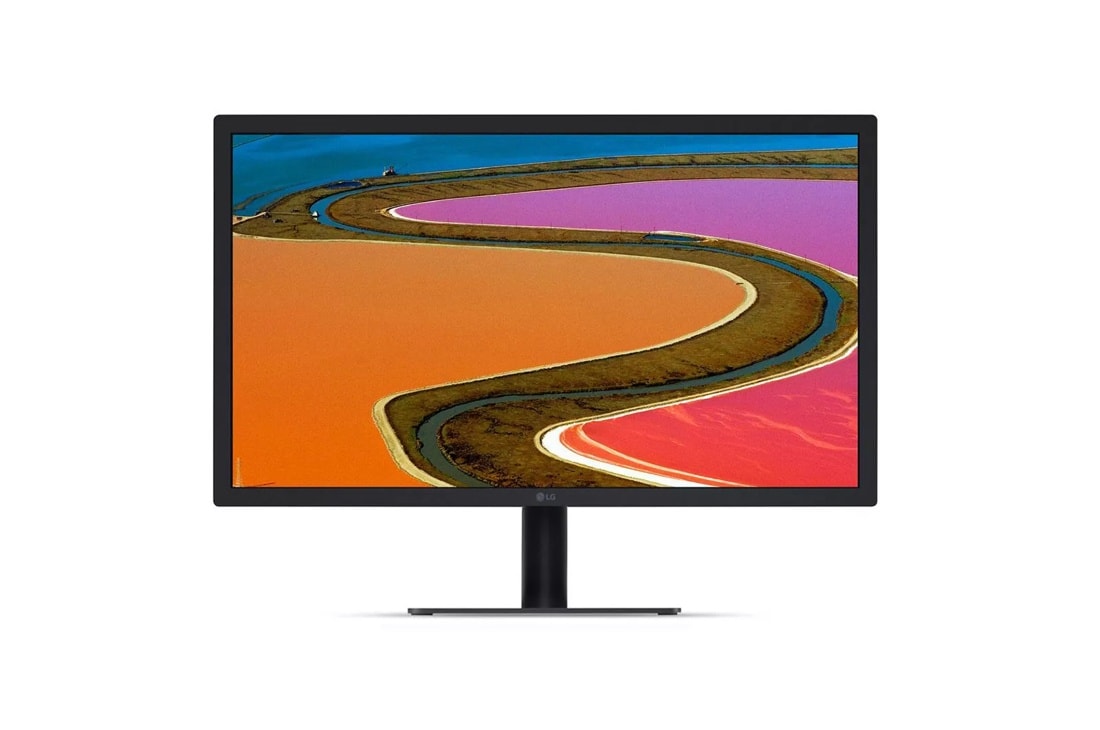

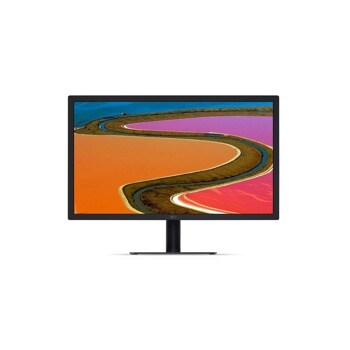

22'' Class UltraFine™ 4K IPS LED Monitor (21.5'' Diagonal)

  • 4K (4096 x 2304) IPS Display
  • 219 Pixel Per Inch
  • P3 99% Color Spectrum
  • USB-C
  • Built-In Speaker
22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal)

USB-C Versatility

One USB-C port can replace multiple ports for transmitting data, 4K video and power charging. It is also able to simultaneously charge mobile devices while charging your MacBook (up to 60W). In addition, three USB-C downstream ports (480Mbps) let you connect additional devices.¹

Recommended Connection with UltraFine 4K Display

1. 13" / 15" New MacBook Pro (Late 2016) Or 12" MacBook Retina (2015~)
Check your release date of Mac devices

2. macOS Sierra 10.12.2 or later
Check your macOS version

3. Use enclosed 'USB-C cable' in the box
The USB-C Cable has 'USB mark' on the cable.

How to Connect LG UltraFine 4K Display with Your Mac

If your Mac has a built-in USB-C port, you can use LG UltraFine 4K only with the provided USB-C cable.


    • DC Off
    • 1.2W
    • Type
    • 150W Built-in Power
    • Input
    • 100~240V, 50/60Hz
    • Normal On
    • 120W


    • UL(cUL)
    • Yes
    • FCC-B, CE
    • Yes
    • CB
    • Yes
    • CCC, BSMI
    • Yes
    • KC
    • Yes
    • China CEL
    • Yes
    • VCCI
    • Yes
    • Yes
    • RCM
    • Yes


    • Shipping Weight
    • 20.50 lbs
    • With Stand (WxHxD)
    • 19.90" x 15.29" x 8.66"
    • Without Stand (WxHxD)
    • 19.90" x 11.78"x 1.72"
    • Shipping Dimensions (WxHxD)
    • 23.74" x 19.96" x 11.38"
    • With Stand Weight
    • 12.35 lbs
    • Without Stand Weight
    • 8.38 lbs


    • HDCP
    • HDCP1.4 / 2.2
    • USB Up
    • USB-C
    • OnScreen Control (OSC)
    • Yes
    • Height (Range)
    • Yes (range 0~110mm)
    • Ambient Light Sensor
    • Yes
    • Base Detachable
    • Yes (One touch release button)


    • Limited Warranty
    • 1 Year Parts & Labor
    • UPC
    • 719192606708


    • Screen Size Class (diagonal)
    • 21.5" Flat
    • Resolution
    • 4096 x 2304
    • Response Time
    • 12ms / 14ms GTG
    • Refresh Rate
    • H-Frequency: 88~143kHz V-Frequency: 48~60Hz
    • Color Depth
    • 8bits, 16.7M
    • Panel Type
    • IPS
    • Aspect Ratio
    • 16:9
    • Color Gamut (CIE1931)
    • DCI-P3 99%
    • Brightness (typical)
    • 500 nits
    • Contrast Ratio
    • 1100:1
    • Viewing Angle
    • 178/178
    • Surface Treatment
    • Anti-glare, 2H
    • Pixel Pitch (mm)
    • 0.11622 mm × 0.11622 mm


    • USB
    • 3 downstream (USB-C)
    • USB-C
    • Yes (x1, PD, DP Alt. Mode, USB3.1 Gen1), UHD@60Hz
    • HDMI
    • Yes

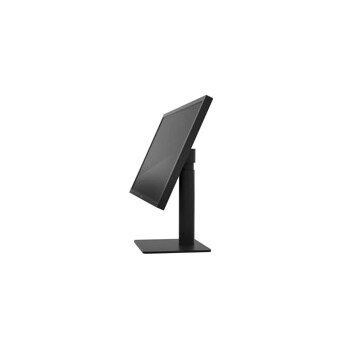

    • Tilt (Angle)
    • Yes (Angle -5~25 degree)


    • VESA® Size (mm)
    • 100 x 100
    • VESA design cover
    • Yes
    • Power Cord
    • USB Type C to C
    • Yes (USB-C Passive Cable, 1.8m)
    • Easy Setup Guide
    • Yes
    • Guides on Using Product Functions
    • Yes


    • Audio Output
    • 5Wx2 77dB (Based on LG Standard)


    • S/W Install CD
    • Web Download

What people are saying

Rated 1 out of 5 by from Infuriating design decisions I borrowed this from someone during lockdown. They use a Mac, I use a PC. What is this obsession with minimalist design features such that it's not even considered necessary to provide some buttons to adjust the screen settings. The monitor was far too bright and I spent 15 minutes trying to find a way to adjust the setting. After looking online it appeared there is no way of doing this via the hardware. There is apparently an auto-sensor, which is clearly not a good idea unless it's complemented with a way to adjust it given that not everyone has the same preferences. It seems that you can update the settings via iOS, but I don't actually believe there's a way to adjust the settings on your PC. Maybe if you install some driver you can, but why on earth should I have to go to that much effort when you could simply provide me a few buttons to update it in 30 seconds, rather than wasting 30 minutes only to have not even solved the problem. Terrible design.
Date published: 2020-07-27
Rated 2 out of 5 by from why in the spec it mentioned hdmi? this monitor does't have HDMI input at alll while the spec says it does.
Date published: 2020-05-06
Rated 5 out of 5 by from Great picture I bought this monitor to go with a new Apple Mac Mini as I had owned my old monitor for several years. I was literally shocked at how clear the picture is. I can read text on this monitor so much easier, than the old monitor. One of the best features is the fact that you just plug it into your Mac and enjoy. There is no buttons for adjustments, not even an on-off button. You simply start your computer and the picture is in perfect settings.
Date published: 2020-01-17
  • y_2020, m_9, d_21, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_41
  • loc_en_US, sid_MD05788569, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 2ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

when i go to "where to buy" no results show up. I went on amazon and they had them but only renewed ones. Where should i go to get one of these monitors?

Asked by: nickkkkkkkk
Hi nickkkkkkkk. The LG 22'' Class UltraFine™ 4K IPS LED Monitor (21.5'' Diagonal), Model # 22MD4KA-B is a 2016 model that is only available as a refurbished or "used - Like new" product through various retailers and online sites. Regrettably, it is no longer available as a new product...^IFV
Answered by: Ivanf
Date published: 2019-11-14

How do I connect speakers to this monitor?

Asked by: Bobec
The unit has two very nice speakers built into it - I know since I'm using them daily!
Answered by: dhoerl
Date published: 2020-04-25

Hi, does this monitor have an input list for multiple devices in it's menu, in case I want to connect my iMac and my Xbox One X at the same time and switch between the 2, if so, would they both be displaying 4K resolution? Thanks.

Asked by: Simster
The LG 22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal), Model # 22MD4KA has a USB-C port and three USB-C downstream ports (480Mbps) that let you connect additional devices...^IFV
Answered by: Ivanf
Date published: 2019-03-19

Can this monitor be used in Europe without a power converter? I'm assuming this is the case because the specs say 100-240V, but I'd like to know for sure before I move.

Asked by: Lizzzzz
HI Lizzzzz. The LG 22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal), Model # 22MKD4KA has a power rating of 100 - 240 V~ 50/60 Hz 1.4 A, so you will not need a step-down converter to use it abroad. Depending on where in Europe you move to, you will need an adapter for the plug on the monitor's power cord to fit into the electrical sockets they use since they use different types of sockets from those used in the U.S...^IFV
Answered by: LGJoel
Date published: 2018-12-05

I installed the LG Screen Manager today from the App store, and updated the firmware of the display. However I don't have the "screen split" tab/functionality in the LG Screen Manager. Is this expected? Is there a missing step to set this up?

Asked by: emirpprime
The LG Screen Manager has been optimized for MacOS to provide a variety of multi-screen options and should enable you to automatically divide the screen on the LG 22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal), Model # 22MD4KA-B into two or four frames according to your specific needs. Regrettably, we are not familiar with which app store you downloaded the software from. There should be a download link on the monitor's support page on our site. You may want to download the software from there. The U.K. site may be different from that in the U.S. and if you need assistance, please contact the Support Center in the U.K., https://www.lg.com/uk for assistance...^IFV
Answered by: LGJoel
Date published: 2018-11-01

Are there plans for a non USB-C version of this display? Would love to use this with the previous generation of MacBook Pros.

Asked by: Jeff Miller
Regrettably, we do not have any information on if LG will collaborate with Apple to design another monitor like the LG 22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal), Model # 22MD4KA-B that does not feature USB-C ports. There should be adapters available that you can use to connect to the USB-C port on the monitor...^IFV
Answered by: LGJoel
Date published: 2018-07-06

Could I use this monitor for an win 10 computer by mini dp? I mean input is dp alt.mode usb 3.1 Gen1, is there any adapter to make this happen, from minidp to usb 3.1. Thanks.

Asked by: frankshu
Regrettably, LG does not manufacture adapters that you can use to connect to the USB-C or HDMI ports on LG 22" Class UltraFine™ 4K IPS LED Monitor (21.5" Diagonal), Model # 22MD4KA. There should be a variety of adapters available and you should be able to find those through online sites or retailers that sell cables or computers...^IFV
Answered by: LGJoel
Date published: 2018-04-12

Does the ambient light sensor work at all? I have been unable to find any report of its usage and it does not work for me in Sierra. Can you specify a combination of Mac and MacOS where it can actually be used to automatically adjust the brightness?

Asked by: Lee3
The Ambient Light Sensor (ALS) should work fine. To find how it works, open System Preferences and select Displays. Enable "Automatically adjust brightness" and the computer will use the ambient light sensor to automatically adjust the brightness. You can also check if Mac OS is updated. The ALS operates in accordance with Mac OS and some Mac OS doesn’t support the display ALS. If all mentioned above don't work, try to place your hand on the ambient light sensor and check if your screen will turn black. If not, then the ambient light sensor might not be working. ^AC
Answered by: amber
Date published: 2017-12-27
