Discontinued
23M45D-B

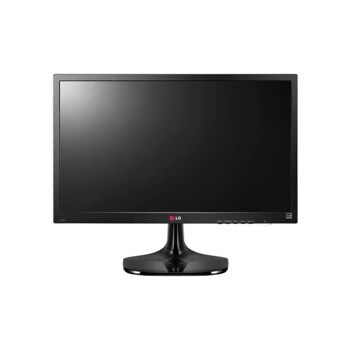

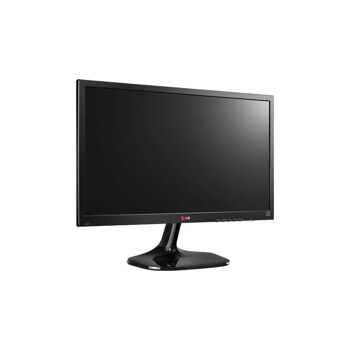

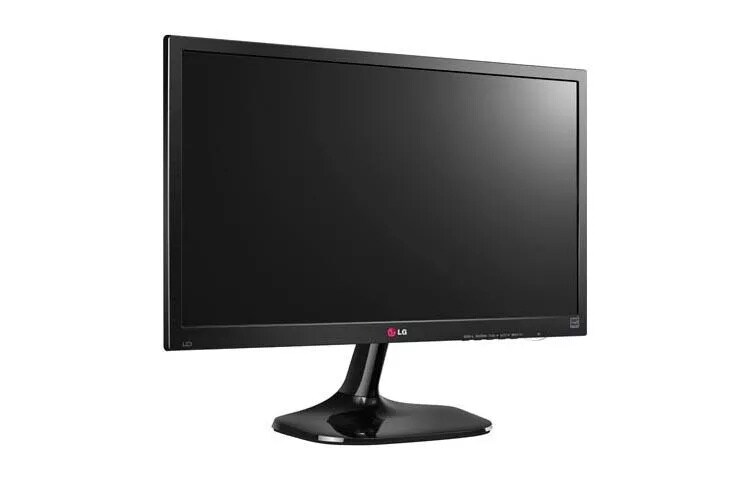

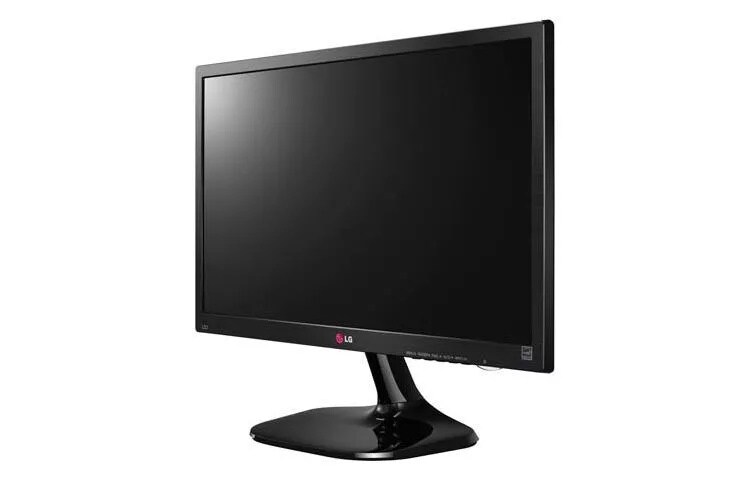

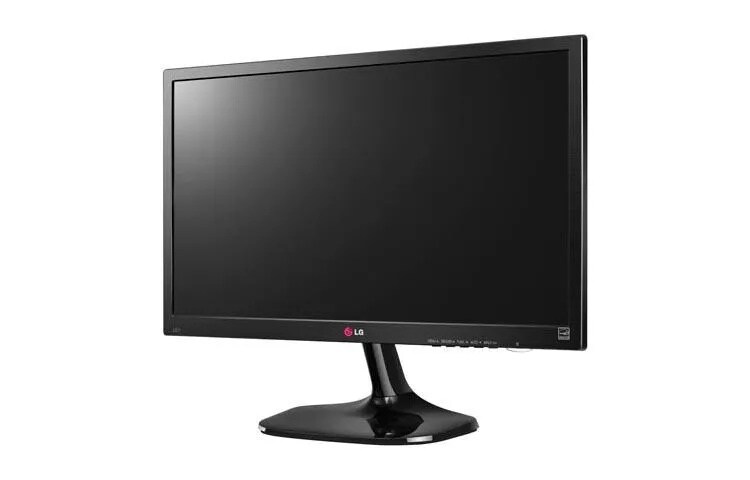

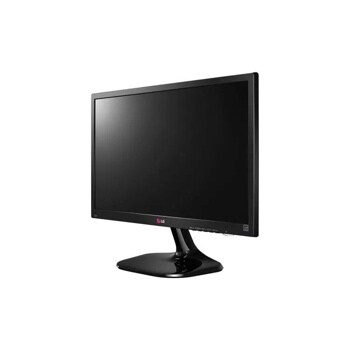

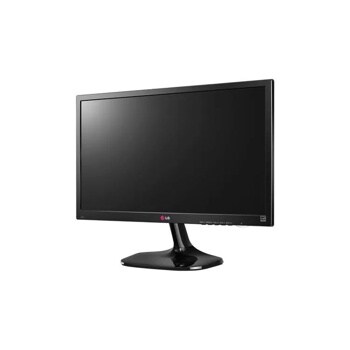

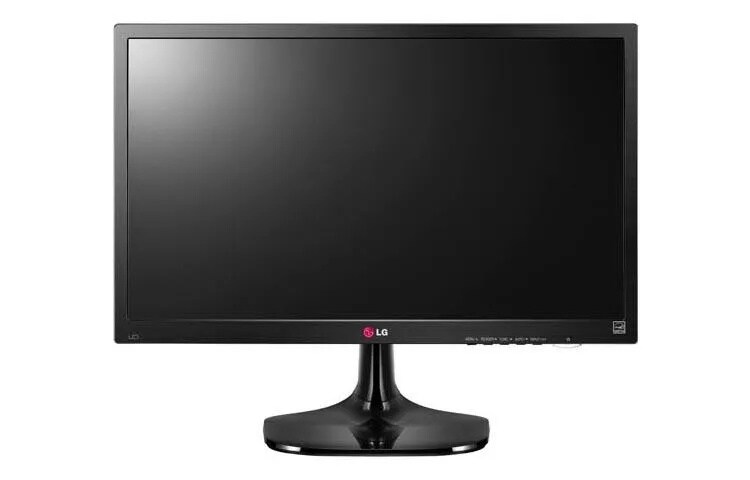

23'' Class Full HD LED Monitor (23'' Diagonal)

  • Full HD 1080p Resolution
  • DVI-D
23" Class Full HD LED Monitor (23" Diagonal)

SUMMARY

  • Screen Size
    23"

PANEL SPECIFICATIONS

  • Screen Size Class (diagonal)
    23" Class (23.0" diagonal)
    Panel Type
    TN
  • Aspect Ratio
    16:9
    Resolution
    1920 x 1080
  • Color Gamut
    72%
    Brightness (cd/m2)
    250 cd/m2
  • Contrast Ratio(Original)
    1000:1
    Response Time (typical)
    5ms
  • Viewing Angle (CR>10)
    170º/160º
    Surface Treatment
    AG, 3H

INPUTS/OUTPUTS

  • D-Sub
    1
    DVI-D
    1

POWER

  • Type
    Adapter
    Input
    100~240V, 50/60Hz
  • Normal On (EPA 6.0)
    21W

SPECIAL FEATURES

  • Reader Mode
    Yes
    DDC/CI
    Yes
  • HDCP
    Yes
    Plug & Play
    Yes
  • Original Ratio
    Yes
    Picture Mode
    Yes
  • Intelligent Auto (Auto Resolution)
    Yes
    Key Lock
    Yes
  • Flicker Safe
    Yes
    Dual Smart Solution (Dual Web, Dual Display)
    Yes

DIMENSIONS/WEIGHT

  • Monitor without Stand (WxHxD)
    21.42" x 13.07" x 2.36"
    With Stand (WxHxD)
    21.42" x 17.17" x 7.4"
  • Without Stand Weight
    5.7 lbs
    With Stand Weight
    6.4 lbs

STANDARD

  • TCO6.x
    TC06.0
    UL(cUL)
    Yes
  • TUV-type
    Yes
    FCC-B, CE
    Yes
  • EPA 6.0
    Yes, 6.0
    EPEAT
    Yes (Gold)
  • Windows
    Yes

CABINET / ACCESSORIES

  • VESA® Size (mm)
    75 x 75
    Power Cord
    1
  • D-Sub
    1
    DVI-D
    1

WARRANTY / UPC

  • Limited Warranty
    1 Year Parts & Labor
    UPC
    719192193406

What people are saying

Rated 4 out of 5 by from Nice monitor! I bought this monitor about a month ago and I like the way it looks!
Date published: 2017-11-09
Rated 5 out of 5 by from Love my new monitor This new monitor fit perfectly on my home office desk. The brightness is perfect and so it the resolution!
Date published: 2015-04-28
Rated 5 out of 5 by from Top quality Very happy with the LG brand and the quality of this monitor. No glare on the screen and very true colors. I have been very happy with it.
Date published: 2014-12-21
  • y_2020, m_2, d_18, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.5
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_MD05106926, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 230ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

I live in Vegas the temperature is over 100° my clients want to put an LG monitor outside at 4 PM will this damage my TV what is the highest temperature that a monitor should function in

Asked by: Jahshsjsjsj
The proper operating temperature for this television must remain between 32 and 104 degrees Fahrenheit. It is important not to allow this unit to operate outside of this range, as it would cause damage to the product.
Answered by: NeilE
Date published: 2016-07-08

I need a power cable for the 23M45-B LED Monitor - What do I need to buy and do you sell or where can I get it

Asked by: kgall
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this Power Adapter is EAY62830303.
Answered by: NeilE
Date published: 2017-08-15

Compatibility with MacBookAir?

This laptop does not have a disc reader - I have the VGA adapter how can I download the software to install this software?
Asked by: Buff1016
We appreciate your interest in this monitor and its features. The only setup software available is based for Windows 2000 up to Windows 8.1. We have no listings for Mac Operating Systems.
Answered by: NeilE
Date published: 2014-08-05

How do I get the desk mount off the monitor.  I have a fixed mount now.

Asked by: Dwightcop

Does it have an inbuilt decoder?

Asked by: Misseh
