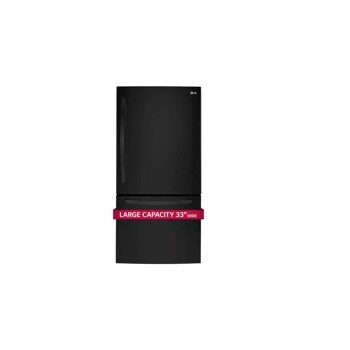

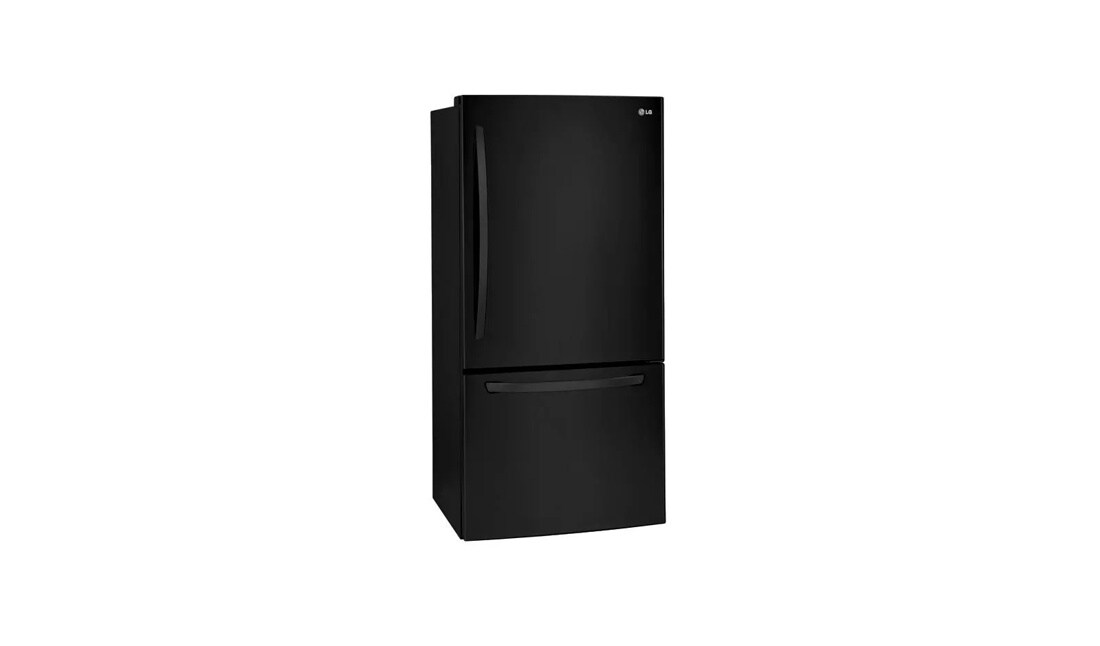

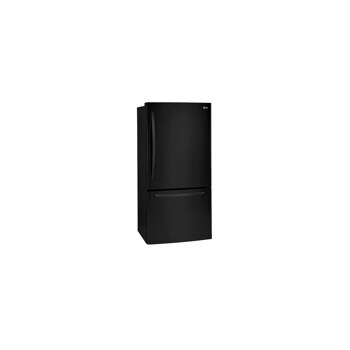

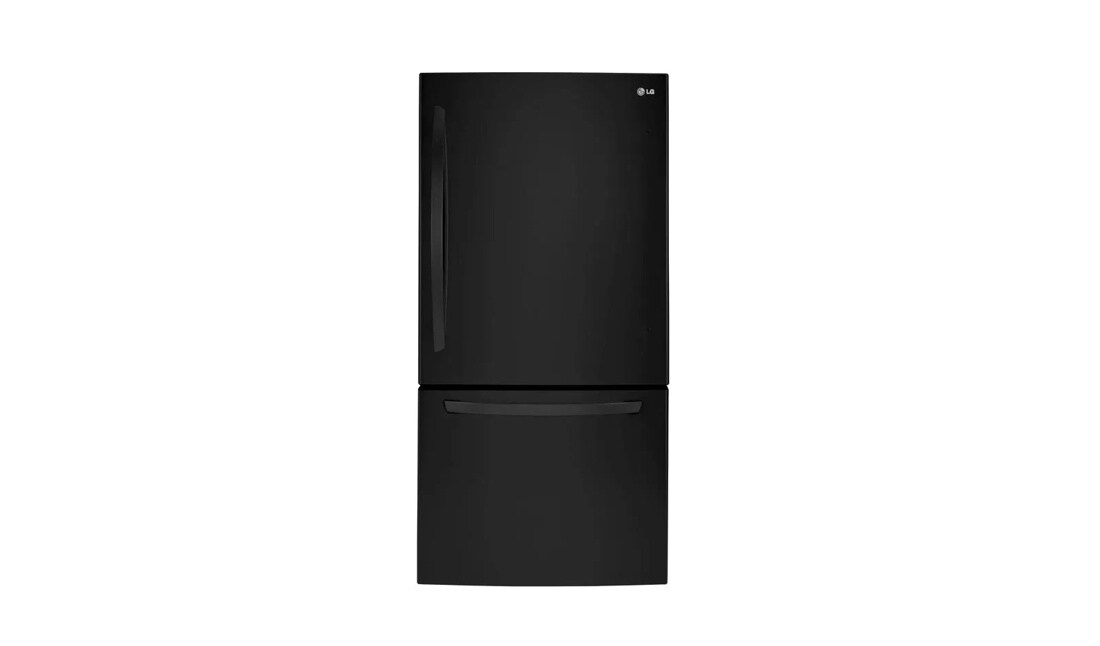

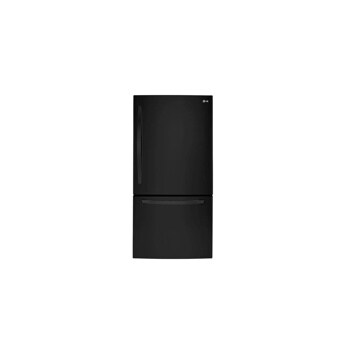

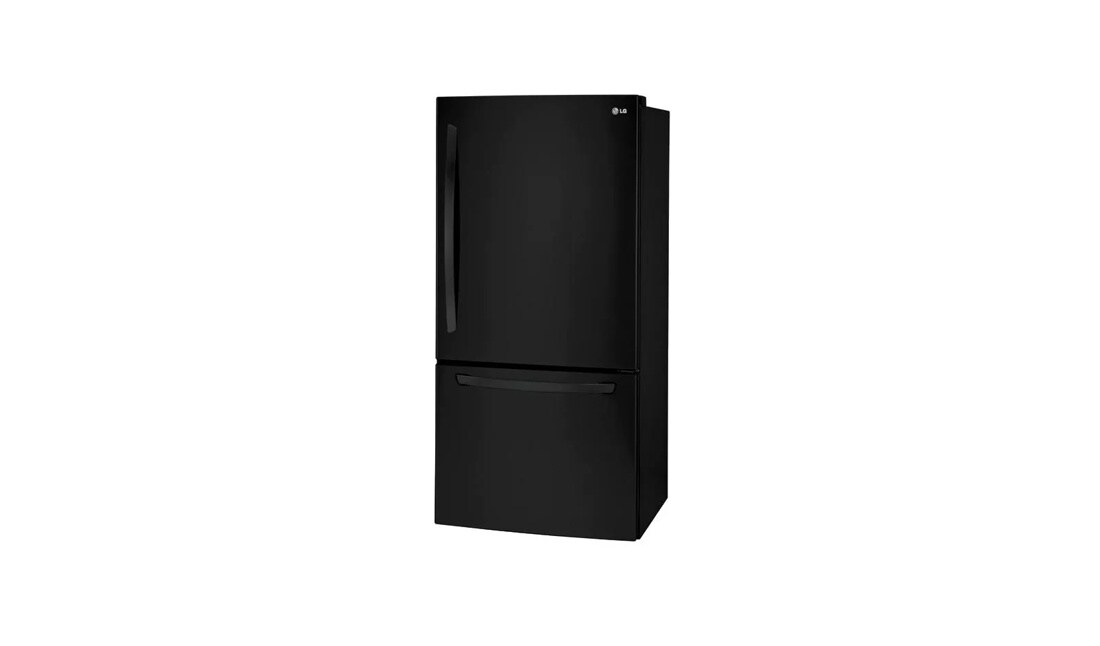

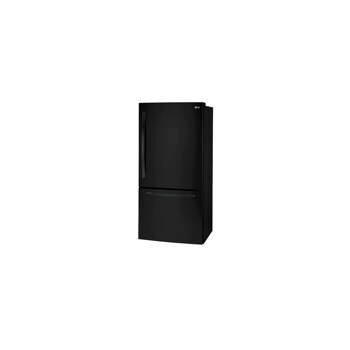

24 cu. ft. Bottom Freezer Refrigerator
DISCONTINUED
24 cu. ft. Bottom Freezer Refrigerator
LDCS24223B
Key features
- 24 cu.ft., Largest Capacity
- Smart Cooling® System
- SmartDiagnosis™ System
- 10-Year Manufacturer’s Limited Warranty on Linear Compressor
- ENERGY STAR® Qualified
Specifications
FREEZER
REFRIGERATOR DOOR
DIMENSIONS/CLEARANCES/WEIGHTS
FEATURES
WARRANTY
MATERIALS AND FINISHES
REFRIGERATOR
SUMMARY
See All
FREEZER
Drawers
2-Tier Organization
Ice Bin
Yes
Freezer Light
Premium LED
Handle
Vista
Ice Maker
Yes
FREEZER
Drawers
2-Tier Organization
Ice Bin
Yes
Freezer Light
Premium LED
Handle
Vista
Ice Maker
Yes
REFRIGERATOR DOOR
No. of Shelves/Bin
5 Total (3 Full, 1 Flip-Up + Dairy)
Door Bin Construction
Clear
Dairy Corner
Yes
DIMENSIONS/CLEARANCES/WEIGHTS
Depth with Handles
34 7/8"
Depth without Handles
33"
Depth without Door
29"
Depth (Total with Door Open)
62 3/4"
Height to Top of Case
68 5/8"
Height to Top of Door Hinge
69 7/8"
Width
32 3/4"
Width (Door Open 90˚ with Handle)
36 1/2"
Width (Door Open 90˚ without Handle)
34 1/2"
Door Edge Clearance with Handle
4 1/4"
Door Edge Clearance without Handle
2"
Installation Clearance
Sides 1/8", Top 1", Back 1"
Weight (Unit/Carton)
235 lbs./248 lbs.
Carton Dimensions (WxHxD)
34 3/8" x 70 1/2" x 36 6/8"
FEATURES
Smart Cooling System
Yes
Temperature Sensors
6
Ice System
Factory Installed Ice Maker
Linear Compressor
Yes
Display Type
Membrane / Green LED
Temperature Controls
Electronic/Digital
Door Alarm
Yes
LoDecibel™ Quiet Operation
Yes
SmartDiagnosis™
Yes
Daily Ice Production
2.8 lbs / 3.1 lbs (IcePlus)
Ice Storage Capacity
12 lbs
Multi-Air Flow Cooling
Yes
Hidden Hinges
Yes
ENERGY STAR® Qualified
Yes (608 kWh/Year)
WARRANTY
UPC
048231787451
MATERIALS AND FINISHES
Hidden Hinges
Yes
Surface
Coated Metal, Stainless Steel
Back
Flush & Metal Cover Over Mechanical Parts
Handles
Matching Commercial Handles
Available Colors
Stainless Steel (S), Smooth White (W), Smooth Black (B)
Contour Door
Yes
REFRIGERATOR
No. of Shelves
2 Full
Shelf Construction
SpillProtector™ Tempered Glass
Crisper Bins
2 Humidity Crispers
Refrigerator Light
Premium LED
Glide N’ Serve® Drawer
Yes
SUMMARY
Door Type
Bottom Freezer
Community Q&A
