Discontinued
LFC21776D

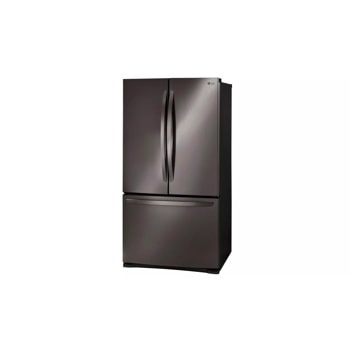

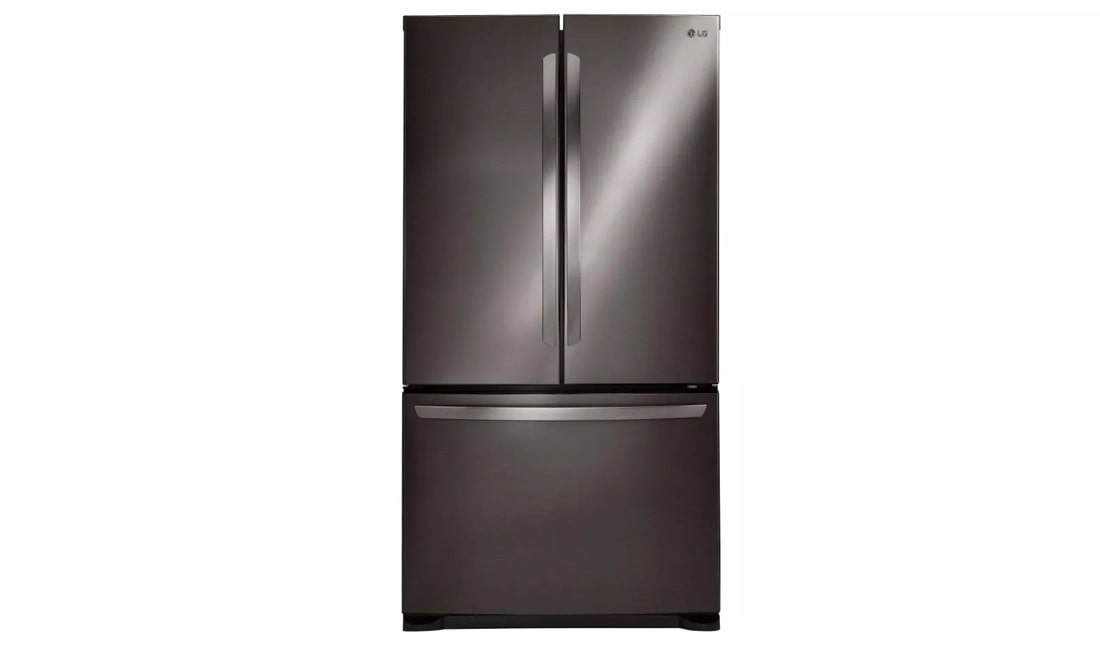

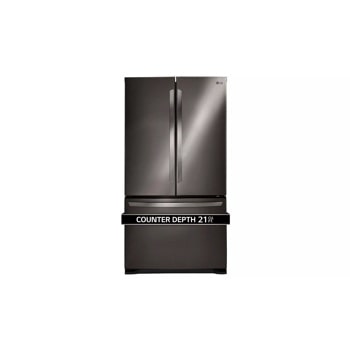

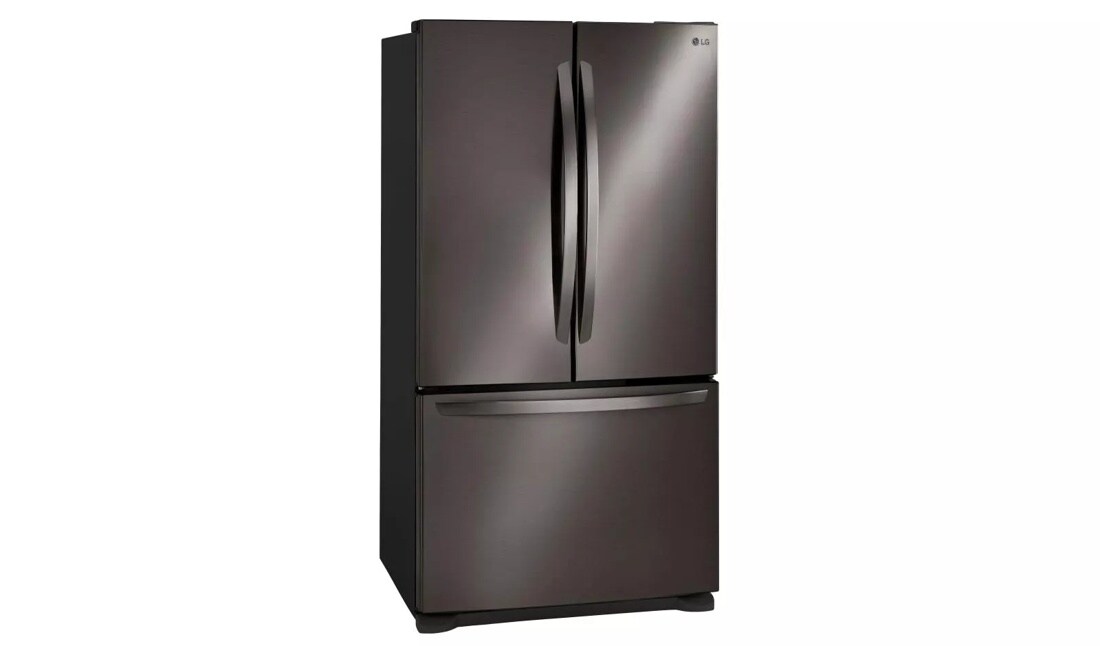

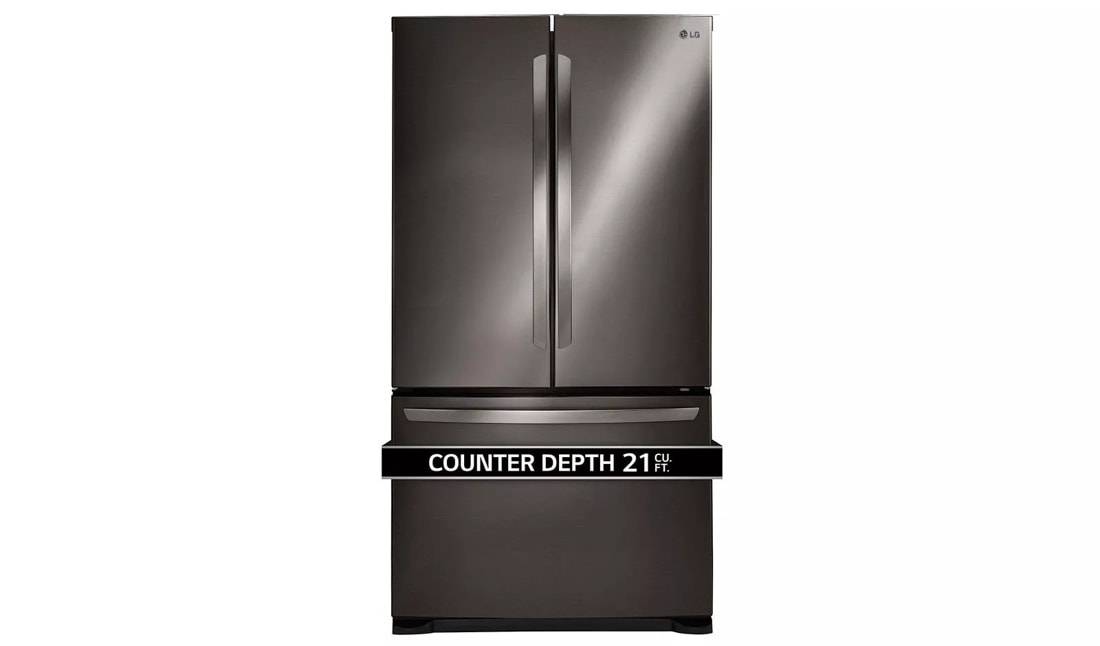

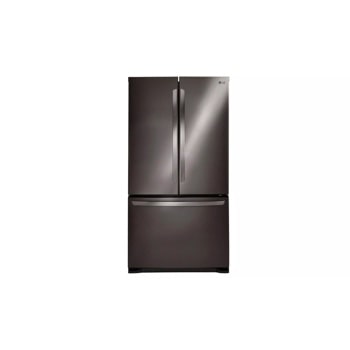

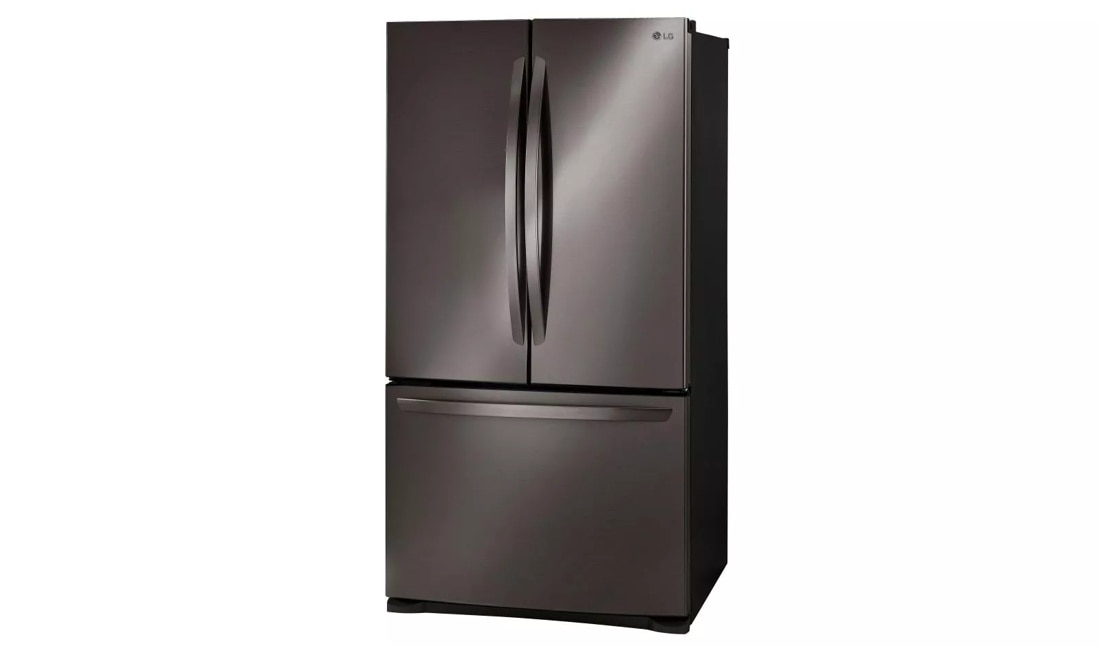

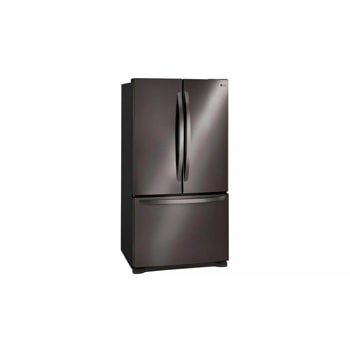

21 cu. ft. French Door Counter-Depth Refrigerator

  • 21 cu. ft. Large Capacity
  • PrintProof™ Finish
  • Counter-Depth
  • Smart cooling
  • ENERGY STAR® Qualified
21 cu. ft. French Door Counter-Depth Refrigerator

SUMMARY

    • Door Type
    • French 3-Door
    • Total Capacity
    • 20.9

SUMMARY

    • Door Type
    • French 3-Door

SUMMARY

    • ENERGY STAR® Qualified
    • Yes

SUMMARY

    • LoDecibel™ Operation
    • Yes
    • Child Lock
    • Yes

SUMMARY

    • Counter Depth (in.)
    • Yes
    • SmartDiagnosis™
    • Yes

SUMMARY

    • Refrigerator Type
    • Counter Depth

FEATURES

    • Multi Air Flow Cooling
    • Yes

CAPACITY

    • Refrigerator
    • 14.70 cu. ft.
    • Freezer
    • 6.20 cu. ft.

FEATURES

    • Temperature Sensors
    • 5

CAPACITY

    • Total
    • 20.9 cu. ft.

FEATURES

    • Auto Closing Door Hinge
    • Yes

FEATURES

    • ENERGY STAR® Qualified
    • Yes (573 kWh/Year)

FEATURES

    • LoDecibel™ Operation
    • Yes

FEATURES

    • Multi-Air Flow Cooling
    • Yes

FEATURES

    • Linear Compressor
    • Yes

FEATURES

    • Temperature Sensors
    • 5

FEATURES

    • Display Type
    • Smooth Touch Control / Green LED
    • Temperature Controls
    • Electronic/Digital

FEATURES

    • Linear Compressor
    • Yes
    • Display Type
    • Smooth Touch Control / Green LED

FEATURES

    • Door Alarm
    • Yes
    • SmartDiagnosis™
    • Yes

FEATURES

    • Temperature Controls
    • Electronic/Digital
    • Door Alarm
    • Yes

FEATURES

    • ENERGY STAR® Qualified
    • Yes (573 kWh/Year)

REFRIGERATOR

    • Glide N’ Serve™ Drawer
    • Yes

FEATURES

    • Child Lock
    • Yes
    • LoDecibel™ Operation
    • Yes

REFRIGERATOR

    • No. of Shelves
    • 4 Split (3 Slide Out, 1 Folding)

FEATURES

    • SmartDiagnosis™
    • Yes

REFRIGERATOR

    • Cantilevered Shelves
    • Yes

FEATURES

    • Auto Closing Door Hinge
    • Yes

REFRIGERATOR

    • Shelf Construction
    • Spill Protector™ Tempered Glass
    • Crisper Bins
    • 2 Humidity Crispers / 1 Bonus Drawer

REFRIGERATOR

    • No. of Shelves
    • 4 Split (3 Slide Out, 1 Folding)
    • Cantilevered Shelves
    • Yes

REFRIGERATOR

    • Refrigerator Light
    • Premium LED

REFRIGERATOR

    • Shelf Construction
    • Spill Protector™ Tempered Glass

REFRIGERATOR

    • Dairy Corner/Bin
    • Yes
    • Door Bin Construction
    • 2 Piece (Clear+Opaque)

REFRIGERATOR

    • Crisper Bins
    • 2 Humidity Crispers / 1 Bonus Drawer

FREEZER

    • Drawers
    • 2-Tier Organization

REFRIGERATOR

    • Glide N’ Serve™ Drawer
    • Yes

FREEZER

    • DuraBase™ Solid Drawer Base
    • Yes

REFRIGERATOR

    • Refrigerator Light
    • Premium LED

REFRIGERATOR DOOR

    • No. of Shelves/Bin
    • 8 Total (5 Adjustable Gallon Sized)

FREEZER

    • Divider
    • Yes
    • Ice Bin
    • Yes

REFRIGERATOR DOOR

    • Dairy Corner/Bin
    • Yes
    • Door Bin Construction
    • 2 Piece (Clear+Opaque)

FREEZER

    • Freezer Light
    • LED
    • Door Type
    • Pull Drawer

FREEZER

    • Drawers
    • 2-Tier Organization

FREEZER

    • Ice Maker
    • 2.5 lbs / 2.7 lbs (IcePlus)

FREEZER

    • DuraBase™ Solid Drawer Base
    • Yes
    • Drawer Divider
    • Yes

DIMENSIONS/CLEARANCES/WEIGHT

    • Depth with Handles
    • 30"

FREEZER

    • Ice Maker
    • 2.5 lbs / 2.7 lbs (IcePlus)

DIMENSIONS/CLEARANCES/WEIGHT

    • Depth without Handles
    • 27 1/2"

FREEZER

    • Ice Bin
    • Yes

DIMENSIONS/CLEARANCES/WEIGHT

    • Depth without Door
    • 23 5/8"
    • Depth (Total with Door Open)
    • 42 1/4"

FREEZER

    • Freezer Light
    • LED
    • Door Type
    • Pull Drawer

DIMENSIONS/CLEARANCES/WEIGHT

    • Height to Top of Case
    • 68 3/8"
    • Height to Top of Door Hinge
    • 69 3/4"

MATERIALS AND FINISHES

    • Contour Door
    • Yes

DIMENSIONS/CLEARANCES/WEIGHT

    • Width
    • 35 3/4"

MATERIALS AND FINISHES

    • Hidden Hinges
    • Yes
    • Surface
    • Stainless Steel

DIMENSIONS/CLEARANCES/WEIGHT

    • Width (Door Open 90˚ with Handle)
    • 44 1/4"
    • Width (Door Open 90˚ without Handle)
    • 39 1/4"

MATERIALS AND FINISHES

    • Back
    • Flush & Metal Cover Over Mechanical Parts

DIMENSIONS/CLEARANCES/WEIGHT

    • Installation Clearance
    • Sides 1/8", Top 1", Back 1"

MATERIALS AND FINISHES

    • Available Colors
    • Black Stainless Steel (D), Stainless Steel (S)

DIMENSIONS/CLEARANCES/WEIGHT

    • Weight (Unit/Carton)
    • 333 lbs.

MATERIALS AND FINISHES

    • Handles
    • Matching Commercial Handles

DIMENSIONS/CLEARANCES/WEIGHT

    • Carton Dimensions (WxHxD)
    • 38" x 73" x 33"

SPECIFICATIONS

    • Dimensions (W case x H top of hinge x D with handles)
    • 35 3/4" x 69 3/4" x 30"
    • Depth with Handles
    • 30"

DIMENSIONS/CLEARANCES/WEIGHT

    • Weight (Product)
    • 278 lbs.

SPECIFICATIONS

    • Depth without Handles
    • 27 1/2"

DIMENSIONS/CLEARANCES/WEIGHT

    • Dimensions (W case x H top of hinge x D with handles)
    • 35 3/4" x 69 3/4" x 30"

WARRANTY

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)

SPECIFICATIONS

    • Depth without Door
    • 23 5/8"

WARRANTY

    • UPC
    • 048231788380

SPECIFICATIONS

    • Depth (Total with Door Open)
    • 42 1/4"
    • Height to Top of Case
    • 68 3/8"

MATERIALS & FINISHES

    • Handle
    • Matching Commercial Handles

SPECIFICATIONS

    • Height to Top of Door Hinge
    • 69 3/4"

MATERIALS & FINISHES

    • Available Colors
    • Black Stainless Steel (D), Stainless Steel (S)

SPECIFICATIONS

    • Width
    • 35 3/4"

MATERIALS & FINISHES

    • Hidden Hinges
    • Yes

SPECIFICATIONS

    • Width (Door Open 90° with Handle)
    • 44 1/4"

MATERIALS & FINISHES

    • Surface
    • Stainless Steel

SPECIFICATIONS

    • Width (Door Open 90° without Handle)
    • 39 1/4"

MATERIALS & FINISHES

    • Back
    • Flush & Metal Cover Over Mechanical Parts
    • Contour Door
    • Yes

SPECIFICATIONS

    • Installation Clearance
    • Sides 1/8", Top 1", Back 1"

CAPACITY

    • Refrigerator
    • 14.70 cu. ft.

SPECIFICATIONS

    • Weight (Shipping)
    • 333 lbs.

CAPACITY

    • Freezer
    • 6.20 cu. ft.

SPECIFICATIONS

    • Carton Dimensions (WxHxD)
    • 38" x 73" x 33"
    • Weight (Product)
    • 278 lbs.

CAPACITY

    • Total
    • 20.9 cu. ft.

WARRANTY

    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
    • UPC
    • 048231788380

What people are saying

Rated 3 out of 5 by from Black stainless peels I’ve had this 3 years. Not that long and the black stainless layer is peeling at the bottom of the door handle. Not attractive. I would not recommend this product line
Date published: 2020-08-20
Rated 5 out of 5 by from Have had the fridge a couple of weeks and so far I love it. Just need to have the water line hooked up for the ice maker but have been using trays to make ice which freeze quickly.
Date published: 2019-12-08
Rated 5 out of 5 by from Great features & functions We’ve had it in our Class A Motorhome for one trip, and my wife loves it so much she wants one for the house!
Date published: 2019-04-09
  • y_2020, m_9, d_20, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_43
  • loc_en_US, sid_MD05782149, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 228ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

is this product current or discontinued?

Asked by: bc1982
Hello, the LFC21776D is a 2018 model refrigerator. ^AC
Answered by: Amber C
Date published: 2018-12-20

Are the doors flush with the side of the refrigerator when open at 90*? I have a wall on the right side and my overall opening is exactly 37" between the wall and the counter.

Asked by: Pahrump
The ENERGY STAR® Qualified LG 21 cu. ft. French Door Counter-Depth Refrigerator, Model # LFC21776D has a width of 35 3/4" with the doors closed and a width of 44 1/4 with the doors opened 90°. That means each door is not flush with the sides of the refrigerator when opened 90°, and will be 4 1/4" wider than the sides of the refrigerator when opened 90°...^IFV
Answered by: LGJoel
Date published: 2018-07-12

How to turn on door alarm

Asked by: Jayloveyou33
The ENERGY STAR® Qualified LG Black Stainless Steel Series 21 cu. ft. 3-Door French Door Counter-Depth Refrigerator, Model # LFC21776D has an 'Alarm' touchpad on the right-hand side of its control panel that you can press to enable/disable the door alarm. You will find the instructions on page 20 of your owner's manual for the refrigerator...^IFV
Answered by: LGJoel
Date published: 2018-01-09

I want a French door with double drawer without water and ice on the door. Is this available?

Asked by: Mary o13
We currently do not have a french door model available that meet these specifications.
Answered by: Shena
Date published: 2017-12-01

We just bought this fridge and have a question about the doors. The right hand door swings easily until it gets within an inch of closing and then you have to give it a little push in order for it to close the whole way. Is this by Design

Asked by: ALM in PA
This is by design. The left door would close automatically, however, the right door has to be pushed all the way closed.
Answered by: NeilE
Date published: 2017-10-16

Measurements of lg lmxs30796d

Asked by: Ps999
All the dimensions for the ENERGY STAR® Qualified LG 30 cu. ft. InstaView™ Door-in-Door® Refrigerator, Model # LMXS3079D can be found in the Dimensions/Clearance/Weights section in its Tec Specs on its product information page at http://www.lg.com/us/refrigerators/lg-LMXS30796D-french-4-door-refrigerator: DIMENSIONS/CLEARANCES/WEIGHTS Depth with Handles 39 1/8" Depth without Handles 36 5/8" Depth without Door 31 3/4" Depth (Total with Door Open) 51" Height to Top of Case 68 7/8" Height to Top of Door Hinge 70 1/4" Width 35 3/4" Width (Door Open 90˚ with Handle) 45" Width (Door Open 90˚ without Handle) 40" Door Edge Clearance with Handle 4 5/8" Door Edge Clearance without Handle 2 1/4" Installation Clearance Sides 1/8", Top 1", Back 2" Weight (Unit/Carton) 404 lbs / 437 lbs. Carton Dimensions (WxHxD) 38" x 73" x 40" ...^IFV
Answered by: LGJoel
Date published: 2017-09-19

Can I get another drawer divider for the freezer?

Asked by: BarbMuskin
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: 4974JJ1032A.
Answered by: NeilE
Date published: 2017-06-29

The utility drawer has stopped going all the way in. Ive pulled it completely out to see whats stopping it but not finding anything. Any suggestions?

Asked by: Hillabeans
We regret the trouble you have experienced with this drawer. It is suggested to remove the drawer and clean the slider track. If this does not resolve the matter, then the whole shelf and track may need to be removed and cleaned. Please contact our Customer Interactive Center at 800-243-0000 for additional assistance.
Answered by: NeilE
Date published: 2017-05-19
