DISCONTINUED

LFXS24623D

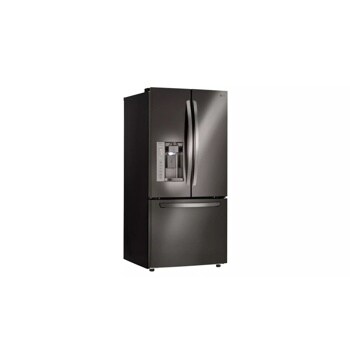

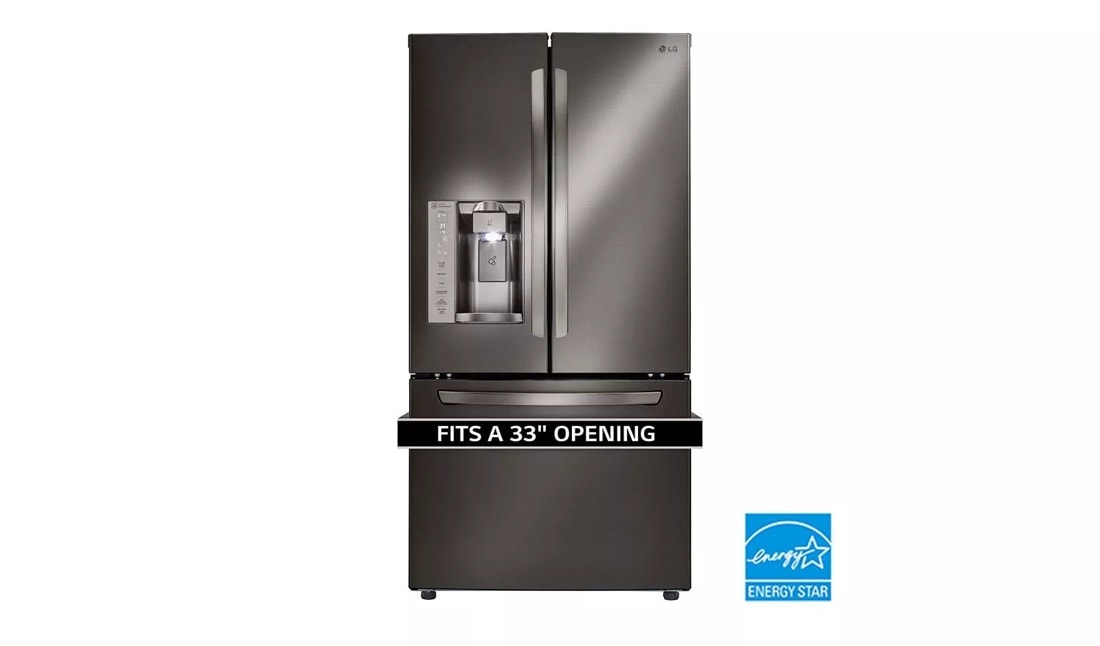

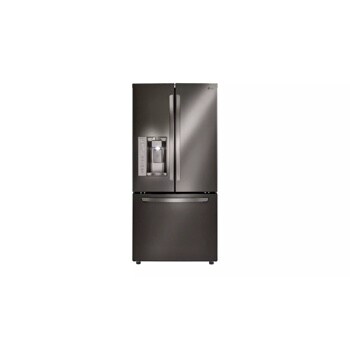

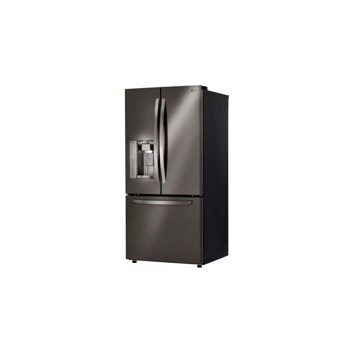

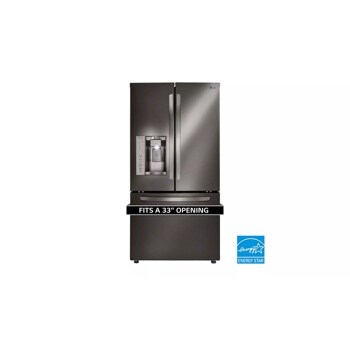

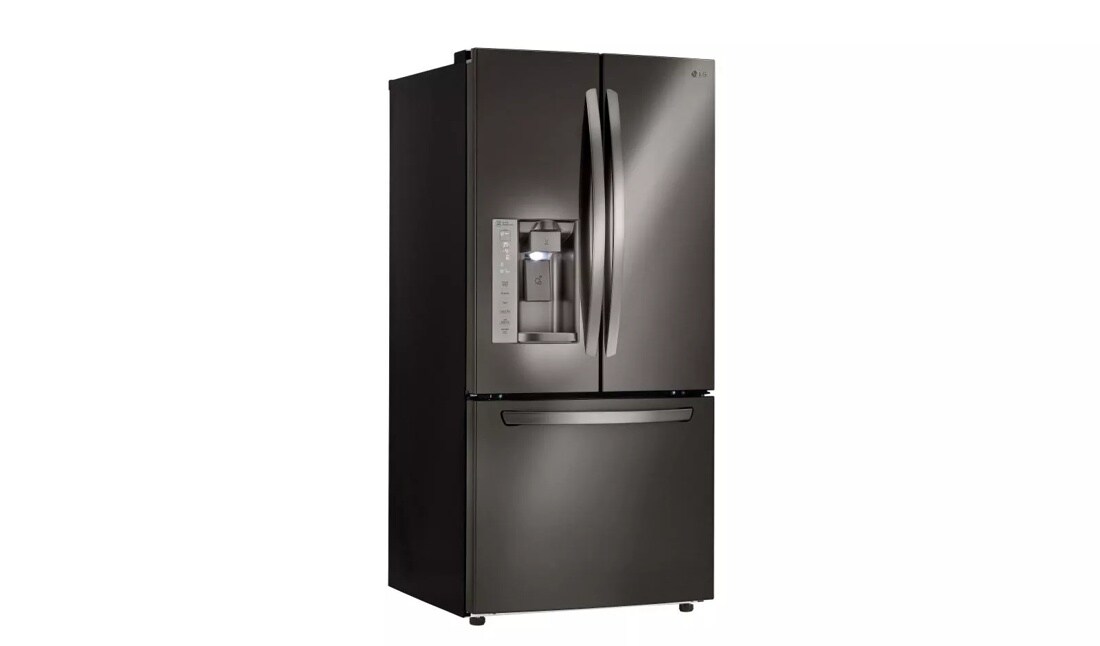

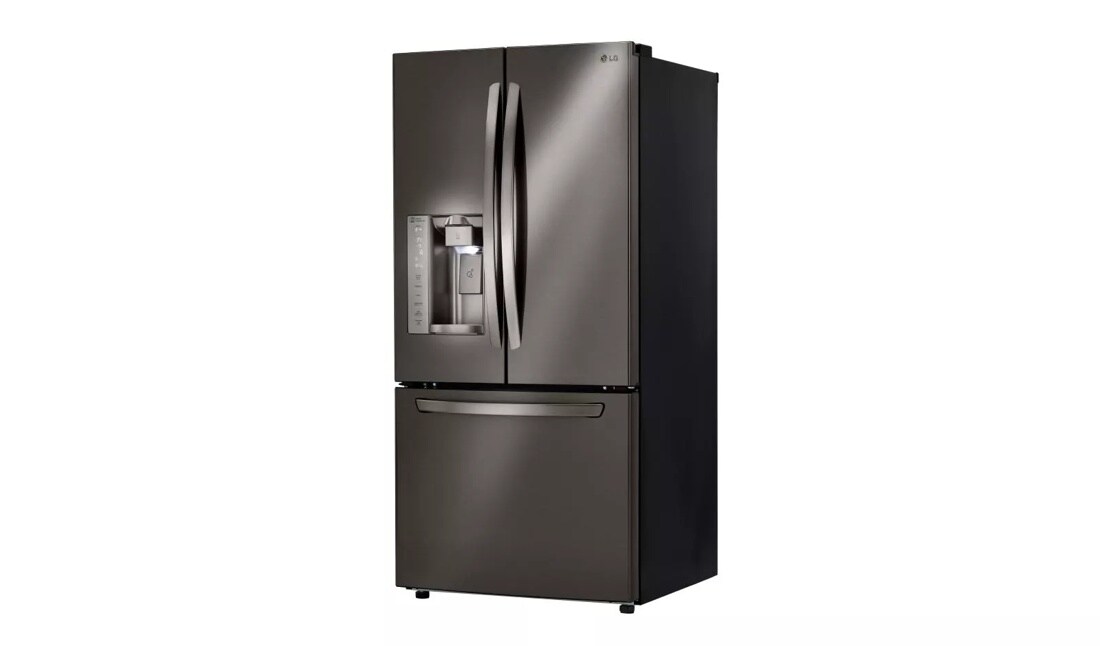

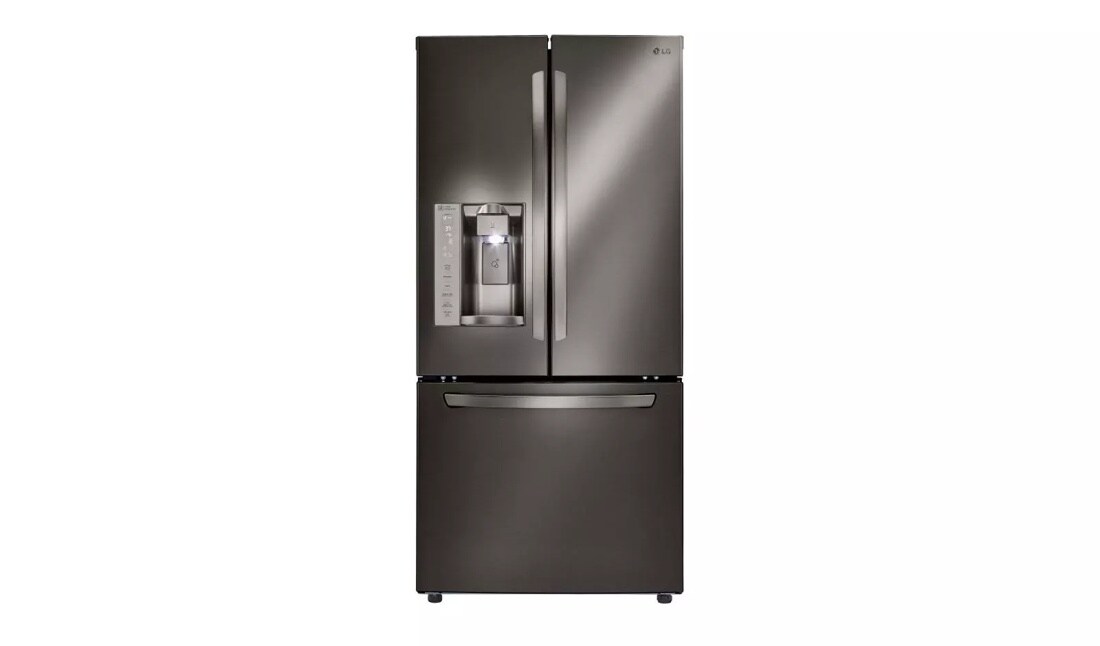

24.2 cu. ft. French Door Refrigerator

Name: 24.2 cu. ft. French Door Refrigerator
Brand: LG Electronics
SKU: LFXS24623D
Availability: Discontinued
Rating: 3.63 (1119 reviews)

Key Features

All Specs

24 cu. ft. Capacity
PrintProof™ Finish

Compare

Features and Specs

Collapse All

DOWNLOAD SPEC SHEET download-guide icon

DOWNLOAD ENERGY GUIDE

FREEZER

Divider

Yes

Drawers

2-Tier Organization

Freezer Light

Premium LED

Door Type

Pull Drawer

DuraBase™ Solid Drawer Base

Yes

Ice Bin

1 Extra Ice Bin

Handle

Smart Pull®

MATERIALS & FINISHES

Handle

Matching Commercial Handles

Available Colors

Stainless Steel (S), Smooth White (W), Smooth Black (B), Black Stainless Steel (D)

Back

Flush & Metal Cover Over Mechanical Parts

Contour Door

Yes

Hidden Hinges

Yes

Surface

Coated Metal, Stainless Steel

Blowing Agent

Cyclopentane - Low Global Warming Potential, and Zero Ozone Depletion Potential Blowing Agent

REFRIGERATOR DOOR

No. of Shelves/Bin

7 (2 Adjustable, 2 Gallon)

Door Bin Construction

Clear Bins with Deco

DIMENSIONS/CLEARANCES/WEIGHT

Width

32 3/4"

Depth with Handles

35 3/8"

Weight (Unit/Carton)

312 lbs./343 lbs.

Depth (Total with Door Open)

46 1/8"

Height to Top of Case

68 5/8"

Width (Door Open 90˚ with Handle)

41 1/8"

Depth without Handles

32 7/8"

Carton Dimensions (WxHxD)

35" x 73" x 38"

Installation Clearance

Sides 1/8", Top 1", Back 1"

Depth without Door

29"

Height to Top of Door Hinge

69 7/8"

Width (Door Open 90˚ without Handle)

36 1/4"

CAPACITY

Freezer

8.0 cu. ft.

Total

24.2 cu. ft.

Refrigerator

16.20 cu. ft.

FEATURES

Door Alarm

Yes

ENERGY STAR® Qualified

Yes (688 kWh/Year)

Temperature Sensors

7

LoDecibel™ Operation

Yes

Ice & Water Dispenser

Yes

Child Lock

Yes

Ice Storage Capacity

2.2 + 12.0 lbs.

SmartDiagnosis™

Yes

Temperature Controls

Electronic/Digital

Water Filtration System

Filter LT700P

Linear Compressor

Yes

Display Type

White LED

Fresh Air Filter

Yes, Air Filter LT120F

Auto Closing Door Hinge

Yes

Ice System

Slim SpacePlus®

Daily Ice Production

2.4 lbs/2.5 IcePlus

Dispenser Type

Integrated Tall Dispenser

WARRANTY

Limited Warranty

1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)

UPC

048231787383

REFRIGERATOR

Refrigerator Light

Premium LED

No. of Shelves

4 Split (3 Fixed / 1 Folding)

Crisper Bins

2 Humidity Crispers

Glide N’ Serve™ Drawer

Yes

Shelf Construction

Spill Protector™ Tempered Glass

Folding Shelf

1

Cantilevered Shelves

Yes

SUMMARY

Door Type

French 3-Door

ENERGY STAR® Qualified

Yes

Total Capacity

24.2

Ice & Water Dispenser

Yes

Standard Depth

Yes

SmartDiagnosis™

Yes

FREEZER

Divider

Yes

Drawers

2-Tier Organization

Freezer Light

Premium LED

Door Type

Pull Drawer

DuraBase™ Solid Drawer Base

Yes

Ice Bin

1 Extra Ice Bin

Handle

Smart Pull®

MATERIALS & FINISHES

Handle

Matching Commercial Handles

Available Colors

Stainless Steel (S), Smooth White (W), Smooth Black (B), Black Stainless Steel (D)

Back

Flush & Metal Cover Over Mechanical Parts

Contour Door

Yes

Hidden Hinges

Yes

Surface

Coated Metal, Stainless Steel

Blowing Agent

Cyclopentane - Low Global Warming Potential, and Zero Ozone Depletion Potential Blowing Agent

REFRIGERATOR DOOR

No. of Shelves/Bin

7 (2 Adjustable, 2 Gallon)

Door Bin Construction

Clear Bins with Deco

DIMENSIONS/CLEARANCES/WEIGHT

Width

32 3/4"

Depth with Handles

35 3/8"

Weight (Unit/Carton)

312 lbs./343 lbs.

Depth (Total with Door Open)

46 1/8"

Height to Top of Case

68 5/8"

Width (Door Open 90˚ with Handle)

41 1/8"

Depth without Handles

32 7/8"

Carton Dimensions (WxHxD)

35" x 73" x 38"

Installation Clearance

Sides 1/8", Top 1", Back 1"

Depth without Door

29"

Height to Top of Door Hinge

69 7/8"

Width (Door Open 90˚ without Handle)

36 1/4"

CAPACITY

Freezer

8.0 cu. ft.

Total

24.2 cu. ft.

Refrigerator

16.20 cu. ft.

FEATURES

Door Alarm

Yes

ENERGY STAR® Qualified

Yes (688 kWh/Year)

Temperature Sensors

7

LoDecibel™ Operation

Yes

Ice & Water Dispenser

Yes

Child Lock

Yes

Ice Storage Capacity

2.2 + 12.0 lbs.

SmartDiagnosis™

Yes

Temperature Controls

Electronic/Digital

Water Filtration System

Filter LT700P

Linear Compressor

Yes

Display Type

White LED

Fresh Air Filter

Yes, Air Filter LT120F

Auto Closing Door Hinge

Yes

Ice System

Slim SpacePlus®

Daily Ice Production

2.4 lbs/2.5 IcePlus

Dispenser Type

Integrated Tall Dispenser

WARRANTY

Limited Warranty

1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)

UPC

048231787383

REFRIGERATOR

Refrigerator Light

Premium LED

No. of Shelves

4 Split (3 Fixed / 1 Folding)

Crisper Bins

2 Humidity Crispers

Glide N’ Serve™ Drawer

Yes

Shelf Construction

Spill Protector™ Tempered Glass

Folding Shelf

1

Cantilevered Shelves

Yes

SUMMARY

Door Type

French 3-Door

ENERGY STAR® Qualified

Yes

Total Capacity

24.2

Ice & Water Dispenser

Yes

Standard Depth

Yes

SmartDiagnosis™

Yes
