LFXS28566M

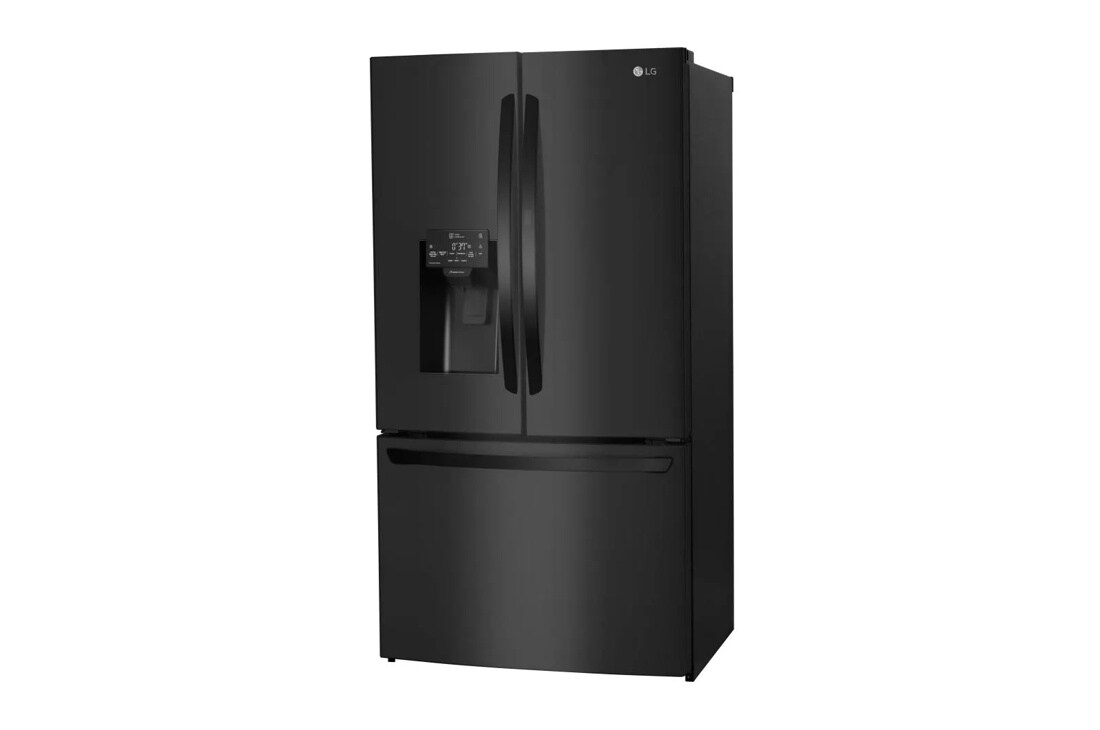

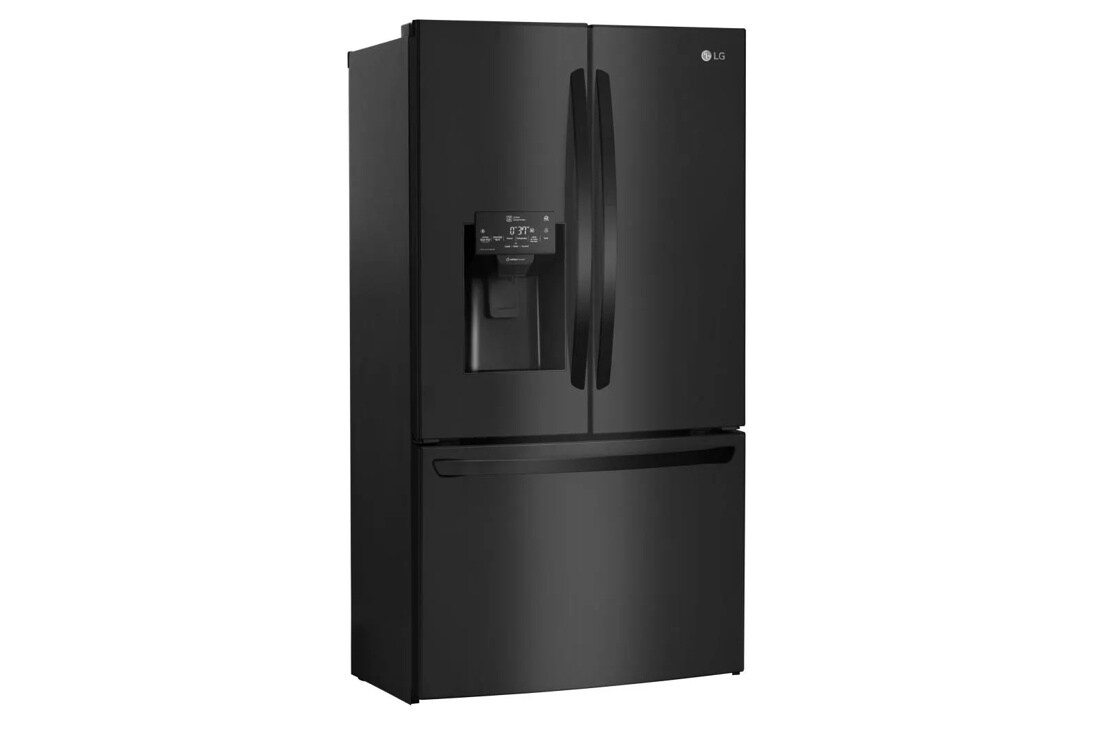

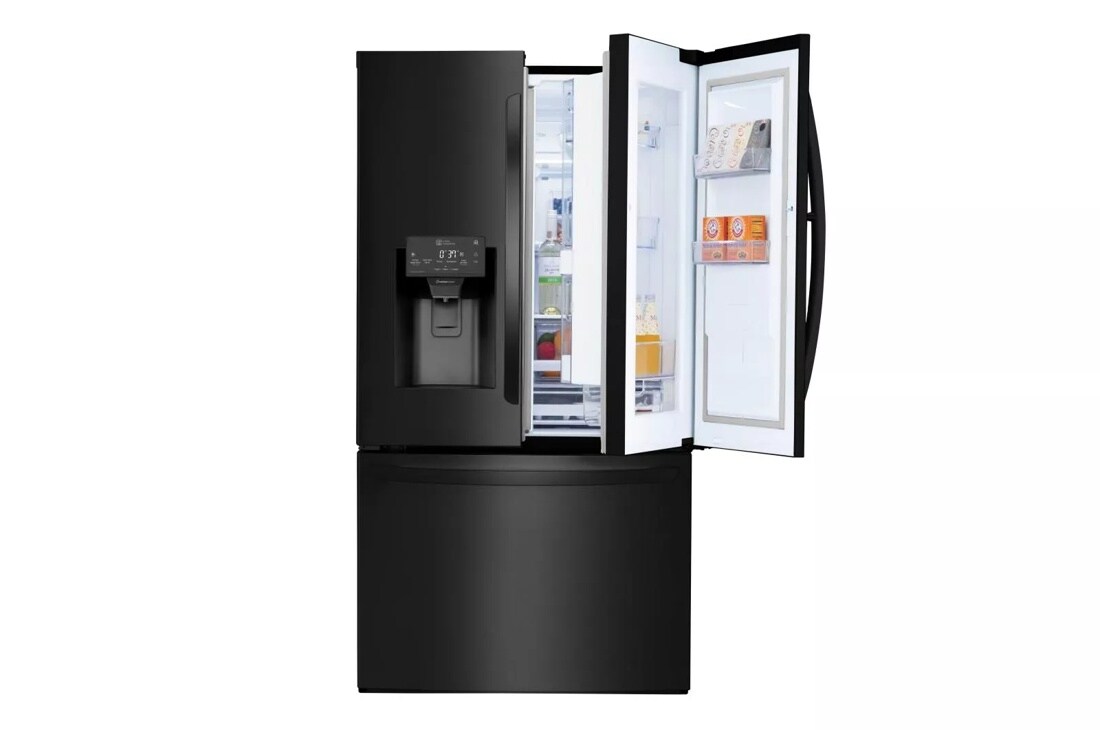

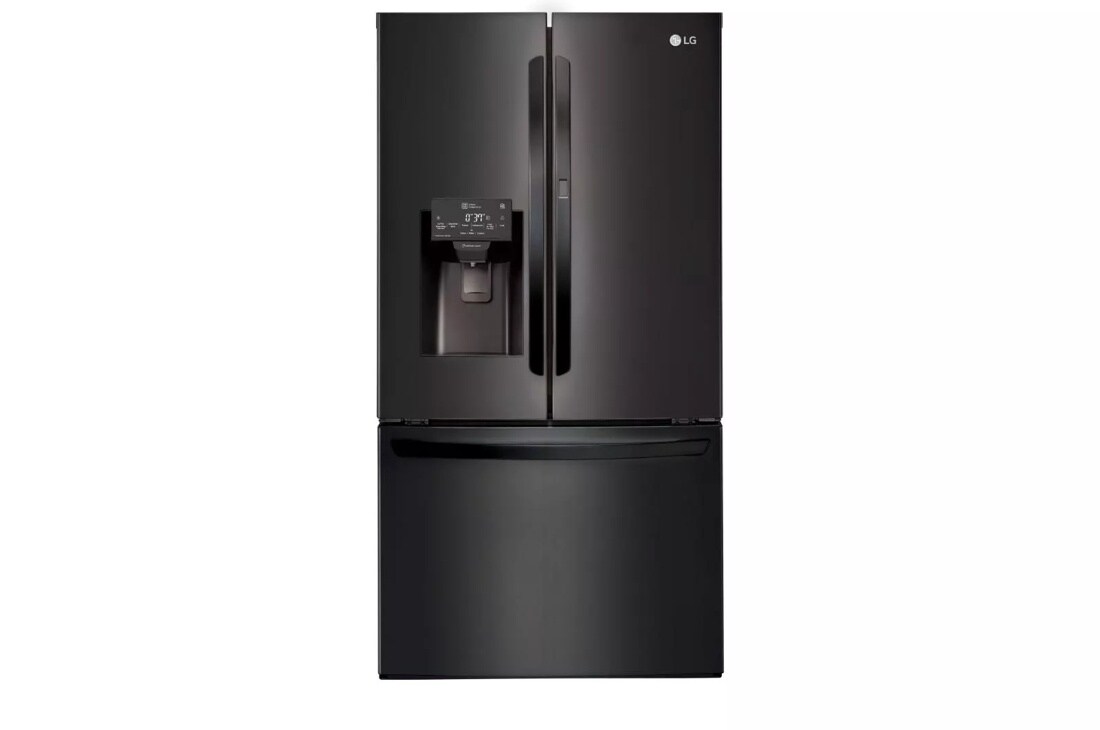

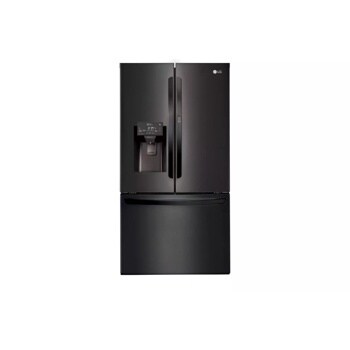

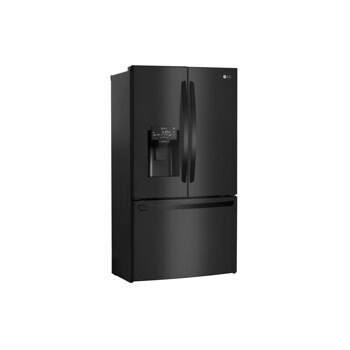

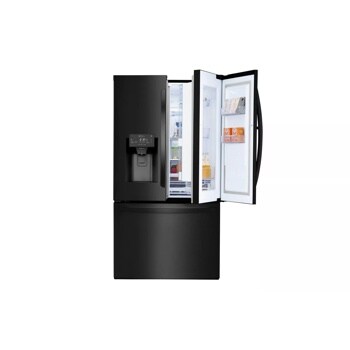

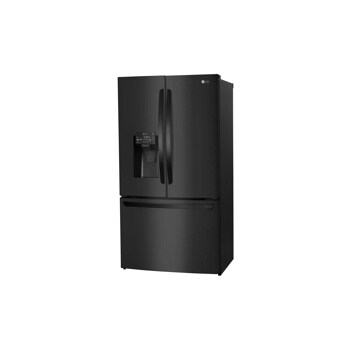

28 cu.ft. Smart wi-fi Enabled Door-in-Door® Refrigerator

Black Stainless Steel Matte Black Stainless Steel Stainless Steel
Matte Black Stainless Steel
28 cu.ft. Smart wi-fi Enabled Door-in-Door® Refrigerator
Download Spec Sheet Download Energy Guide

SUMMARY

    • Door Type
    • French 3-Door
    • Refrigerator Type
    • Door-in-Door®
    • ThinQ® Technology with Proactive Customer Care
    • Yes
    • wi-fi Enabled
    • Yes
    • Total Capacity
    • 27.7
    • Ice & Water Dispenser
    • Yes
    • ENERGY STAR® Qualified
    • Yes
    • Standard Depth
    • Yes
    • SmartDiagnosis™
    • Yes

FEATURES

    • ENERGY STAR® Qualified
    • Yes
    • Energy Usage
    • 724

REFRIGERATOR

    • Glide N’ Serve™ Drawer
    • Yes
    • Folding Shelf
    • 1
    • No. of Shelves
    • 4 Split(3 Fixed+1Folding)
    • Cantilevered Shelves
    • Hybrid Cantilevered
    • Shelf Construction
    • SpillProtector™ Tempered Glass
    • Crisper Bins
    • 2 Humidity Crispers
    • Refrigerator Light
    • Ceiling LED

REFRIGERATOR DOOR

    • Door-In-Door® with ColdSaver™ Panel
    • Yes
    • No. of Bins
    • 9 Total (Including Door-in-Door®)
    • Door Bin Construction
    • 1 Piece (clear)

FREEZER

    • Drawers
    • 2-Tier Organization
    • DuraBase™ Solid Drawer Base
    • Yes
    • Divider
    • Yes
    • Freezer Light
    • LED Lighting
    • Door Type
    • Pull Drawer
    • Handle
    • SmarPull™ Handle

DIMENSIONS/CLEARANCES/WEIGHT

    • Depth with Handles
    • 36 1/4"
    • Depth without Handles
    • 33 3/4"
    • Depth without Door
    • 29 7/8"
    • Depth (Total with Door Open)
    • 48 1/4"
    • Height to Top of Case
    • 68 3/8"
    • Height to Top of Door Hinge
    • 69 3/4"
    • Width
    • 35 3/4"
    • Width (Door Open 90˚ with Handle)
    • 44 1/4"
    • Width (Door Open 90˚ without Handle)
    • 39 1/4"
    • Installation Clearance
    • Top 1", Back 2"
    • Weight (Unit/Carton)
    • 316 lbs. / 341 lbs.
    • Carton Dimensions (WxHxD)
    • 38" x 73" x 39"

MATERIALS & FINISHES

    • Handle
    • Matching Commercial Handles
    • Available Colors
    • PrintProof™ Stainless Steel, Black Stainless Steel, Matte Black Stainless Steel
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Back
    • Flush & Metal Cover Over Mechanical Parts
    • Contour Door
    • Yes

CAPACITY

    • Refrigerator
    • 18.4
    • Freezer
    • 9.3
    • Total
    • 27.7

CONVENIENCE

    • Temperature Controls
    • Electronic/Digital
    • Door Alarm
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • SmartDiagnosis™
    • Yes
    • Auto Closing Door Hinge
    • Yes
    • Child Lock
    • Yes
    • Display Type
    • Membrane / White LED

WATER & ICE SYSTEM

    • Ice System
    • Slim SpacePlus®
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Integrated
    • Daily Ice Production (lbs)
    • 3.5
    • IcePlus™ Production (lbs)
    • 3.8
    • Ice Storage Capacity (lbs)
    • 2.5 + 4.0
    • Dispenser Light
    • Yes
    • Water Filter
    • LT1000P

COOLING

    • Linear Compressor
    • Yes
    • Multi-Air Flow
    • Yes
    • Temperature Sensors
    • 6
    • Smart Cooling® System
    • Yes
    • Fresh Air Filter
    • Yes
    • Evaporator
    • Yes

WARRANTY

    • UPC
    • 048231795159
    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years

THINQ® SMART FEATURES

    • Wi-Fi
    • Yes
    • SmartDiagnosis™
    • Yes
    • Voice Activation
    • Yes
    • Works with
    • Google Assistant and Amazon Alexa
    • ThinQ® Technology with Proactive Customer Care
    • Yes

What people are saying

Rated 3 out of 5 by from Good size but annoying features The overall size of the refrigerator and freezer is great. But over time the fact you have to open both doors to open the deli drawer is irritating. You wouldn't think it would bother you but it does get annoying. And the freezer cannot really be kept organized, it's just a big jumble of stuff in a big drawer at the end of the day.
Date published: 2021-02-21
Rated 4 out of 5 by from Good refrigerator Owning this type of refrigerator isn't that bad. The ice maker broke due to the refrigerator door slamming shut. No wonder upgrades were made. But I would of purchased an upgrade if it was available.
Date published: 2021-02-18
Rated 5 out of 5 by from LG All The Way I am on my 2nd LG French Door Refrigerator, my 2nd LG Washer/Dryer set and my 2nd LG Microwave. In addition, my gas rang and television are also LG.
Date published: 2021-02-11
  • y_2021, m_3, d_5, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_378
  • loc_en_US, sid_MD05870255, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
See All Reviews

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

model LFXS28566S number. I want to replace the compressor in this unit. What is the part number and cost?

Asked by: johncjr
The compressor for the ENERGY STAR® Qualified LG 28 cu.ft. Smart Wi-Fi Enabled Door-in-Door® Refrigerator, Model # LFXS28566S can be ordered through our Authorized Parts Distributor affiliate, Encompass Parts, (800) 432-8542, https://encompass.com. On the nameplate for the refrigerator, there is a factory suffix at the end of the model number (i.e LFXS28566S - ASTCNA0) You will need to give Encompass that full model number with the factory suffix so you get the correct compressor for your refrigerator. They have a full parts list for it and they confirm what the correct part number is for the compressor for your refrigerator...^IFV
Answered by: Ivanf
Date published: 2020-10-13

How do you get the air filter cover off?  I saw a video where you pull straight off but ours is not budging.

Asked by: Anonymous
In the 'Maintenance' section on pages, 44-45 of your owner's manual for the ENERGY STAR® Qualified LG 28 cu.ft. Smart wi-fi Enabled Door-in-Door® Refrigerator, Model # LFXS28566S are explicit instructions and illustrated diagrams for how to replace the Air Filter (Model # LT120F). You may need to exert a little more force to rotate the filter while being careful to not exert too much pressure that might break the cover if it is stuck...^IFV
Answered by: Ivanf
Date published: 2020-03-19

Dispensing water and ice controls are off and don’t work. What can I do?

Asked by: EfrainR
You can troubleshoot issues with dispensing using the following help article: https://www.lg.com/us/support/help-library/water-does-not-dispense-refrigerator-CT10000021-20150177934291 If you need further assistance, you can contact our Customer Support by any of the below options: Phone: 1-800-243-0000 LiveChat: https://www.lg.com/us/support/chatbot Email: https://www.lg.com/us/support/email-appointment Facebook Messenger: https://www.facebook.com/LGUSA/ Twitter: @LGUSSupport The LG Community Forum is also a great resource for getting help from other LG customers: https://lgcommunity.us.com/ ^CP
Answered by: ChrisPSM
Date published: 2020-09-20

Good morning my LFXS28566S 28CF is not dispensing water or ice Screen shows IF E

Asked by: Iris L
We are sorry to see you are having this issue with your refrigerator. You can troubleshoot this issue using the following help article: https://www.lg.com/us/support/help-library/error-codes-refrigerator-CT10000021-1441392048805
Answered by: ChrisPSM
Date published: 2020-09-20

Does this model have dual cooling? If not, how do you keep the refrigerator items from freezing?

Asked by: ECL2020
The ENERGY STAR® Qualified LG does not feature dual cooling. It features the Multi-Air Flow System which is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Like all our other refrigerators, the default refrigerator temperature is 37 °F (3 °C). Pressing the Refrigerator button repeatedly allows you to select a new set temperature from 33 °F to 46 °F (1 °C to 8 °C). The default freezer temperature is 0°F (-18 °C). Pressing the Freezer button repeatedly allows you to select a new set temperature from -6 °F to 8 °F (-21 °C to -13 °C)...^IFV
Answered by: Ivanf
Date published: 2020-01-10

What is the part number for the air filter?

Asked by: Han90
The LG 6 Month Replacement Refrigerator Air Filter (Part # ADQ73214404), Model # LT120F is the same Air Filter used in all LG Refrigerators. ^CP
Answered by: ChrisPSM
Date published: 2020-06-29

Pg.29 of the User Manual states: "Note - When the 'fridge is in the Power Saving Mode, the display remains off until a door is opened or a button is pressed." This is the only reference I can find to the "Power Saving Mode". How do I turn it on & off?

Asked by: Doo Wop Dan
This is not a feature that can be disabled. We apologize for the inconvenience.
Answered by: ChrisPSM
Date published: 2019-12-11

I ordered a LG Refrigerator, will the delivery team remove the front door to the house? If not, what would be your suggestion

Asked by: smoot
Removing the handles or the door off the ENERGY STAR® Qualified LG 28 cu.ft. Smart wi-fi Enabled Door-in-Door® Refrigerator, Model # LFXS28566S and moving it on its side through a narrow opening is the recommended procedure. If you haven't done so already, you will need to notify the retailer from whom you purchased the refrigerator to notify them that the doors need to be removed so their delivery team brings the necessary tools to remove the doors. If they don't provide that service, you will need to ask if they have a network of independent contractors who can do that for you...^IFV
Answered by: Ivanf
Date published: 2019-11-19
