• 28 cu. ft. Capacity
  • PrintProof™ Finish
  • InstaView™ Door-in-Door®
  • ThinQ® Technology
  • Slim SpacePlus® Ice System
  • ColdSaver™ Panel

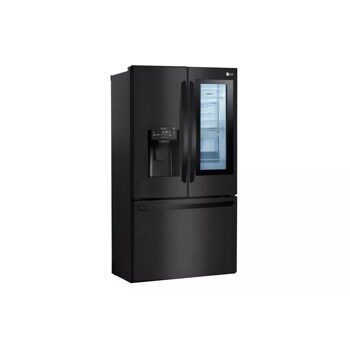

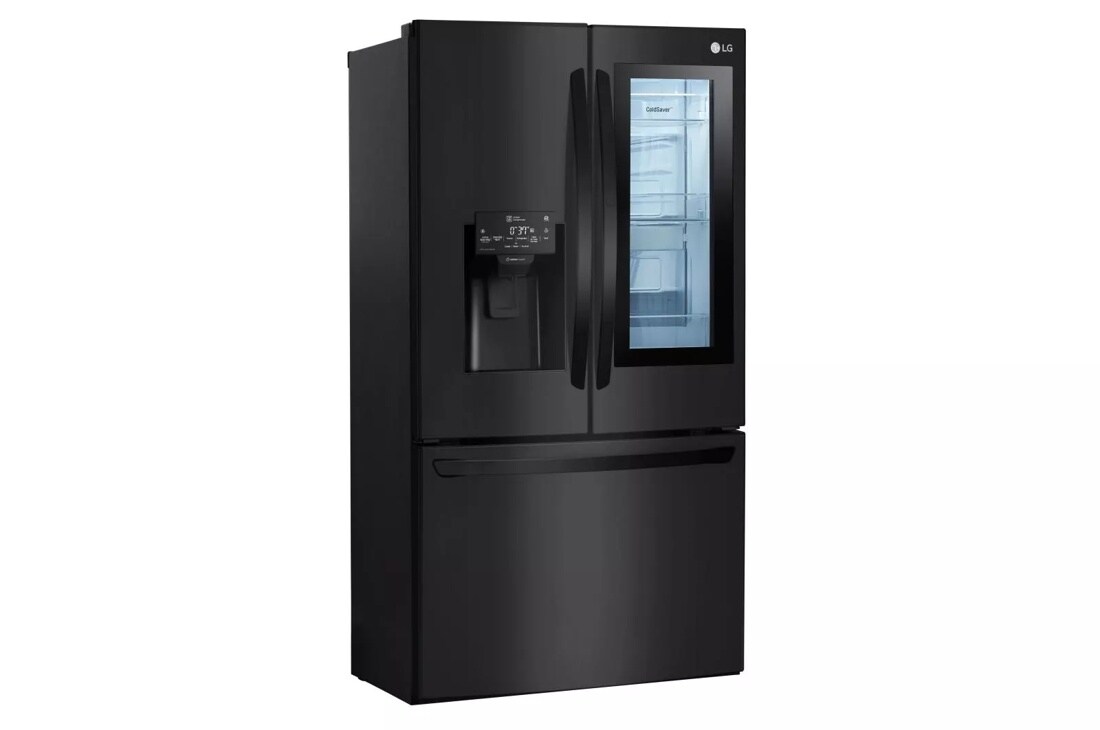

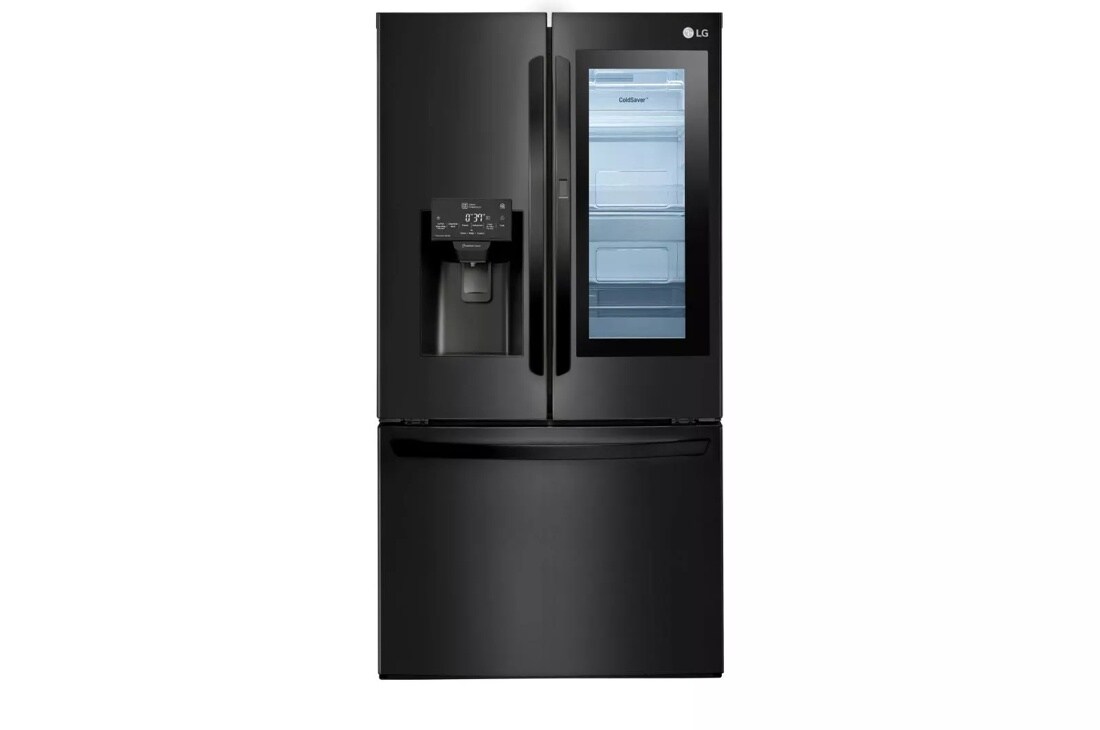

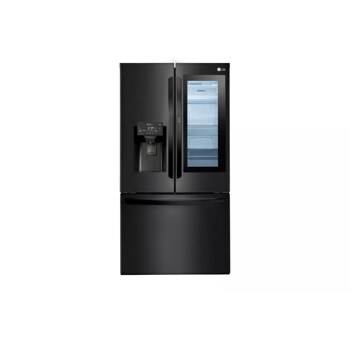

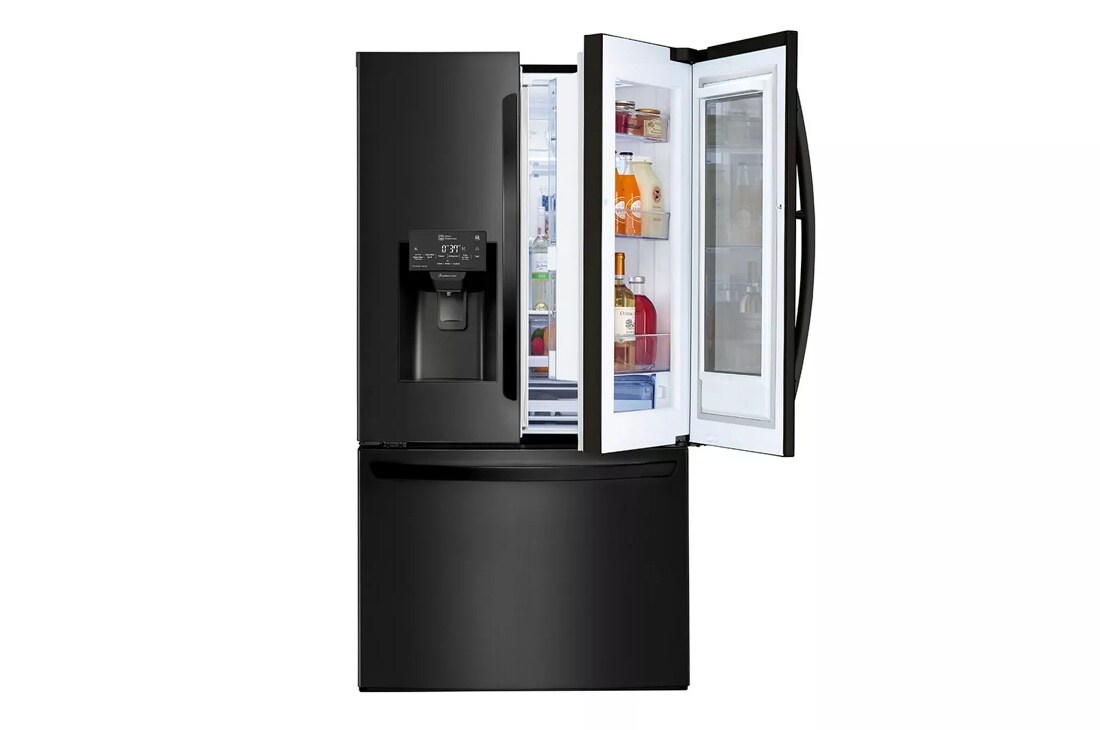

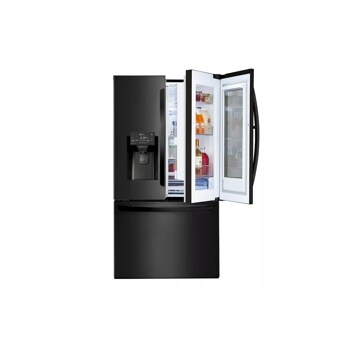

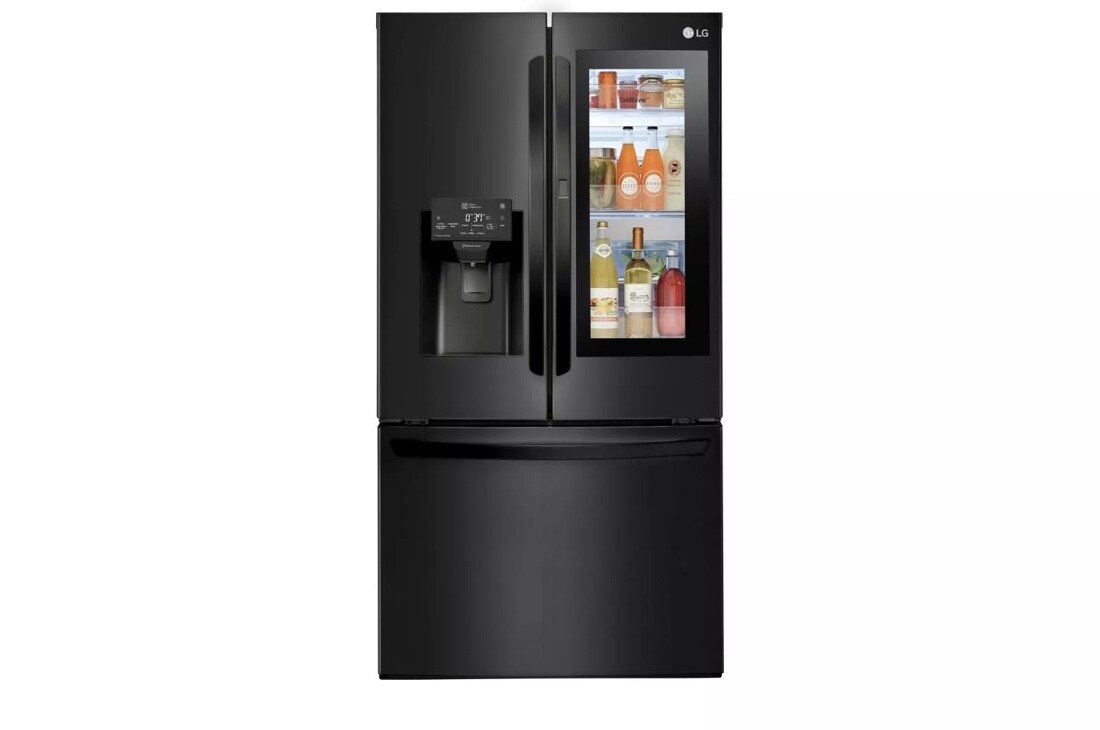

28 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator


    • Door Type
    • French 3-Door
    • Refrigerator Type
    • InstaView™ Door-in-Door®
    • ThinQ®
    • Yes
    • wi-fi Enabled
    • Yes
    • Total Capacity
    • 27.5
    • Ice & Water Dispenser
    • Yes
    • ENERGY STAR® Qualified
    • Yes
    • Standard Depth
    • Yes
    • SmartDiagnosis™
    • Yes


    • Glide N’ Serve™ Drawer
    • Yes
    • Folding Shelf
    • 1
    • No. of Shelves
    • 4 Split(3 Fixed+1Folding)
    • Cantilevered Shelves
    • Hybrid Cantilevered
    • Shelf Construction
    • Spill Protector™ Tempered Glass
    • Crisper Bins
    • 2 Humidity Crispers
    • Refrigerator Light
    • Ceiling LED


    • InstaView™ Door-in-Door®
    • Yes
    • No. of Bins
    • 7 Total (Including Door-in-Door®)
    • Door Bin Construction
    • 1 Piece (clear)


    • Drawers
    • 2-Tier Organization
    • DuraBase™ Solid Drawer Base
    • Yes
    • Divider
    • Yes
    • Freezer Light
    • LED Lighting
    • Door Type
    • Pull Drawer
    • Handle
    • SmartPull™ Handle
    • Auto Open Drawer™ (Freezer)
    • Yes


    • Depth with Handles
    • 36 1/4"
    • Depth without Handles
    • 33 3/4"
    • Depth without Door
    • 29 7/8"
    • Depth (Total with Door Open)
    • 48 1/4"
    • Height to Top of Case
    • 68 3/8"
    • Height to Top of Door Hinge
    • 69 3/4"
    • Width
    • 35 3/4"
    • Width (Door Open 90˚ with Handle)
    • 44 1/4"
    • Width (Door Open 90˚ without Handle)
    • 39 1/4"
    • Door Edge Clearance with Handle
    • 4 1/2"
    • Door Edge Clearance without Handle
    • 1 1/3"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 323 lbs. / 348 lbs.
    • Carton Dimensions (WxHxD)
    • 38" x 73" x 39"


    • Handle
    • Matching Commercial Handles
    • Available Colors
    • Matte Black Stainless Steel, Black Stainless Steel, Stainless Steel
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Back
    • Flush & Metal cover over mechanical parts
    • Contour Door
    • Yes
    • Blowing Agent
    • Cyclopentane - Low Global Warming Potential, and Zero Ozone Depletion Potential Blowing Agent


    • Refrigerator
    • 18.20
    • Freezer
    • 9.30
    • Total
    • 27.5


    • Energy Consumption
    • 724


    • Temperature Controls
    • Electronic/Digital
    • Door Alarm
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • Auto Closing Door Hinge
    • Yes
    • Child Lock
    • Yes
    • Display Type
    • Membrane / White LED


    • Ice System
    • Slim SpacePlus®
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Integrated Tall Ice & Water Dispenser
    • Daily Ice Production (lbs)
    • 6.0 lbs
    • IcePlus™ Production (lbs)
    • 6.5 lbs.
    • Ice Storage Capacity (lbs)
    • 2.5 + 4.0 lbs
    • Dispenser Light
    • Yes
    • Water Filter
    • LT1000P
    • Dual Ice
    • Yes


    • Linear Compressor
    • Yes
    • Multi-Air Flow
    • Yes
    • Temperature Sensors
    • 6
    • Smart Cooling® System
    • Yes
    • Fresh Air Filter
    • Yes
    • Evaporator
    • Yes
    • Refrigerant
    • R600a: Low Global Warming Potential, Zero Ozone Depletion Potential and More Energy Efficient Refrigerant than R134a


    • Wi-Fi
    • Yes
    • ThinQ®
    • Yes
    • SmartDiagnosis™
    • Yes
    • Voice Activation
    • Yes
    • Works with
    • Google Assistant and Amazon Alexa
    • Smart Grid Ready
    • Yes


    • UPC
    • 048231797184
    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years

What people are saying

Rated 5 out of 5 by from Great feature set We bought this aboou a month ago and really like it so far. Lots of room. 2 ice makers. Love being able to access the things most in the door without having to always open the doors.
Date published: 2022-08-15
Rated 4 out of 5 by from Had it for 3 weeks now - works great Very happy with the purcháse - ice and water is limited in the door but more than make up with ice plus- would be nice to have an inside temp sensor
Date published: 2022-08-15
Rated 5 out of 5 by from My LFXS28596S My brand new "finger printless" stainless LG "4-door" refrigerator freezer is amazing. The fact that it communicates with me through my phone is exciting! The "magical window" door has been a real blessing for me knowing I can knock, and it complies by turning on the light to make the inside of that area of the fridge visible without opening the door. It also lets me know when a door or freezer drawer is not completely closed. The freezer is plenty big as is the top "solid" drawer as opposed to that being a "wire basket". That drawer holds the ice bin, and enough space for ice cream, frozen yogurt, all kinds of bread and frozen veggies and more. I like that second solid drawer in the freezer better than a wire basket as it will make it easier to clean. The adjustable shelves are wonderful as is the full shelf that can be turned into a half-shelf. The crushed ice is great, and the ice cubes are perfect size. Yes, ThinQ is truly wonderful. The door bins on the left which is the "ice maker door" is big enough to hold all kinds of salad dressings and the like. The veggie/fruit are nice and deep. Being able to set the "temperatures" for the various drawers--fruit, veggies, deli, meat, and produce--is most convenient. Great product!
Date published: 2022-08-14
  • y_2022, m_8, d_18, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.32
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_482
  • loc_en_US, sid_MD05962256, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 15ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Does this unit have 2 ice makers: door & freezer?

Asked by: carthurs
We just had this model delivered to our home after purchasing on sale from Costco and it does in fact have dual ice - in the door and in the freezer compartment.
Answered by: Shar1369
Date published: 2022-07-09

I'm going to buyLFXS28596S ref. Putting it under 70" H cabinet, D=12". will fit? does the 69.65" H incl. front door hinges or just the top of the ref? does the height incl. rollers & levelers?

Asked by: LaurieM
There are two heights that are listed in the specifications for the ENERGY STAR® Qualified LG 28 cu. ft. Smart Wi-Fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS28596S, the Height to Top of Case - 68 3/8" and the Height to Top of Door Hinge - 69 3/4". The recommended installation clearance for the top of the refrigerator is 1" and 2" for the rear. The refrigerator has a depth of 33 3/4" without the door handles and the door hinges have a depth of 4~4 1/2". All height measurements are taken from the floor so they include the leveling legs & two small wheels in the back of the refrigerator...^Ivan
Answered by: Ivanf
Date published: 2022-04-08

Is the water for the ICE machines filtered? Is it for both ICE machines or just one?

Asked by: dad20
Any water entering the ENERGY STAR® Qualified LG 28 cu. ft. Smart Wi-Fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS28596S that is used for ice production or that is dispensed from the refrigerator is filtered through the built-in LG LT1000P® - 6 Month / 200 Gallon Capacity Replacement Refrigerator Water Filter...^Ivan
Answered by: Ivanf
Date published: 2022-01-07

Is it typical that the water dispenser is EXTREMELY slow when you are trying to get those initial 2.5 gallons to dump when you first set up? I am trying to make sure that there is no issue with the water line.... it is coming out terribly slow.

Asked by: DanniB25
Please reach out to our technical support team via private message on Facebook @LGUSSupport and use #VOC in your first message to our social media support team or call at 800-243-0000. Also, be sure to provide your contact information, model/serial numbers and date of purchase. ^Daphane
Answered by: LG Electronics
Date published: 2021-12-21

Does anybody else have trouble installing a new water filter?

Asked by: Bob828
Page 47 (Water Filter) in your owner's manual for the ENERGY STAR® Qualified LG 28 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS28596S has explicit instructions and illustrated diagrams for how to replace the water filter in the refrigerator...^Ivan
Answered by: Ivanf
Date published: 2021-11-29

Can the handles be easily removed to fit through a door?

Asked by: Drewbear
When it is necessary to move the ENERGY STAR® Qualified LG 28 cu. ft. Smart Wi-Fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS28596S through a narrow opening or any refrigerator for that matter, the normal and recommended procedure is to remove the handles or the doors and move the refrigerator sideways through that narrow opening. This refrigerator has a depth of 33 3/4" without the handles and a depth of 29 7/8 without the door so depending on how wide your opening is, you can remove either the handles or the doors. You can download the owner's manual from our support page for the refrigerator at and review the instructions for removing the handles or the refrigerator doors and freezer drawer on pages 14 through page 17 to assess for yourself if this is something that you can do with ease...^Ivan
Answered by: Ivanf
Date published: 2021-11-28

Why this model discontinued LFXS28596S

Asked by: Frici
There is a variety of reasons as to why refrigerators or any consumer electronic product is discontinued. The decision to discontinue a product is made at the corporate level and reasons can range from newer models that are more energy efficient that meet newer stringent energy-efficiency standards are manufactured or that the materials that are used to make a new product are cheaper, or it could simply be that a model is no longer in demand and has declining sales or that newer models feature newer and more advanced technology/ The ENERGY STAR® Qualified LG 28 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS28596S is a 2018 model so it was replaced by a newer 2020 or 2021 model for any of the above-mentioned reasons or other reasons that we have not mentioned...^Ivan
Answered by: Ivanf
Date published: 2021-10-29

Is the insta view door storage holds a gallon size milk?

Asked by: Annuu
The InstaView™ Door-in-Door® compartment for the ENERGY STAR® Qualified LG 28 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LFXS28596S will accommodate a gallon milk container...^IFV
Answered by: Ivanf
Date published: 2021-06-25
