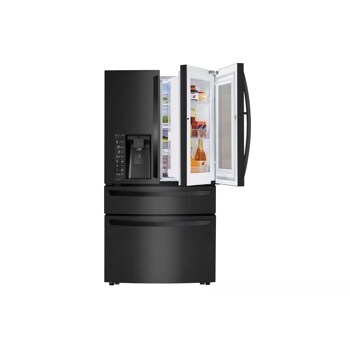

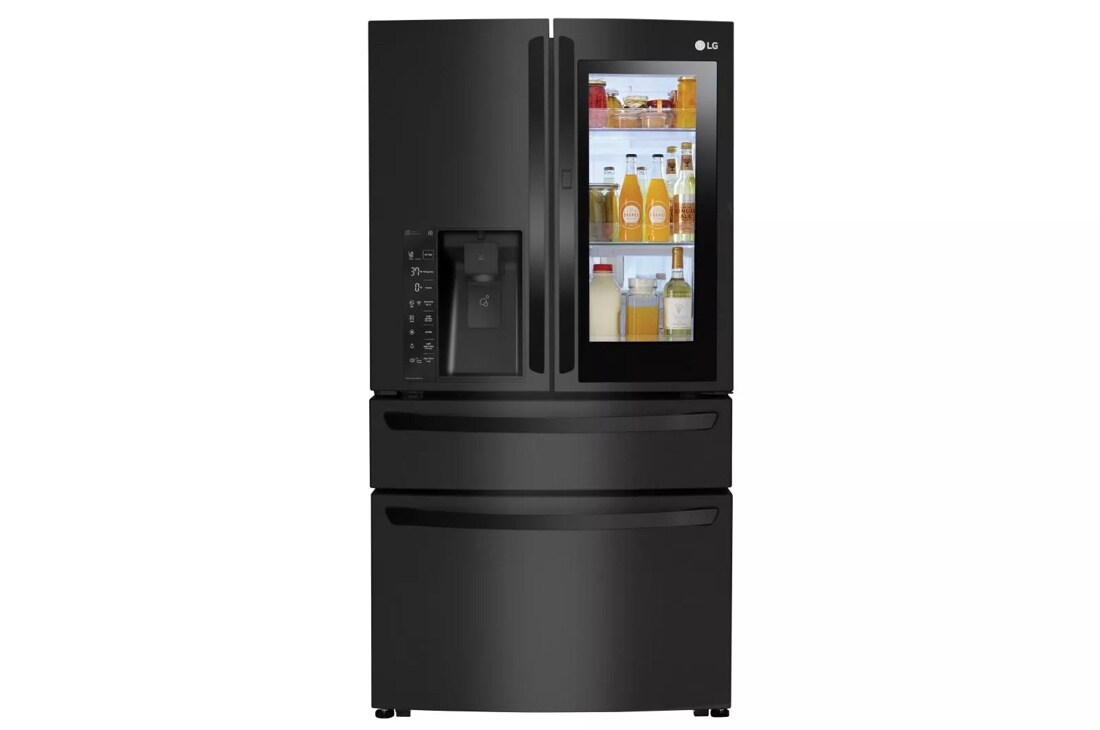

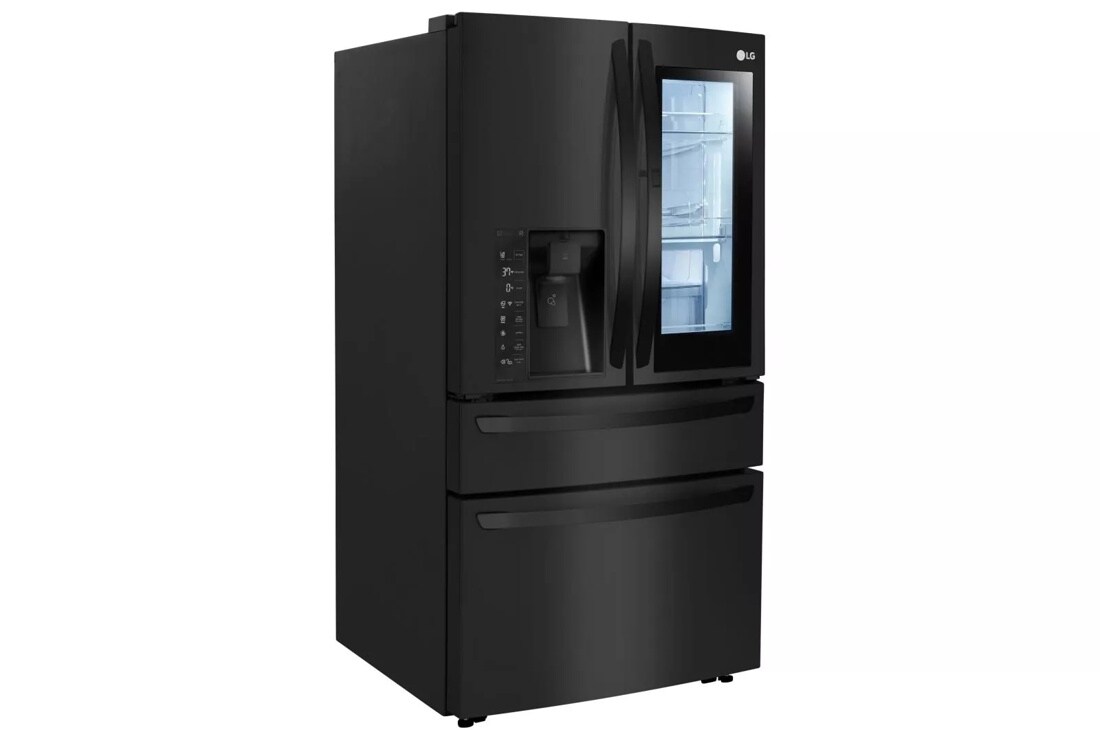

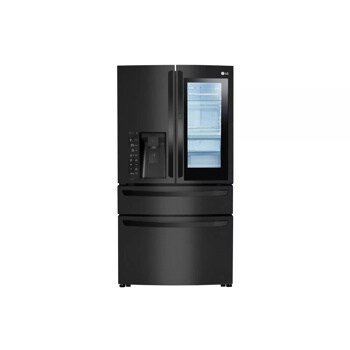

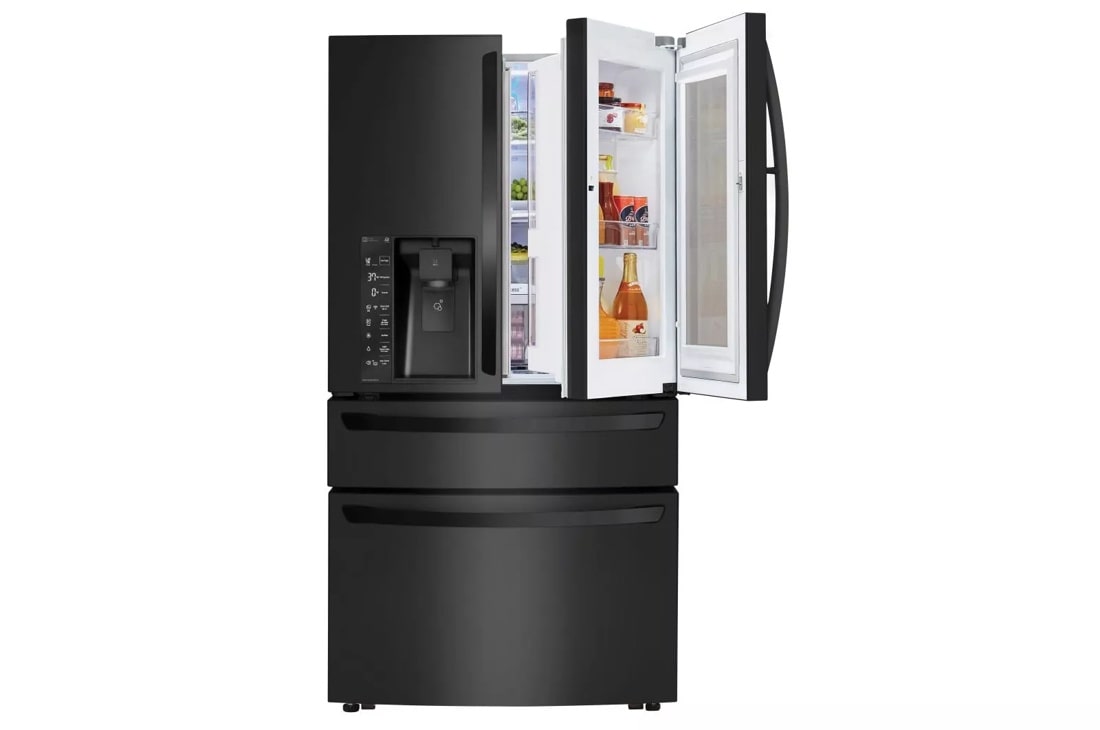

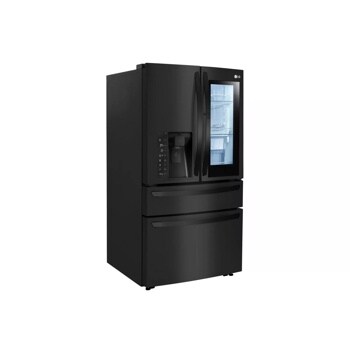

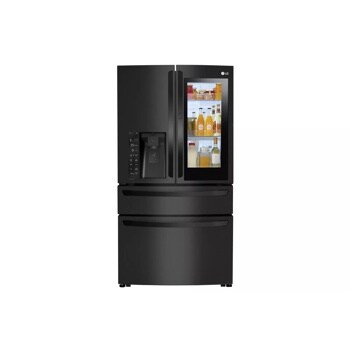

23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
  • 23 cu. ft. Capacity
  • InstaView™ Door-in-Door®
  • PrintProof™ Finish
  • SmartThinQ® Technology
  • ColdSaver™ Panel
  • Counter-Depth
23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator
$ 4,749.99
Where to Buy
*LG received the highest score with French door refrigerator in the J.D. Power 2017 and 2019 Kitchen Appliance Satisfaction Studies of customers’ satisfaction with their home appliance. Visit jdpower.com/awards.
*Consumer Reports does not endorse products or services.

Keep Your Water and Ice Fresh and Tasting Great:


  • Door Type
    French 4-Door
    InstaView™ Door-in-Door®
  • SmartThinQ®
    wi-fi Enabled
  • Total Capacity
    Ice & Water Dispenser
  • ENERGY STAR® Qualified
    Counter Depth (in.)
  • SmartDiagnosis™


  • Smart Cooling Plus System
    Multi Air Flow Cooling
  • Temperature Sensors
    Fresh Air Filter
  • Dual Evaporator
    Water Filtration System
    Compact Filter LT1000P
  • Ice & Water Dispenser
    Dispenser Type
    Integrated Tall Ice & Water Dispenser®
  • Ice System
    Slim SpacePlus®
    Linear Compressor
  • Display Type
    Smooth Touch Control (White LED)
    Daily Ice Production
    3.5 lbs / 3.8 (IcePlus™)
  • Ice Storage Capacity
    3.0 lbs
    ENERGY STAR® Qualified
  • Energy Usage


  • Folding Shelf
    No. of Shelves
    4 Split (3 Fixed/1 Folding)
  • Cantilevered Shelves
    Shelf Construction
    Spill Protector™ Tempered Glass
  • Crisper Bins
    2 Humidity Crispers/1 Bonus Drawer
    Refrigerator Light
    Premium LED (Ceiling and Side)
  • EasyReach™ Bins
    InstaView™ Door-in-Door®


  • No. of Shelves/Bins
    6 Total (2 Gallon Sized, 1 Regular, 3 Half)
    Door Bin Construction
    Clear, Opaque, Silver Deco
  • Dairy Corner


  • Drawers
    3-Tier Organization®
    DuraBase™ Solid Drawer Base
  • Divider
    Freezer Light
    Premium LED
  • Door Type
    Pull Drawer
    SmartPull® Freezer Handle


  • Depth with Handles
    32 1/8"
    Depth without Handles
    29 5/8"
  • Depth without Door
    24 3/4"
    Depth (Total with Door Open)
  • Height to Top of Case
    68 7/8"
    Height to Top of Door Hinge
    70 1/4"
  • Width
    35 3/4"
    Width (Door Open 90˚ with Handle)
  • Width (Door Open 90˚ without Handle)
    Installation Clearance
    Sides 1/8", Top 1", Back 2"
  • Weight (Unit/Carton)
    371 lbs / 404 lbs.
    Carton Dimensions (WxHxD)
    38" x 73" x 33"


  • Handle
    Matching Commercial Handles
    Available Colors
    Matte Black Stainless Steel
  • Hidden Hinges
    Control Metal
  • Back
    Flush & Metal Cover Over Mechanical Parts
    Contour Door


  • Refrigerator
    13.30 cu. ft.
    6.40 cu. ft.
  • Total
    22.5 cu. ft.
    CustomChill® Drawer
    2.80 cu. ft.


  • Temperature Controls
    Door Alarm
  • LoDecibel™ Quiet Operation
    Auto Closing Door Hinge
  • Child Lock


  • Wi-Fi
  • Voice Activation
    Works with
    Google Assistant
  • Adjust Fresh Food/Freezer Temperatures
    Turn IcePlus™ On/Off
  • Turn Fresh Air Filter On/Off
    Door Open Smartphone Notifications


  • UPC
    Parts & Labor
    1 Year
  • Sealed System (Parts & Labor)
    5 Years
    Compressor (Parts & Labor)
    5 Years
  • Linear Compressor (Parts Only)
    6-10 Years

What people are saying

Rated 1 out of 5 by from ice maker doesn't workyoung Purchased from Sears one month ago. After delivered, found that Ice maker does not working. Report this problem to LG .MAC technician which supports LG visited and confirm it should be replaced with ice maker. But till now I can not receive any technical support because Sears order sheet does not describe model no, serial no for warranty service. And still they don't support with this. We still use Refrigerator without ice making...
Date published: 2020-01-22
Rated 5 out of 5 by from Breaks the Rules! This refrigerator breaks all the rules - finally! It’s so well thought out and engineered, LG brings a new and efficient approach to the home. Well done!
Date published: 2020-01-21
Rated 5 out of 5 by from We bought our LG Refrigerator about a month ago could not be happier......very well built and easy to use.
Date published: 2020-01-16
  • y_2020, m_1, d_27, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_340
  • loc_en_US, sid_MD05924516, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

what is the distance from the floor of the top doors

Asked by: Jackson11
The ENERGY STAR® Qualified LG 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LMXC23796D has a height of 70 1/4" to the top of the door hinge and a height of 68 7/8" to the top of the case...^IFV
Answered by: Ivanf
Date published: 2019-10-28

Where is the water filter? How do you change the water filter?

Asked by: Austin Steve
Lift up and remove the lower door bin. Swing the right end of the water filter out of the compartment and then grasp and rotate the filter counterclockwise to remove it from the filter head. Insert the new filter into the filter head and rotate it clockwise until the arrow on the new filter lines up with the arrow on the filter head. Swing the filter back into the compartment.
Answered by: ChrisPSM
Date published: 2019-10-18

Seems like there is only one light for the flex drawer illuminating on the right side of the drawer only. Is this normal as designed or is there a light for left side as well?

Asked by: Sac Mom
When opening your freezer drawer, the lighting should illuminate both sides of the drawer. If this is not the case, something may be blocking the light from accessing one side. If you're in need of some guidance with using your refrigerator, please head to our support page at @LGUSSupport on Twitter or shoot us a private message on Facebook at https://www.facebook.com/LGUSA/ so a specialist can help out. ^CP
Answered by: ChrisPSM
Date published: 2019-10-11

Wondering why counter depth model LMXC23796S requires 2" back clearance & only 1" for larger non counter depth LMXS30776S. Benefit of counter depth seems less achievable if extra space required at back adds to actual depth & still lose interior storage

Asked by: Needs a new fridge
There is no benefit lost due to the recommended installation clearance of 2" behind the ENERGY STAR® Qualified LG 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LMXC23796S. A counter-depth refrigerator is designed to offer basically the same storage as a regular, full-size refrigerator in a style that doesn't stick out past the kitchen counters and cabinets. Kitchen countertops can have subtle differences in depth. Average kitchen countertop depth comes in at 25 inches. Occasionally, depth can go down as low as 24 inches or as high as 26 1/2 inches. The total depth of Counter Depth Refrigerators is about 30 inches deep which is about 5 inches deeper than a standard CounterTop. Standard kitchen cabinets have a depth of 24" & the cabinet for Counter-Depth refrigerators can be about 24 inches to 25 inches. Various factors may change the Countertop depth may be that the base cabinets are positioned at slightly different distances away from the wall, backsplashes of various depth can be influenced by material thickness, backer board, and the thinset. The Counters may be custom-made counters. When you measure counter depth, start at the wall, not the backsplash. The cabinet for the LMXC23796S has a depth of 24 3/4 inches and a depth of 32 1/8 with the handles. While the refrigerator box is technically counter depth, all fridges need clearance in back, doors, and handles. It is important to remember that you do need to account for door-swing, as it is impossible for doors to properly swing open if they meet the counters. Manufacturers are not engaging in an industry-wide conspiracy of dishonesty. Rather, it is a matter of establishing a common frame of reference for what is meant by counter-depth. When you shave off measurements from one part of the refrigerator, you need to make it up elsewhere. Interior space usually gets made up with higher and wider fridges...^IFV
Answered by: Ivanf
Date published: 2019-09-05

I an curious as to why does the 23 cubic foot counter depth model require 2 " back clearance and the 30 cubic foot regular model require only 1" back circulation clearance

Asked by: Needs a new fridge
Unfortunately, without the empirical data, we can only assume that the ENERGY STAR® Qualified LG 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LMXC23796S radiates more heat from the back than the 30 cubic feet model that you are comparing it to so it will require a little more clearance for the heat to dissipate. We do have some 30 and 31 cubic feet models that require a 2" installation clearance in the back...^IFV
Answered by: Ivanf
Date published: 2019-09-04

Does the refrigerator come with its first water filter included, or is that something that is purchased separately?

Asked by: MRStone
Yes, a water filter is included with the refrigerator.
Answered by: ChrisPSM
Date published: 2019-09-03

Is there a filter for the ice maker?

Asked by: DisneyDreamer
The built-in LG 6 month / 200 Gallon Capacity Replacement Refrigerator Water Filter, Model # LT1000P in the ENERGY STAR® Qualified LG 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator, Model # LMXC23796S filters both the dispensed water and the water that is used for the automatic ice maker...^IFV
Answered by: Ivanf
Date published: 2019-07-09

I have an LG model #LMXC23796D. I have an RO system connected directly to the refrigerator and I want to remove the water filter in the refrigerator. Does the LG ABN73019101 Water Filter Bypass Plug fit this model?

Asked by: RBW01
The ENERGY STAR® Qualified LG 23 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Counter-Depth Refrigerator, Model # LMXC23796D does not require a filter bypass plug when the filter is not in place....^IFV
Answered by: Ivanf
Date published: 2019-05-21
