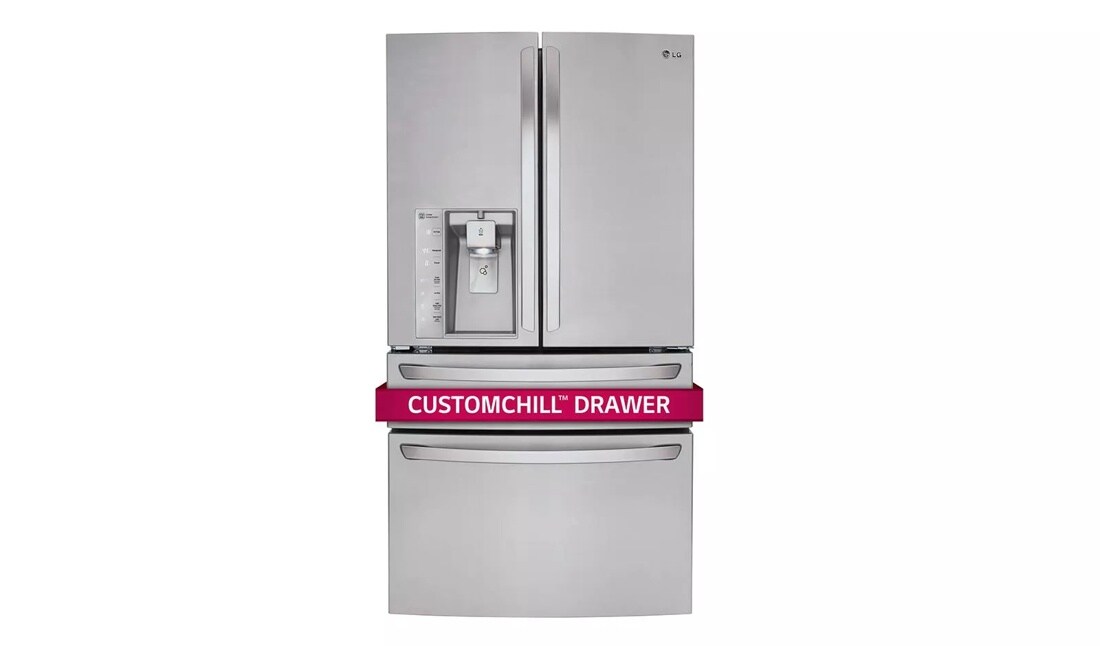

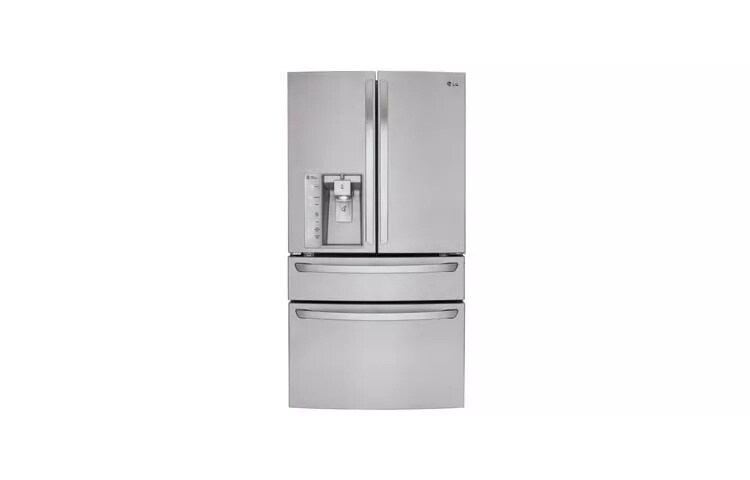

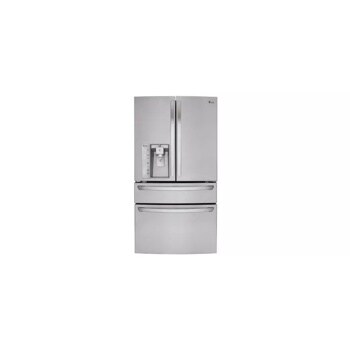

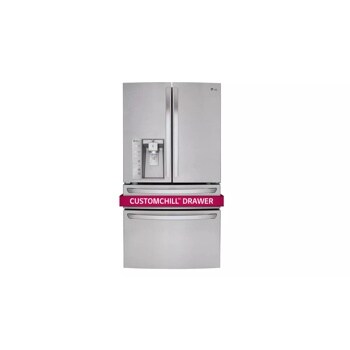

30 cu. ft. French Door Refrigerator


  • 30 cu. ft. Capacity
  • Slim SpacePlus® Ice System
  • CustomChill® Drawer
  • ENERGY STAR® Qualified
30 cu. ft. French Door Refrigerator


    • Door Type
    • French 4-Door
    • ADA Compliant
    • Yes


    • Refrigerator
    • 17.30 cu. ft.
    • CustomChill® Drawer
    • 3.80 cu. ft.
    • Freezer
    • 8.80 cu. ft.
    • Total
    • 29.9 cu. ft.


    • CustomChill® Drawer
    • Yes
    • Energy Rating
    • ENERGY STAR® Qualified
    • ENERGY STAR® Qualified
    • Yes (690 kWh/Year)
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Tall Ice & Water Dispenser®
    • Ice System
    • Slim SpacePlus®
    • Daily Ice Production
    • 3.5 lbs / 3.8 (IcePlus™)
    • Ice Storage Capacity
    • 3.0 lbs
    • Water Filtration System
    • Filter LT800P
    • Smart Cooling® Plus System
    • Yes
    • Multi-Air Flow Cooling
    • Yes
    • Temperature Sensors
    • 8
    • Linear Compressor
    • Yes
    • Fresh Air Filter
    • Yes, Air Filter LT120F
    • Dual Evaporator
    • Yes
    • Display Type
    • Smooth Touch Control (White LED)


    • Temperature Controls
    • Digital
    • Door Alarm
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • SmartDiagnosis™
    • Yes
    • Auto Closing Door Hinge
    • Yes
    • Child Lock
    • Yes


    • No. of Shelves
    • 4 Split (3 Fixed/1 Folding)
    • Folding Shelf
    • Yes
    • Cantilevered Shelves
    • Yes
    • Shelf Construction
    • SpillProtector™ Tempered Glass
    • Crisper Bins
    • 2 Crispers/1 Bonus Drawer
    • Glide N’ Serve®
    • Yes
    • Glide N' Access®
    • Yes
    • Refrigerator Light
    • Premium LED (Ceiling and Side)
    • EasyReach™ Bins
    • 2 EasyReach™ Bins


    • No. of Shelves/Bin
    • 6 Total
    • Door Bin Construction
    • Clear , Opaque, Silver Deco
    • Dairy Corner
    • Yes


    • Dividers
    • 2
    • Temperature Range
    • 29˚, 33˚, 37˚, 42˚ F
    • Handle
    • Smart Pull®


    • Door Type
    • Pull Drawer
    • Drawers
    • 3-Tier Organization®
    • Handle
    • Smart Pull® Freezer Handle
    • DuraBase™ Solid Drawer Base
    • Yes
    • Drawer Divider
    • Yes
    • Ice Bin
    • Yes
    • Freezer Light
    • Premium LED


    • Contour Door
    • Yes
    • Hidden Hinges
    • Yes
    • Surface
    • Coated Metal, Stainless Steel
    • Back
    • Flush & Metal Cover Over Mechanical Parts
    • Available Colors
    • Stainless Steel (S)
    • Handles
    • Matching Commercial Handles


    • Depth with Handles
    • 39 1/8"
    • Depth without Handles
    • 35 2/8"
    • Depth without Door
    • 31"
    • Depth (Total with Door Open)
    • 49"
    • Height to Top of Case
    • 68 7/8"
    • Height to Top of Door Hinge
    • 70 1/4"
    • Width
    • 35 3/4"
    • Width (Door Open 90° with Handle)
    • 45"
    • Width (Door Open 90° without Handle)
    • 40"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 1"
    • Weight (Unit/Carton)
    • 348 lbs / 388 lbs.
    • Carton Dimensions (WxHxD)
    • 38" x 73" x 40"


    • Limited Warranty
    • 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)
    • UPC
    • 048231786850

What people are saying

Rated 1 out of 5 by from Does not last. Bought this and after a couple weeks it stopped cooling. Called and they would not warranty it. So to have it repaired would be more than getting a new one. I will never buy another LG anything. It is not even 4 years old.
Date published: 2020-04-30
Rated 1 out of 5 by from LG compressor issues!! Let me add to the growing list of consumers with compressor issues. While we loved the design and capacity of this class of refrigerator, the quality is a major issue. Issues surfaced with compressor at 2 1/2 years. Started with ice maker not making ice and within a couple days the freezer and refrigerator could not maintain a cold temperature. Sears of little assistance as it will take three weeks befor they can get a technician to our house. While LG warrantees parts for 5 years, the labor charges are not covered. This seems like a consistent issue with this LG model. LG needs to proactively refund labor costs and costs for food spoilage.
Date published: 2018-12-31
Rated 3 out of 5 by from Troubled Icemaker I think I am going to love this this fridge. There are numerous ways to organize the contents. However the reason I bought this was because the icemaker in my old fridge broke down. To find this one didn't work was a huge disappointment. Calls to LG repair remain unanswered. Good thing I bought an extended warranty from the seller. The issue seems to be known to LG and should have been fixed before unit was sold.
Date published: 2018-01-02
  • y_2021, m_4, d_17, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_19
  • loc_en_US, sid_MD05167260, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 36ms


Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Why the freezer isnt working

Asked by: mike edg
Hello Mike edg, sounds like we may need to troubleshoot. Please give us a call at 1-800-243-0000 or drop us a line on Twitter at @LGUSSupport or on Facebook at @LGUSSupport when you are with the unit. ^AC
Answered by: Amber C
Date published: 2018-02-12

Do you have drawer replacement?

Asked by: Padilla
The drawers on the unit are able to be replaced. Parts and accessories can be obtained through our parts distributor, Encompass Parts. Their contact number, for placing orders and pricing information, is 866-779-7906. You can also use their website, at https://www.encompassparts.com/ .
Answered by: NeilE
Date published: 2017-07-11


Asked by: VSTAR1RN
No Need to do this. It is a self defrosting freezer area.
Answered by: Ravensgift
Date published: 2016-07-02

We use a lot of ice, I am concerned @ the ability to make ice.Can I get a larger ice maker?

Asked by: Cocopepe
Regrettably, the Factory Installed Ice Maker is specifically designed for the LG 30 cu.ft. Super Capacity 4-Door French Door Refrigerator w/ CustomChill™ Drawer, Model # LMXS30786S and a larger one would not fit and is not designed to connect the same way that the current one does...^IFV
Answered by: LGJoel
Date published: 2015-09-18

What is the difference between lmxs30786s and lmxs30746s?

Asked by: margiemartinez
I have been asking the same exact thing. It would seem that the only difference is the energy usage: The 786S is energy star compliant at 690 KWH/Year; the 486S is not at 751 KWH/Year.  I don't quite understand how a difference of 51 KWH/Year usage is going to make a dent in any average household's energy usage. I use 1,500 per month on average, so I can't really see the advantage of the 786S which is coming in at much higher prices locally for me.
Answered by: emoorephila
Date published: 2015-09-01

We recently purchased the 4 door 30 cu refrig and have had noise problems. The fan freezes up and has a loud rattle. two repairmen cant find out why

the refrig is only one month old. After defrosting the fan, it freezes up in 2 weeks. it is getting louder each day. where is the moisture coming from that is allowing the fan to freeze.
Asked by: fink028

What rype of gas does this refrigerator use?

Asked by: Lolanala

Can the height of this refrigerator be adjusted down at least one inch. I only have a 69 3/4 inch space

Can the height of this refrigerator be adjusted down at least one inch. I only have a 69 3/4 inch space. I need to find a fridge with the four doors and the door in door feature to fit in my kitchen and the only limitation is the 69 3/4 in height. PLEASE HELP!!!!!!!
Asked by: geppo
