LSXS26336S

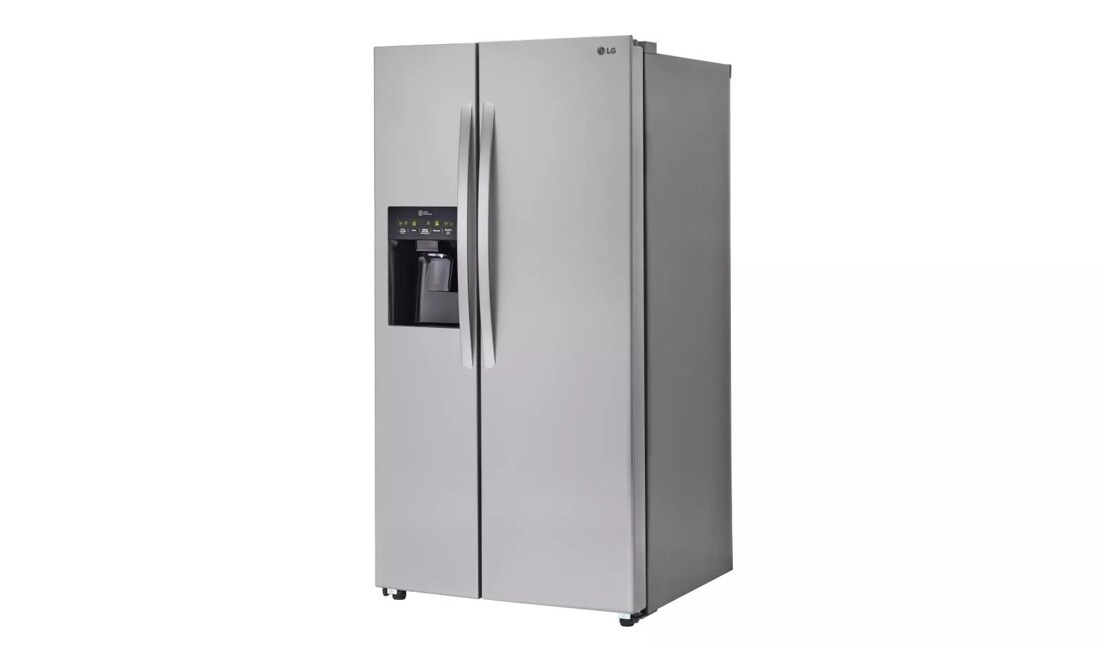

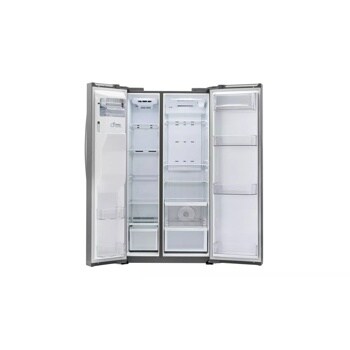

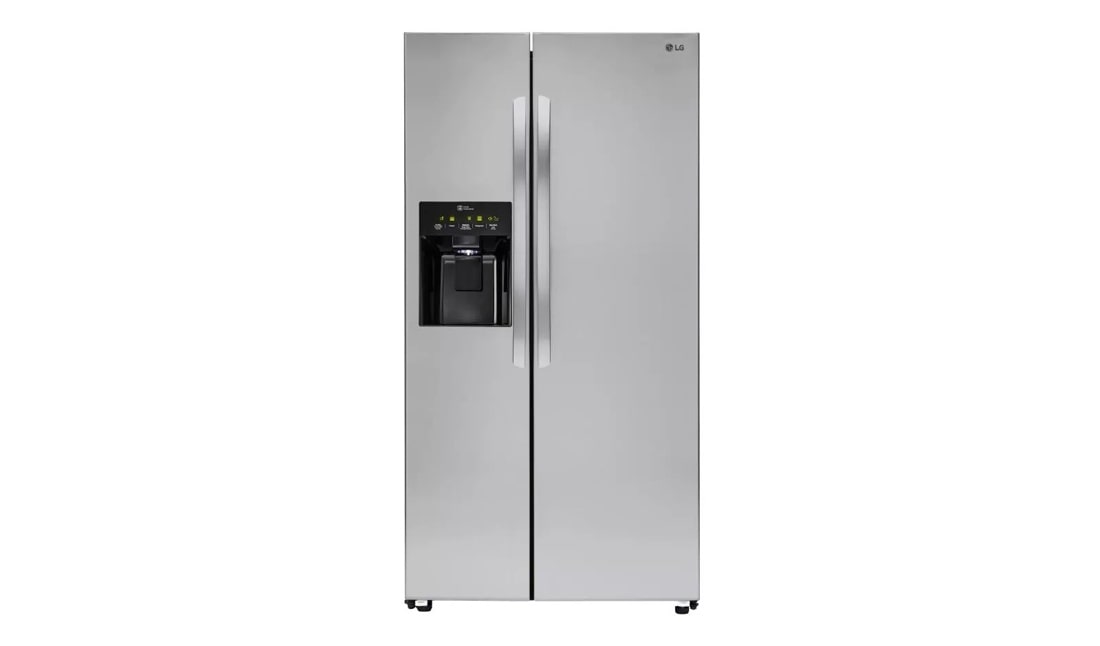

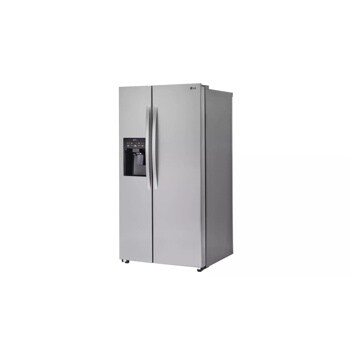

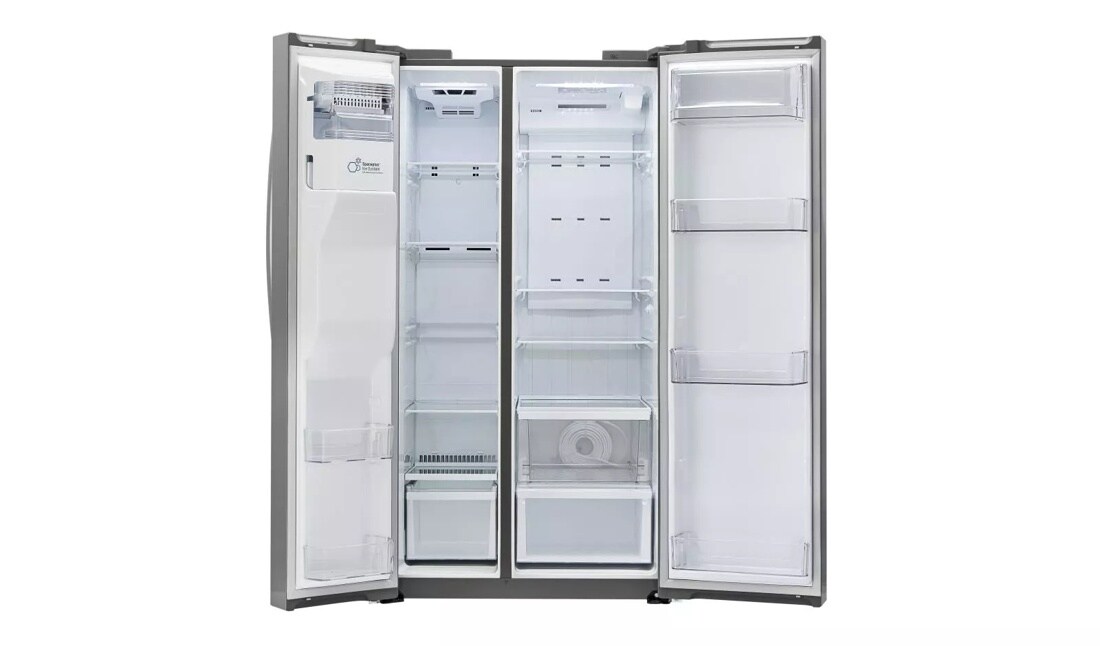

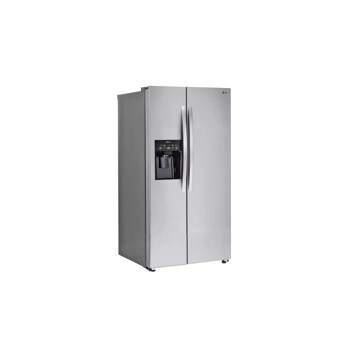

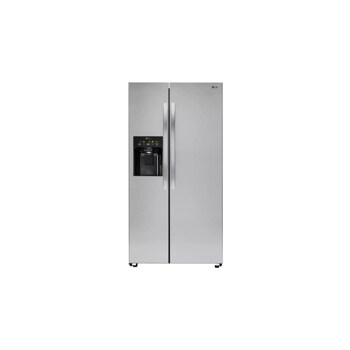

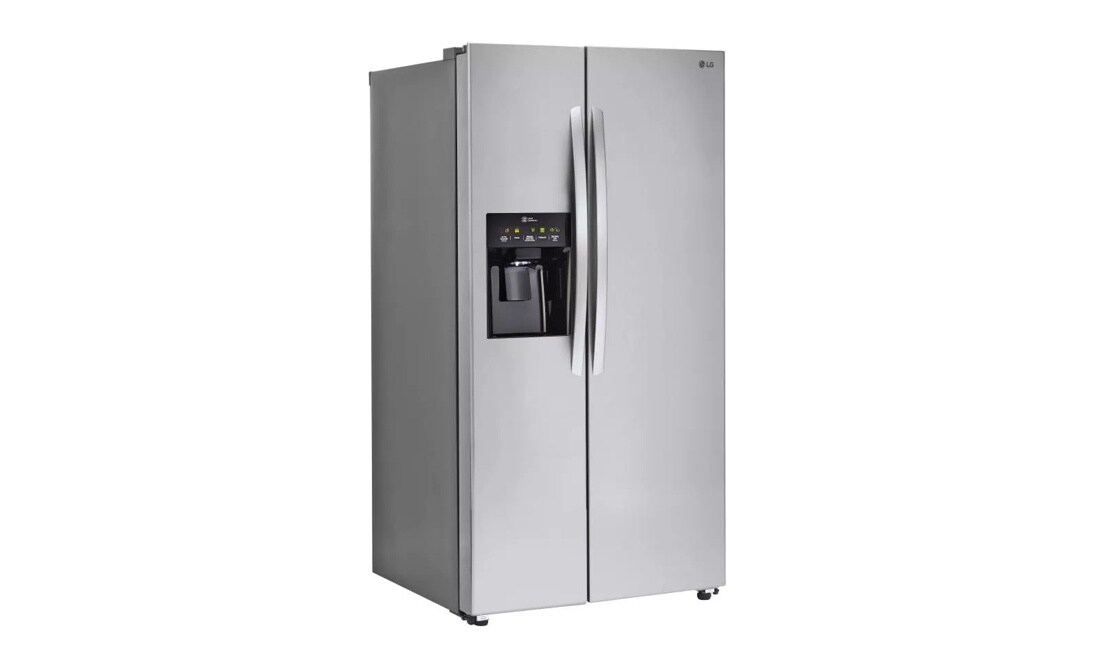

26 cu. ft. Side-By-Side Refrigerator

KEY FEATURES

  • 26 cu. ft. Capacity
  • SpacePlus® Ice System
  • 10-Year Manufacturer’s Limited Warranty on Linear Compressor
  • Multi-Air Flow Cooling
  • Premium LED Lighting
26 cu. ft. Side-By-Side Refrigerator

SUMMARY

    • Total Capacity
    • 26.2
    • Ice & Water Dispenser
    • Yes
    • Standard Depth
    • Yes
    • SmartDiagnosis™
    • Yes

CAPACITY

    • Refrigerator
    • 17.00 cu. ft.
    • Freezer
    • 9.20 cu. ft.
    • Total
    • 26.2 cu. ft.

FEATURES

    • Energy
    • (716 kWh/Year)
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Integrated Ice & Water
    • Ice System
    • SpacePlus®
    • Daily Ice Production
    • 3.5 lbs / 4.1 lbs (IcePlus™)
    • Ice Storage Capacity
    • 4.5 lbs
    • Cubed Ice & Crushed Ice
    • Yes
    • Water Filtration System
    • LT1000P
    • Dispenser Light
    • Yes
    • Multi-Air Flow Cooling
    • Yes
    • Temperature Sensors
    • 5
    • Display Type
    • Membrane / Green LED
    • Temperature Controls
    • Electronic/Digital
    • Linear Compressor
    • Yes
    • Door Alarm
    • Yes
    • Child Lock
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • SmartDiagnosis™
    • Yes
    • Auto Closing Door Hinge
    • Yes (Cam Hinge Type)

REFRIGERATOR

    • No. of Shelves
    • 3
    • Shelf Construction
    • Tempered Glass
    • Crisper Bins
    • 2
    • Refrigerator Light
    • Ceiling LED

REFRIGERATOR DOOR

    • No. of Door Bins
    • 4 Total
    • Door Bin Construction
    • 1 Piece (Clear)
    • Dairy Corner
    • Yes

FREEZER

    • Door Type
    • Side Swing
    • No. of Shelves
    • 3
    • No. of Door Bins/Construction
    • 2 / 1 Piece (Clear)
    • No. of Drawers
    • 1
    • Freezer Light
    • Premium LED
    • Ice Bin / In Door Ice
    • Ice Bin / In Door Ice

MATERIALS AND FINISHES

    • Contour Door
    • Yes
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Back
    • Flush & Metal Cover Over Mechanical Parts
    • Available Colors
    • Black Stainless Steel (D), Dark Graphite (V), Stainless Steel (S)
    • Handles
    • Matching Commercial Handles

DIMENSIONS/CLEARANCES/WEIGHTS

    • Depth with Handles
    • 36 5/16"
    • Depth without Handles
    • 34"
    • Depth without Door
    • 29 1/16"
    • Depth (Total with Door Open)
    • 51 1/8"
    • Height to Top of Case
    • 69 3/8"
    • Height to Top of Door Hinge
    • 70 1/4"
    • Width
    • 35 7/9"
    • Width (Door Open 90˚ with Handle)
    • 44 1/5"
    • Width (Door Open 90˚ without Handle)
    • 39 1/4"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 264 lbs. / 290 lbs.
    • Carton Dimensions (WxHxD)
    • 38 1/2" x 72 4/16" x 37 31/64"

LIMITED WARRANTY

    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years

UPC CODES

    • UPC
    • 048231796361

What people are saying

Rated 1 out of 5 by from Compressor fail in 2 years Compressor got broken after 2-year and got repaired, but new compressor generates very high pitch. Called to the service center again but they are not deploying another service. Just don't buy LG refrigerator. Its is not reliable any more unlike 10 year back. Linear compressor of LG seems sucks.
Date published: 2021-04-10
Rated 5 out of 5 by from Love our Purchase works great!!! we are satisfied with our purchase..
Date published: 2021-04-09
Rated 1 out of 5 by from Terrible Terrible design the anti-frost feature kicks on for a couple of days and ruins everything in the refrigerator. Had to go buy another unit after 2 years and 3 times ruining all my food.
Date published: 2021-04-07
  • y_2021, m_4, d_15, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_221
  • loc_en_US, sid_MD05879976, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 11ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Will this model support and additional crisper drawer above the bottom two?  We store fruit in one, vegetables in two, and packaged meats in the third.

Asked by: Maddog9254
Just no.
Answered by: Barniferous
Date published: 2020-03-23

The compressor is broken on my model. The warranty above states "5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only)"; however LG won't honor this warranty. Please advise.

Asked by: Jonathan G
We definitely understand that it can be frustrating to spend money on a refrigerator and experience these issues within a few years. We'd like to see how we can help in getting this repaired for you. Please take a moment, at your convenience, to contact us directly via Twitter @LGUSSupport or Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2019-07-23

Our 3 month old LSXS26336S Frig/Freezer keeps growing a large ice sheet under the bottom drawer. We remove it, but it grows again. Is the drain filter frozen or clogged? Or is it something else? How do we diagnose?

Asked by: Jacko1
That's not good! We're sorry to see that you've run into these issues with your refrigerator. We'll need to gather some additional details from you in order to see how we can best assist. Please reach out to a specialist via Twitter @LGUSSupport, Facebook https://www.facebook.com/LGUSA/ ^CP
Answered by: ChrisPSM
Date published: 2019-07-19

I have the LSXS26366D and we love it!! Does my refrigerator have an air filter that needs to be replace? If so what filter number and where is it located?

Asked by: Cas5id4
No, the LSXS26366D does not have an air filter. ^CP
Answered by: ChrisPSM
Date published: 2019-07-08

My light in the freezer went out. How do we replace it?

Asked by: GeminiTes
The Premium LED panel for the Freezer compartment in the LG 26 cu. ft. Side-By-Side Refrigerator, Model # LSXS26336S has to be replaced by a qualified service technician. You can visit our site at https://www.lg.com/us/support/repair-service/find-repair-provider to find an LG Authorized Repair Service Center near you who can replace it for you or contact our Support Representatives at (800) 243-0000 for assistance locating one near you...^IFV
Answered by: Ivanf
Date published: 2019-06-19

Can the doors be taken off to get the unit they a tight doorway?

Asked by: Bucoda boy
Hello, there are instructions in the manual on how to remove and install the doors. You can review the manual here: https://www.lg.com/us/support-product/lg-LSXS26336S ^AC
Answered by: Amber C
Date published: 2018-10-17

How do you hook ice maker up

Asked by: Teresa Carlisle
Information regarding connecting the water line of your refrigerator can be found in the owner's manual beginning on page 15. https://www.lg.com/us/support-product/lg-LSXS26336S#manuals ^CP
Answered by: ChrisPSM
Date published: 2018-10-02

Just purchased the LSXS26336S and noticed the panel does not show numeric value of the temperature only bars. How do I know what temperature I'm setting the freezer/refrig to?

Asked by: merrymix
Once the unit is plugged in, the unit will default to the recommended temp, which is 37 degrees for fridge and 0 degrees for freezer. The more bars that are illuminated, the colder the unit will be. ^AC
Answered by: Amber C
Date published: 2020-07-14
