29 cu. ft. Smart InstaView® Door-in-Door® Standard-Depth MAX™ 4-Door French Door Refrigerator with MyColor™ and Craft Ice™

1/3
Logo Image
1/3
LG Logo
LH29S8565S
2024 LG InstaView MyColor Refrigerator USP video A
ha product showcase ref lf29s8365s v14
29 cu. ft. Smart InstaView® Door-in-Door® Standard-Depth MAX™ 4-Door French Door Refrigerator with MyColor™ and Craft Ice™
29 cu. ft. Smart InstaView® Door-in-Door® Standard-Depth MAX™ 4-Door French Door Refrigerator with MyColor™ and Craft Ice™

29 cu. ft. Smart InstaView® Door-in-Door® Standard-Depth MAX™ 4-Door French Door Refrigerator with MyColor™ and Craft Ice™

LH29S8565S

Key features

  • Enjoy a 2-year limited warranty on select appliances purchased through December 31, 2025 via the ThinQ® app. Terms apply.ᶲ
  • Knock twice on the InstaView® window to see more of your favorites without opening the door
  • MyColor™ lets you change the InstaView® window color to match your kitchen design, occasion or outfit
  • Choose from 5 colors: Ruby Red, Sapphire Blue, Citrine Orange, Amethyst Purple, Emerald Green
  • Dual Ice Maker with Craft Ice™
  • Convert from fridge to freezer, and back, with a touch. Choose from five temperature settings
  • Soft-close hinges “catch” the door to allow it to close softly and quietly
  • 29 cu.ft. Large Capacity lets you stock up on more of your favorites

Specifications

download-guide iconDownload Energy Guide
  • Capacity
  • Convenience
  • Cooling
  • Dimensions/Clearances/Weights
  • Energy
  • Freezer
  • Limited Warranty & UPC
  • Materials and Finishes
  • Refrigerator
  • Summary
  • Refrigerator ThinQ® Smart Features
  • Water & Ice System
  • Full-Convert Drawer™
  • See All
  • Capacity
    Freezer (cu.ft.)
    8.4 cu.ft.
    Refrigerator (cu.ft.)
    17 cu.ft.
    Total Capacity (cu.ft.)
    28.6 cu.ft.
    Capacity
    Freezer (cu.ft.)
    8.4 cu.ft.
    Refrigerator (cu.ft.)
    17 cu.ft.
    Total Capacity (cu.ft.)
    28.6 cu.ft.
    Convenience
    ADA Compliant
    Yes
    Auto Closing Door Hinge
    Yes
    Door Alarm
    Yes
    Sabbath Mode
    Yes
    Temperature Controls
    Electronic/Digital
    Cooling
    Refrigerant
    Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a/84g/ 2.96oz
    Compressor Type
    Smart Inverter Compressor
    Evaporator
    1
    Fresh Air Filter
    Yes
    Multi-Air Flow™ System
    Yes
    Temperature Sensors
    3
    Dimensions/Clearances/Weights
    Carton Dimensions (WxHxD)
    37 7/8" x 72 3/8" x 36 3/8"
    Case Edge Clearance (Door Fully Open)
    21"
    Depth (Draw Open Fully without Handle)
    55.375"
    Depth (to Hinge Cover)
    30"
    Depth (Total with Door Open)
    48.5"
    Depth without Door
    30"
    Depth without Handles
    34.375"
    Dimensions (W case x H top of hinge x D with handles)
    35 3/4" x 70 1/4" x 34 3/8"
    Door Edge Clearance with Handle
    0.375"
    Door Edge Clearance without Handle
    2.25"
    Height (Floor to Top of Drawer)
    33.25"
    Height to Top of Case
    68.875"
    Height to Top of Door Hinge
    70.25"
    Installation Clearance
    Sides 1/8", Top 1", Back 2"
    Weight (Unit/Carton)
    294 lbs. / 315 lbs.
    Width
    35.75"
    Width (Door Fully Open without Handle)
    56.75"
    Width (Door Open 90˚ without Handle)
    40.5"
    Energy
    Energy Consumption (kWh/Year)
    785
    ENERGY STAR® Qualified
    Yes
    Freezer
    Door Type
    Pull Drawer
    Drawer Divider
    No
    Drawers/Shelves
    2-Tier Organization
    Freezer Handle
    Smart Pull™ Handle (Pocket Handle)
    Freezer Light
    LED Lighting (Upper)
    Ice Maker
    Yes
    Limited Warranty & UPC
    Compressor (Parts & Labor)
    5 Years
    Inverter Compressor (Parts Only)
    6 - 10 Years
    Parts & Labor
    1 Year
    Sealed System (Parts & Labor)
    5 Years
    UPC
    195174078952
    Materials and Finishes
    Insulation
    Low GWP and Zero ODP Blowing Agent
    All Available Colors
    PrintProof™ Stainless Steel
    Door Type
    Flat
    Hidden Hinges
    Yes
    Refrigerator
    Door-in-Door®
    Yes
    Cool Guard
    Yes
    Crisper Bins
    2
    Handle Type
    Pocket
    InstaView™ Door-in-Door®
    Yes
    No. of Door Bins
    3 Left, 3 Right
    No. of Shelves
    4 Split (4 Fixed)
    Refrigerator Light
    Yes
    Shelf Construction
    Spill protector Tempered glass
    Summary
    Display Type
    Smooth Touch Control / White LED
    Refrigerator ThinQ® Smart Features
    SmartDiagnosis™
    Yes
    ThinQ® Smart Technology
    Yes
    ThinQ Care™
    Yes
    wi-fi Enabled
    Yes
    ThinQ UP™
    Yes
    Water & Ice System
    Freezer Ice Maker Ice Type
    Craft Ice
    In-Door Ice Maker Ice Type
    Cubed / Crushed
    Daily Ice Production (lbs)
    3.0 / 3.3 (IcePlus) lbs
    Dispenser Light
    No
    Dispenser Type
    Ice & water
    Ice Storage Capacity (lbs)
    3.0 lbs
    Water Filter
    LT1000P
    Water Filtration System
    1 Stage
    Full-Convert Drawer™
    Full-Convert Drawer™ Handle Type
    Pocket Handle
    Full-Convert Drawer™ Light
    LED lighting
    Full-Convert™ Drawer Capacity
    3.2 cu.ft.
    Full-Convert Drawer™ Divider
    Yes
    Features

    Make a Design Statement with MyColor™
    See Inside and Keep Your Cool

    MAX out your style by changing the color of the InstaView® window’s interior LED lighting to complement your kitchen and lifestyle. Choose from 5 vibrant color options through the ThinQ® app¹.

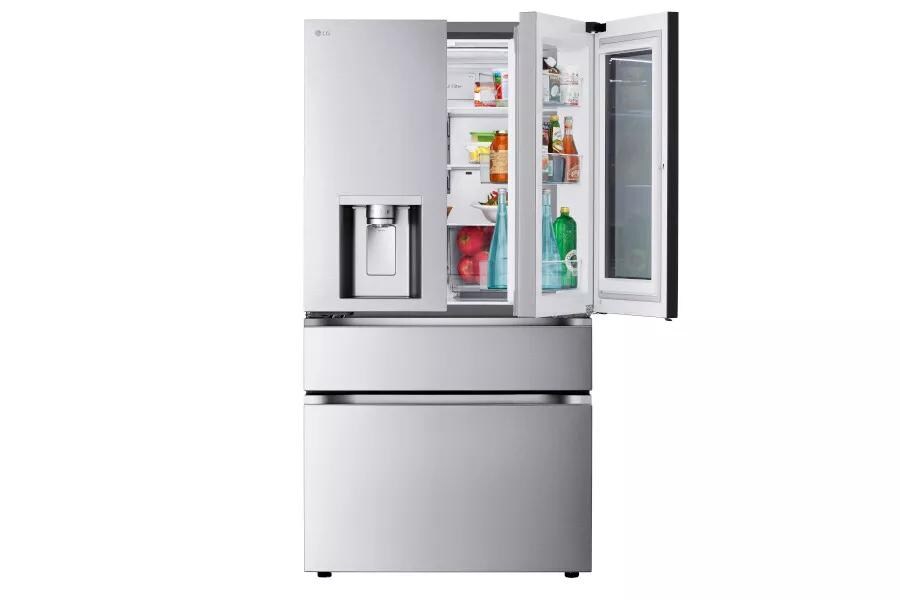

    The LG InstaView® Door-in-Door® has a tinted glass panel that illuminates with two quick knocks, allowing you to see inside the easy access compartment without ever opening the door. This reduces cold air loss and helps keep your family's food fresher longer.

    MAX out your fit with a slam-resistant refrigerator door. Soft-close hinges “catch” the door to allow it to close softly and quietly — and keep it from slamming shut. Not only does it keep the peace in your kitchen, but it also protects little hands that may be searching for an afternoon snack.

    MAX out your fit with this sleek, seamless design from LG and take in the contemporary vibe. Discreet, easy-access pocket handles complement the flat door for a sleek, elevated look to your kitchen.

    For owners

    Warranty Information

    ¹Five colors available by default. Brightness and colors may vary. Additional colors available through future ThinQ® App updates.

    ²Shape and clarity of ice will be impacted with Craft Ice+ is activated; may vary with settings, home use and water supply.

    ³Available on select LG smart appliances. Features may vary by model.



    Purchases must be made between April 03, 2025 and December 31, 2025. Consumers must download the LG ThinQ® App and connect product to Wi-Fi to claim their promotional ThinQ® limited warranty. Redeem within 60 days of purchase. See terms at https://www.lgoffers.com


    Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice. Prices, promotions, and availability may vary by model, store, and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for their final price and availability.
