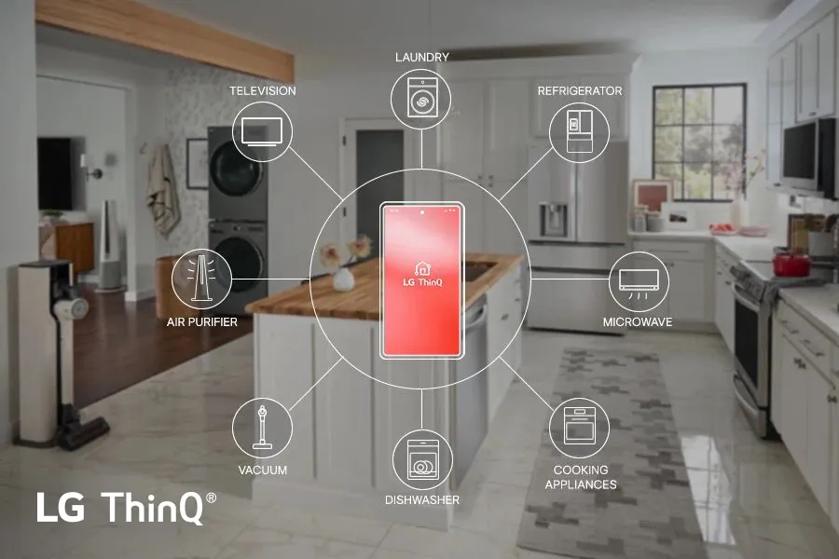

LG ThinQ KeepFreshTM Cycle On Download on the App Store Connect your home appliances to the LG ThinQ app. Enjoy effortless product control, smart care, and convenient automation in one simple solution. It's as Easy as 1-2-3 1 Scan the QR code 2 Download the ThinQ app 3 Connect your LG smart products *Available on select products. Features and functionality may vary by model. SCAN ME GET IT ON Google Play
BROUGHT TO YOU BY AMERICA'S MOST RELIABLE LINE OF APPLIANCES

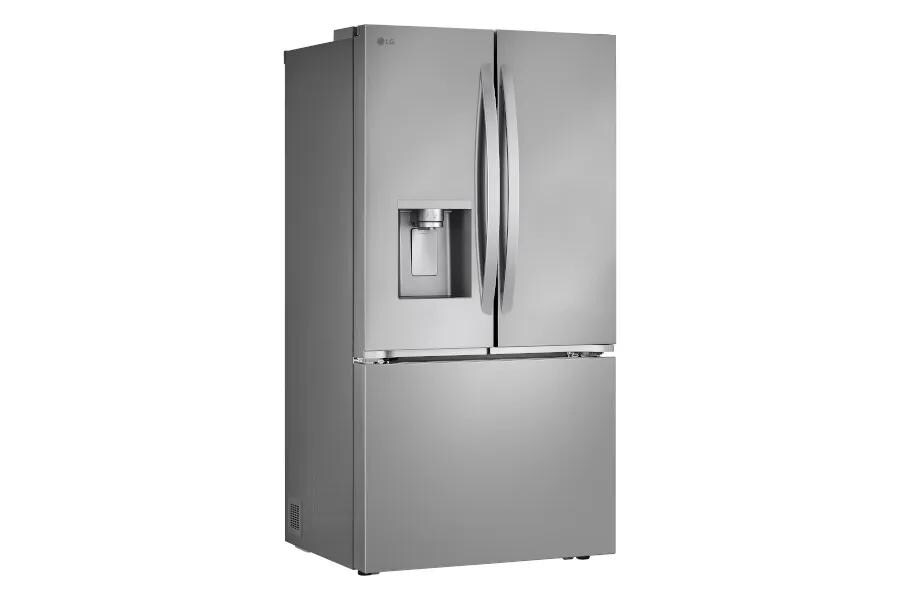

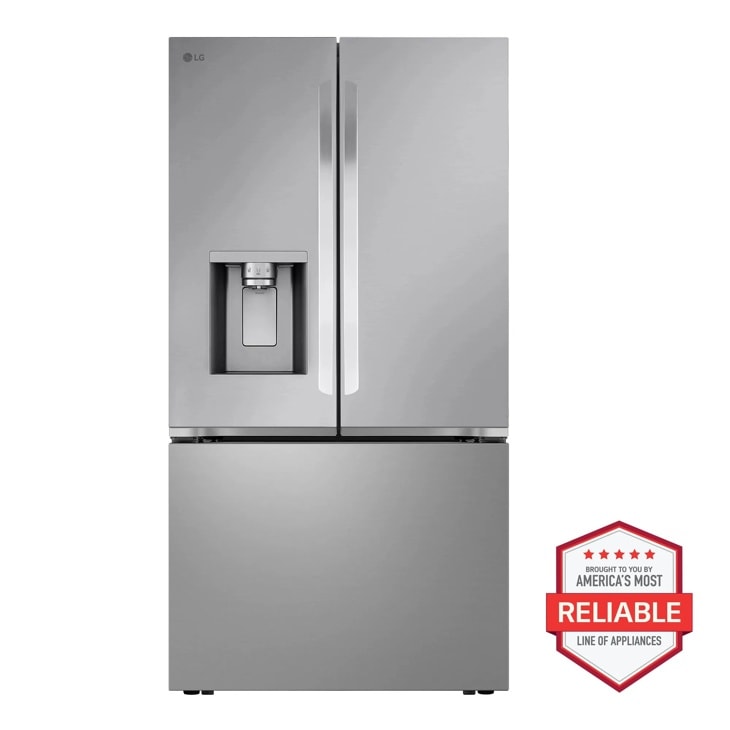

31 cu. ft. Standard Depth MAX 3 Door French Door with Ice & Water Dispenser and Dual Ice Maker

LL31H6530S

Key features

  • ThinQ Offer: Get an extra 1-year limited warranty (up to $185 value) through 12/31/25. Terms applyᶲ

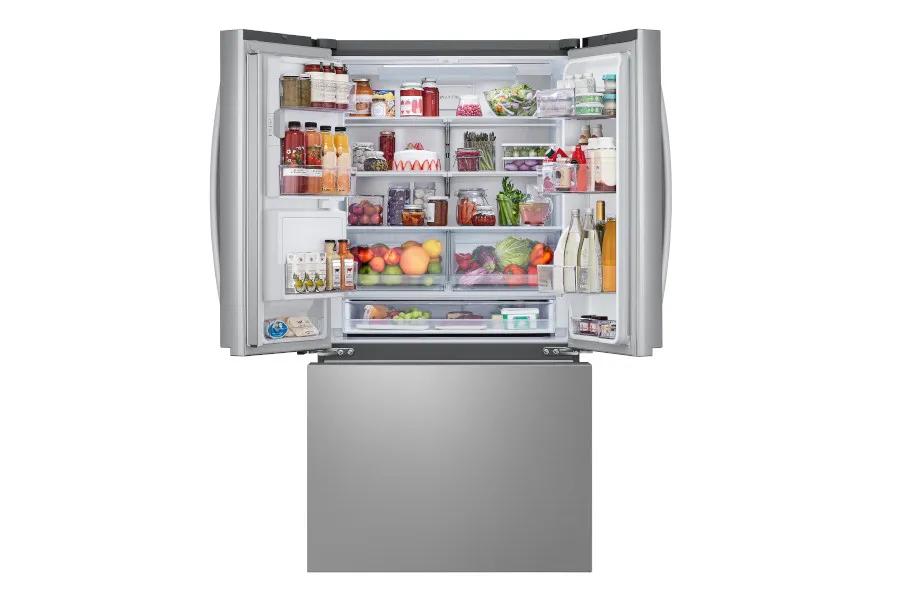

  • Super-capacity means more room than ever
  • Dual ice makers maximize ice production and storage so you never run out
  • Activate Craft Ice+ in the ThinQ® app or by pressing the Freezer button on the dispenser for 3 seconds
  • Door Cooling+ delivers blasts of cool air that reach all areas of the refrigerator
  • Enjoy chilled filtered water and ice with just a touch—with a PrintProof™ finish that leaves no trace behind
  • Finally, an ice & water dispenser that can accommodate just about any container
  • Turn on IcePlus™ for increased ice production
Specifications
Download Spec Sheetdownload-guide iconDownload Energy Guide
  • Capacity
  • Convenience
  • Cooling
  • Dimensions/Clearances/Weights
  • Energy
  • Freezer
  • Limited Warranty & UPC
  • Refrigerator
  • Summary
  • Refrigerator ThinQ® Smart Features
  • Water & Ice System
  • See All
    • Capacity
    Freezer (cu.ft.)
    10.3 cu.ft.
    Refrigerator (cu.ft.)
    20.4 cu.ft.
    Total Capacity (cu.ft.)
    30.7 cu.ft.
    Capacity
    Freezer (cu.ft.)
    10.3 cu.ft.
    Refrigerator (cu.ft.)
    20.4 cu.ft.
    Total Capacity (cu.ft.)
    30.7 cu.ft.
    Convenience
    ADA Compliant
    Yes
    Auto Closing Door Hinge
    Yes
    Child Lock
    Yes
    Door Alarm
    Yes
    Sabbath Mode
    Yes
    Temperature Controls
    Electronic/Digital
    Cooling
    Refrigerant
    Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 78g / 2.76oz)
    Compressor Type
    Smart Inverter Compressor
    Evaporator
    1
    Fresh Air Filter
    Yes
    Multi-Air Flow™ System
    Yes
    Temperature Sensors
    2
    Dimensions/Clearances/Weights
    Carton Dimensions (WxHxD)
    37 7/8 x 72 3/8 " x 37 7/8"
    Depth (Draw Open Fully without Handle)
    57.87"
    Depth (to Hinge Cover)
    23.18"
    Depth (Total with Door Open)
    48.75"
    Depth with Handles
    36.87"
    Depth without Door
    29.87"
    Depth without Handles
    34.37"
    Dimensions (W case x H top of hinge x D with handles)
    35 3/4" x 70 1/4" x 36 7/8"
    Door Edge Clearance without Handle
    4.25"
    Height to Top of Case
    68.87"
    Installation Clearance
    Sides 1/8", Top 1", Back 2"
    Weight (Unit/Carton)
    304 lbs /327 lbs
    Width
    35.75"
    Width (Door Fully Open without Handle)
    56.75"
    Width (Door Open 90˚ with Handle)
    44.87"
    Width (Door Open 90˚ without Handle)
    40"
    Energy
    Energy Consumption (kWh/Year)
    755
    ENERGY STAR® Qualified
    Yes
    Freezer
    Door Type
    Pull Drawer
    Drawer Divider
    No
    Drawers/Shelves
    2-Tier Organization
    Freezer Light
    LED Lighting
    Shelf Construction
    Spill Protector Tempered Glass
    Limited Warranty & UPC
    Compressor (Parts & Labor)
    5 Years
    Inverter Compressor (Parts Only)
    6 - 10 Years
    Parts & Labor
    1 Year
    Sealed System (Parts & Labor)
    5 Years
    UPC
    195174088432
    Refrigerator
    Cool Guard
    Yes
    Crisper Bins
    2
    Handle Type
    Bar
    No. of Door Bins
    4 Left, 4 Right
    No. of Shelves
    4 Split (4 Fixed)
    Refrigerator Light
    Yes
    Summary
    Display Type
    Smooth Touch Control / White LED
    Refrigerator ThinQ® Smart Features
    SmartDiagnosis™
    Yes
    SmartThinQ®
    Yes
    ThinQ Care™
    Yes
    wi-fi Enabled
    Yes
    Water & Ice System
    Freezer Ice Maker Ice Type
    Cubed
    In-Door Ice Maker Ice Type
    Cubed / Crushed
    Daily Ice Production (lbs)
    3.0/3.3 (Ice Plus) lbs
    Dispenser Light
    No
    Dispenser Type
    Ice & water
    Ice Storage Capacity (lbs)
    4.0
    Water Filter
    LT1000P
    Water Filtration System
    1 Stage
    Features

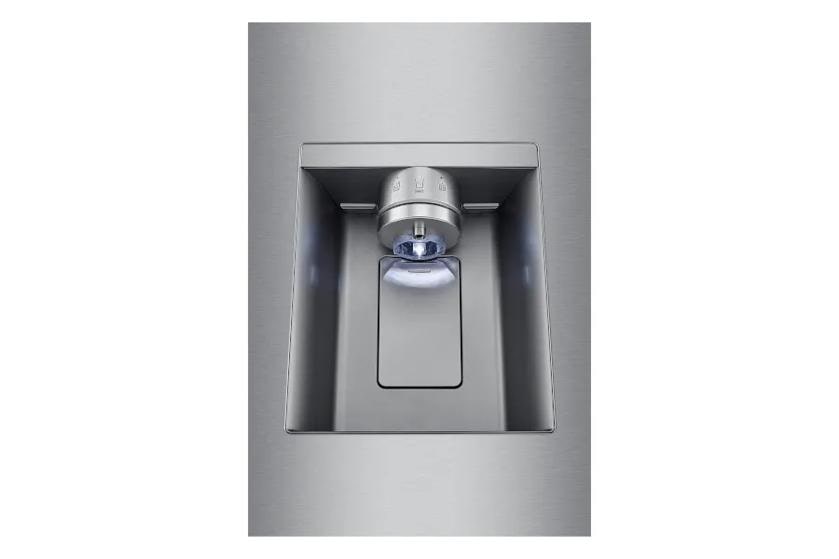

    One Size Fills All.

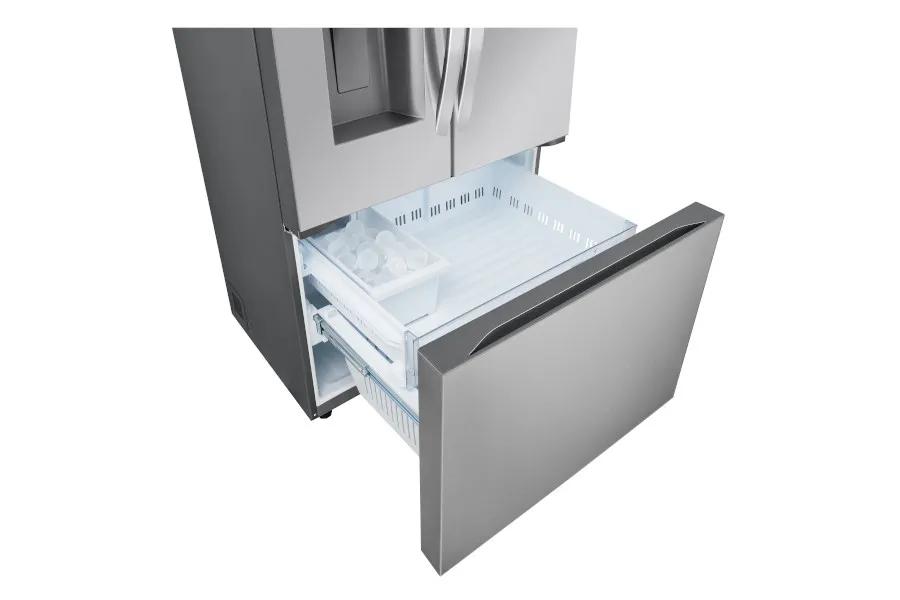

    Dual ice makers, dispensed from the door and located in the freezer compartment, automatically produce cubed and crushed ice, so you never run out. This extra ice storage helps ensure that you have extra ice on hand for those hot summer days or when entertaining large parties.

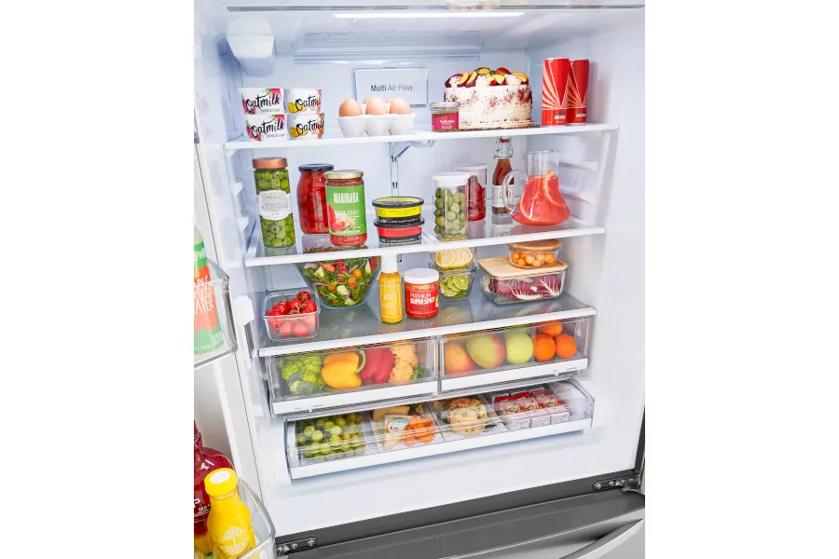

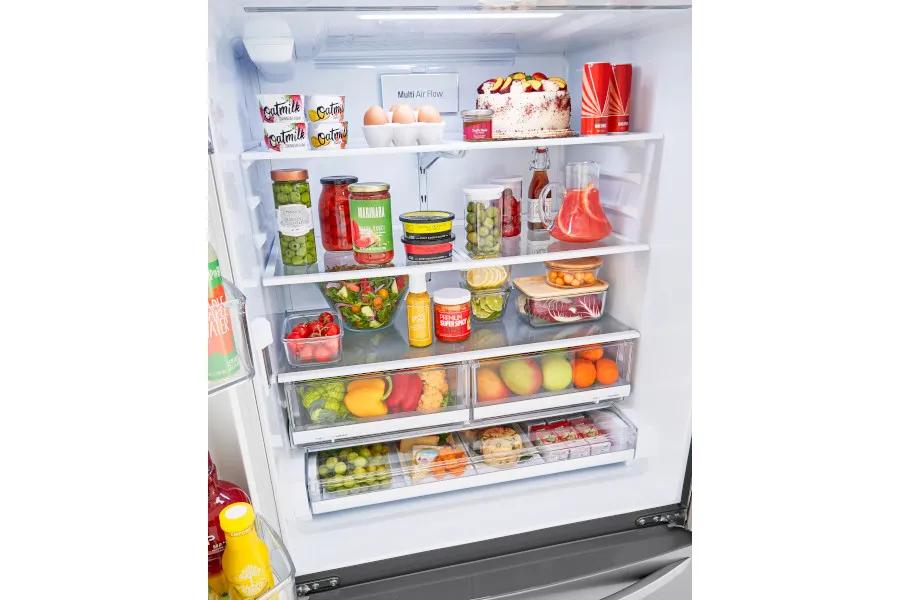

    Located in the top of the fresh food section, the Door Cooling+ vent extends the reach of LG’s Smart Cooling system. Blasts of cool air reach all areas of the refrigerator—including the door—to help maintain consistent temperatures from top to bottom and help keep all foods fresh and flavorful.

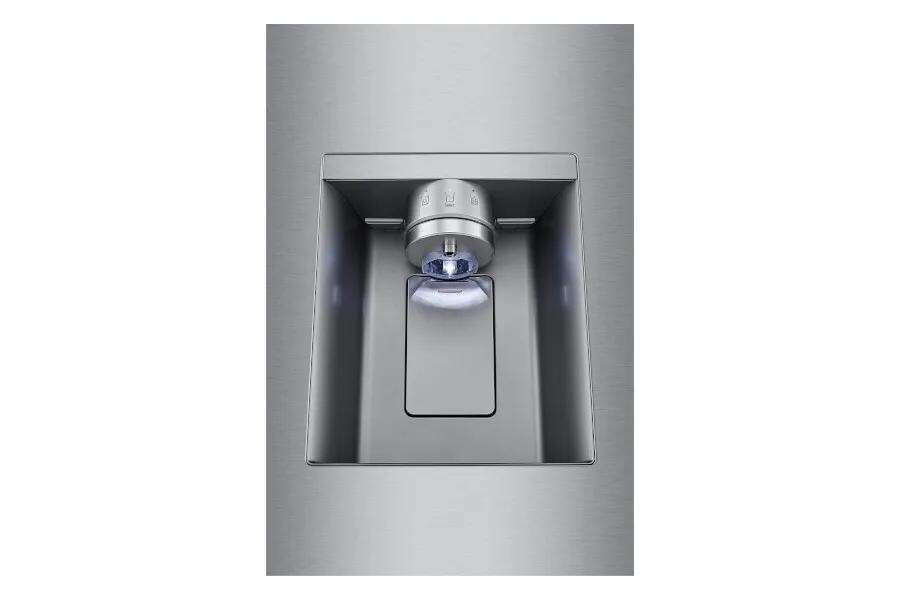

    From pitchers to pint glasses, finally an ice & water dispenser that can accommodate just about any container. The water and ice dispenser in this LG French Door refrigerator is one of the tallest around, measuring in at an ultra-accommodating 12.6 inches.
