24 cu. ft. Counter-Depth MAX™ with Zero Clearance™ 3-Door French Door Refrigerator

Logo Image
1/5
LG Logo

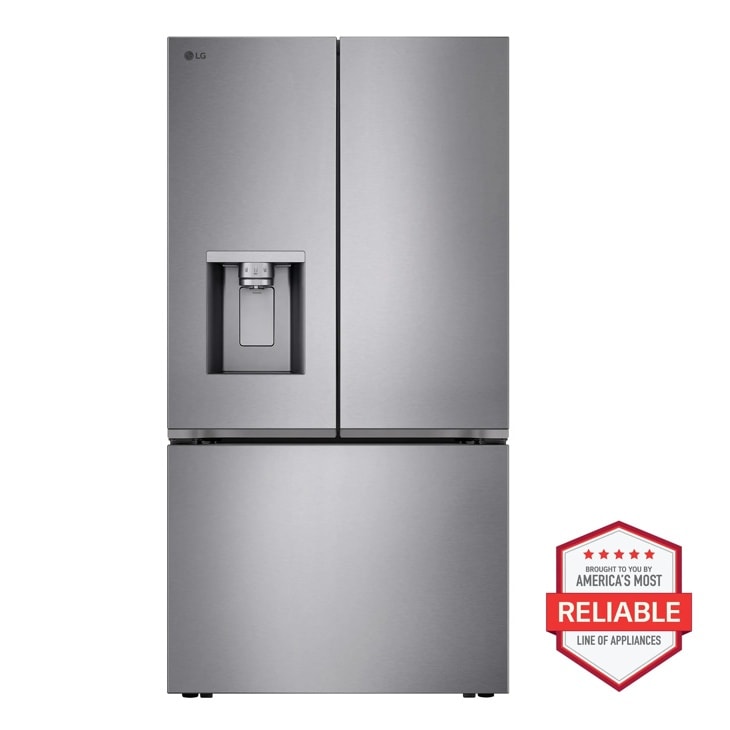

LY24Z6231V Front Facing Image

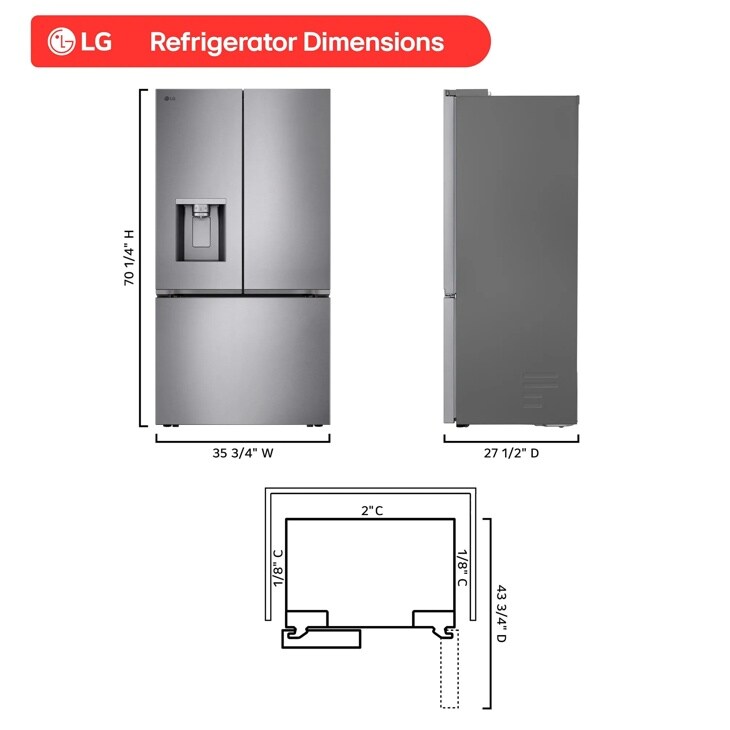

LY24Z6231V Dimensional Image

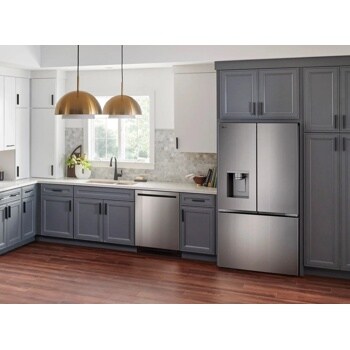

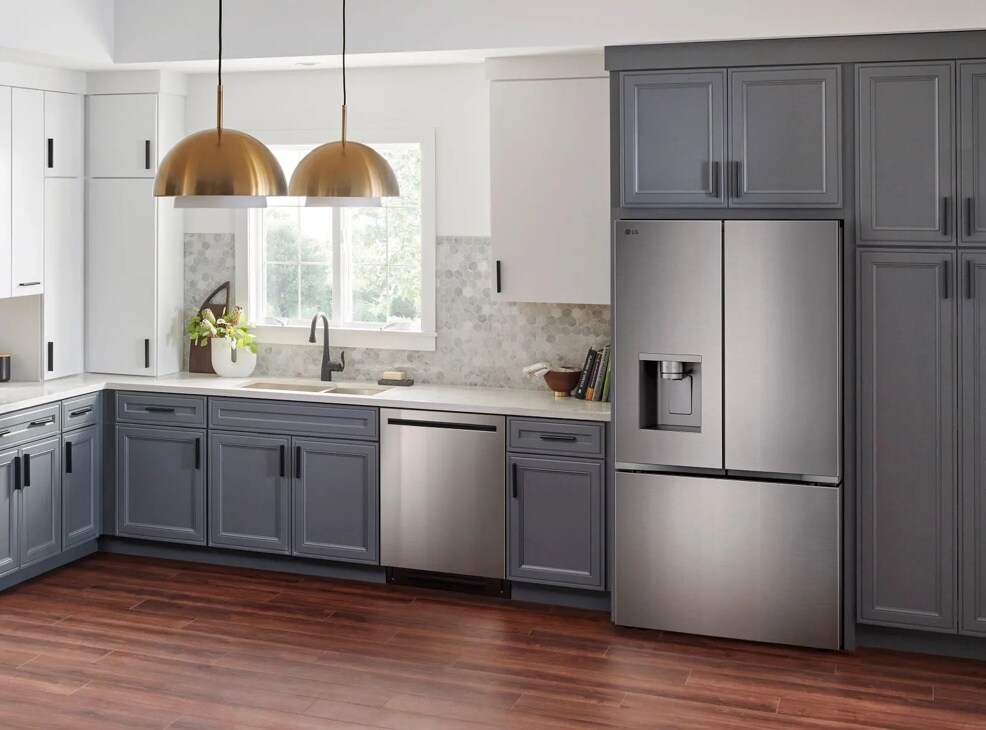

LY24Z6231V Lifestyle Image

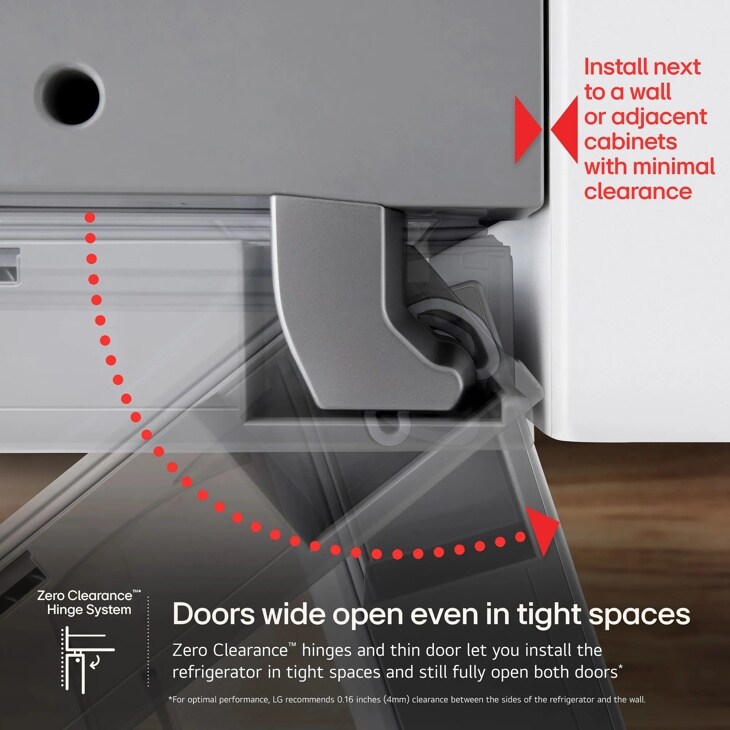

Zero Clearance' Hinge System
Install next to a wall or adjacent cabinets
with minimal clearance*
Doors wide open even in tight spaces
Zero ClearanceTM hinges and thin door let you install the refrigerator in tight spaces and still fully open both doors*
*For optimal performance, LG recommends 0.16 inches (4mm) clearance between the sides of the refrigerator and the wall.
LY24Z6231V Front Facing Image
LY24Z6231V Front Facing Image
LY24Z6231V Front Facing Image
LY24Z6231V Dimensional Image
LY24Z6231V Lifestyle Image
Zero Clearance' Hinge System
Install next to a wall or adjacent cabinets
with minimal clearance*
Doors wide open even in tight spaces
Zero ClearanceTM hinges and thin door let you install the refrigerator in tight spaces and still fully open both doors*
*For optimal performance, LG recommends 0.16 inches (4mm) clearance between the sides of the refrigerator and the wall.

24 cu. ft. Counter-Depth MAX™ with Zero Clearance™ 3-Door French Door Refrigerator

LY24Z6231V
LY24Z6231V Front Facing Image
LY24Z6231V Dimensional Image
LY24Z6231V Lifestyle Image
Zero Clearance' Hinge System
Install next to a wall or adjacent cabinets
with minimal clearance*
Doors wide open even in tight spaces
Zero ClearanceTM hinges and thin door let you install the refrigerator in tight spaces and still fully open both doors*
*For optimal performance, LG recommends 0.16 inches (4mm) clearance between the sides of the refrigerator and the wall.
LY24Z6231V Front Facing Image
LY24Z6231V Front Facing Image
LY24Z6231V Front Facing Image
LY24Z6231V Dimensional Image
LY24Z6231V Lifestyle Image
Zero Clearance' Hinge System
Install next to a wall or adjacent cabinets
with minimal clearance*
Doors wide open even in tight spaces
Zero ClearanceTM hinges and thin door let you install the refrigerator in tight spaces and still fully open both doors*
*For optimal performance, LG recommends 0.16 inches (4mm) clearance between the sides of the refrigerator and the wall.

Key features

  • Enjoy a 2-year limited warranty on select appliances purchased through December 31, 2025 via the ThinQ® app. Terms apply.ᶲ
  • Zero Clearance™ hinges and thin door design let you install the refrigerator in tight spaces and still fully open both doors.¹
  • Sleek style you love and storage space you need in our largest-capacity Zero Clearance™ refrigerator.

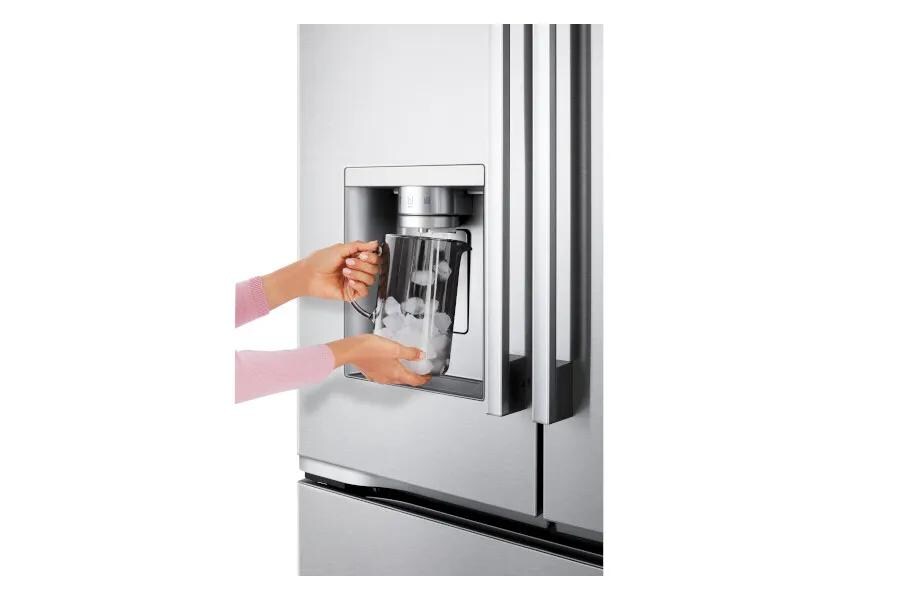

  • An ice & water dispenser that can accommodate just about any container.
  • Discreet, easy-access pocket handles complem.ent the flat door for a sleek, elevated look to your kitchen
  • Turn on IcePlus™ for increased ice production.
  • Multi-Air Flow Freshness System designed to monitor and maintain conditions to help keep food fresh.

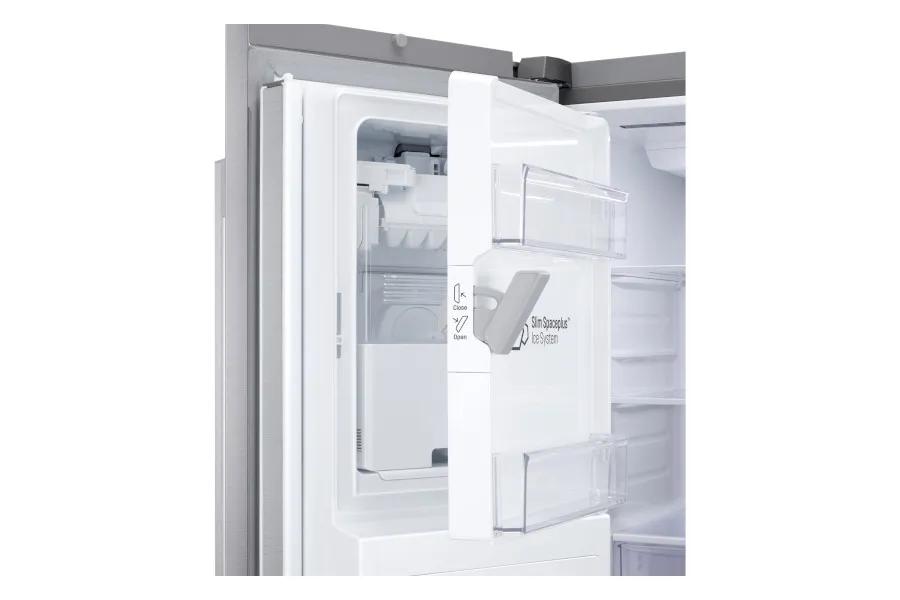

  • The LG Slim SpacePlus® Ice System provides more shelf space.²

Specifications

download-guide iconDownload Energy Guide
  • Capacity
  • Convenience
  • Cooling
  • Dimensions/Clearances/Weights
  • Energy
  • Freezer
  • Limited Warranty & UPC
  • Materials and Finishes
  • Refrigerator
  • Summary
  • Refrigerator ThinQ® Smart Features
  • Water & Ice System
  • See All
  • Capacity
    Freezer (cu.ft.)
    7.9 cu.ft.
    Refrigerator (cu.ft.)
    15.8 cu.ft.
    Total Capacity (cu.ft.)
    23.7 cu.ft.
    Capacity
    Freezer (cu.ft.)
    7.9 cu.ft.
    Refrigerator (cu.ft.)
    15.8 cu.ft.
    Total Capacity (cu.ft.)
    23.7 cu.ft.
    Convenience
    ADA Compliant
    Yes
    Auto Closing Door Hinge
    Yes
    Child Lock
    Yes
    Door Alarm
    Yes
    Sabbath Mode
    Yes
    Temperature Controls
    Electronic/ Digital
    Cooling
    Refrigerant
    R600a / 78g / 2.75oz
    Compressor Type
    Smart Inverter Compressor
    Door Cooling+
    Yes
    Evaporator
    1
    Fresh Air Filter
    Yes
    Multi-Air Flow™ System
    Yes
    Temperature Sensors
    2
    Dimensions/Clearances/Weights
    Carton Dimensions (WxHxD)
    38" x 73" x 30"
    Depth (Draw Open Fully without Handle)
    43.875"
    Depth (to Hinge Cover)
    18.25"
    Depth (Total with Door Open)
    43.75"
    Depth without Door
    24.75"
    Depth without Handles
    27.5"
    Dimensions (W case x H top of hinge x D with handles)
    35 3/4" x 70 1/4" x 27 1/2"
    Door Edge Clearance without Handle
    2.125"
    Height to Top of Case
    68.875"
    Height to Top of Door Hinge
    70.25"
    Installation Clearance
    Sides 5/32", Top 1", Back 2"
    Weight (Unit/Carton)
    261 lbs / 281 lbs
    Width
    35.75"
    Width (Door Fully Open without Handle)
    45.5"
    Width (Door Open 90˚ with Handle)
    40"
    Width (Door Open 90˚ without Handle)
    35.125"
    Energy
    Energy Consumption (kWh/Year)
    699
    ENERGY STAR Qualified
    Yes
    Freezer
    Door Type
    Pull Drawer
    Drawers/Shelves
    2-Tier Organization
    Freezer Light
    LED Lighting
    Limited Warranty & UPC
    Compressor (Parts & Labor)
    5 Years
    Parts & Labor
    1 Year
    Sealed System (Parts & Labor)
    5 Years
    UPC
    195174132685
    Materials and Finishes
    Insulation
    Low GWP and Zero ODP Blowing Agent
    All Available Colors
    PrintProof™ Stainless Steel
    Hidden Hinges
    Yes
    Refrigerator
    Crisper Bins
    2
    Handle Type
    Pocket
    No. of Shelves
    4 Split (4 Fixed)
    Refrigerator Light
    Yes
    Shelf Construction
    Spill protector Tempered glass
    Summary
    Display Type
    Smooth Touch Control / White LED
    Refrigerator ThinQ® Smart Features
    SmartDiagnosis™
    Yes
    SmartThinQ®
    Yes
    ThinQ Care™
    Yes
    Wi-Fi Enabled
    Yes
    Water & Ice System
    In-Door Ice Maker Ice Type
    Cubed / Crushed
    Dispenser Type
    Ice & water
    Water Filter
    LT1000P
    Water Filtration System
    1 Stage
    Features

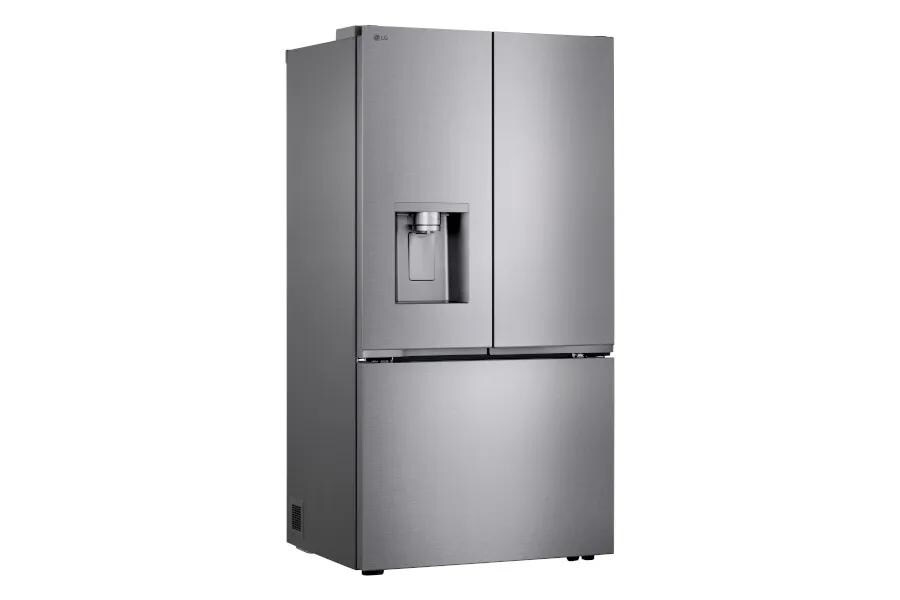

    Designed with Style in Mind

    Zero Clearance™ hinges let you install your refrigerator next to a wall or adjacent cabinets for a nearly built-in look. Combined with the thin door design, it lets you fully open both French doors, even in tight spaces.¹ That means there’s almost zero need to pull the refrigerator forward or leave additional room on the sides to avoid hitting surrounding cabinetry—and take up extra space in your kitchen.

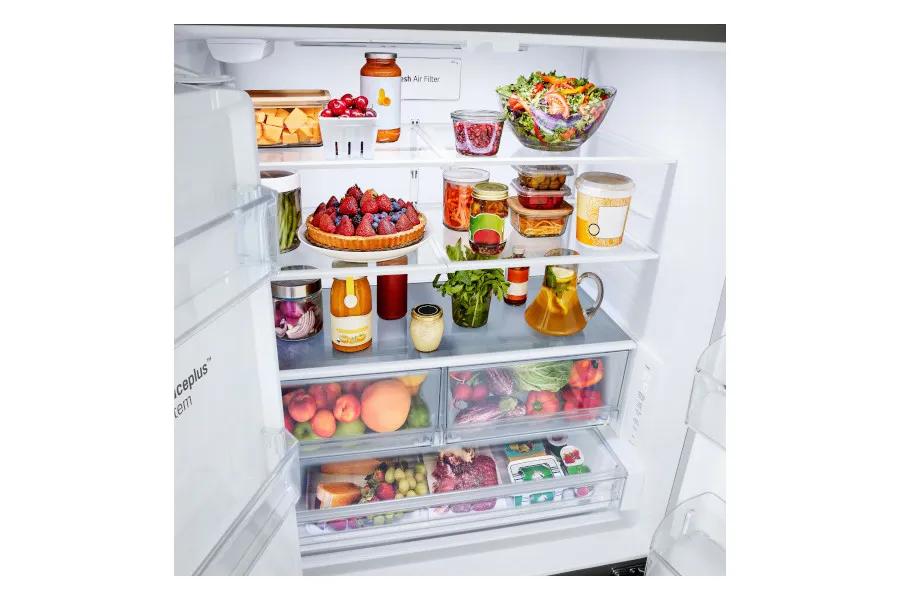

    Striking the perfect balance between the sleek style you love and the storage space you need, this LG French door refrigerator offers one of the largest capacity freestanding Counter-Depth refrigerator with Zero Clearance™. It gives you ample space for your family’s favorite foods and keeps them conveniently organized and within reach.

    MAX™ out your fit with this sleek, seamless design from LG and take in the contemporary vibe. Discreet, easy-access pocket handles complement the flat door for a sleek, elevated look to your kitchen.

    For owners

    Warranty Information

    1For optimal performance, LG recommends 0.16 inches (4 mm) clearance between the sides of the refrigerator and the wall.

    2Compared to standard width LG French door refrigerators

    Purchases must be made between April 03, 2025 and December 31, 2025. Consumers must download the LG ThinQ® App and connect product to Wi-Fi to claim their promotional ThinQ® limited warranty. Redeem within 60 days of purchase. See terms at https://www.lgoffers.com


    Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice. Prices, promotions, and availability may vary by model, store, and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for their final price and availability.
