LED uses tiny, light-emitting diodes to illuminate the picture. The new standard in HDTVs, LED is superior to older CCFL technology, making slimmer televisions possible, with amazing brightness, clarity and color detail. Full HD 1080p meets the highest standards for high definition, displaying 1,080 (progressive) lines of resolution on screen for a clearer, more detailed image that is simply breathtaking.
HDMI (High Definition Multimedia Interface) offers incredible audio/video quality and single-cable convenience. This monitor includes an HDMI input, so you can connect a true high-definition source, such as a high-end computer, Blu-ray player or next-generation videogame console.
ENERGY STAR® Qualified
Earning the ENERGY STAR® means a product meets stringent energy efficiency requirements set by the US Environmental Protection Agency. ENERGY STAR® certified televisions are on average, 27 percent more energy efficient than conventional models, saving energy in all usage modes: sleep, idle and on.
1 USB 2.0, 1 RF In (Antenna/Cable), 1 Component Video In, 1 Composite In (AV) - shared w/Component
Smart TV Operating System
2ch Speaker System
Triple XD™ Engine, Real Cinema 24p, Dolby® Digital Decoder, Clear Voice II
Screen Size Class (diagonal)
22" Class (21.5" diagonal)
1920 x 1080
DIMENSIONS / WEIGHT
TV without Stand (WxHxD)
20” x 12.5” x 2.1”
TV with Stand (WxHxD)
20” x 14.2” x 5.3”
TV without Stand weight
TV with Stand weight
TV Shipping Dimensions (WxHxD)
25.5” x 14.5” x 4.2”
Triple XD™ Engine
Real Cinema 24p
Audio Output Power (Watts - THD 10%)
Dolby® Digital Decoder
Clear Voice II
Yes (Clear Voice)
AAC, MP2, OGG, MP3, PCM, WMA
JPEG, JPS, MPO
RF In (Antenna/Cable)
Component Video In
Composite In (AV)
1 (shared w/Component)
USB 3.0/2.0 In
CABINET / ACCESSORIES
Power Supply (Voltage, Hz)
100V ~ 240V, 50/60 Hz
WARRANTY / UPC
1 Year Parts & Labor
What people are saying
Rated 5 out of
Excellent quality and performance.This TV outperforms the Magnavox TV it replaced by 150 percent. It's audio and video quality is superb. I would wholeheartedly recommend it to anyone looking for a TV, especially one that fits tight places like kitchen spaces.
Date published: 2021-04-06
Rated 5 out of
My Lg tv is great the usb port and the hdmi portI love it the HDMI is good and the USB I love it and the LG tv.
Date published: 2020-10-09
Rated 4 out of
Smart one from
Good looking and easy to use.I received it as a gift. So much lighter than mu old TV. Clear, bright pix and excellent sound. Also has an easy to use sleep timer. Love it.
Ask your questions. Share your answers. Please review the detailed product information and help guides in the Product Support section for this product prior to posting a question.
How do I connect my apps to my tv for streaming my new tv service? My LG tv is model number LG22LF4520. Thanks
Asked by: Pauly 47
Information regarding connecting external devices to your TV can be found using the following Easy TV Connect Guide: https://www.lg.com/us/support/connect-device-to-tv-guide
Answered by: ChrisPSM
Date published: 2020-03-16
Will it support PS3 1080p resolution??
Asked by: Juber shaikh
The ENERGY STAR® Qualified LG Full HD 1080p LED TV - 22" Class (21.5" Diag), Model # 22LF4520 has an HDMI® Input and a Shared Composite/Component Input on it that can be used to connect to any gaming console that has such outputs on it. Please refer to the owner's manual or contact the gaming consoles manufacturer with regards to TV requirements and compatibility...^IFV
Answered by: LGJoel
Date published: 2017-03-27
What is the width of 22LF4520?
I'm not talking about screen size but full width.
Asked by: Hoot46
In the Tech Specs for the ENERGY STAR® Qualified LG 1080p LED TV - 22" Class (21.5" Diag), Model # 22LF4520 under Dimensions/Weight, the listed W x H x D dimensions of 20” x 12.5” x 2.1”, the 20" for the width is the measurement from side to side for this TV...^IFV
Answered by: LGJoel
Date published: 2017-02-27
Hi on my 22inch lg.. do I just plug the usb in and get output straight away or do I have tk set the output as usb somewhere
Asked by: LongmanStan
A USB drive or an other storage device that you plug into the USB port on the ENERGY STAR® Qualified LG 1080p LED TV - 22" Class (21.5" Diag), Model # 22LF4520 is considered an external device. The USB Input is an input just like your HDMI ports are and to watch anything that is plugged into the TV as an external device, all you need do is select the appropriate input that the external device is plugged into to watch...^IFV
Answered by: LGJoel
Date published: 2017-01-30
I need the code to set up my universal remote to my LG
Asked by: Kerrihass
All codes to be used for programming the Universal remote control will be located in the setup instructions for the Controller. If you have experienced trouble in locating codes for LG, you may also try using Zenith or Goldstar codes, as some of these coincide with LG frequencies. If these do not resolve the matter, then the two devices may not be compatible.
Answered by: NeilE
Date published: 2017-01-04
Can i use a 12v 3.5a LG adapter to my 19v 1.7a LG 22" led television?
Asked by: Airon
Our offices, in the United States, do not have product information for the Philippines. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/ph/support/contact-customer-support.
Answered by: NeilE
Date published: 2016-11-18
Is the 22" LED a smart tv
Asked by: Phil Lokey
Answered by: Jinx 88
Date published: 2016-10-01

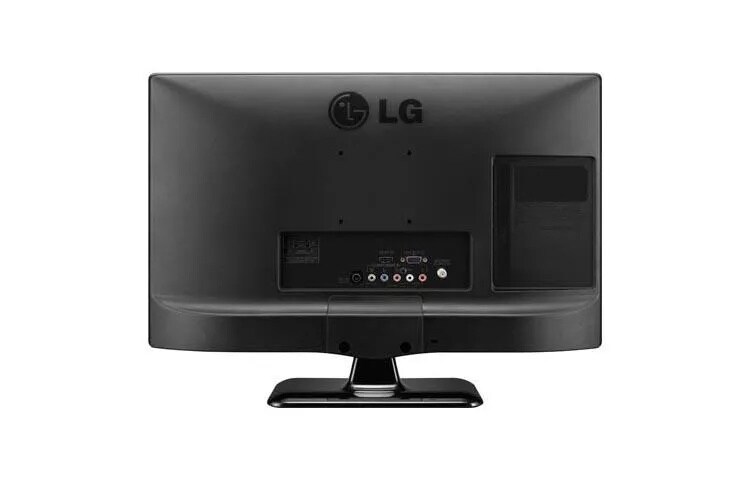

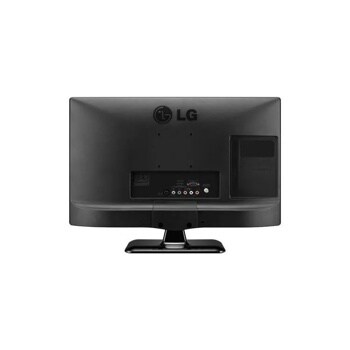

Where is Hdmi imput located on tv
Asked by: Junior l
We appreciate your interest in this television and its features. According to the specifications of this model, the HDMI port is located on the Connection Panel located on the back of the TV.
