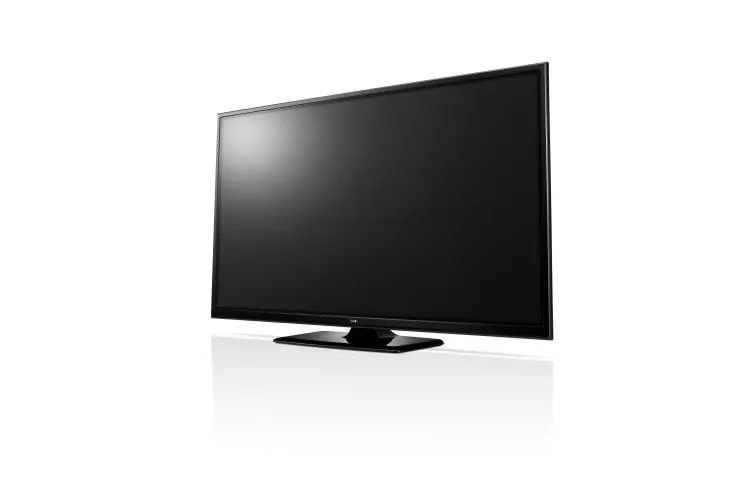

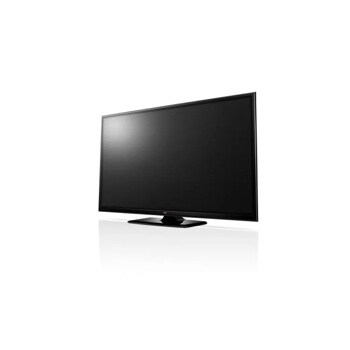

50" Class (49.9" Diagonal) 720p Plasma TV

1/4
Logo Image
1/4
LG Logo
50" Class (49.9" Diagonal) 720p Plasma TV
DISCONTINUED
50" Class (49.9" Diagonal) 720p Plasma TV

50" Class (49.9" Diagonal) 720p Plasma TV

50PB560B

Key features

  • High Definition Resolution
  • 600Hz Max Sub Field Driving
  • Energy Star® Qualified

Specifications

Download Spec Sheetdownload-guide iconDownload Energy Guide
  • CABINET / ACCESSORIES
  • PANEL SPECIFICATIONS
  • USB
  • SUMMARY
  • AV INPUTS/OUTPUTS
  • WARRANTY / UPC
  • DIMENSIONS / WEIGHT
  • VIDEO
  • AUDIO
  • POWER
  • See All
  • CABINET / ACCESSORIES
    VESA Compatible
    400mm x 400mm
    CABINET / ACCESSORIES
    VESA Compatible
    400mm x 400mm
    PANEL SPECIFICATIONS
    Screen Size Class (diagonal)
    50" Class (49.9" diagonal)
    Resolution
    1024 x 768
    Protective Skin Glass
    Yes
    600Hz Max Sub Field Driving
    Yes
    ISM (Image Sticking Minimization)
    2 Modes
    USB
    JPEG
    Audio Codec
    MP2, MP3, Dolby Digital, LPCM, ADPCM, AAC, HE-AAC, WMA
    SUMMARY
    Screen Size
    50"
    Screen Size Diagonal
    49.9"
    AV INPUTS/OUTPUTS
    USB 2.0
    1 (Side)
    RF In (Antenna/Cable)
    1 (Rear)
    Component Video In(Y, Pb, Pr + Audio)
    1 (Rear)
    Digital Audio Out (Optical)
    1 (Rear)
    HDMI™/HDCP Input
    1 (Rear)
    Composite In (AV)
    1 (shared w/Component)
    RS-232 (mini jack)
    1 (Rear)
    WARRANTY / UPC
    UPC
    719192591882
    Limited Warranty
    1 Year Parts & Labor
    DIMENSIONS / WEIGHT
    Shipping Weight
    65.8 lbs
    TV without Stand (WxHxD)
    46.1" x 27.6" x 2.2"
    TV with Stand (WxHxD)
    46.1" x 29.8" x 12.4"
    TV without Stand weight
    51.3 lbs
    TV with Stand weight
    54.8 lbs
    TV Shipping Dimensions (WxHxD)
    52.4" x 32.0" x 9.0"
    VIDEO
    Aspect Ratio
    6 Modes
    Picture Mode
    8 Modes
    Just Scan (1:1 Pixel Matching) 0% OverScan
    HDMI™: 1080p/1080i/720p, Component: 1080p/1080i/720p, RF: 1080i/720p
    Triple XD™ Engine
    Yes
    Real Cinema 24p (2:2 pull down)
    Yes
    AUDIO
    Mono/Stereo/Dual (MTS/SAP)
    Yes
    Sound Mode
    5 Modes
    Dolby® Digital Decoder
    Yes
    Audio Output Power (Watts - THD 10%)
    20W
    Clear Voice
    Yes
    Speaker System
    2ch Speaker System
    POWER
    ENERGY STAR® Qualified
    Yes
    Power Supply (Voltage, Hz)
    100V ~ 240V, 50/60 Hz
