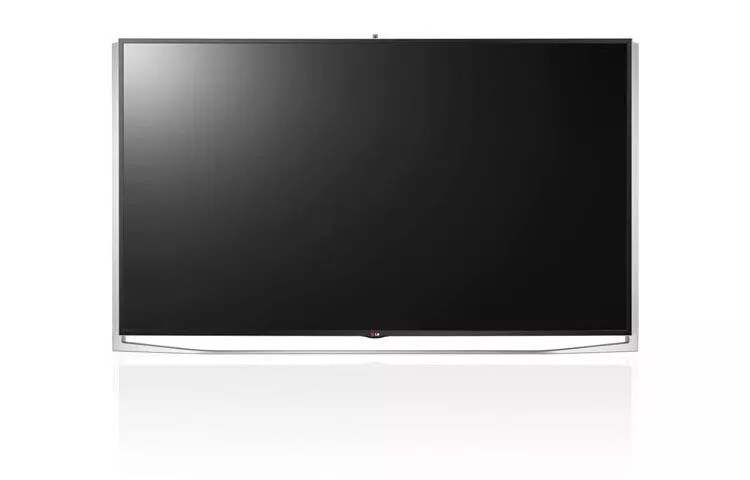

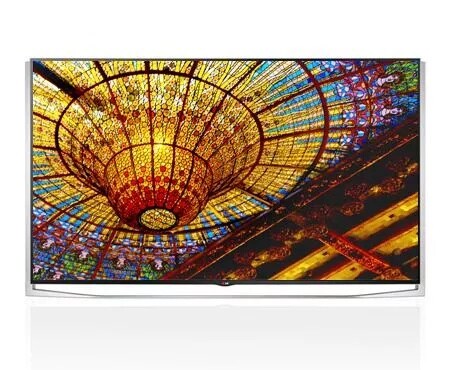

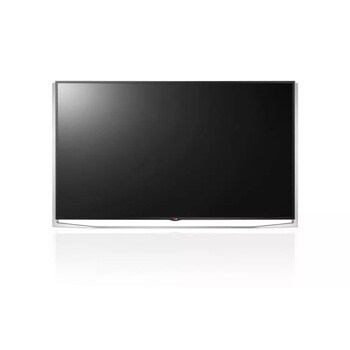

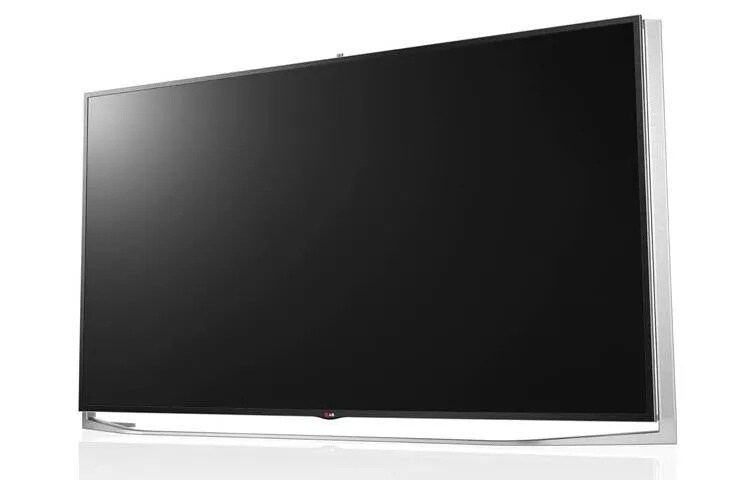

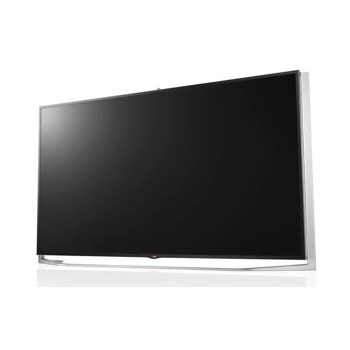

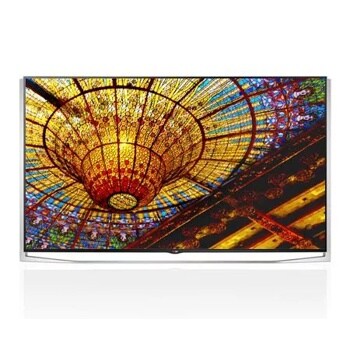

84UB9800
4K UHD Smart LED TV - 84'' Class (84.0'' Diag)
  • 4K Resolution
  • IPS Panel
  • Tru-4K Engine Pro
  • HEVC Decoder
4K UHD Smart LED TV - 84" Class (84.0" Diag)

SUMMARY

  • Screen Size
    84"

SMART TV

  • Premium Content
    Yes
    Full Web Browser
    Yes
  • Magic Remote Control
    Yes
    Natural Voice Recognition
    Yes
  • Universal Control Capability
    Yes
    Launcher Bar
    Yes
  • Games
    Yes
    Easy Setup
    Yes
  • Recent/Multitasking
    Yes
    LivePlus
    Yes
  • Live Menu
    Yes
    LG Content Store (App Store)
    Yes

Smart Share

  • Media Share
    Yes
    - Remote App
    Yes
  • - Network File Browser
    Yes
    - YouTube Send-to-TV
    Yes
  • Screen Share
    Yes
    - MHL (Mobile HD Link)
    Yes
  • - Miracast
    Yes
    - WiDi
    Yes

Audio

  • Speaker System
    5.2 Speaker System
    Audio Output Power (Watts - THD 10%)
    120W
  • Mono/Stereo/Dual (MTS/SAP)
    Yes
    Dolby® Digital Decoder
    Yes
  • DTS Decoder
    Yes
    Sound Designed by harman/kardon®
    Yes
  • Subwoofer
    Yes
    Sound Mode
    6 Modes
  • Clear Voice II
    Yes
    Sound Optimizer
    3 Modes
  • Optical Sound Sync
    Yes
    Wireless Sound Sync
    Yes

CONNECTIVITY

  • Wi-Fi® Built-in
    Yes
    Wi-Fi Direct
    Yes
  • SIMPLINK™ (HDMI™ CEC)
    Yes
    USB
    Yes
  • - Video
    DivX HD
    - Photo
    JPEG, JPS, MPO
  • - Audio
    AC3 (Dolby Digital), EAC3, HE-AAC, AAC, MPEG, MP3, PCM, DTS

INPUTS

  • RF In (Antenna/Cable)
    1 (Rear)
    Component Video In(Y, Pb, Pr + Audio)
    1 (Rear)
  • Composite In (AV)
    1 (shared w/Component)
    HDMI®
    4 HDMI (Side) *1 HDMI input supports HDCP 2.2
  • USB 3.0/2.0 In
    1/2 (Side)
    Digital Audio Out (Optical)
    1 (Rear)
  • LAN
    1 (Rear)
    RS-232
    1 (Rear)

POWER

  • Power Supply (Voltage, Hz)
    100V ~ 240V, 50/60 Hz
    Standby Mode
    0.3W

DIMENSIONS / WEIGHTS

  • TV without Stand (WxHxD)
    79.7" x 43.8" x 3.4"
    TV with Stand (WxHxD)
    79.7" x 46.1" x 13.5"
  • TV without Stand weight
    162.5 lbs
    TV with Stand weight
    171.3 lbs
  • TV Shipping Dimensions (WxHxD)
    85" x 49" x 13"
    Shipping Weight
    205 lbs

Warranty / UPC

  • Limited Warranty
    1 Year Parts & Labor
    UPC
    719192593893

PANEL SPECIFICATIONS

  • Screen Size Class (diagonal)
    84" Class (84" diagonal)
    Resolution
    3840 x 2160
  • Display Type
    LED
    UCI (Ultra Clarity Index)
    1560
  • TruMotion 240Hz
    Yes

VIDEO

  • Tru 4K Engine Pro
    Yes
    4K Resolution Upscaler
    Yes
  • Tru Color Generator
    Yes
    Dynamic Color Enhancer
    Yes
  • Aspect Ratio
    8 Modes
    Just Scan (1:1 Pixel Matching)
    HDMI: 1080i, Component: 1080p, RF 720p
  • Real Cinema 24p (2:2 pull down)
    Yes
    Picture Mode
    9 Modes
  • Picture Wizard III
    Yes

LG CINEMA 3D FEATURES

  • 3D Type
    FPR (Passive)
    3D to 2D
    Yes
  • 2D to 3D
    Yes
    3D Depth Control
    Yes
  • 3D Viewpoint Control
    20 Levels
    3D Image Correction
    Yes

CABINET / ACCESSORIES

  • VESA® Size (mm)
    600 x 400
    Remote Control
    Magic Remote Control
  • 3D Glasses
    2 Pairs Included
What people are saying
Rated 5 out of 5 by from Awesome TV I have had this TV for a year, still produces incredible picture. 3D is awesome. Great buy for the money spent.
Date published: 2017-01-10
Rated 5 out of 5 by from Great TV picture Quality Amazing I got a great price and I love the TV, Great picture. I have it mounted on the wall and it looks very nice. I seat only 12 feet away, it is very bright compared to original TV.
Date published: 2015-10-24
Rated 5 out of 5 by from Wow! Incredible Device! At first, I thought it may be too big. I could not be more wrong. The viewing area is approximated 12-14 feet away and it is perfect for viewing. The quality of the picture is stunning and the features are very easy to use.
Date published: 2015-08-28
  • y_2019, m_7, d_14, h_22
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_14
  • loc_en_US, sid_MD05107340, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT
ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

 If only port one is HDCP 2.2 compatible will I be getting full video quality and benefit of the 4K that is available on ports two and three?   If not we've  obviously got a major problem. Customer service says all 4 are?  Who's correct?

Asked by: VMK TX
We regret your dissatisfaction with the design of this television. According to the information on page 23 of your owner’s manual, the HDCP 2.2 protocol is only available on the HDMI1 port.
Answered by: NeilE
Date published: 2017-02-01

 Are all of the porch HDCP 2.2 compatible.  I've tried two and three and I'm getting a message on both?

Asked by: VMK TX
I apologize, but no; according to the information listed on page 23 of the owner’s manual, it appears that only HDMI1 will be compliant with the HDCP 2.2 protocol.
Answered by: NeilE
Date published: 2017-01-31

 I am connecting a DirecTV Genie 4K to my TV. Does it matter which one of the HDMI inputs it goes to? (Arc etc.).   I'm currently getting a message that says my TV does not support 4K ?

Asked by: VMK TX
 I've tried those ports and have also seen a message showing that I do not have HDCP 2.2?   Is this TV compatible with that standard ?
Answered by: VMK TX
Date published: 2017-01-29

I just bought the TablerTV 84" M3 for LG 84UB9800 4K TV because I wanna setup the conference room. I received the item but now I need to buy the TV itself. Amazon does not ship this to my country it seems. Where can I buy so that it is shipped to me

Asked by: Tate Mike
Regrettably, most retailers in the US will not ship abroad, you will have to do an online search to find which retailer will ship abroad. The other issues you will find with the LG 4K UHD Smart LED TV - 84" Class (84.0" Diag), Model # 84UB9800 is that it is a discontinued TV finding a retailer who is still carrying it is going to be difficult. We are not familiar with the TablerTV 84" M3, but you also want to keep in mind that you will not be able to receive TV Broadcasts in Namibia on this set since the built in ATSC, NTSC-M and QAM 64 & 256 tuners in the TV are not compatible with the TV Broadcast system in Namibia. If you're using it as a monitor in the conference room, make sure that the TablerTV 84" M3 unit is able to output a signal that is compatible with the TV...^IFV
Answered by: LGJoel
Date published: 2016-05-06

I'm in need of a stand for the 84ub lg 4k...I bought one and it just had a wall mount. Any suggestions?

Asked by: Hambone76
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this base stand is AAN74512502.
Answered by: NeilE
Date published: 2016-03-01

What should I use to clean the screen

Asked by: Bobby 66
We appreciate your interest in this monitor and its proper care. It is recommended to use a dry, soft cloth to wipe any dust, etc. from the screen, or from the cabinet. If moisture is required, it is recommended to use a damp, soft cloth. Do not allow moisture to run down the screen, as this can get past the frame and damage the interior of the set.
Answered by: NeilE
Date published: 2016-01-16

Does this tv have local dimming

I saw the 7700 have local dimming but couldn't find anything on this model. Can you please confirm this for me. Thanks
Asked by: GOhio
Yes, the LG 84" Class (84" Diagonal) 2160p Smart w/ webOS 3D Ultra HD 4K TV, Model # 84UB9800 has local dimming...^IFV
Answered by: LGJoel
Date published: 2016-01-16

two versions of this tv

I see there are two versions of this tv: 84UB9800-UA and 84UB9800-CA. I just ordered this TV from Amazon and now I am getting worried that I might get stuck with the cheaper one. What is the difference between these versions? How can I tell which version I got?
Asked by: jonesq
There is only one version of the LG 84" Class (84" Diagonal) 2160p Smart w/ webOS 3D Ultra HD 4K TV, Model # 84UB9800. When you look at the model numbers on the company site, you will notice that the letters after the model number ( i,e,84UB9800) are dropped. The "UA" or "CA" after the model number are either for identifying what factory the unit came from or maybe something to do with distribution but regardless of what they are, the TV is exactly the same model. If anything on a TV changes, the model number would be different. As long as the model number is the same, it is the exact same unit...^IFV
Answered by: LGJoel
Date published: 2016-01-27
