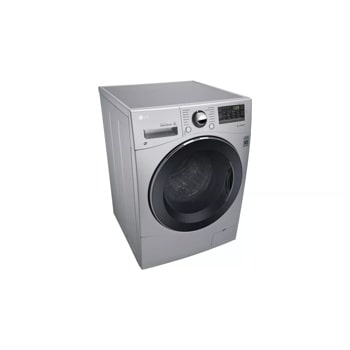

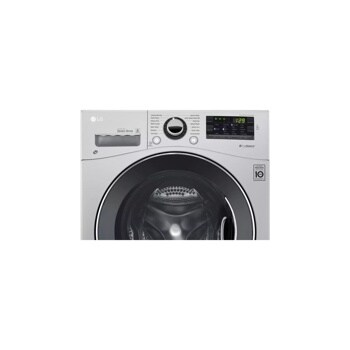

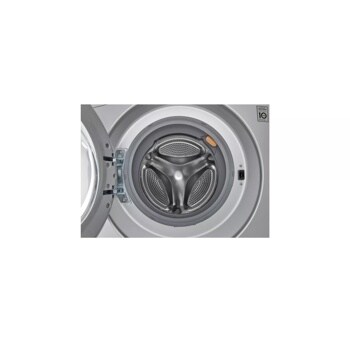

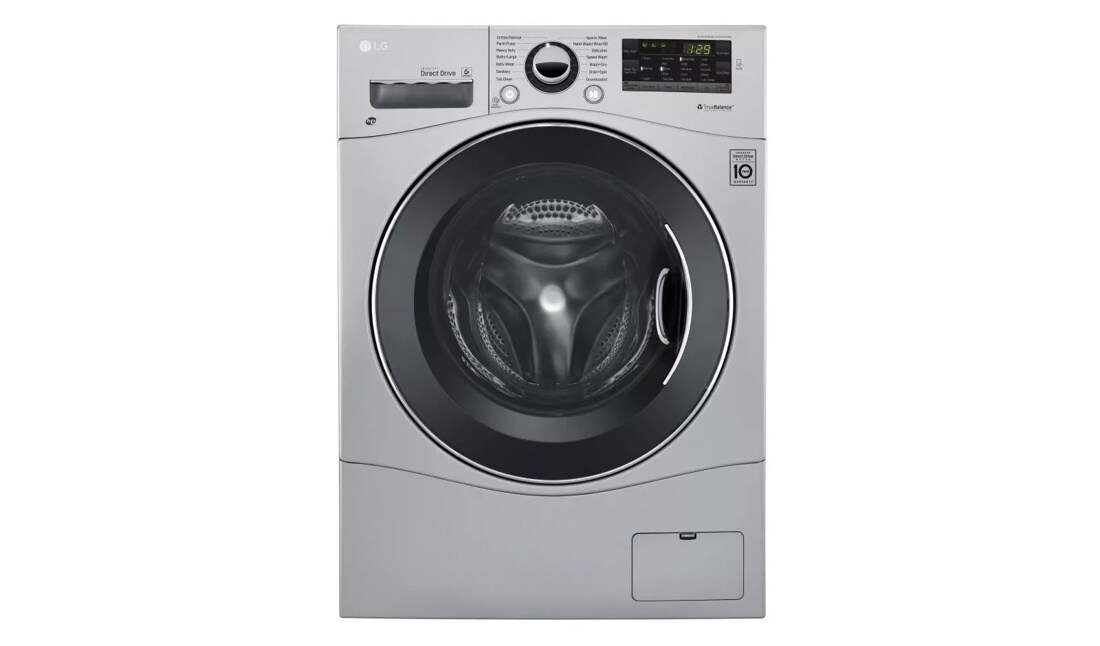

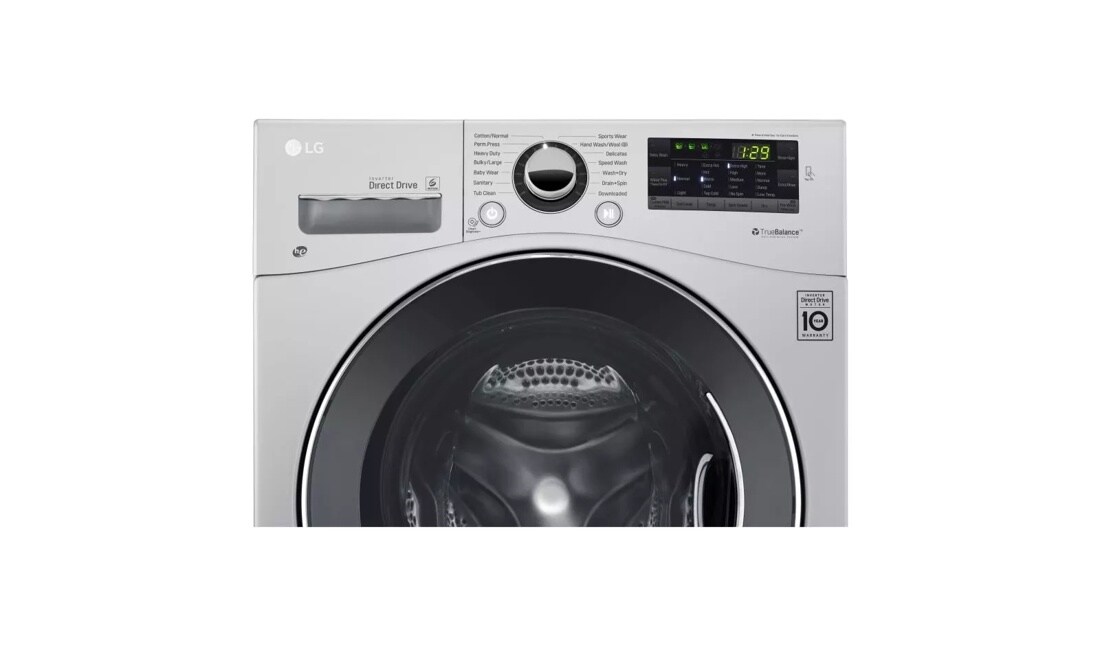

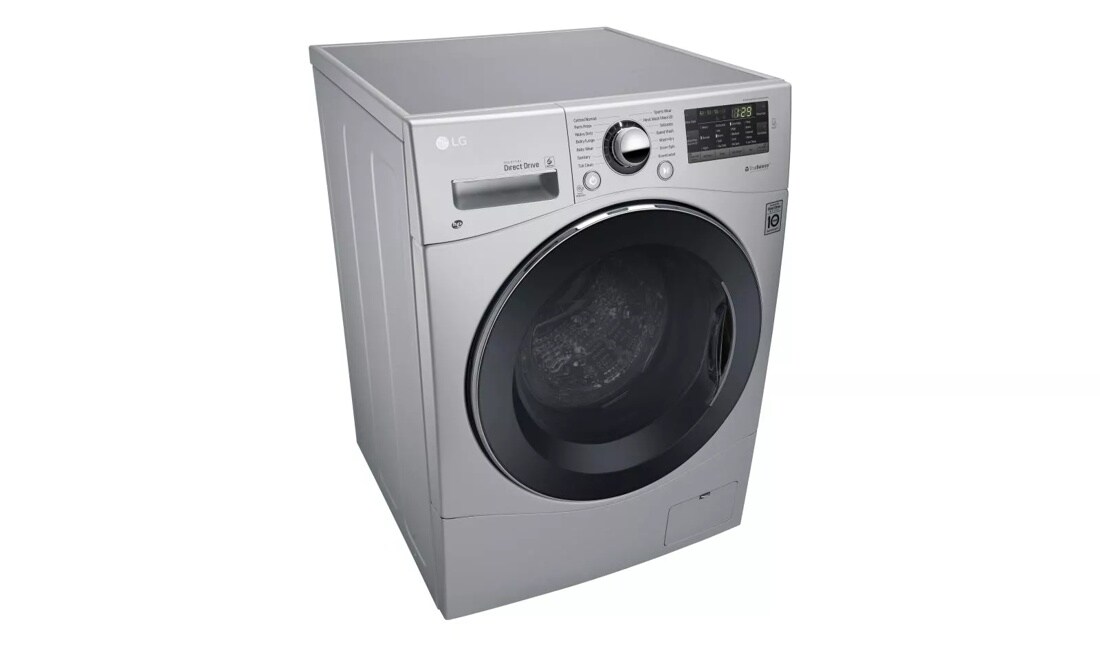

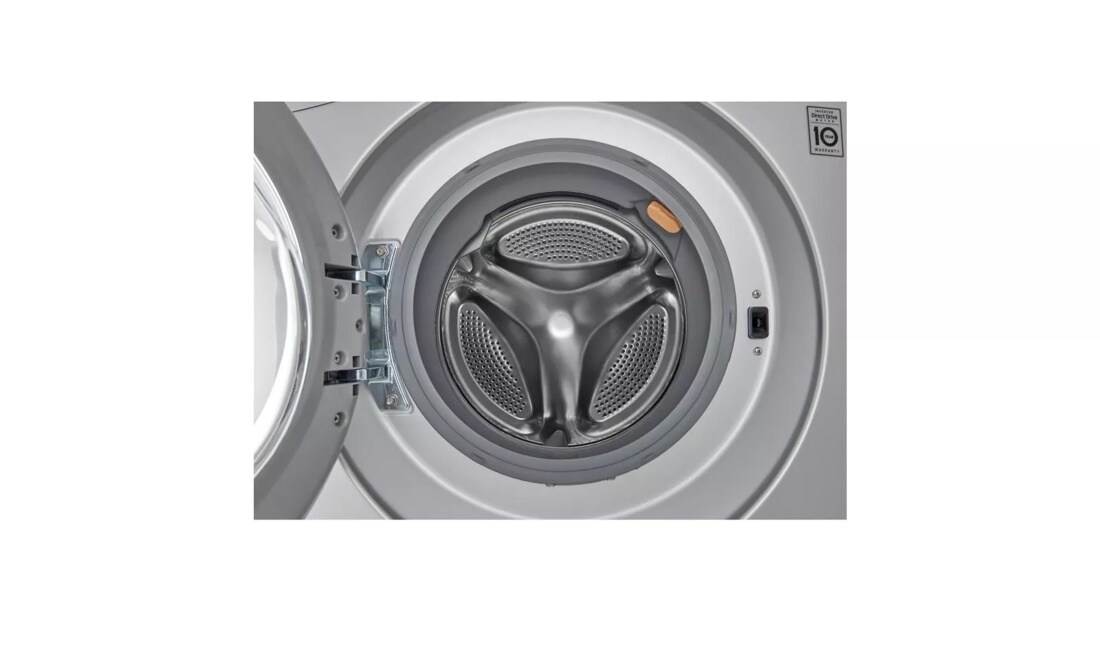

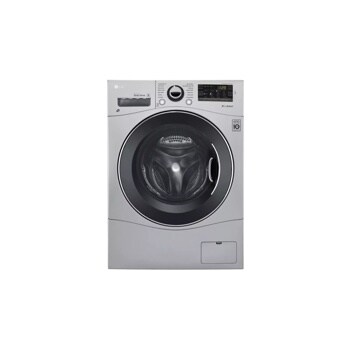

2.3 cu.ft. Compact All-In-One Washer/Dryer

1/5
Logo Image
1/5
LG Logo
2.3 cu.ft. Compact All-In-One Washer/Dryer
2.3 cu.ft. Compact All-In-One Washer/Dryer
2.3 cu.ft. Compact All-In-One Washer/Dryer
2.3 cu.ft. Compact All-In-One Washer/Dryer
DISCONTINUED
2.3 cu.ft. Compact All-In-One Washer/Dryer

2.3 cu.ft. Compact All-In-One Washer/Dryer

WM3488HS

Key features

  • 2.3 cu. ft. Capacity
  • Ventless Condensing Drying
  • 6Motion™ Technology
  • TubClean Cycle
  • SmartDiagnosis™
  • Direct Drive Motor 10-Year Limited Warranty

Specifications

Download Spec Sheetdownload-guide iconDownload Energy Guide
  • DIMENSIONS
  • CAPACITY
  • APPEARANCE
  • SUMMARY
  • SMART THINQ® TECHNOLOGY
  • MATERIALS AND FINISHES
  • WASH/DRY PROGRAMS
  • CONVENIENCE FEATURES
  • ACCESSORIES
  • WARRANTY
  • POWER SOURCE
  • MOTOR AND AGITATOR
  • See All
  • DIMENSIONS
    Product ( WxHxD)
    24" x 33 1/2" x 25 1/4" (45" D with door open)
    Carton ( WxHxD)
    26" x 35 3/4" x 27 3/4"
    Weight (Product/Carton)
    156.5 lbs / 165.3 lbs
    DIMENSIONS
    Product ( WxHxD)
    24" x 33 1/2" x 25 1/4" (45" D with door open)
    Carton ( WxHxD)
    26" x 35 3/4" x 27 3/4"
    Weight (Product/Carton)
    156.5 lbs / 165.3 lbs
    CAPACITY
    Capacity
    2.3 cu. ft.
    APPEARANCE
    Dial-A-Cycle™
    Yes
    Touch LED Display
    Yes
    SUMMARY
    Design Style
    Front Loader
    Color
    Silver
    SMART THINQ® TECHNOLOGY
    SmartDiagnosis™
    Yes
    NFC Tag On
    Yes
    MATERIALS AND FINISHES
    Top Plate
    TBD
    Cabinet
    PCM
    Control Panel
    Plastic
    Door Rim
    Glass/Chrome
    Available Colors
    White (W), Silver (S)
    NeveRust™ Stainless Steel Drum
    Yes
    Door Cover
    Black Tinted Cover
    Door Opening
    13.8"
    WASH/DRY PROGRAMS
    No. of Programs
    14
    Wash Programs
    Cotton/Normal, Bulky/Large, Baby Wear, Perm. Press, Delicates, Hand Wash/Wool, Speed Wash, Tub Clean, Sanitary, Heavy Duty, Drain+Spin, Wash+Dry, Sports Wear, Downloaded Course
    No. of Options
    10
    Options
    Prewash, Rinse+Spin, Delay Wash(Time Delay), Water Plus, Extra Rinse, Child Lock, Signal (Beeper) On/Off, Steam, Custom PGM, PGM Save
    No. of Wash/Rinse Temps
    (5) Extra Hot, Hot, Warm, Cold, Tap Cold (All Cold Rinses)
    Spin Speeds
    Extra High (1,400 max.), High, Medium, Low, No Spin
    No. of Water Levels
    Automatically adjusts to the size of load
    No. of Soil Levels
    3
    Internal Heater
    Yes
    Ventless Condensing Dryer
    Yes
    Drying Levels
    More Dry, Normal Dry, Damp Dry, Low Temp Dry
    Manual Dry Times
    120, 60., 30 minutes
    CONVENIENCE FEATURES
    LoDecibel™ Quiet Operation
    Yes
    TrueBalance™ Anti-Vibration System
    Yes
    4 Tray Dispenser
    Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
    Forced Drain System
    Yes
    LoadSense
    Yes
    End of Cycle Beeper
    Yes
    ACCESSORIES
    Hose Included
    Yes
    WARRANTY
    Limited Warranty
    1 Year Parts and Labor, 10 Years Motor, Lifetime on Drum
    UPC
    048231016995
    POWER SOURCE
    Ratings
    TBD
    Electrical Requirements
    120V, 10 Amps
    Type
    Electric
    MOTOR AND AGITATOR
    Motor Type
    Inverter Direct Drive Motor
    Motor Speed
    Variable
    Max RPM
    1,400
    Axis
    Horizontal
