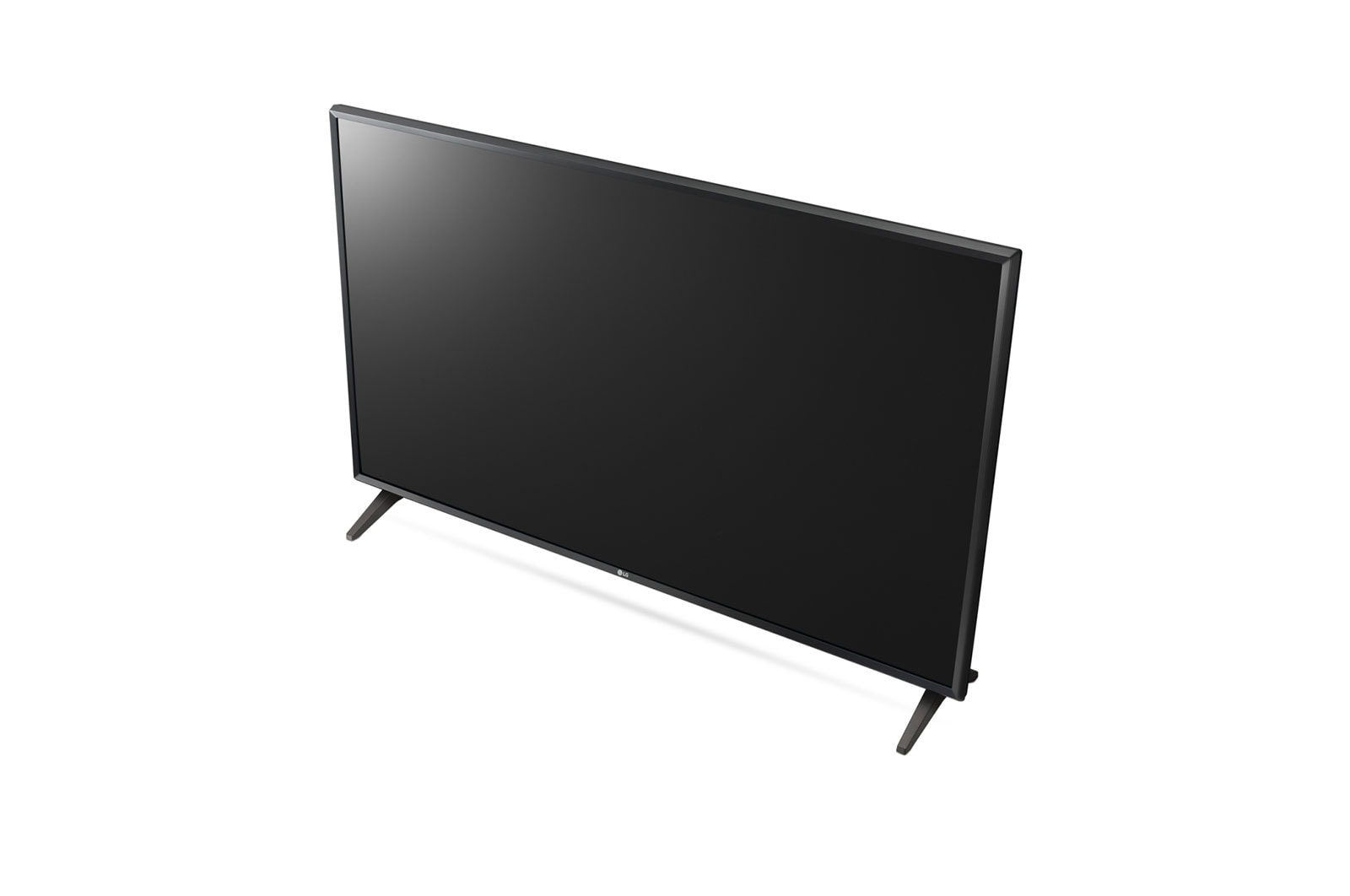

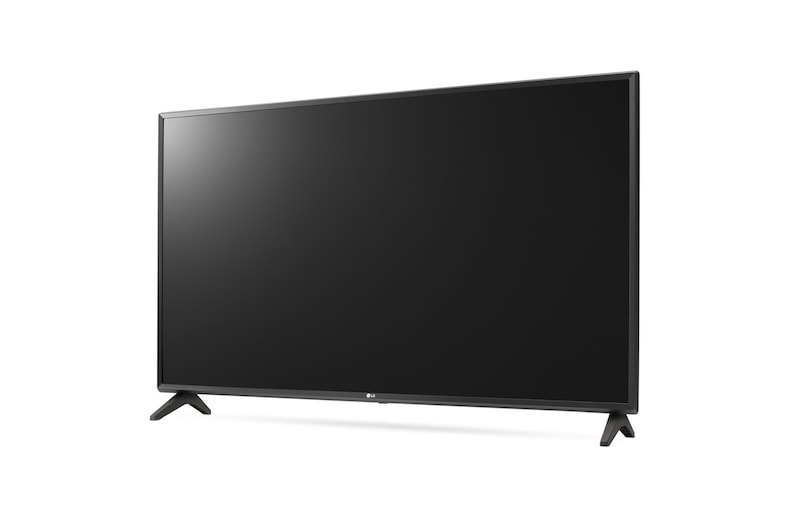

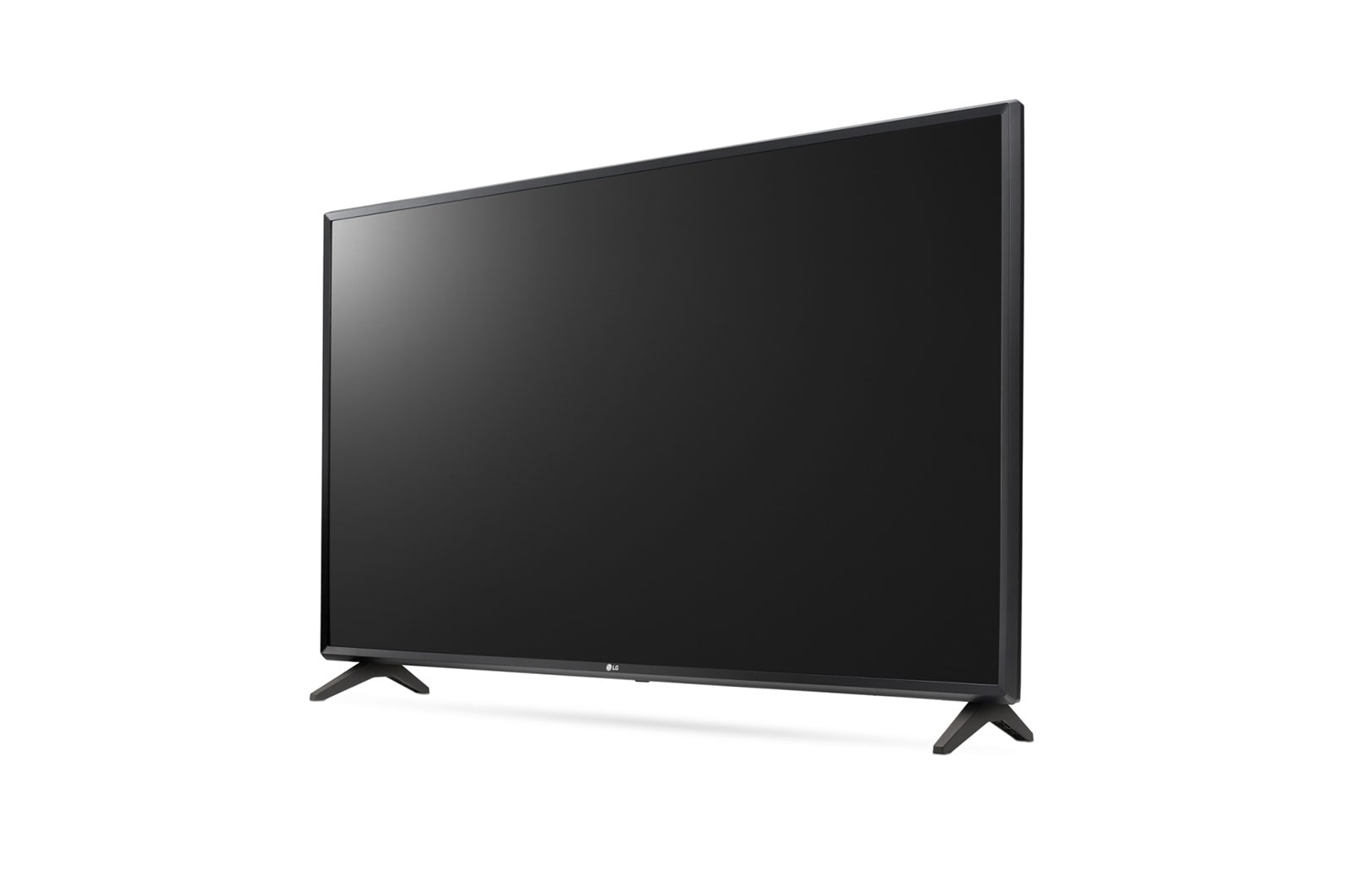

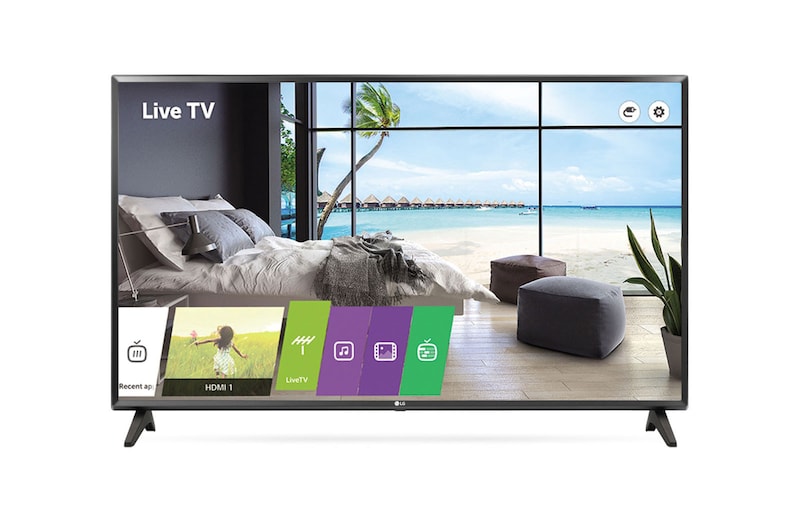

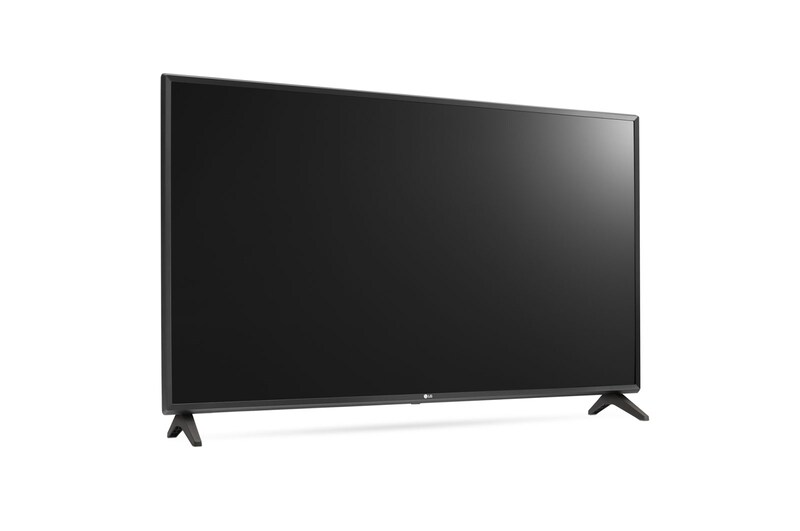

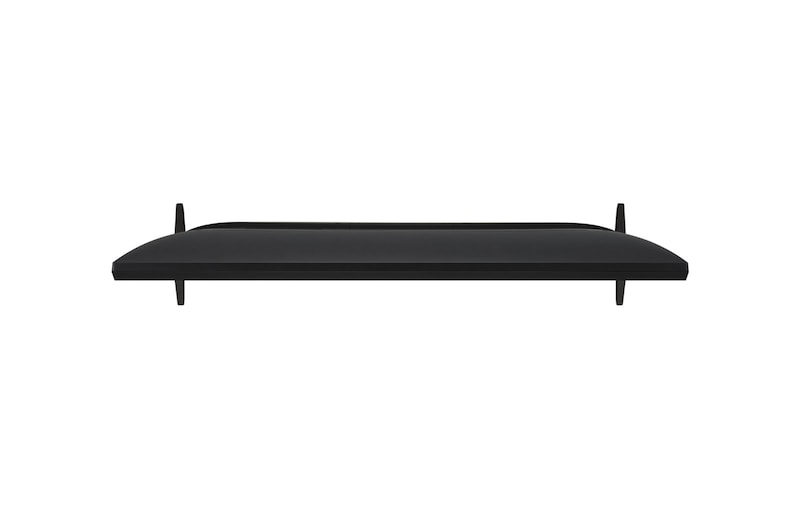

LT340C Series
Real-Time Remote Monitoring
In case of malfunctions or errors, real-timeremote care is available. When an error occurs, a notification can be sent through the SNMP(Simple Network Management Protocol)protocol.

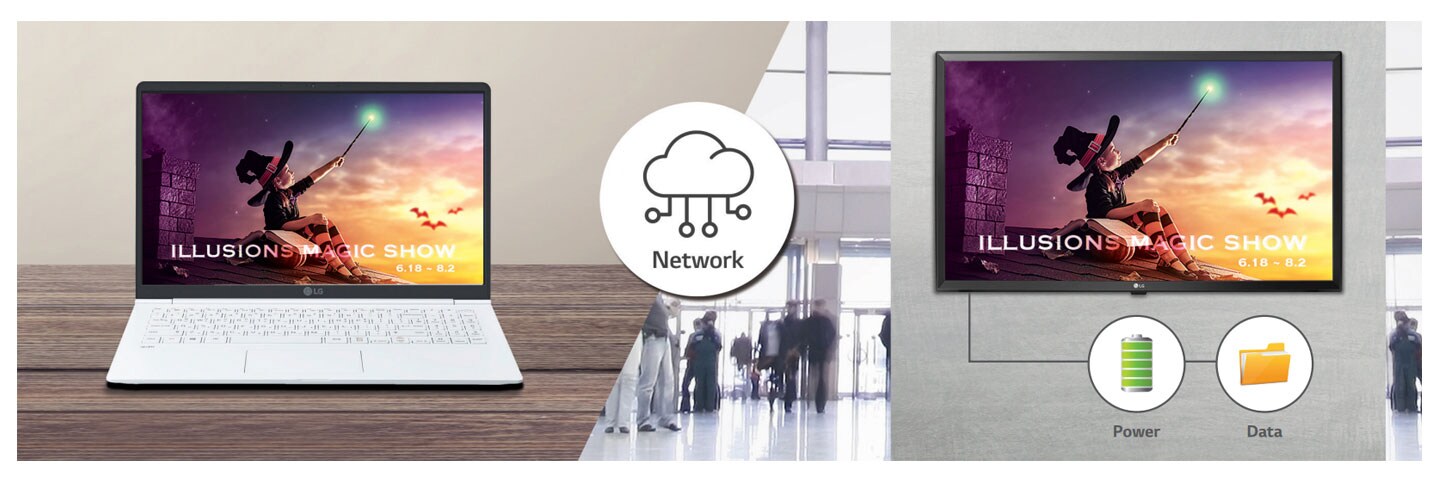

Power & Network in One Line
WOL(Wake-on-LAN) enables users to send a message through network to turn on displays. This greatly simplifies the installation and maintenance processes as only a single wire is required for power and network connection.

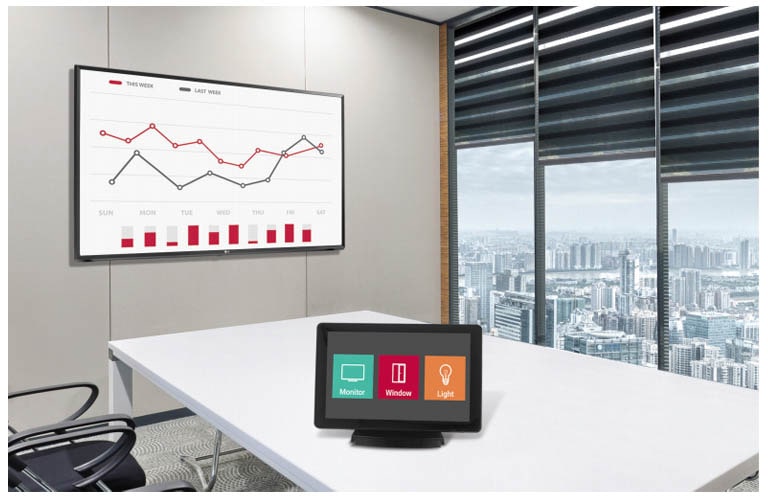

*It is a network based control System.
*Available AV Control Systems may differ by regions.
All Spec
INFO
Category
Commercial lite
DESIGN
Tool Name
LJ61
Stand Type
2 Pole
Front Color
Ceramic Black
DISPLAY
Size (Inch)
32
Resolution
HD (1366 x 768)
Brightness (Typ.)
240 nit
AUDIO (SOUND)
Speaker (Audio Output)
10W
BROADCASTING SYSTEM
Digital
DVB-T2/C/S2
STANDARD
Safety
CB, CU TR
EMC
CE
HOSPITALITY SOLUTION

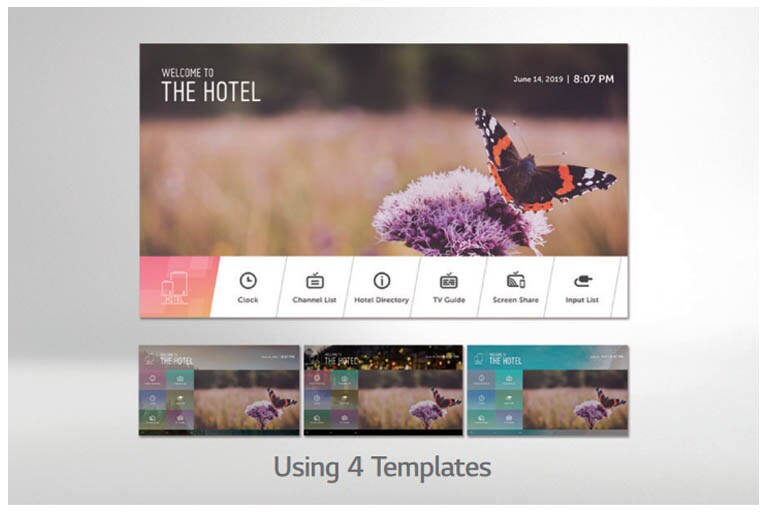

Quick Menu (Customizable Portal)
YES
HOSPITALITY FEATURE
USB Cloning
YES
WOL
YES
SNMP
YES
Diagnostics
YES (Self Diagnostics(USB))
HTNG-CEC (Version)
YES (1.4)
Simplink(HDMI-CEC) (Version)
YES (1.4)
IR Out
YES (RS-232C)
Multi IR Code
YES
Hotel Mode / PDM / Installer Menu
YES
Welcome Video
YES
Welcome Screen (Splash Image)
YES
Insert Image
YES
External Speaker Out / Line Out
YES (Ext. Speaker Out)
USB Auto playback / playback+
YES (USB Auto playback+)
Lock mode
YES (Limited)
RJP (Remote Jack Pack) Compatibility
YES
Energy Saving mode
YES
VERTICAL FUNCTION (CORPORATE/RETAIL)
Crestron Certi. Compatibility
YES
DPM (Digital Power Management)
YES
Time scheduler
YES
NTP sync timer
YES
CONNECTIVITIES
HDMI In
YES (2ea)
USB (Ver.)
YES (1ea / 2.0)
RF In
YES (1ea)
AV In
YES
Component in (Y,Pb,Pr-Video)
YES
RGB In (D-sub 15pin) - PC
YES
Digital Audio Out (Optical)
YES
External Speaker Out(3.5mm Phone jack)
YES
Headphone Out
YES
CI Slot
YES
RJ45 (Usage Purpose)
YES (SNMP&MHEG)
RS-232C (D-Sub 9pin / Phone jack)
YES (D-Sub 9pin)
MECHANICAL
VESA Compatible
200 x 200 mm
Kensington Lock
YES
DIMENSIONS/WEIGHT
Dimension with Stand (W x H x D)
739 x 472 x 168 mm
Dimension without Stand (W x H x D)
739 x 441 x 84 mm
Dimension in Shipping (W x H x D)
812 x 510 x 142 mm
Bezel Width (L/R/U/B, On Bezel)
20.7/20.7/20.6/23.4 mm
Bezel Width (L/R/U/B, Off Bezel)
18.8/18.8/18.8/21.6 mm
Weight with Stand
4.9 kg
Weight without Stand
4.85 kg
Weight in Shipping
6.1 kg
POWER SPEC.
Power Supply (Voltage, Hz)
AC 100~240V 50/60Hz
Power Consumption(Max)
46.5W
Power Consumption(Typ)
34.5W
Standby Power Consumption
Under 0.5W
ACCESSORIES
Remote type
L-Con
Power Cable
YES (1.5M, Angle Type)
