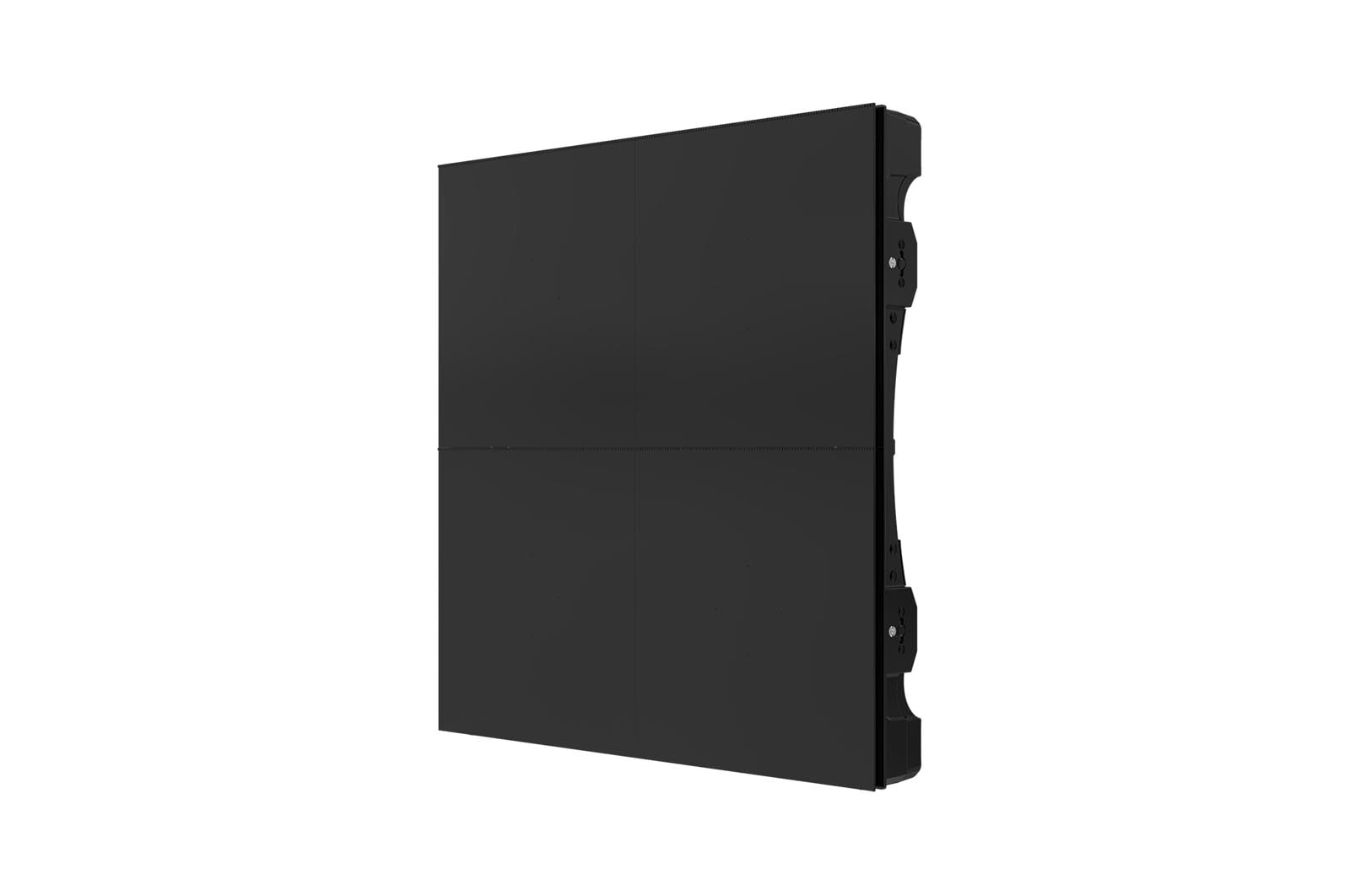

LG Indoor LED
A virtual production studio with curved LED walls and ceiling and floor LEDs is filming images of a forest and field landscape.
* All images in this page are for illustrative purposes only.
The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.
The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-handed Control' parts in the cabinet are enlarged.
The mechanical connection between the two panels is secured by an angle adapter system and a fast lock, adjustable by 10 degrees in concave areas and 5 degrees in convex areas.
Curved LED walls are installed in a studio.

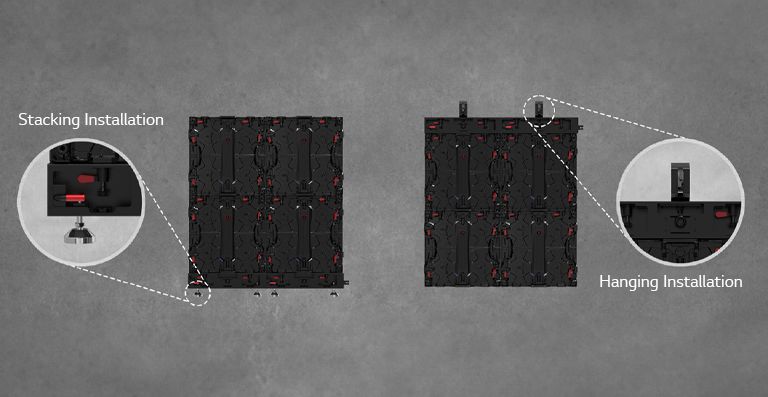

Installation can be performed by stacking or hanging, using the optional accessories (single, double, triple beams) for customization to the studio environment.
The part where the cabinet can be installed either as stacking or hanging is enlarged and shown.
Accurate color reproduction, low latency of video processing, and HDR capability.
A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown.
Thanks to the compatibility between LBCG and the Megapixel VR HELIOS LED processing platform, you can now utilize the powerful UX and UI functionalities offered by HELIOS. HELIOS processing platform includes Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics.
The Megapixel VR HELIOS LED processing platform provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-Speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics.
* Please note that Megapixel VR HELIOS LED processing platform needs to be purchased separately, and depending on the actual usage environment, there may be limitations in the implementation of certain features offered by HELIOS. A game controller needs to be purchased separately.
Model name
LBCG026-GM
Controller
(MVR HEIOS)
Environment
RoHS, REACH
IP rating Front
IP30
IP rating Rear
IP30
LED Lifetime (Half brightness)
100,000
Operating Humidity
0~80%RH
Operating Temperature(℃)
-10℃ to +45℃
Brightness Uniformity
0.97
Color Temperature (K)
3,500~9,000
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Max Brightness (After Calibration, nit)
1,500
Processing Depth (bit)
16 (PQ, HLG)
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Frame Rate (Hz)
50 / 60
Heat Dissipation (BTU/h/Cabinet, Avg.)
205
Heat Dissipation (BTU/h/Cabinet, Max.)
614
Heat Dissipation (BTU/h/㎡, Max.)
2,457
Power Consumption (W/Cabinet, Avg.)
60
Power Consumption (W/Cabinet, Max.)
180
Power Consumption (W/㎡, Max.)
720
Power Supply (V)
100 to 240
Refresh Rate (Hz)
7,680
Cabinet Dimensions (W x H x D, mm)
500x500x75.5
Cabinet material
Die-casting Magnesium
Cabinet Resolution (WxH)
192x192
Cabinet Surface Area (㎡)
0.25
Flatness of Cabinet (mm)
±0.15
Module Dimensions(WxH,mm)
250x250
Module Resolution (WxH)
96x96
No. of Modules per Cabinet (WxH)
2 x 2
Physical Pixel Density (pixels/㎡)
147,456
Pixel Configuration
Single SMD
Pixel Pitch (mm)
2.6
Service access
Front or Rear (select one only)
Weight per Cabinet (kg/unit)
6.2
Weight per Module (kg)
0.6
Weight per Square Meter (kg/㎡)
24.8
Certification
CE, FCC, ETL
