Floor LED Display for Virtual Production
A virtual production studio with curved LED walls and ceiling and floor LEDs is filming images of a forest and field landscape.
* All images in this page are for illustrative purposes only.

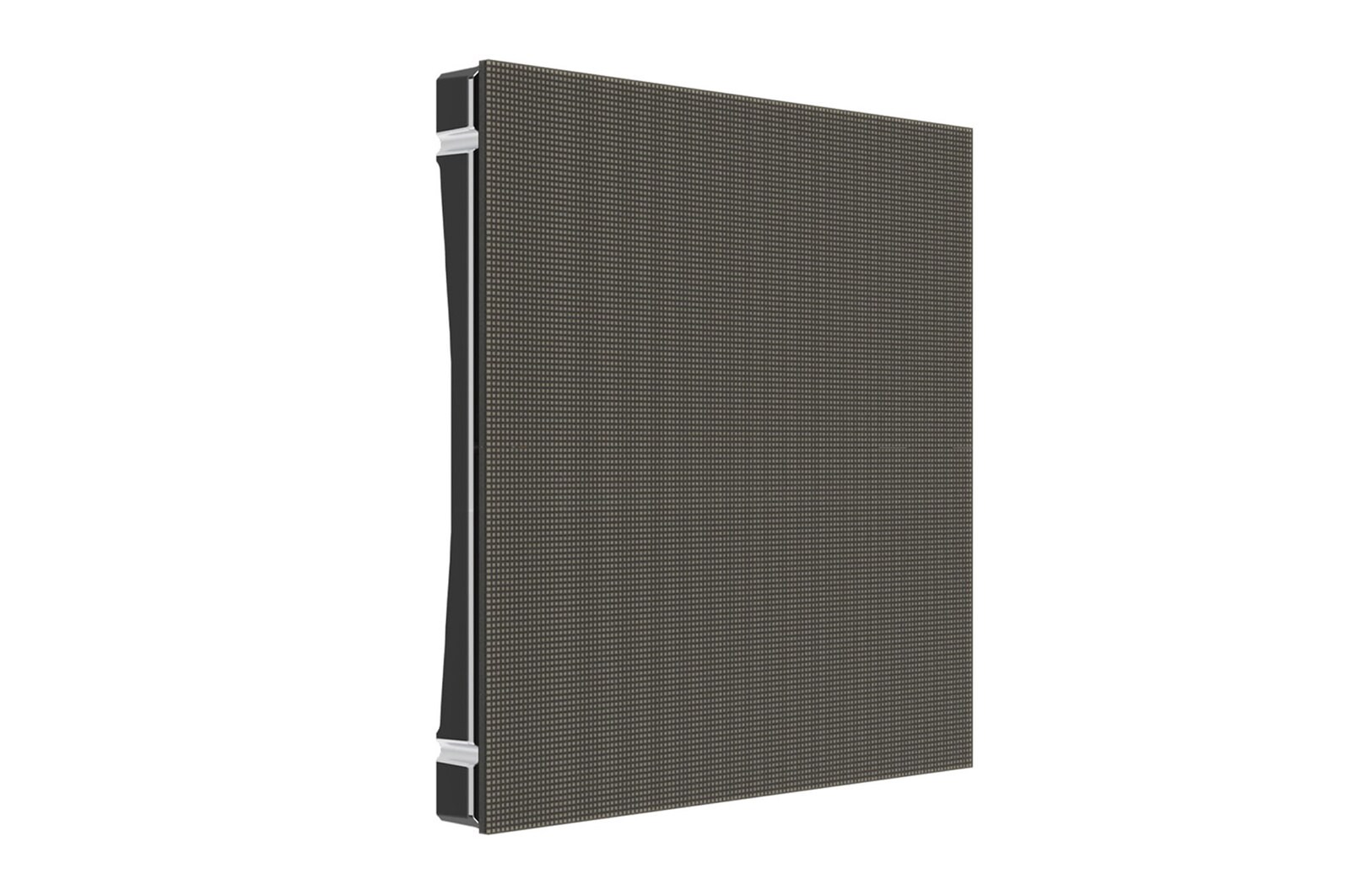

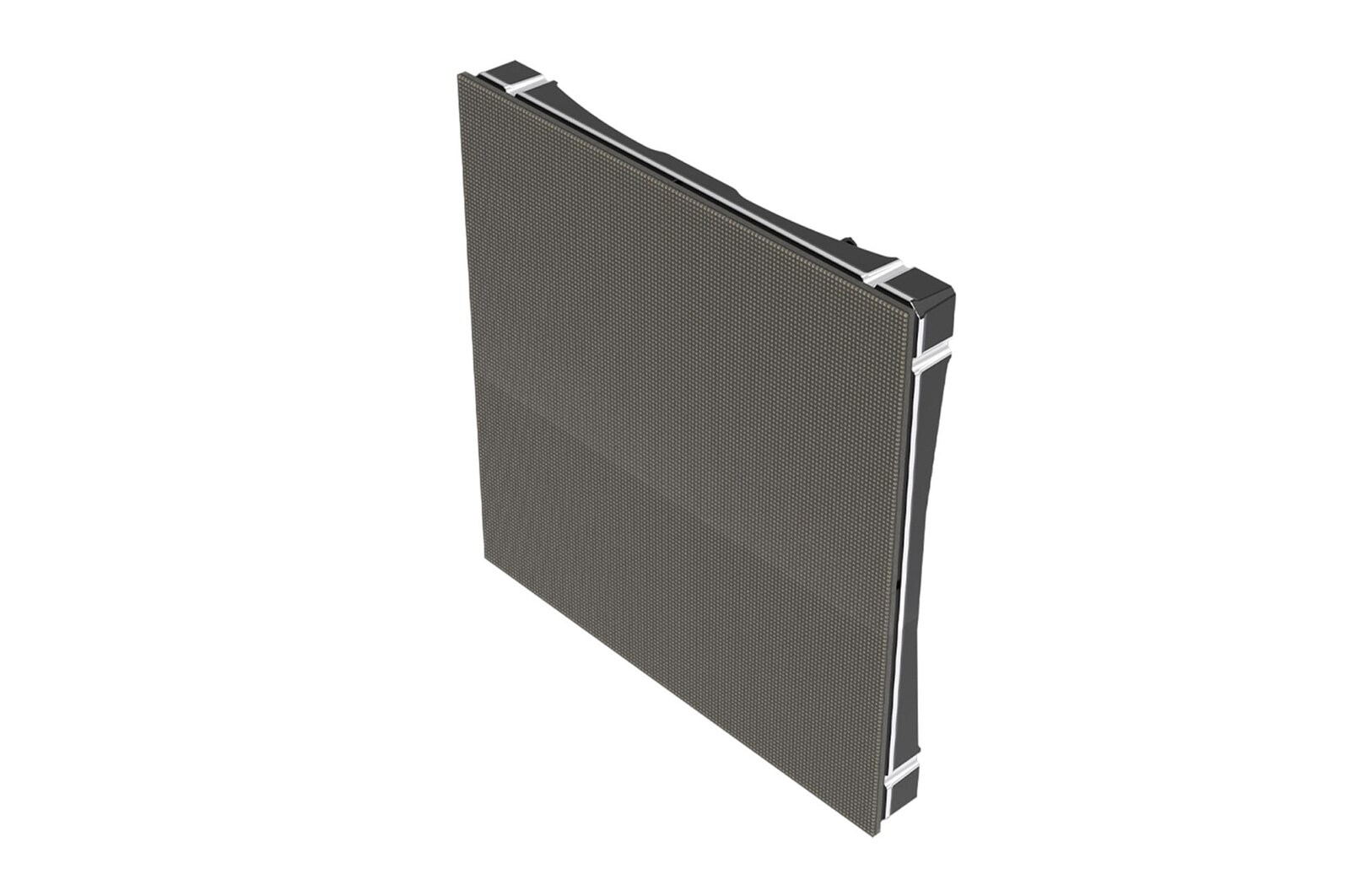

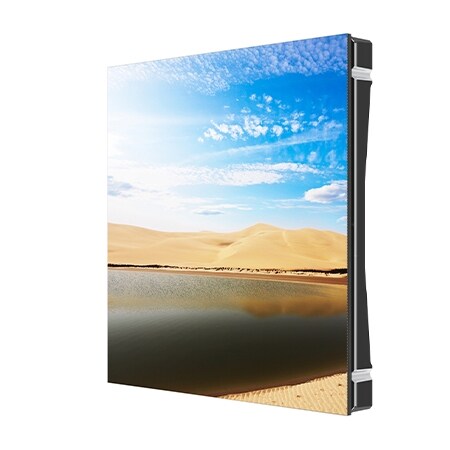

LFCL series is a unique display installed on the floor with high durability designed to load up to 1,500 kg/sqm.

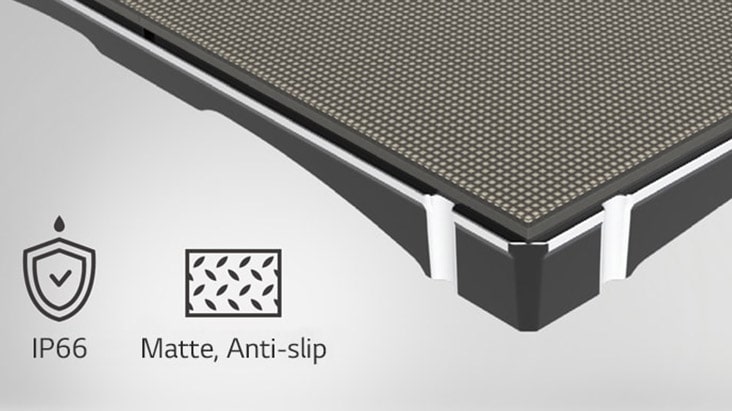

Surface safety when installing the screen on the floor (IP66 protective non-slip mat) and high visual performance (with high contrast LED for uniform visual performance in black) are considered.
* As the surface is made of polycarbonate, it may be susceptible to scratches (especially against metal).

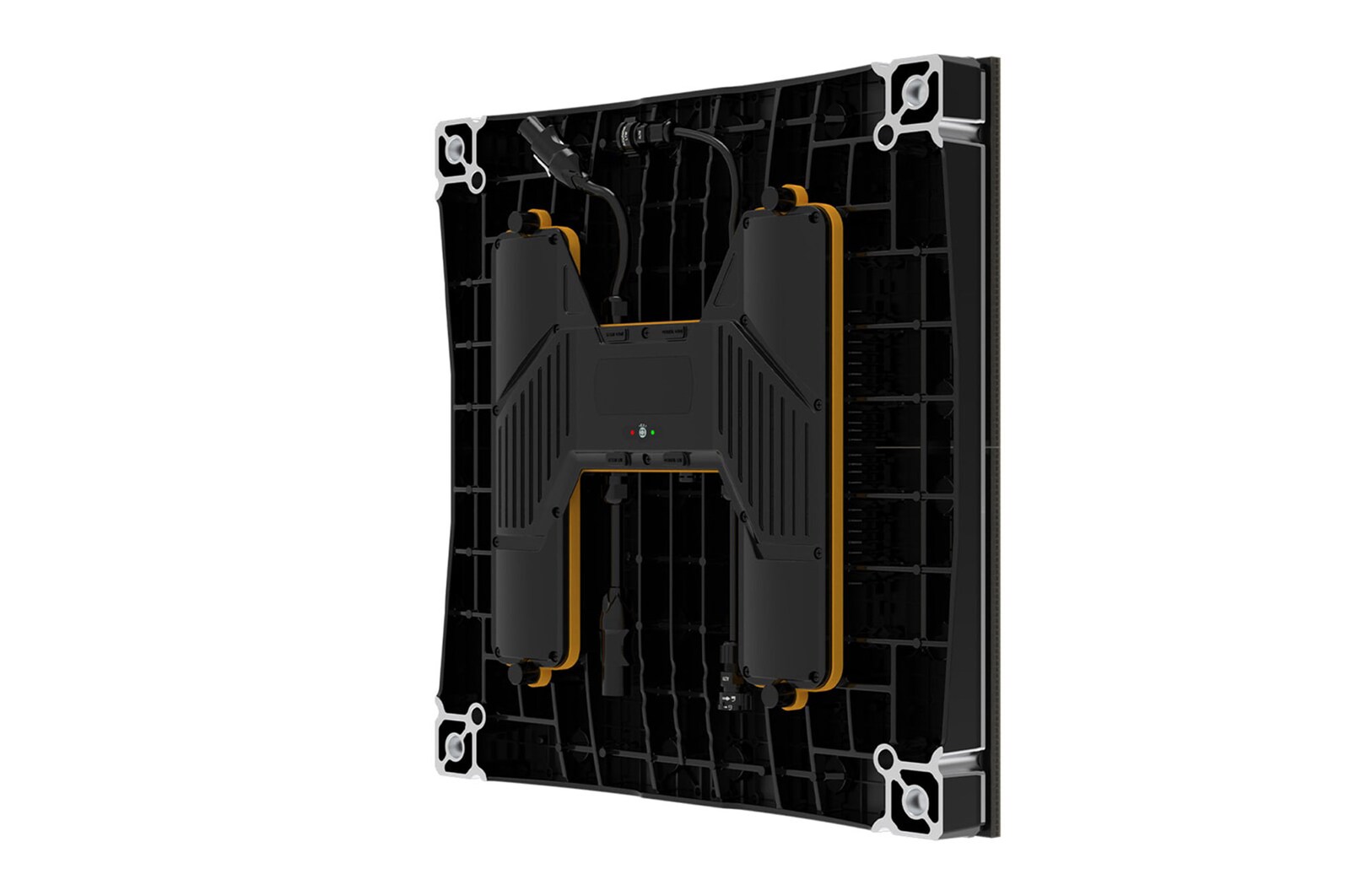

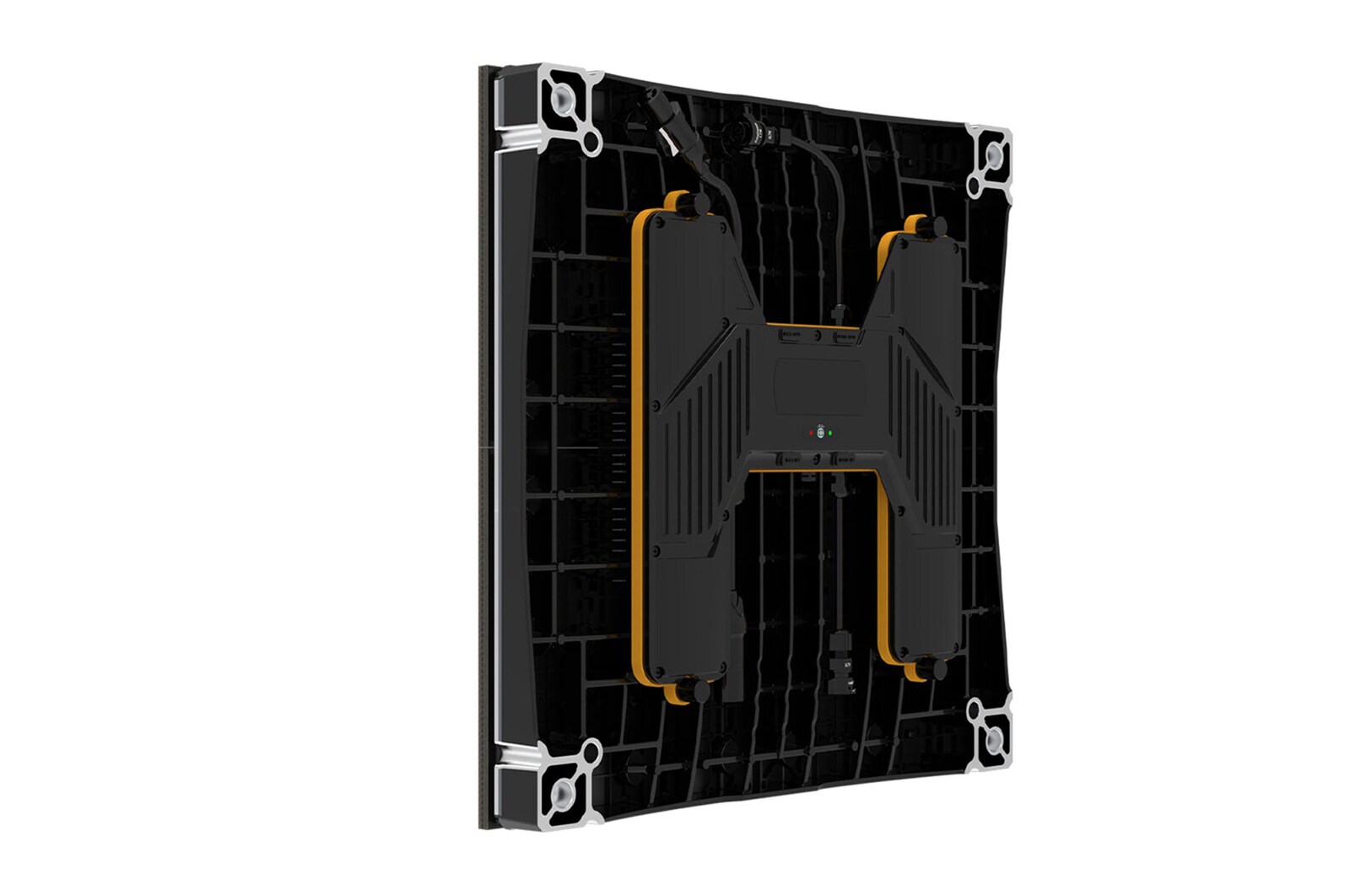

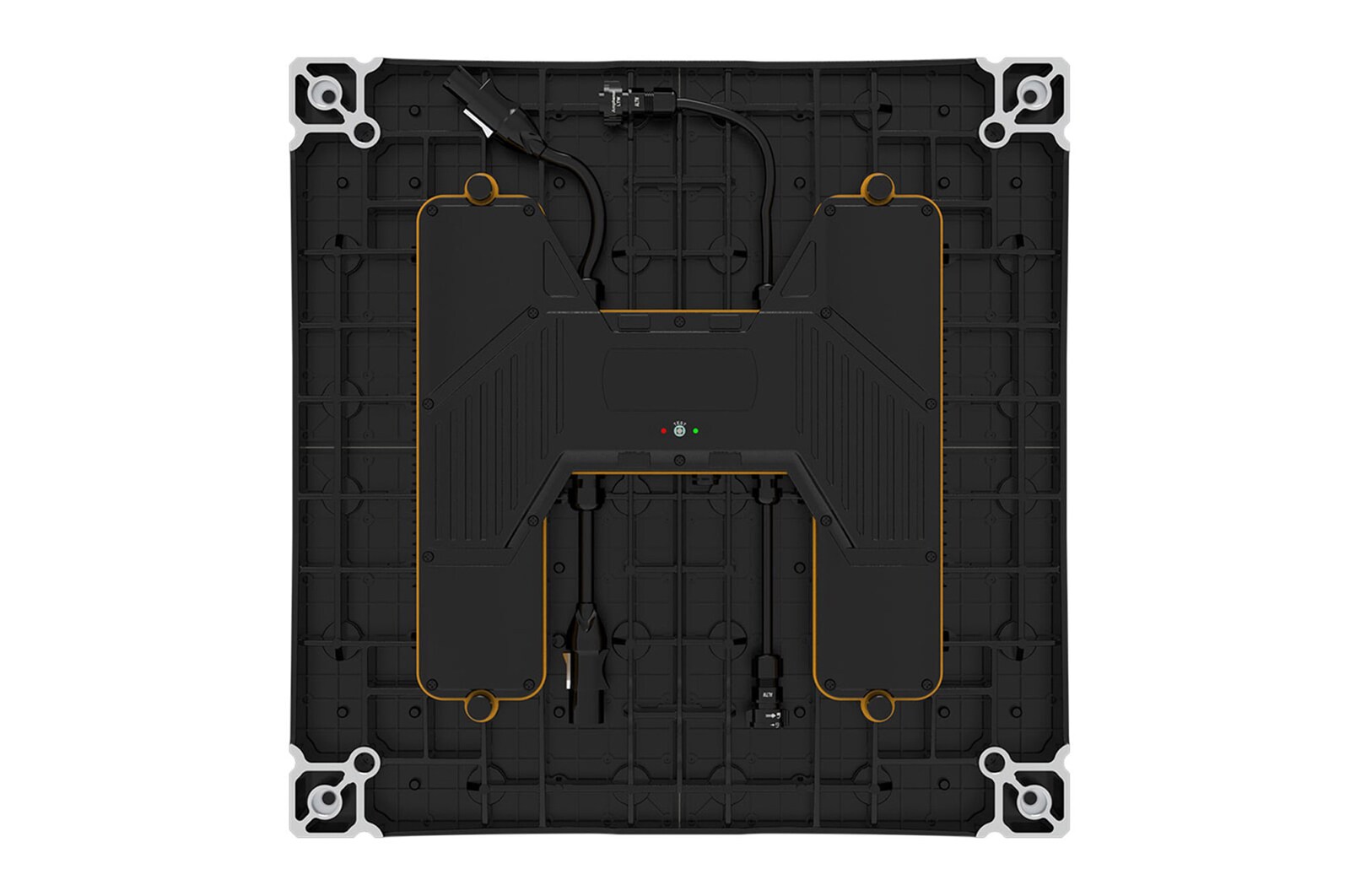

Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the LED module allow for easy maintenance, and hot-swapping* is able during the display operation.
It is easy to install LFCM by simply fixing the cabinet with the footer, and the magnets attached to the LED module allow for easy maintenance with the screen on.
* Hot Swapping : Swap module on-site during screen’s on the operation.

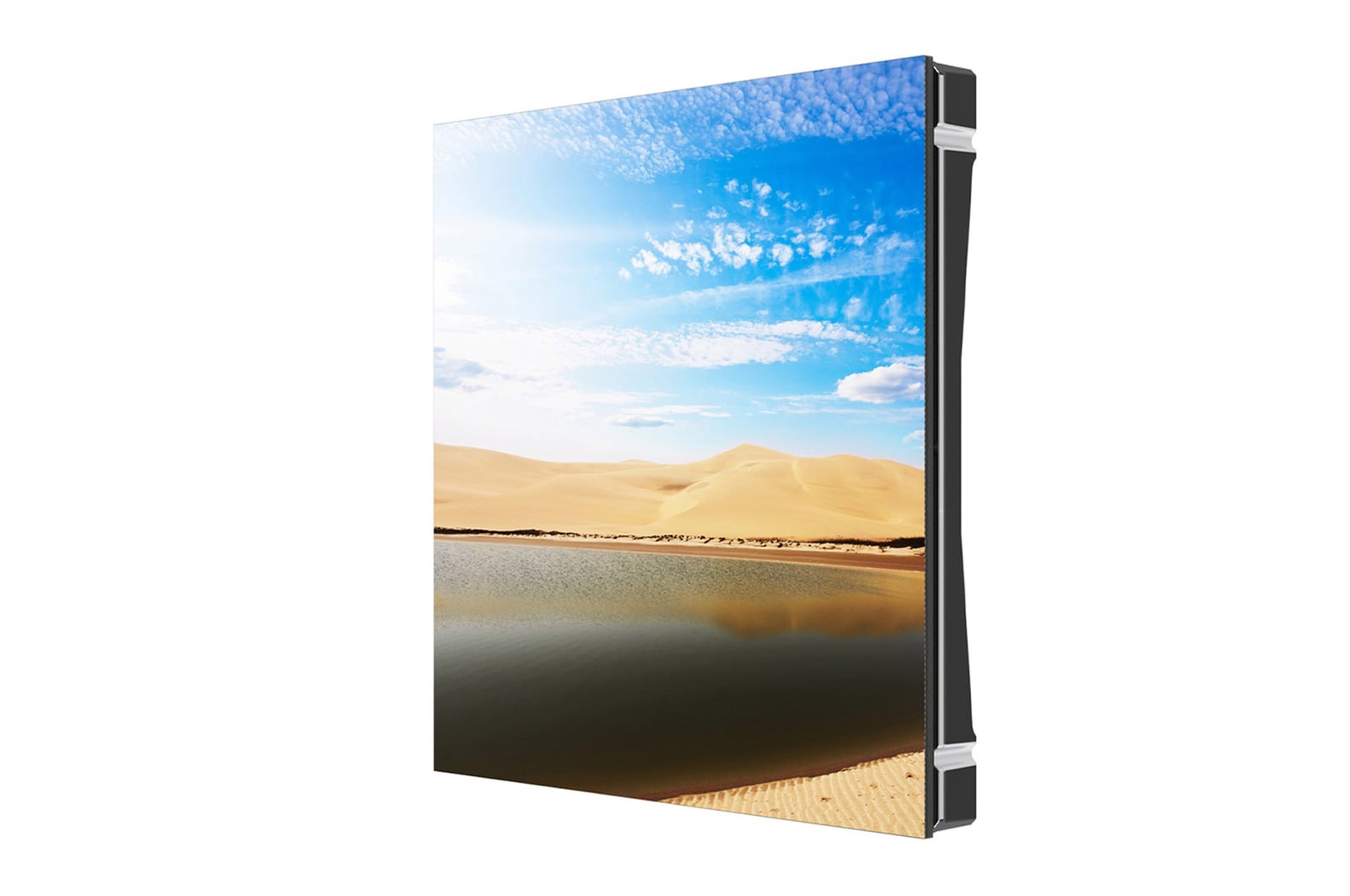

The LFCL series gives a versatile filming experience in XR Stage and mid-sized VP Studio. Moreover, the rendered content is highly visible with 3,000 nits. Available to shoot dust and water scenes with IP66 rating. The realistic filming of desert, beach, and fire scenes keep DP and camera operators contented.

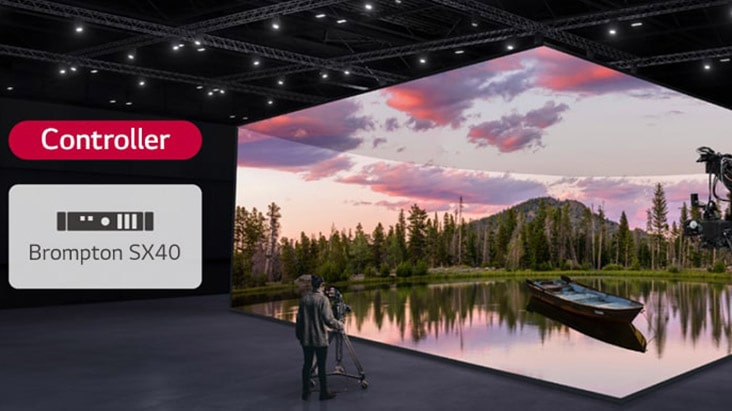

As Brompton controllers are common in the broadcast and virtual production industry, LFCL series offers support for them.
Model name
LFCL039-GN
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
3.906
Module Resolution (WxH)
64x64
Module Dimensions(WxH,mm)
250x250
Weight per Module (kg)
0.90
No. of Modules per Cabinet (WxH)
2 x 2
Cabinet Resolution (WxH)
128 x 128

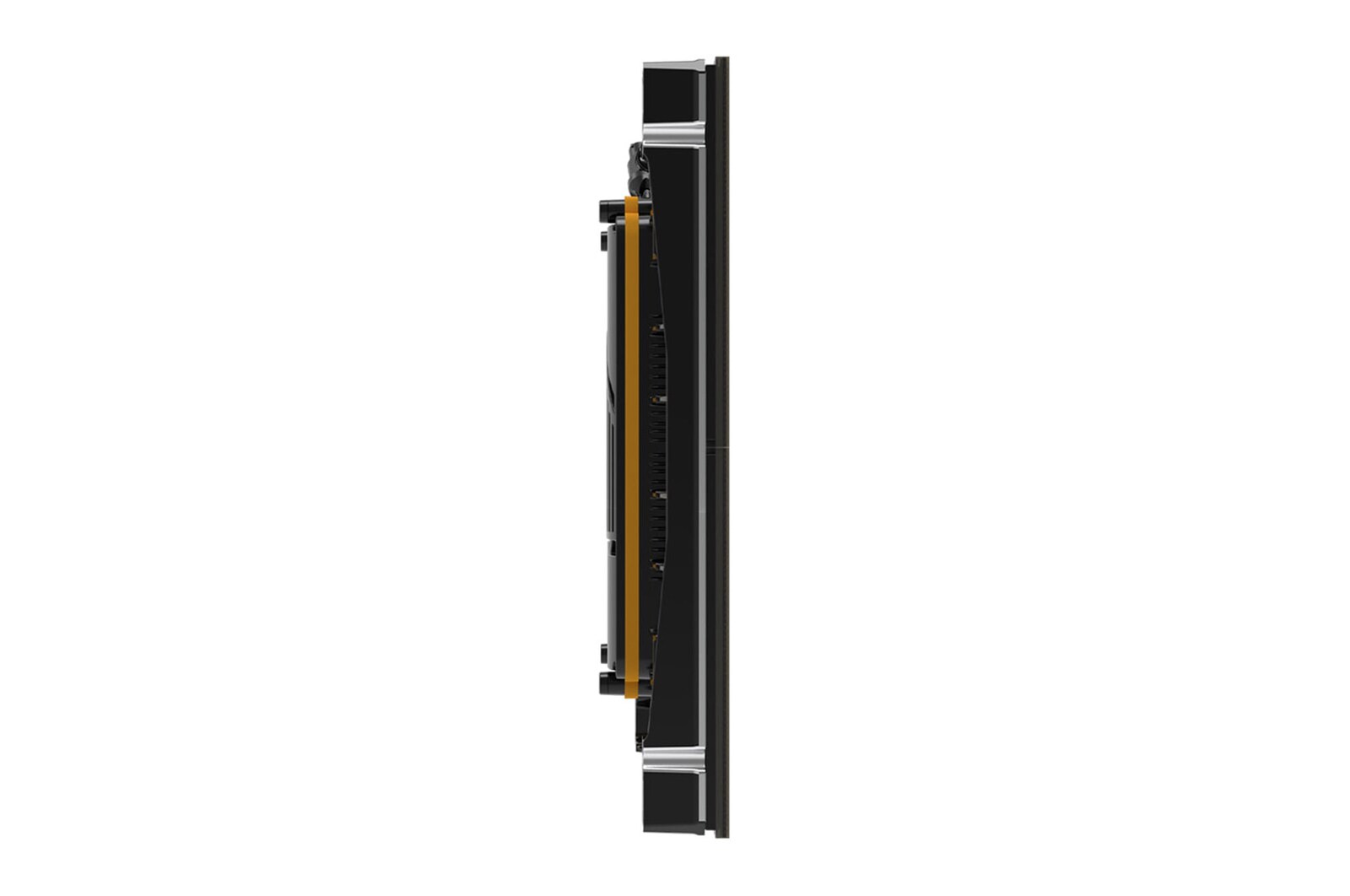

Cabinet Dimensions (W x H x D, mm)
500x500x84.5
Cabinet Surface Area (㎡)
0.250
Weight per Cabinet (kg/unit)
10.5
Weight per Square Meter (kg/㎡)
42.0
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
3,000
Color Temperature (K)
2,000-11,000
Visual Viewing Angle (Horizontal)
120
Visual Viewing Angle (Vertical)
120
Brightness Uniformity
≥97%
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
14 (PQ, HLG)
Power Consumption (W/Cabinet, Max.)
240
Power Consumption (W/Cabinet, Avg.)
80
Power Consumption (W/㎡, Max.)
960
Heat Dissipation (BTU/h/Cabinet, Max.)
819
Heat Dissipation (BTU/h/Cabinet, Avg.)
273
Heat Dissipation (BTU/h/㎡, Max.)
3,276
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0-80%RH Non-condensing
IP rating Front
IP65
IP rating Rear
IP65
LED Lifetime (Half brightness)
100,000
Certification
CE,FCC,ETL
Controller
Brompton SX40
