Model name

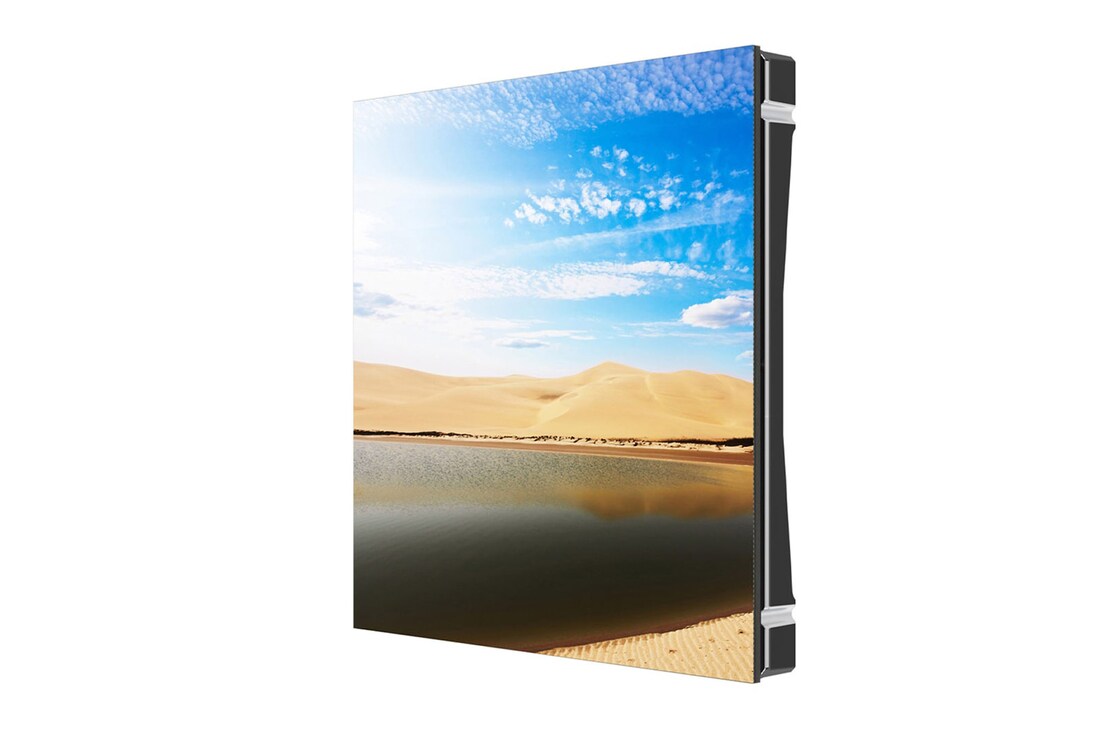

LFCL039-GN
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
3.906
Module Resolution (WxH)
64x64
Module Dimensions(WxH,mm)
250x250
Weight per Module (kg)
0.90
No. of Modules per Cabinet (WxH)
2 x 2
Cabinet Resolution (WxH)
128 x 128
Cabinet Dimensions (W x H x D, mm)
500x500x84.5
Cabinet Surface Area (㎡)
0.250
Weight per Cabinet (kg/unit)
10.5
Weight per Square Meter (kg/㎡)
42.0
Physical Pixel Density (pixels/㎡)
65,536
Flatness of Cabinet (mm)
±0.5
Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
3,000
Color Temperature (K)
2,000-11,000
Visual Viewing Angle (Horizontal)
120
Visual Viewing Angle (Vertical)
120
Brightness Uniformity
≥97%
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
14 (PQ, HLG)
Power Consumption (W/Cabinet, Max.)
240
Power Consumption (W/Cabinet, Avg.)
80
Power Consumption (W/㎡, Max.)
960
Heat Dissipation (BTU/h/Cabinet, Max.)
819
Heat Dissipation (BTU/h/Cabinet, Avg.)
273
Heat Dissipation (BTU/h/㎡, Max.)
3,276
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-10℃ to +45℃
Operating Humidity
0-80%RH Non-condensing
IP rating Front
IP65
IP rating Rear
IP65
LED Lifetime (Half brightness)
100,000
Certification
CE,FCC,ETL
Controller
Brompton SX40
