LG MAGNIT

LG MAGNIT

LG MAGNIT

LSAB009

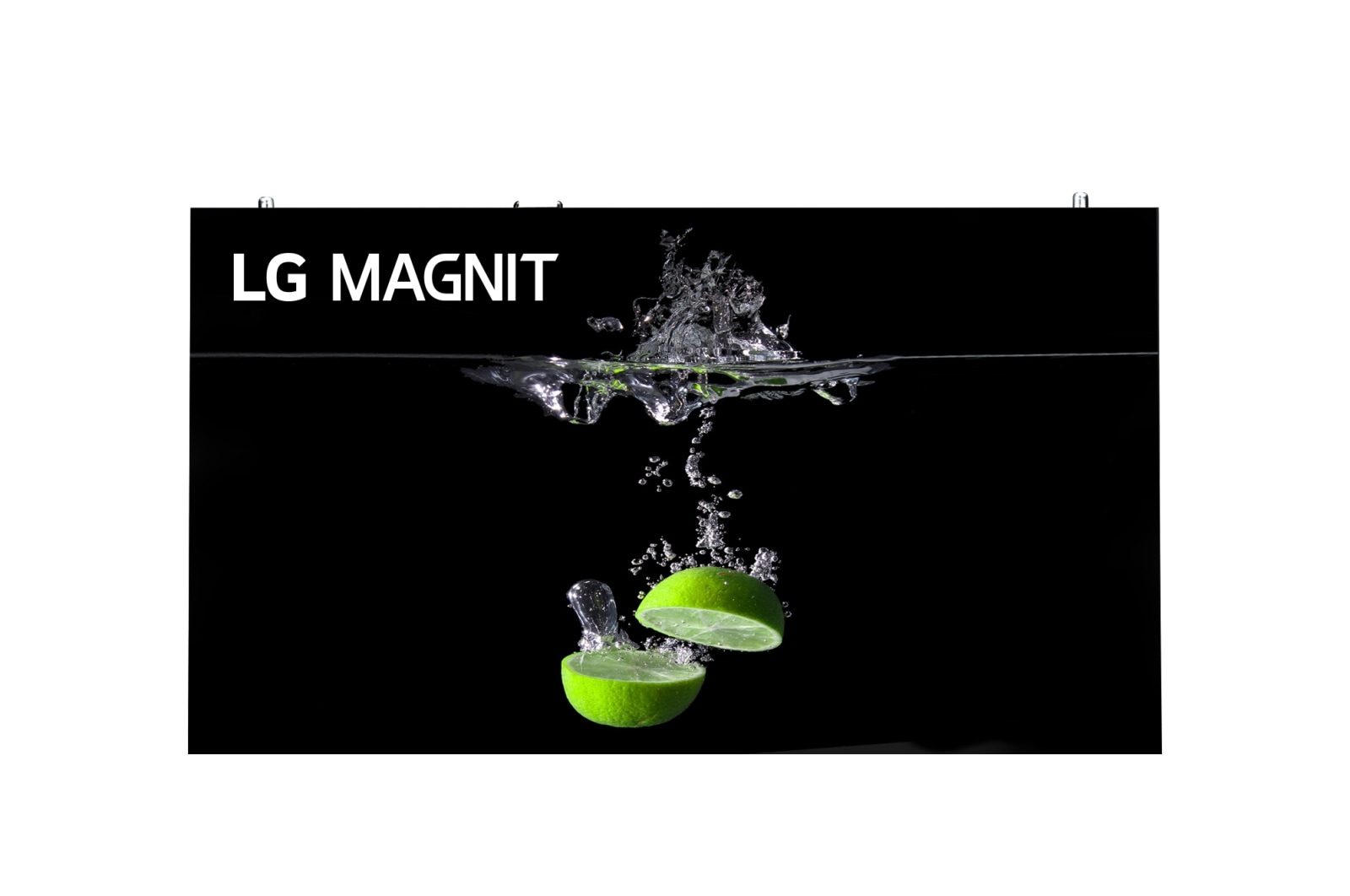

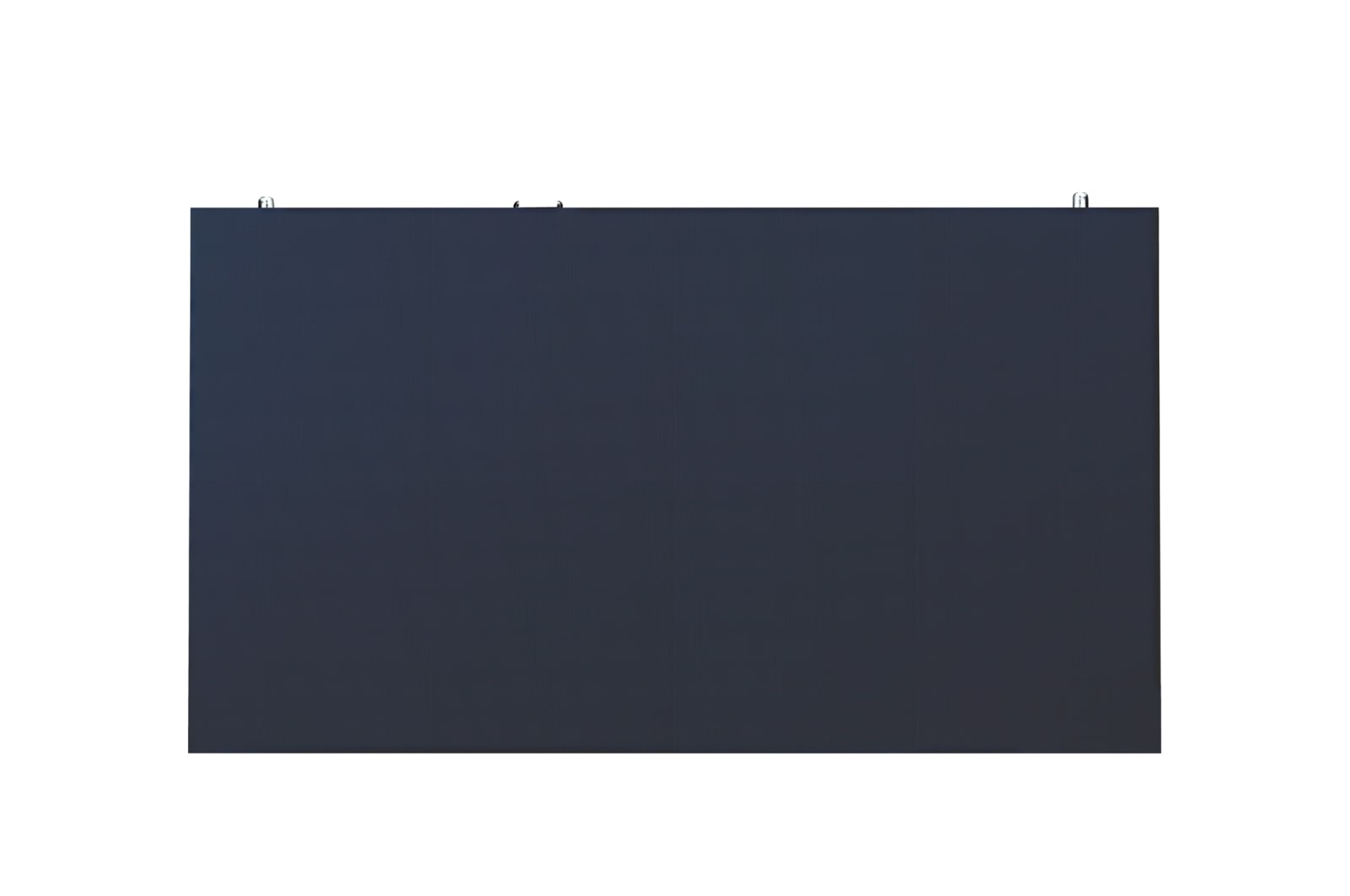

Front view of LG MAGNIT LSAB009

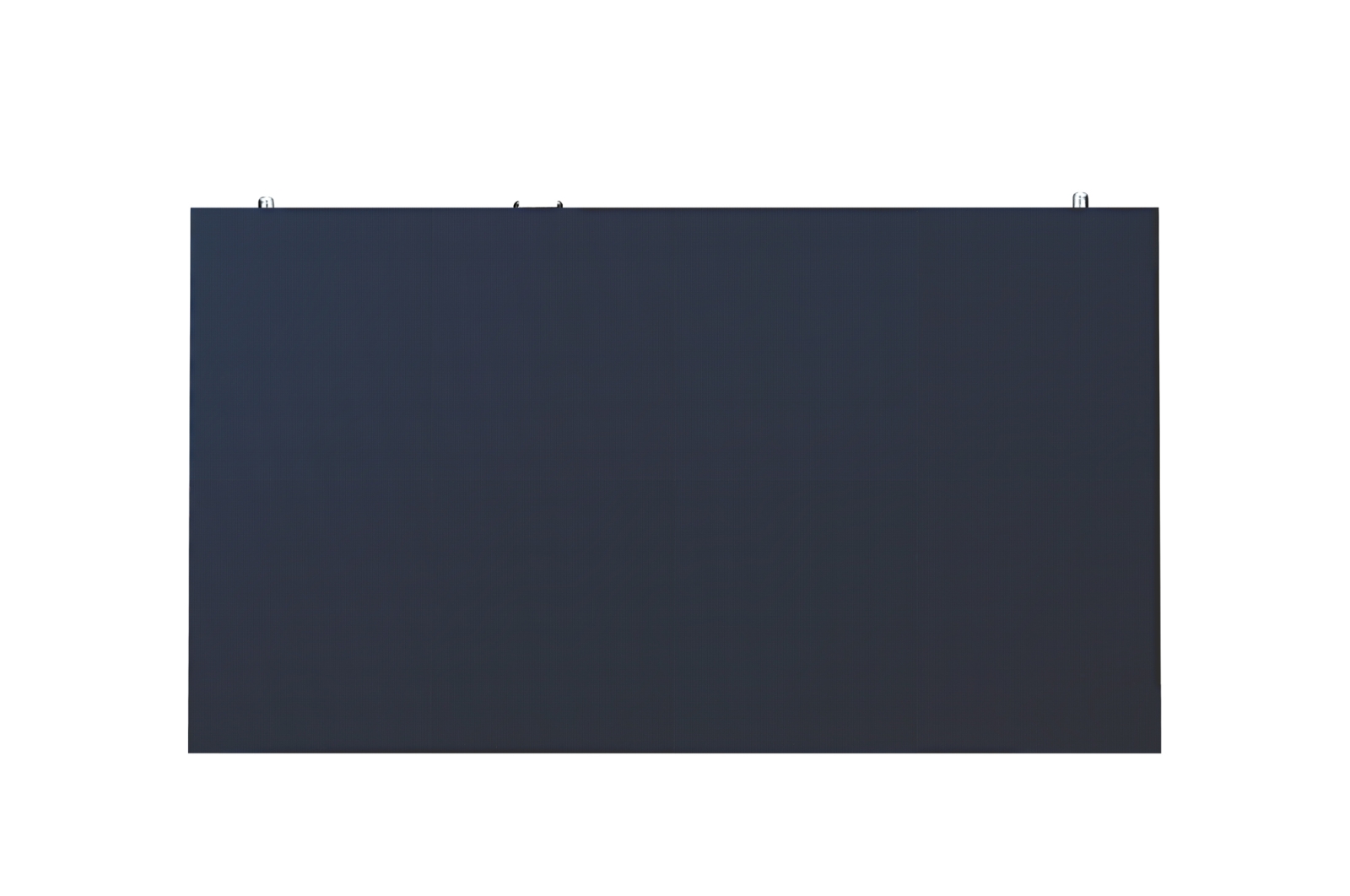

front view

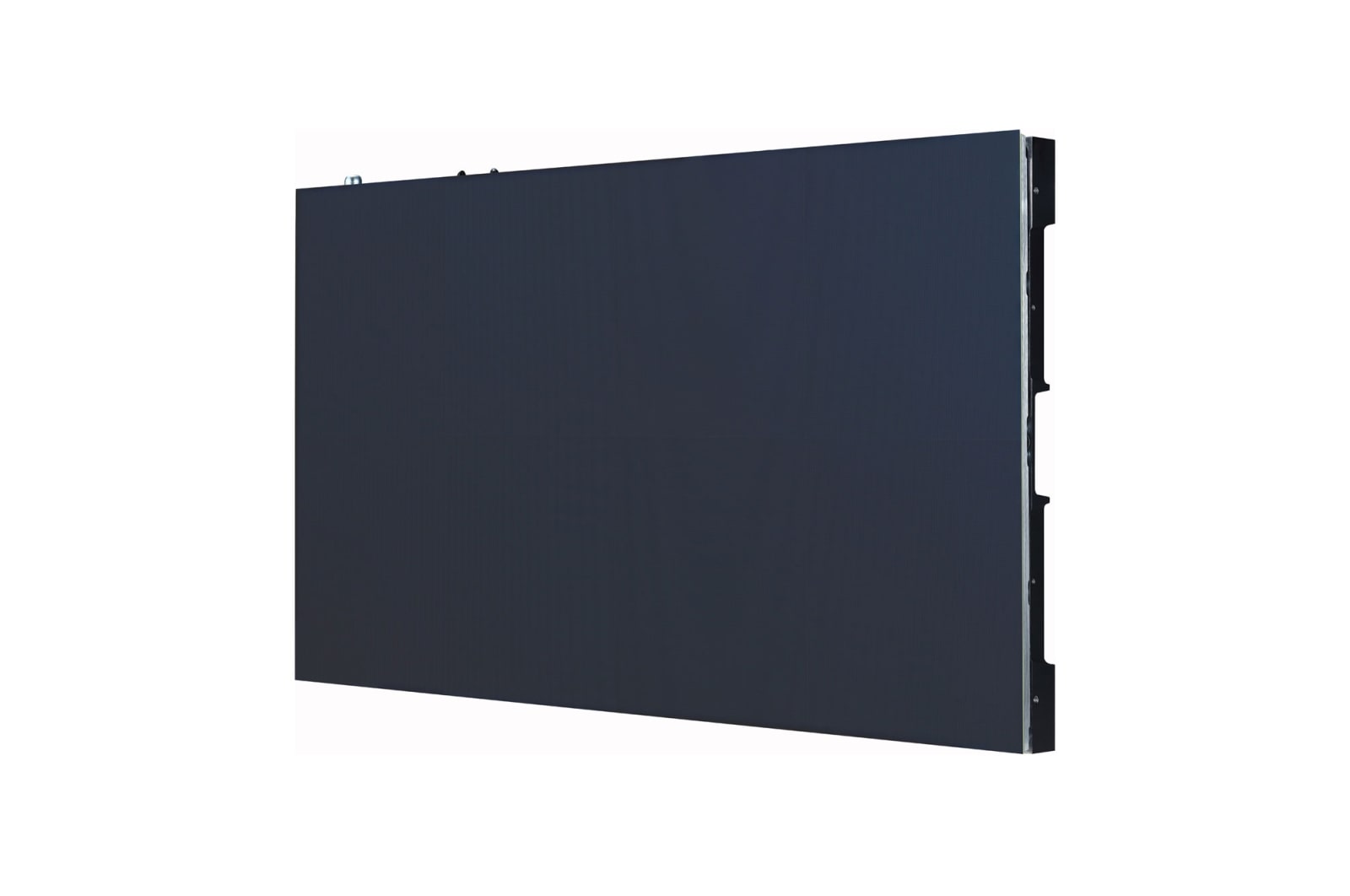

45° view

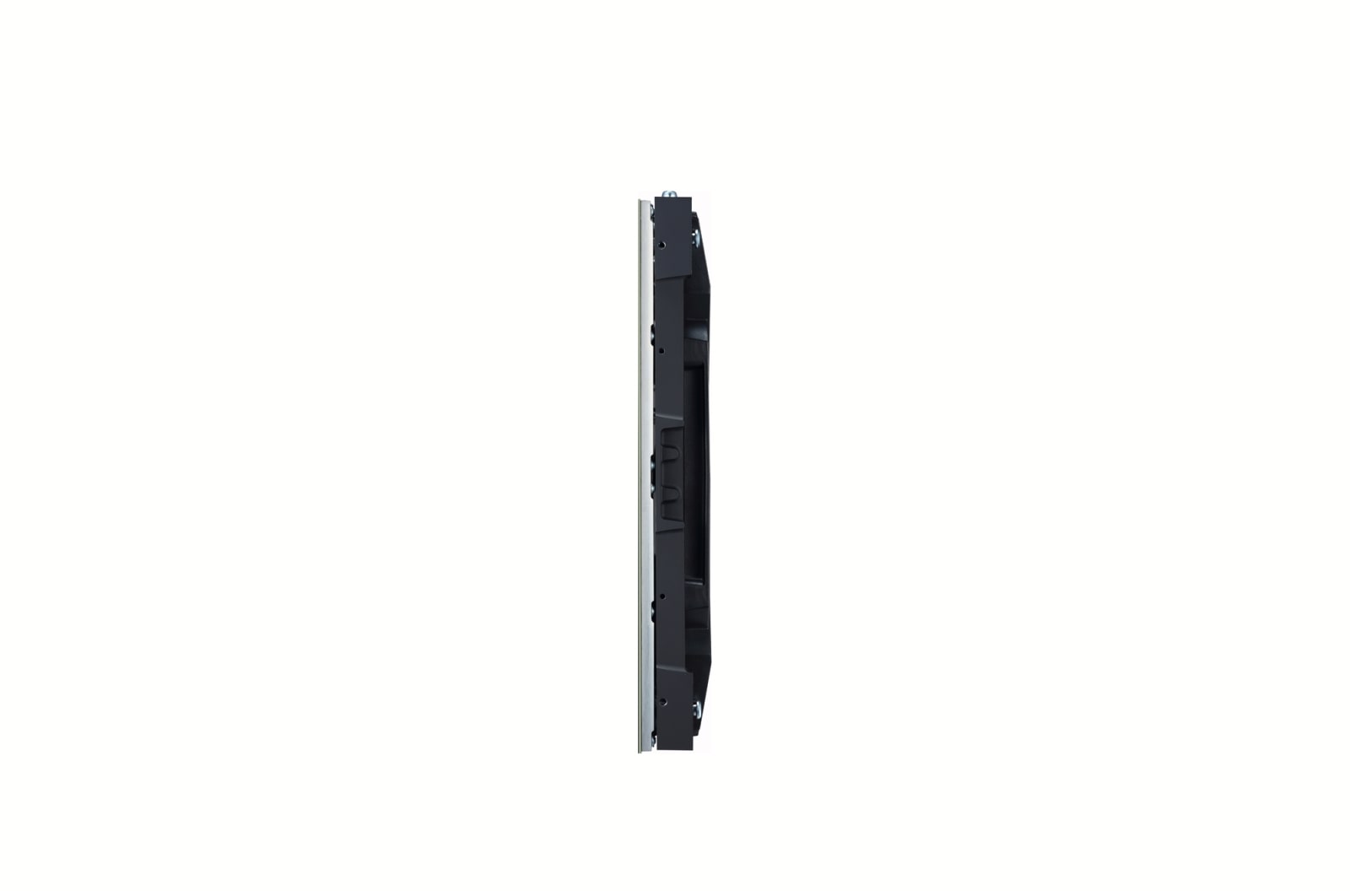

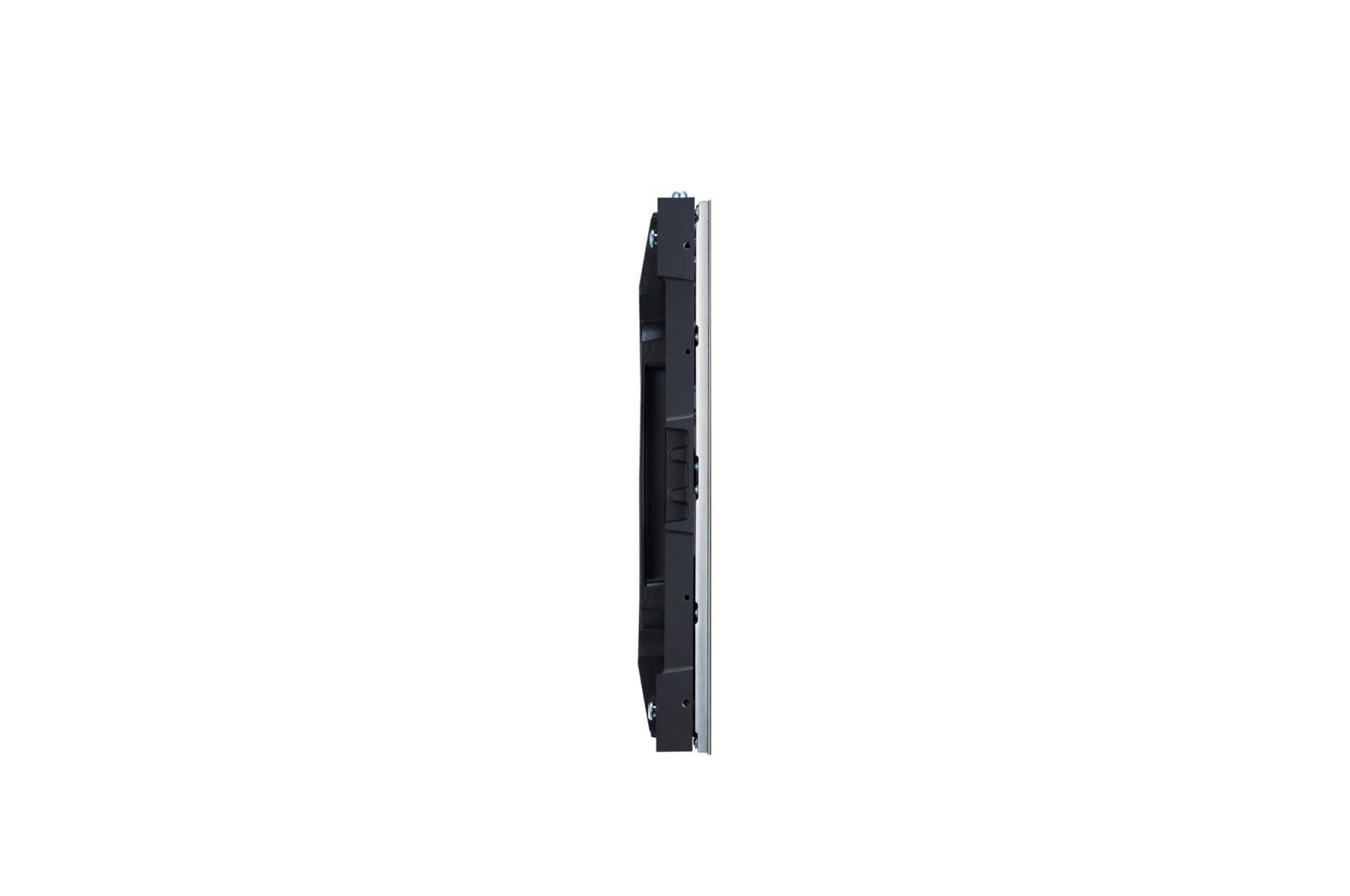

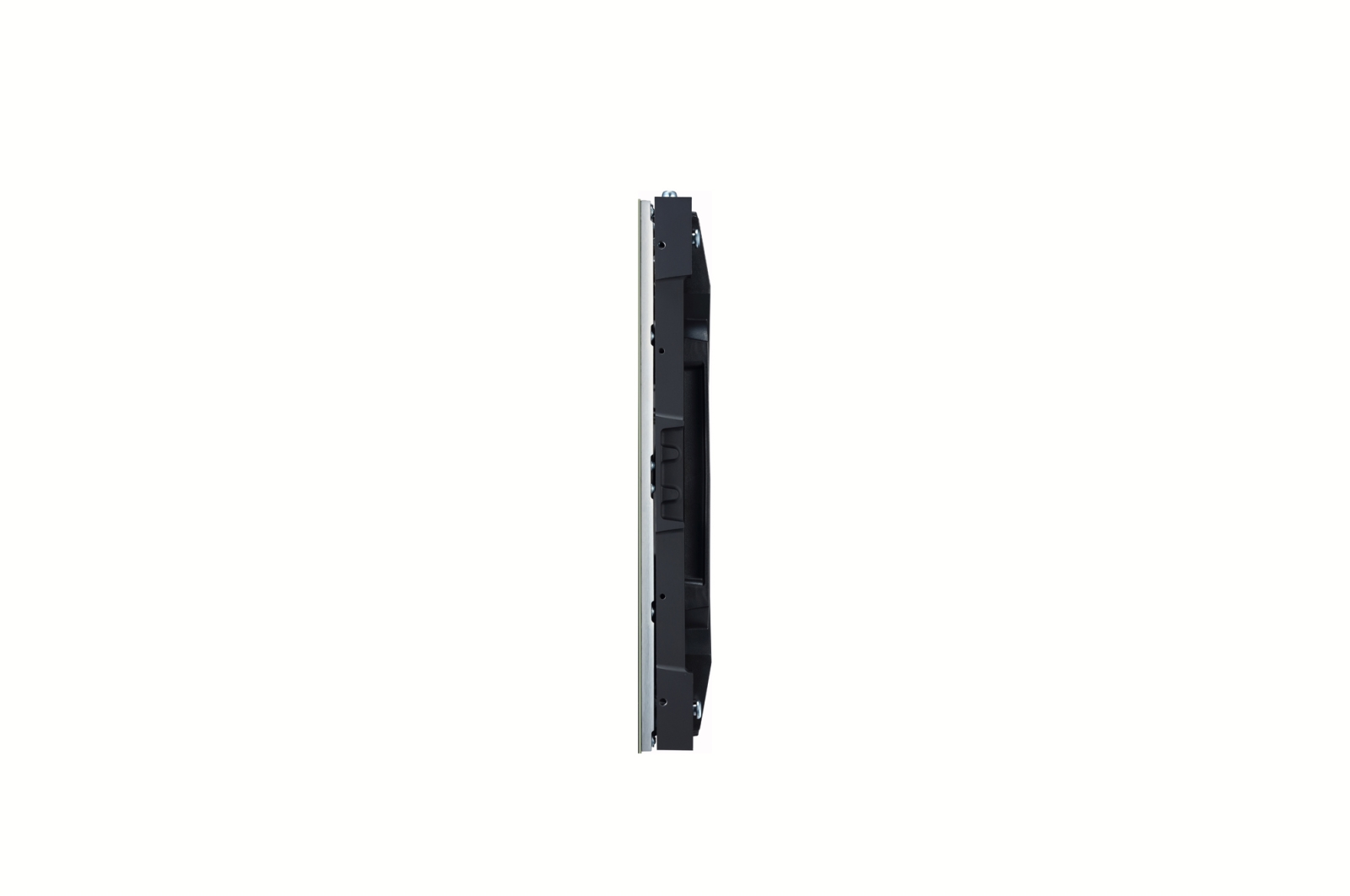

Right view

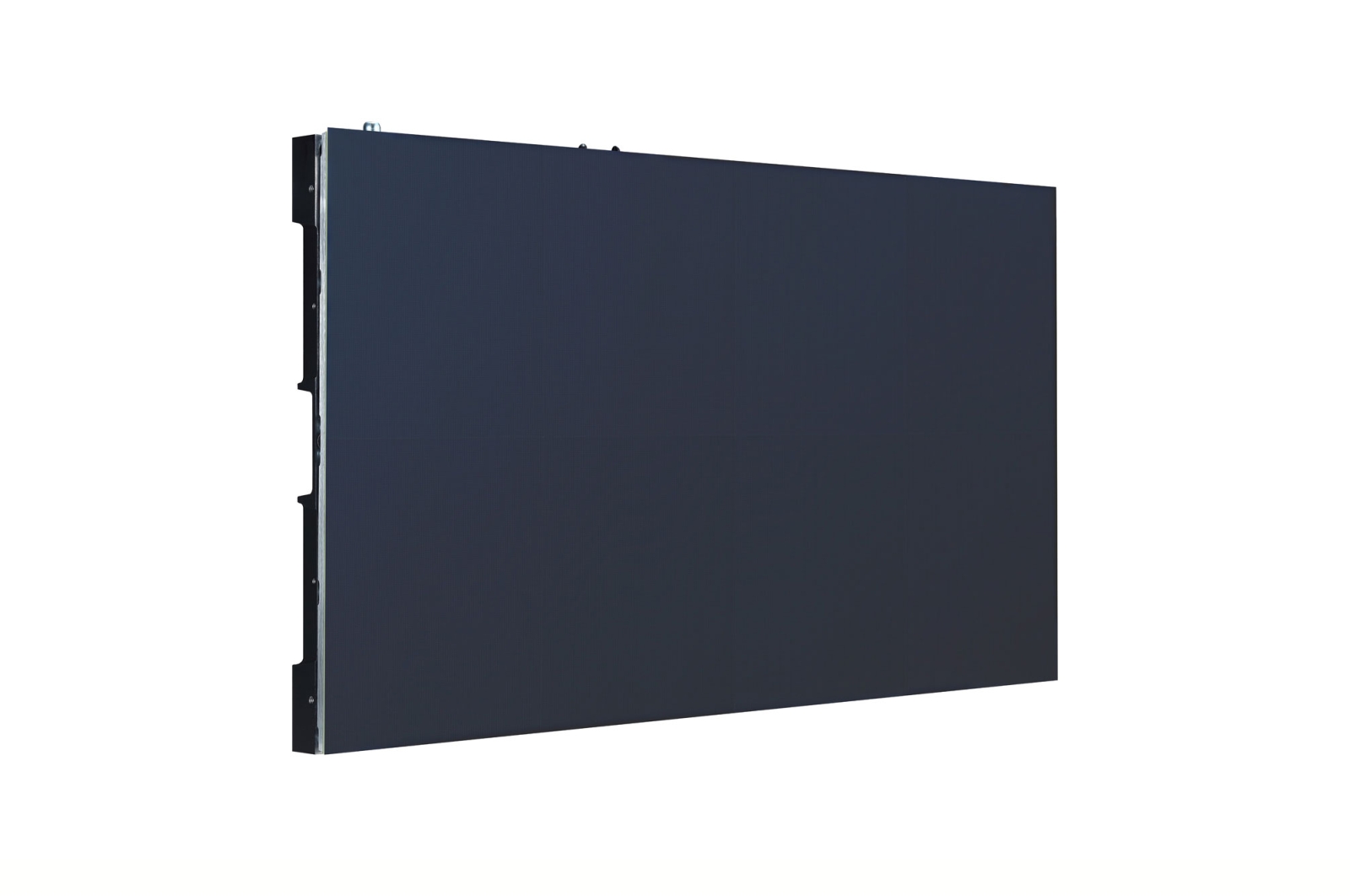

-45° view
left view

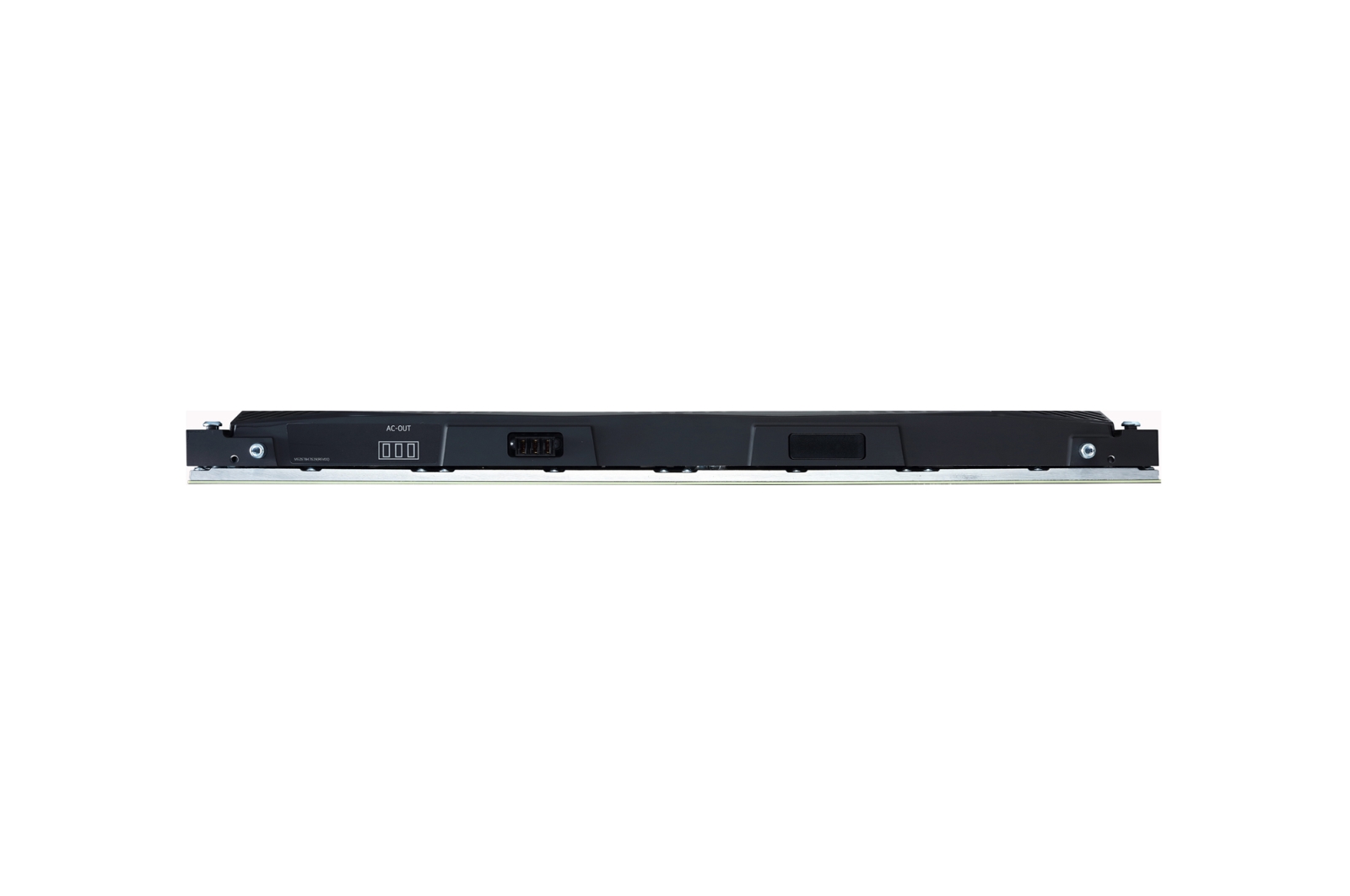

top view

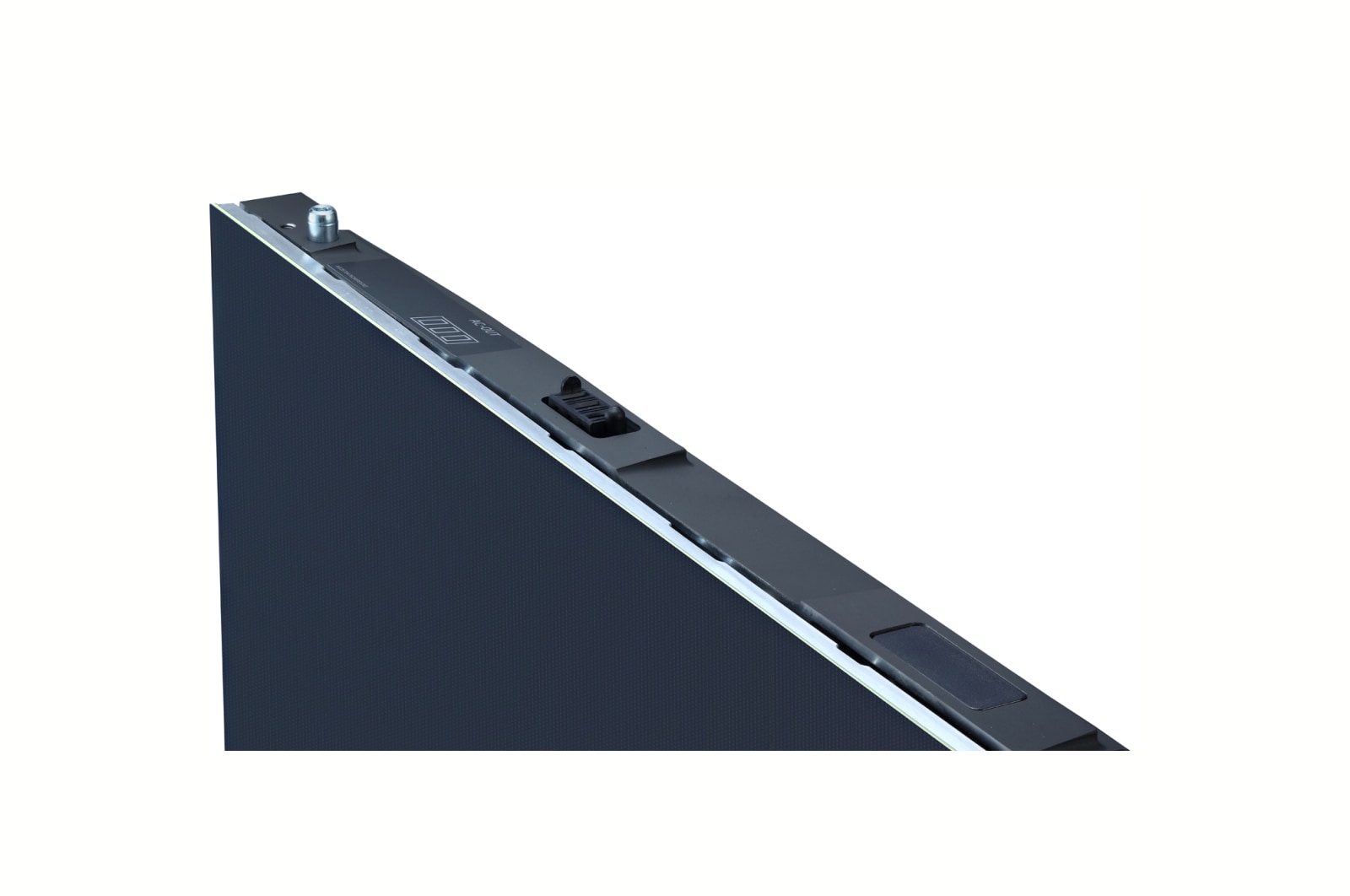

Detail View

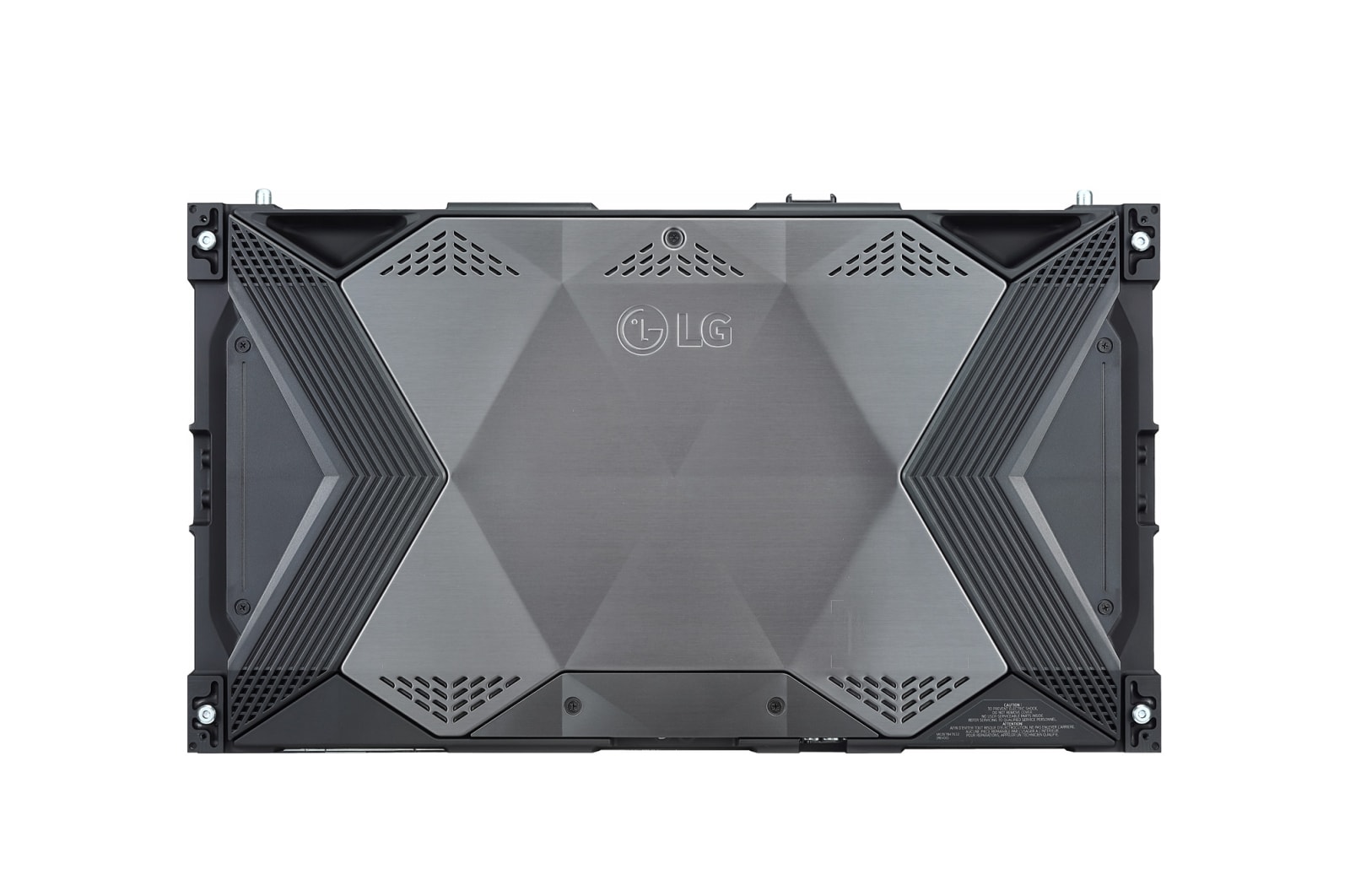

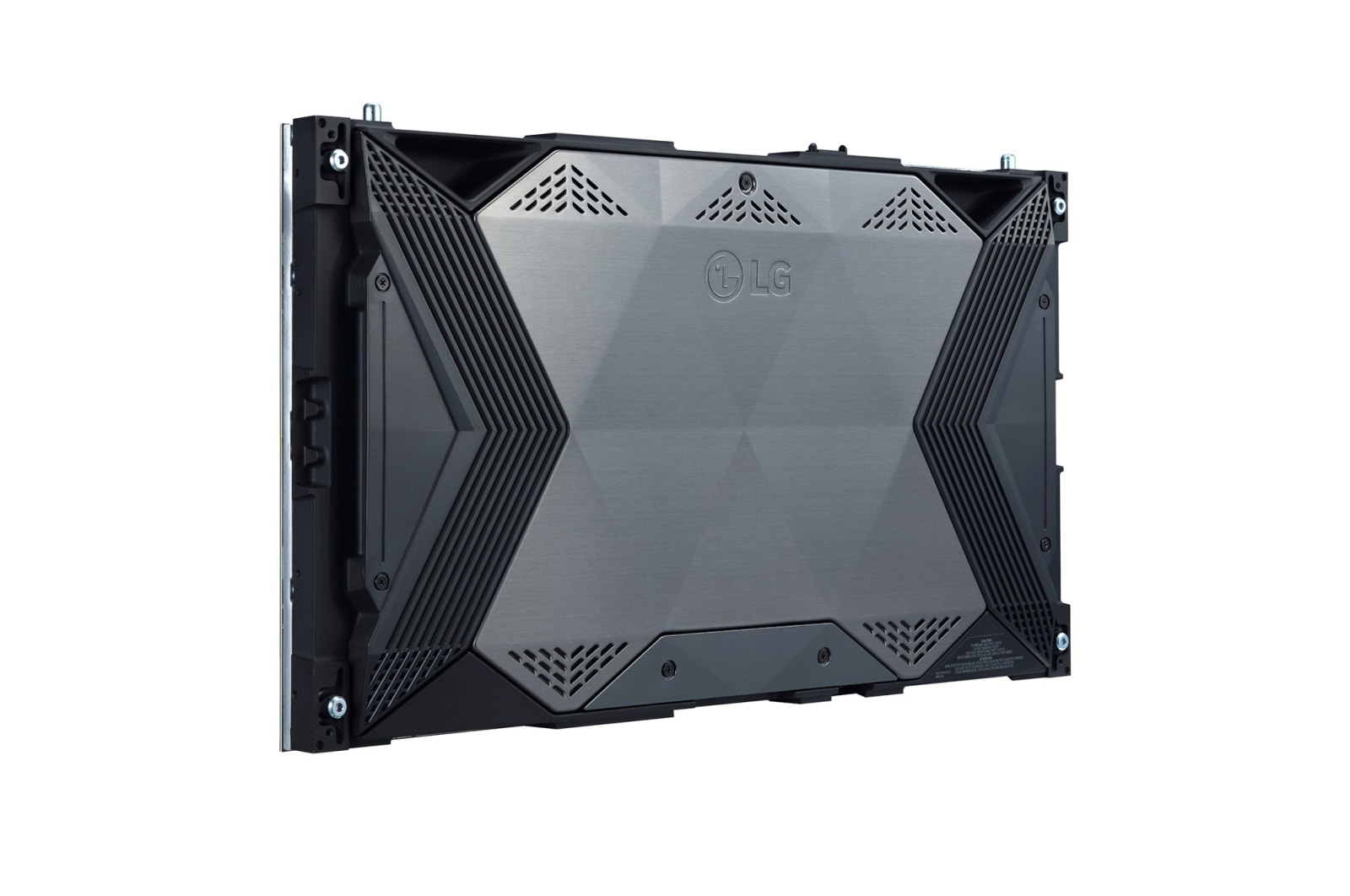

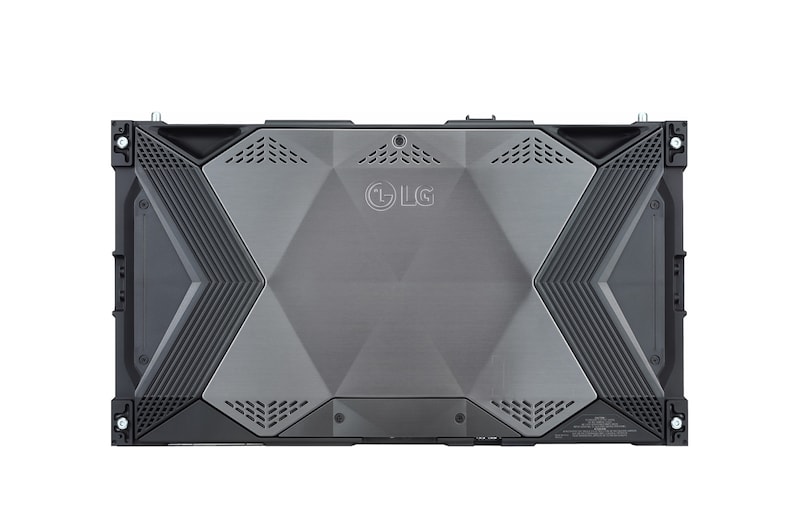

rear view
-45° rear view
Front view of LG MAGNIT LSAB009
front view
45° view
Right view
-45° view
left view
top view
Detail View
rear view
-45° rear view

Key Features

  • Micro LED Display

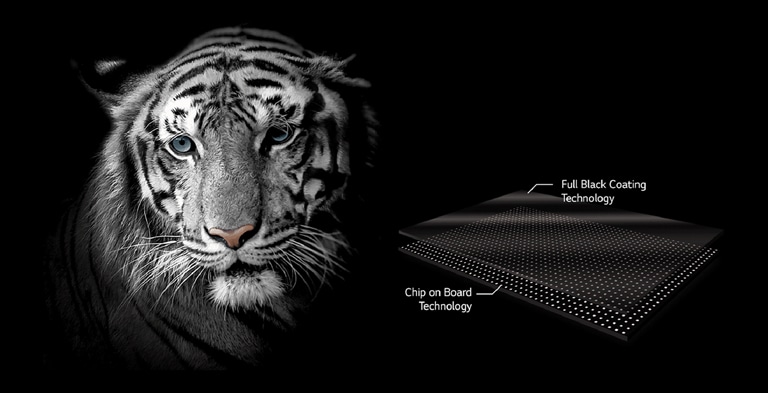

  • Chip on Board Technology
  • Pixel Pitch : 0.9 mm
  • Brightness : 1,200 nit (Peak,), 600 nit (Max.)
  • Contrast Ratio (10 lux) : 150,000 : 1

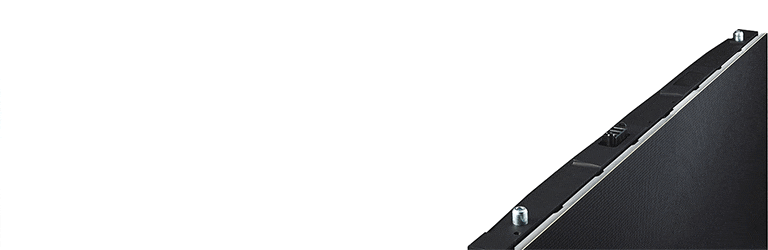

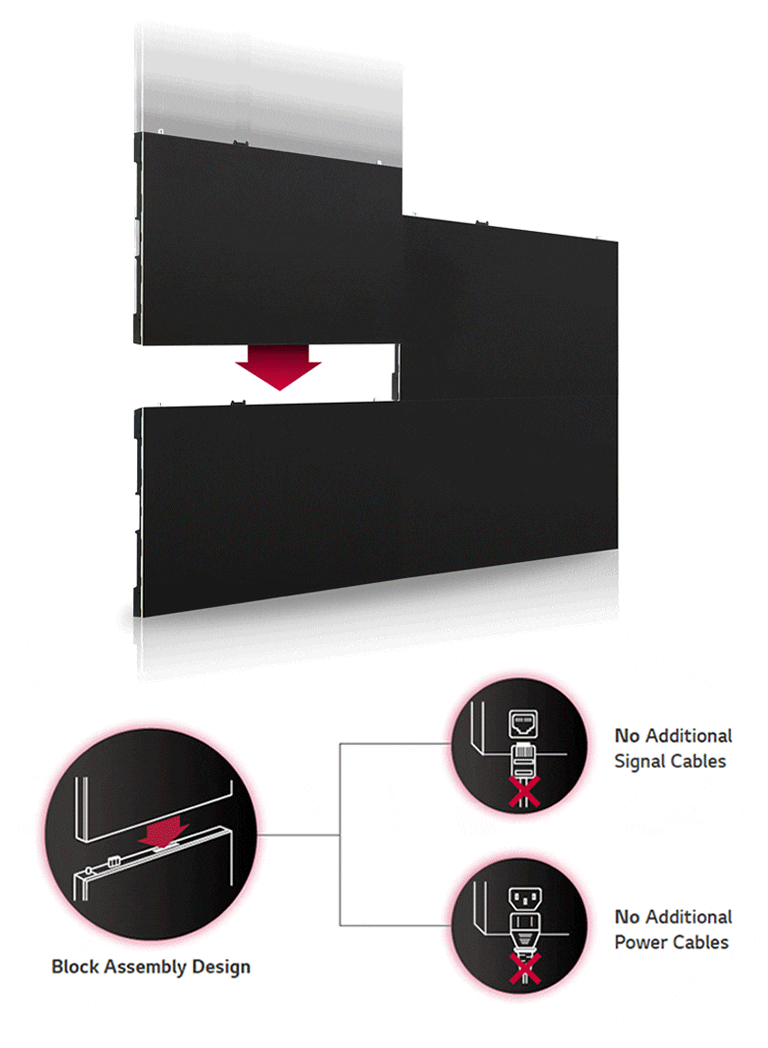

  • Wireless Data Transfer and Cable-less Power Docking
More
Print

All Spec

INFORMATION

  • Model name

    LSAB009

PHYSICAL PARAMETERS

  • Pixel Configuration

    1R, 1G, 1B (Chip on Board)

  • Pixel Pitch (mm)

    0.93

  • Module Resolution (WxH)

    160 x 180

  • Module Dimensions(WxH,mm)

    150 x 168.8

  • Weight per Module (kg)

    150

  • No. of Modules per Cabinet (WxH)

    8 (4x2)

  • Cabinet Resolution (WxH)

    640 x 360

  • Cabinet Dimensions (W x H x D, mm)

    600 x 337.5 x 44.9

  • Cabinet Surface Area (㎡)

    0.203

  • Weight per Cabinet (kg/unit)

    7.0

  • Weight per Square Meter (kg/㎡)

    34.6

  • Physical Pixel Density (pixels/㎡)

    1,137,778

  • Flatness of Cabinet (mm)

    ±0.5 mm

  • Cabinet material

    Die-casting Aluminum

  • Service access

    Front and Rear (Module : Front Only)

OPTICAL SPECIFICATIONS

  • Max Brightness (After Calibration, nit)

    1,200 / 600

  • Color Temperature (K)

    7,300/3,200~9,300K (Adjustable via LG LED Assistant on PC)

  • Visual Viewing Angle (Horizontal)

    160°

  • Visual Viewing Angle (Vertical)

    160°

  • Brightness Uniformity

    95%

  • Color Uniformity

    ±0.02Cx, Cy

  • Contrast Ratio

    150,000:1

  • Processing Depth (bit)

    20

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    125

  • Power Consumption (W/Cabinet, Avg.)

    85

  • Power Consumption (W/㎡, Max.)

    617

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • LED Lifetime (Half brightness)

    100,000

  • Operating Temperature(℃)

    0∘ to +40∘

  • Operating Humidity

    10-80 %RH

  • IP rating Front

    IP50

  • IP rating Rear

    IP20

STANDARD

  • Certification

    Safety 60950-1, EMC Class A, BS476 Part 7 Class 1

ENVIRONMENT

  • Environment

    RoHS

CONTROLLER

  • Controller

    CSAB-009X
