LSBF Indoor LED Series

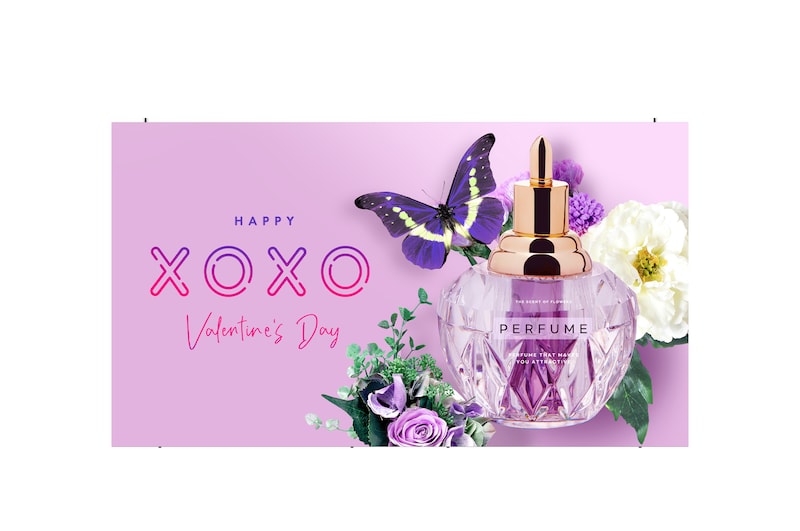

There are large LED displays installed across three floors of a large shopping mall, prominently showcasing perfume advertisements.
With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.
Brightness1
The LSBF (54") and LSBE (27") models, sharing the same product platform, provide flexible matrix combinations for various spatial configurations. The compatibility between the 54" and 27" models enables versatile sizing options according to space requirements, allowing for installation.
The 27" LSBE and the 54" LSBF are compatible and installed on the shopping mall wall in appropriate sizes.
Upgrade your existing 54-inch LCD video wall to the latest technology and LED display without having to secure additional space.
Without the need for a separate installation space, the LSBF series can replace an existing LCD video wall.
* The product can be installed using VESA wall-mount (600×400) and screws.
* The VESA wall-mount or any other wall-mounts are sold separately.
LSBF is compliant with the standard for assessing flame spread, receiving a Class C rating according to the EN 13501-1:2018 test. With its fire resistance, LSBF contributes to the safety of your space.
Flame Spread Protection1
* The test was conducted by SGS-CSTC Standards Technical Services (Shanghai) Co., LTD on Aug. 21 to 24, 2023, in accordance with the EN 13501-1:2018 standard. The LED module with product number (LSBF XX-XXX) was used as the test subject. The test results confirmed its compliance with the EN 13501-1:2018 Class C-s2, d0 rating.
When connected with LG's CVBA system controller, the LSBF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
The LG employee is remotely monitoring the LSBF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBF series to be compatible with LG software solutions.
Model name
LSBF015-GDC
Pixel Configuration
Single SMD
Pixel Pitch (mm)
1.56
Module Resolution (WxH)
192x216
Module Dimensions(WxH,mm)
300x337.5x13
Weight per Module (kg)
0.95
No. of Modules per Cabinet (WxH)
4 x 2
Cabinet Resolution (WxH)
768x432
Cabinet Dimensions (W x H x D, mm)
1200x675x72
Cabinet Surface Area (㎡)
0.810
Weight per Cabinet (kg/unit)
23.0
Weight per Square Meter (kg/㎡)
28.0
Physical Pixel Density (pixels/㎡)
409,600
Flatness of Cabinet (mm)
±0.3

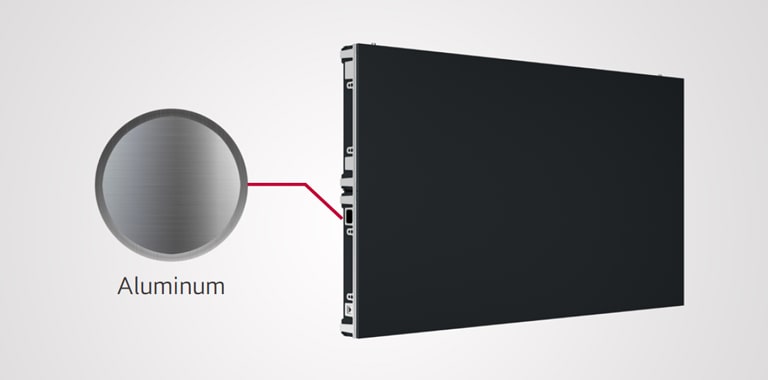

Cabinet material
Die-casting Aluminum
Service access
Front
Max Brightness (After Calibration, nit)
600
Color Temperature (K)
3,200~9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
150
Brightness Uniformity
97%
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
5,000:1
Processing Depth (bit)
14
Power Consumption (W/Cabinet, Max.)
428
Power Consumption (W/Cabinet, Avg.)
182
Power Consumption (W/㎡, Max.)
530
Heat Dissipation (BTU/h/Cabinet, Max.)
1,460
Heat Dissipation (BTU/h/Cabinet, Avg.)
621
Heat Dissipation (BTU/h/㎡, Max.)
1,808
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Operating Temperature(℃)
-20℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP50
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, cTUVus, CB, KC, CCC
Environment
RoHS, REACH
Controller
CVBA
