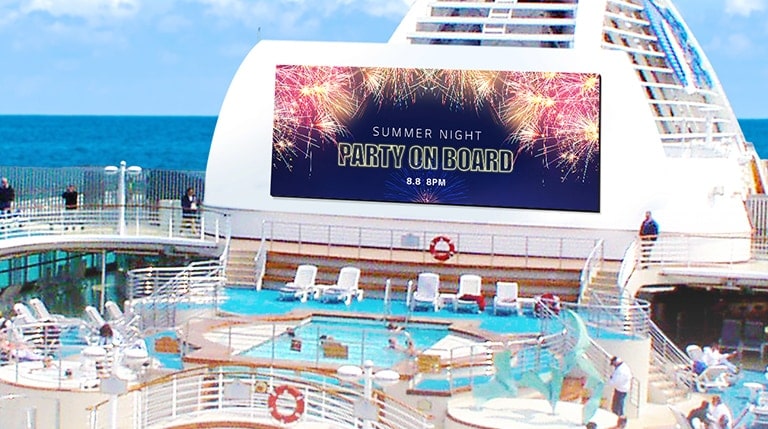

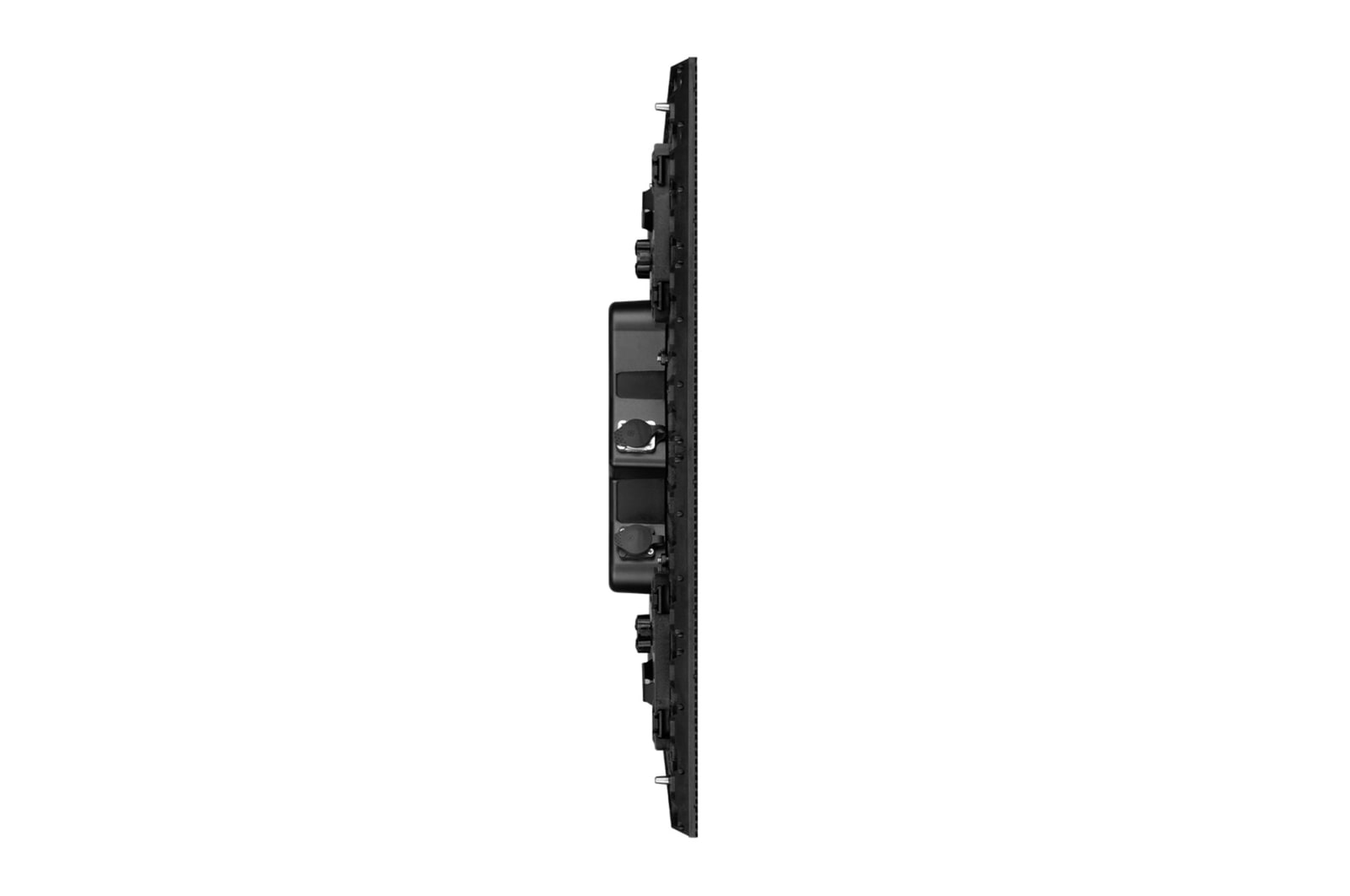

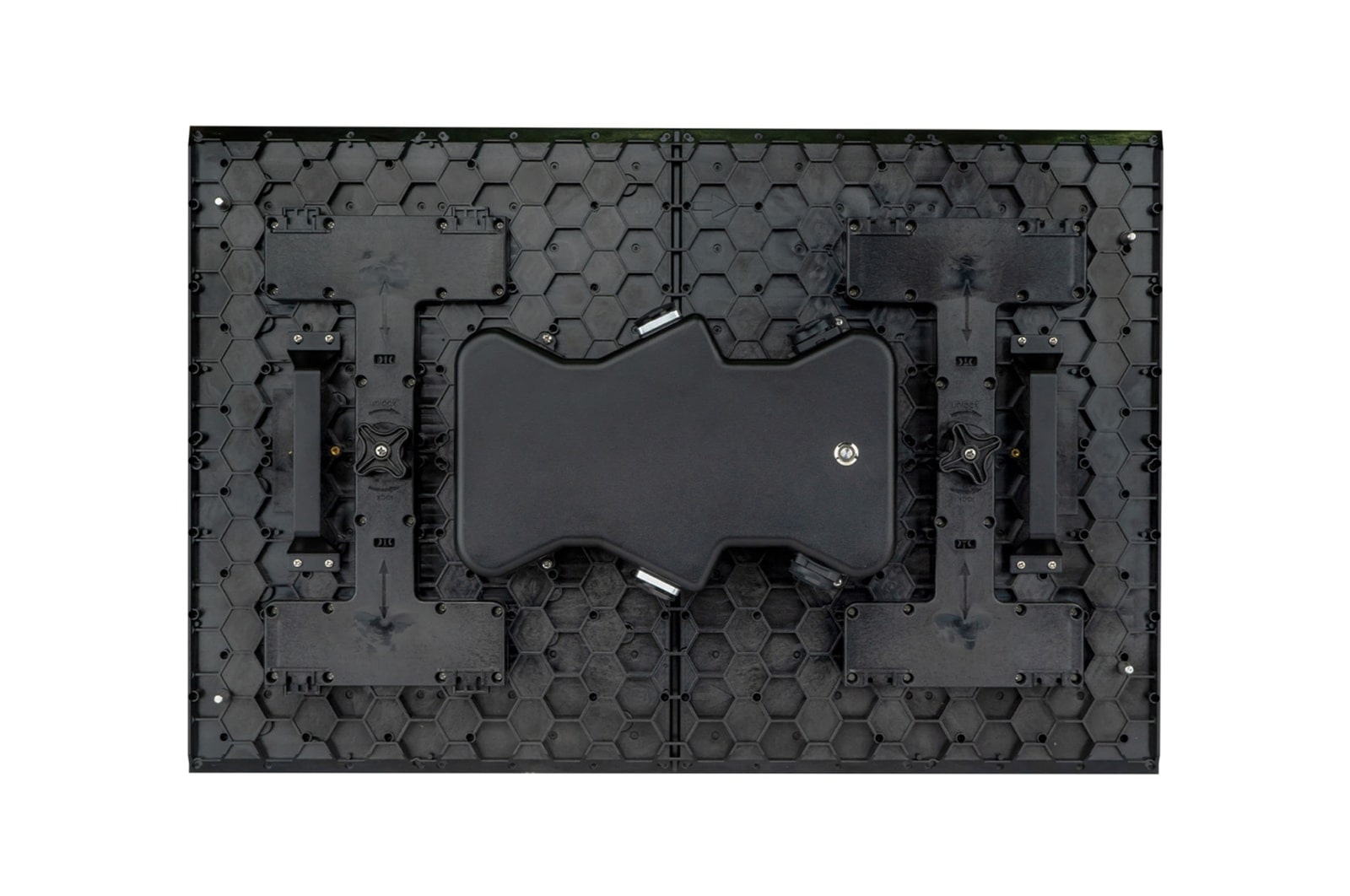

Outdoor LED Display for Cruise Ships
Model name
GNEB083-GN
Pixel Configuration
Single SMD
Pixel Pitch (mm)
8.33
Module Resolution (WxH)
48x72
Module Dimensions(WxH,mm)
400x600
Weight per Module (kg)
8.33
Weight per Square Meter (kg/㎡)
34.7
Physical Pixel Density (pixels/㎡)
14,400
Flatness of Cabinet (mm)
±1.0
Cabinet material
Al
Service access
Front or Rear (select one only)
Max Brightness (After Calibration, nit)
6,000
Color Temperature (K)
3,500~8,500
Visual Viewing Angle (Horizontal)
140
Visual Viewing Angle (Vertical)
130
Brightness Uniformity
97%
Color Uniformity
±0.05Cx,Cy
Contrast Ratio
7,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
167
Power Consumption (W/Cabinet, Avg.)
67
Power Consumption (W/㎡, Max.)
696
Heat Dissipation (BTU/h/Cabinet, Max.)
569
Heat Dissipation (BTU/h/Cabinet, Avg.)
228
Heat Dissipation (BTU/h/㎡, Max.)
2,367
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
Operating Temperature(℃)
-30°C to +50°C
Operating Humidity
0~90%RH
IP rating Front
IP67
IP rating Rear
IP67
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, ETL
Environment
RoHS, REACH
Controller
CVEA
90 degree corner cut
Yes
