Outdoor LED for Stadium Perimeter
At the stadium, a soccer game is being held, and LEDs are installed low on the wall along the edge of the field to show advertisements.
There are several rollers and hinges put in multiple places to allow immediate access to the site from the outside in the case of an emergency, making it easy and convenient to create a safety gate and emergency exit.

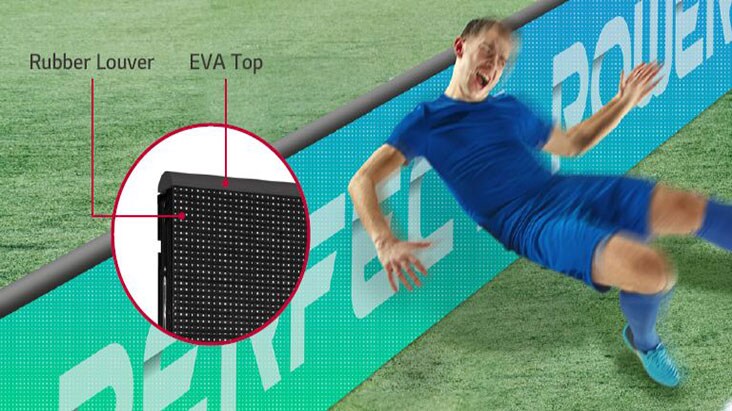

Taking into consideration the safety of players and staff, GPEJ series has been specially designed with rubber louvers attached in front of the cabinet and EVA Top to prevent serious injury.
* GPEJ is built to UEFA specifications.
* EVA(Ethylene-vinyl acetate) is an elastomeric polymer that produces materials which are "rubber-like" in softness and flexibility.
Offering a powerful 6,000 nits of brightness, this super-bright display excels outdoors even in direct sunlight, instantly capturing attention and effectively delivering content.
GPEJ series with a high refresh rate of 7,680 Hz gives viewers a clearer view by reducing the black bars, blurring, and flickering that commonly occur during video playback.
* It shows a higher refresh rate than 4,000 Hz in the existing LBB series.
The front and back of the unit case are both IP65 certified, allowing for stable operation in raniy and dusty environment.
* IP65 test was conducted by swashing water on the front and back of the product for 10 minutes.

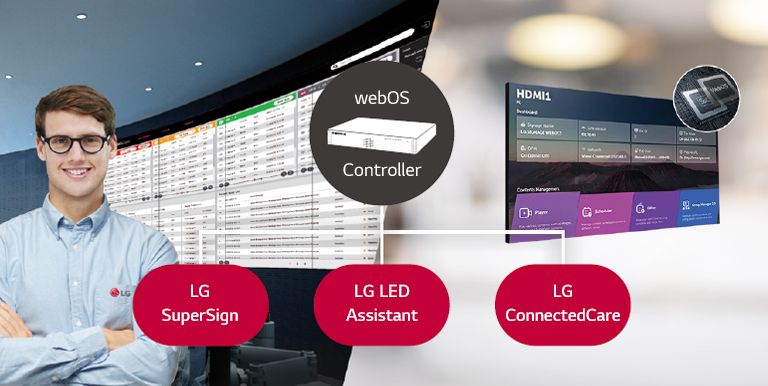

When connected with LG's CVEA system controller, the GPEJ series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
The LG employee is remotely monitoring the GPEJ series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GPEJ series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Model name
GPEJ100-GN
Pixel Configuration
Single SMD
Pixel Pitch (mm)
10.00
Module Resolution (WxH)
40 × 30
Module Dimensions(WxH,mm)
400x300
Weight per Module (kg)
1.65
No. of Modules per Cabinet (WxH)
4X3
Cabinet Resolution (WxH)
160x90
Cabinet Dimensions (W x H x D, mm)
1,600x900x105
Cabinet Surface Area (㎡)
1.440
Weight per Cabinet (kg/unit)
55.0
Weight per Square Meter (kg/㎡)
38.2
Physical Pixel Density (pixels/㎡)
14,400
Flatness of Cabinet (mm)
±1.0
Cabinet material
Al
Service access
Front and Rear
Max Brightness (After Calibration, nit)
6,000
Color Temperature (K)
3,500~8,500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
110
Brightness Uniformity
97%
Color Uniformity
±0.05Cx,Cy
Contrast Ratio
7,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
1,000
Power Consumption (W/Cabinet, Avg.)
400
Power Consumption (W/㎡, Max.)
694
Heat Dissipation (BTU/h/Cabinet, Max.)
3,413
Heat Dissipation (BTU/h/Cabinet, Avg.)
1,365
Heat Dissipation (BTU/h/㎡, Max.)
2,368
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
Operating Temperature(℃)
-30°C to +50°C
Operating Humidity
0~90%RH
IP rating Front
IP65
IP rating Rear
IP65
LED Lifetime (Half brightness)
100,000
Certification
CE, FCC, ETL
Environment
RoHS, REACH
Controller
CVEA
