Versatile Series

Versatile Series

GSCA039-GN

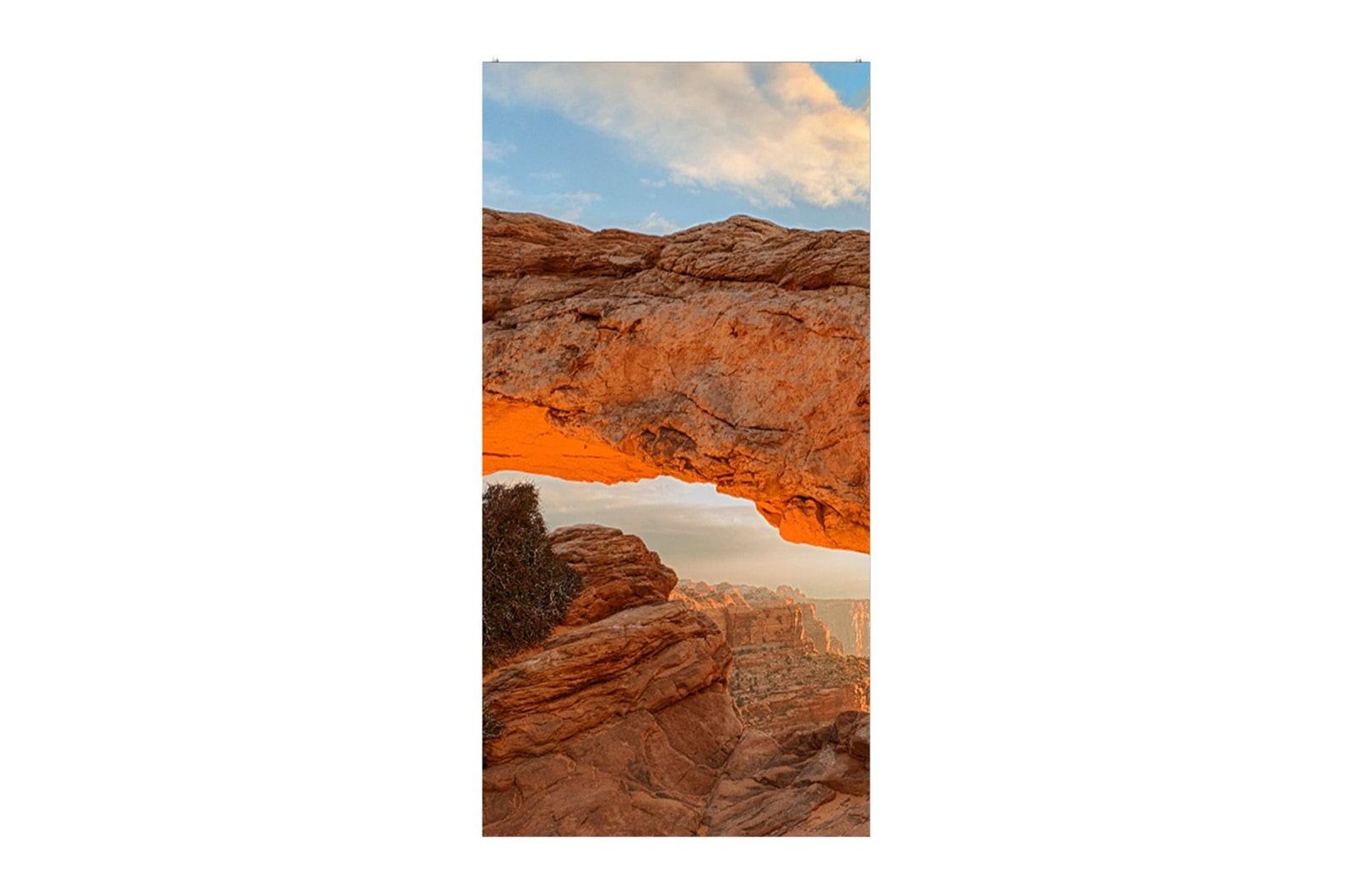

  • front view with inscreen, 500x1000
  • left 30 degree side view with inscreen, 500x1000
  • left 30 degree side view with inscreen, 500x500
  • front view, 500x1000

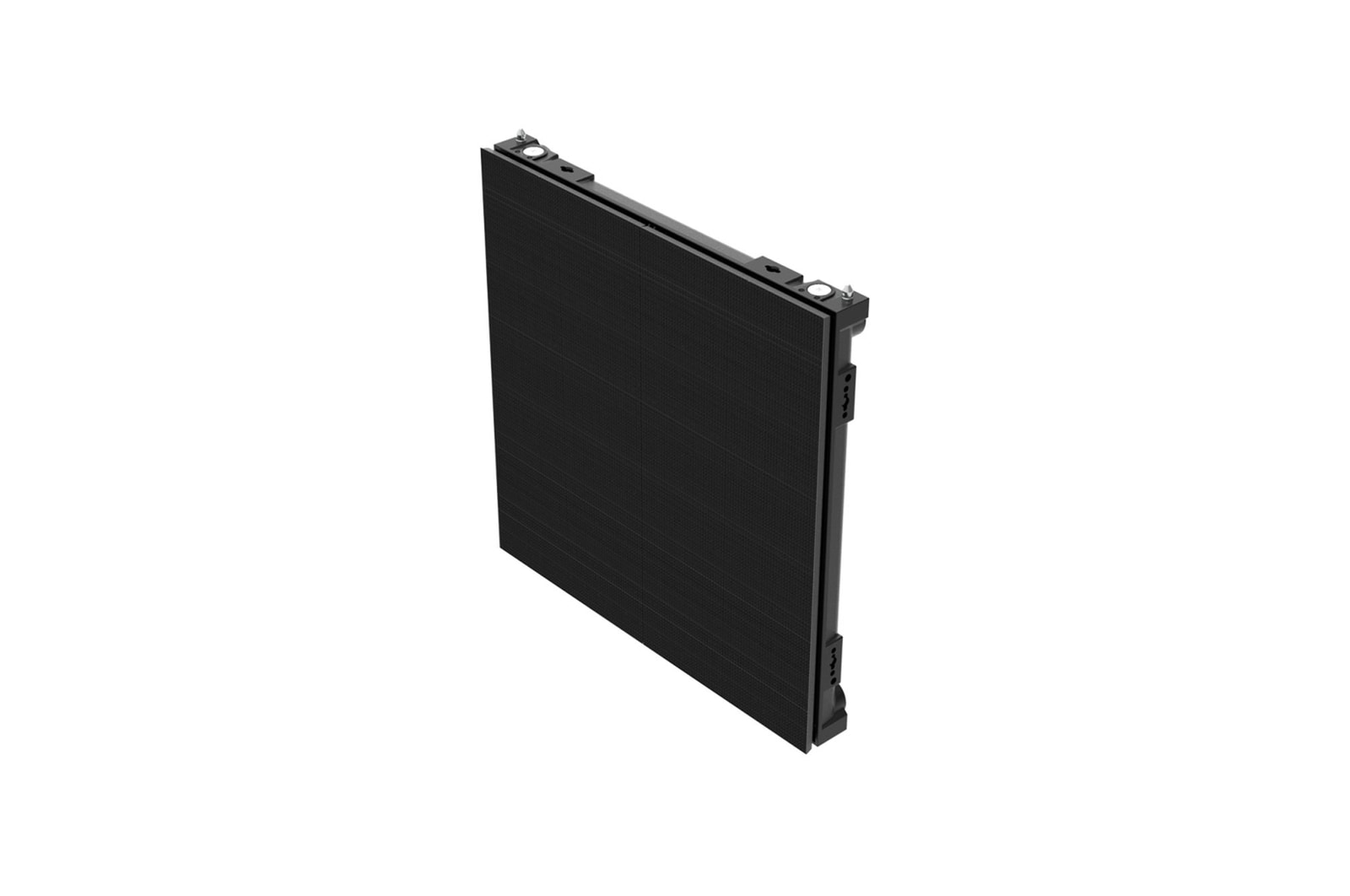

  • left 30 degree side view, 500x1000

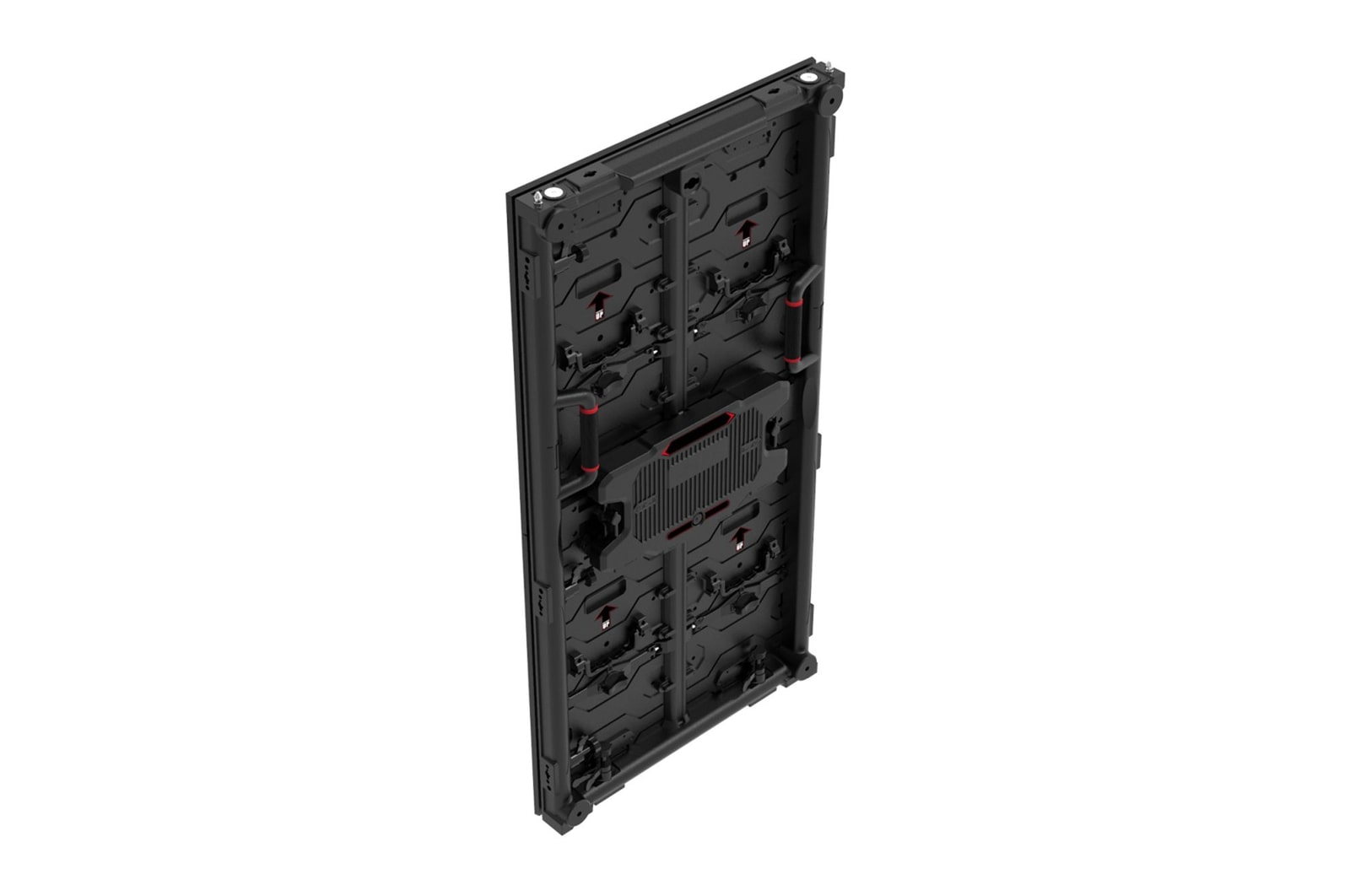

  • right 30 degree side back view, 500x1000
  • back view image taken from the top left, 500x1000
  • back view, 500x1000
  • image taken from the top right, 500x500
  • back view, 500x500

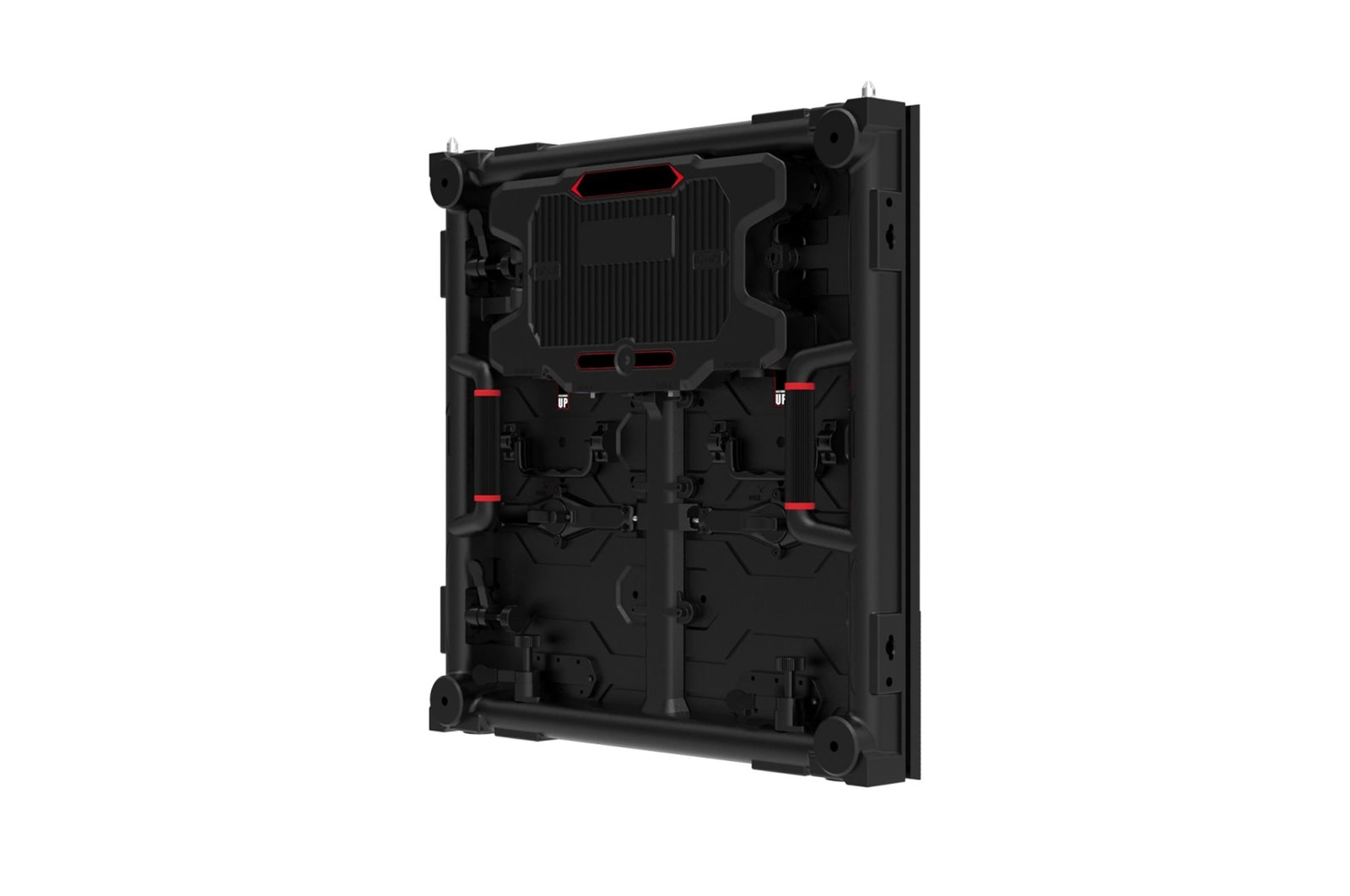

  • right 30 degree side back view, 500x500

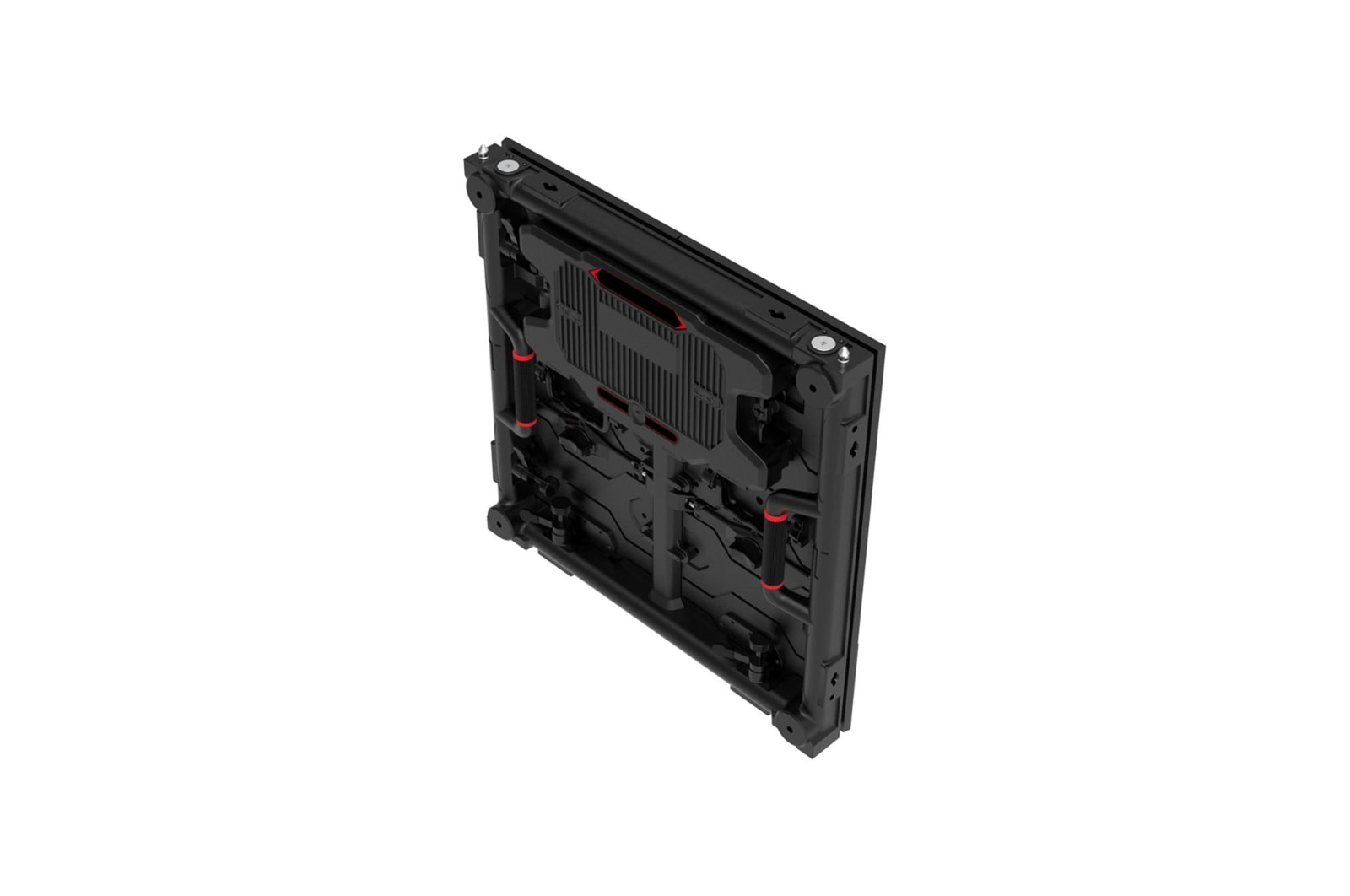

  • back view image taken from the top left, 500x500
front view with inscreen, 500x1000

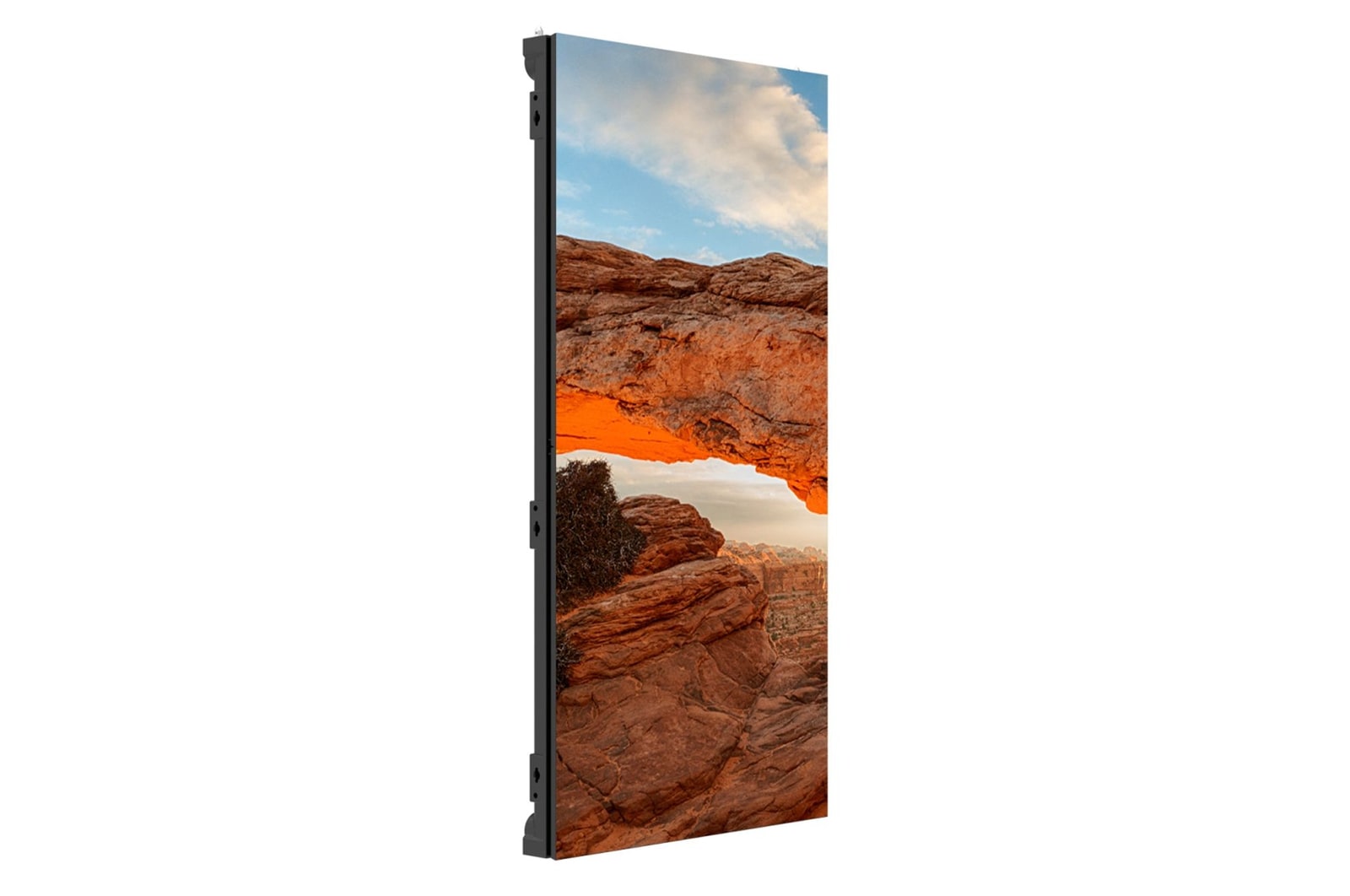

left 30 degree side view with inscreen, 500x1000

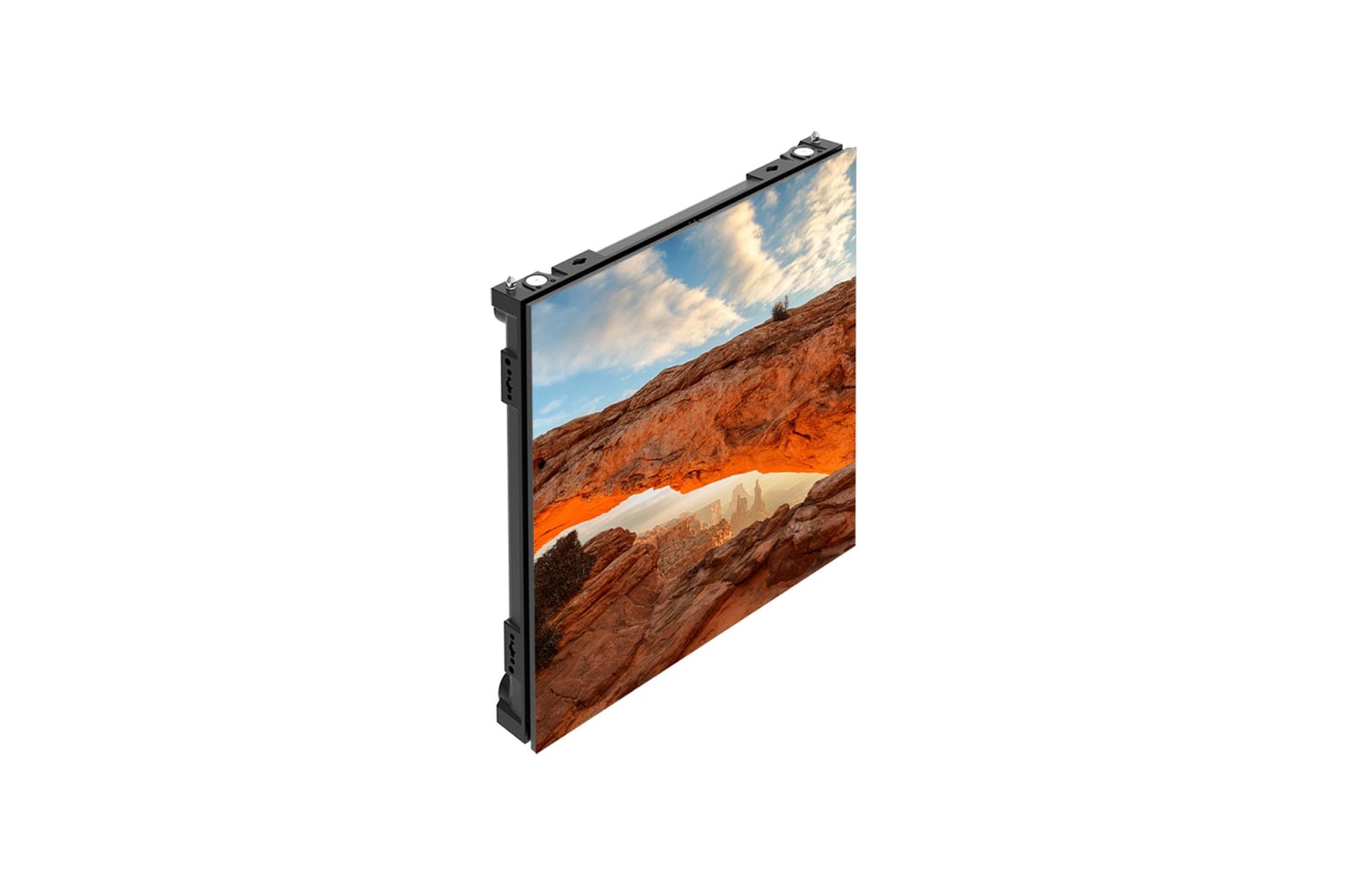

left 30 degree side view with inscreen, 500x500

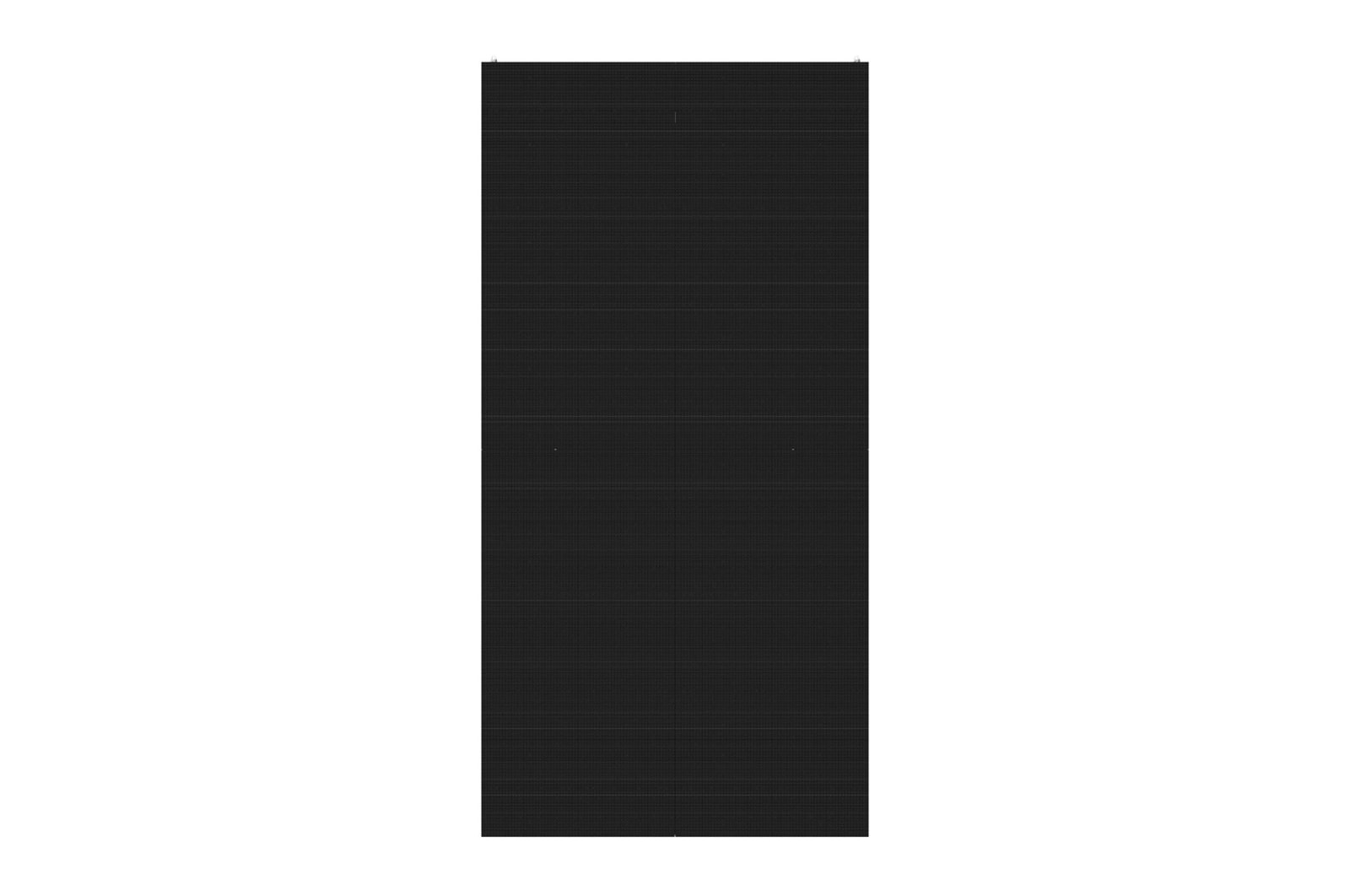

front view, 500x1000

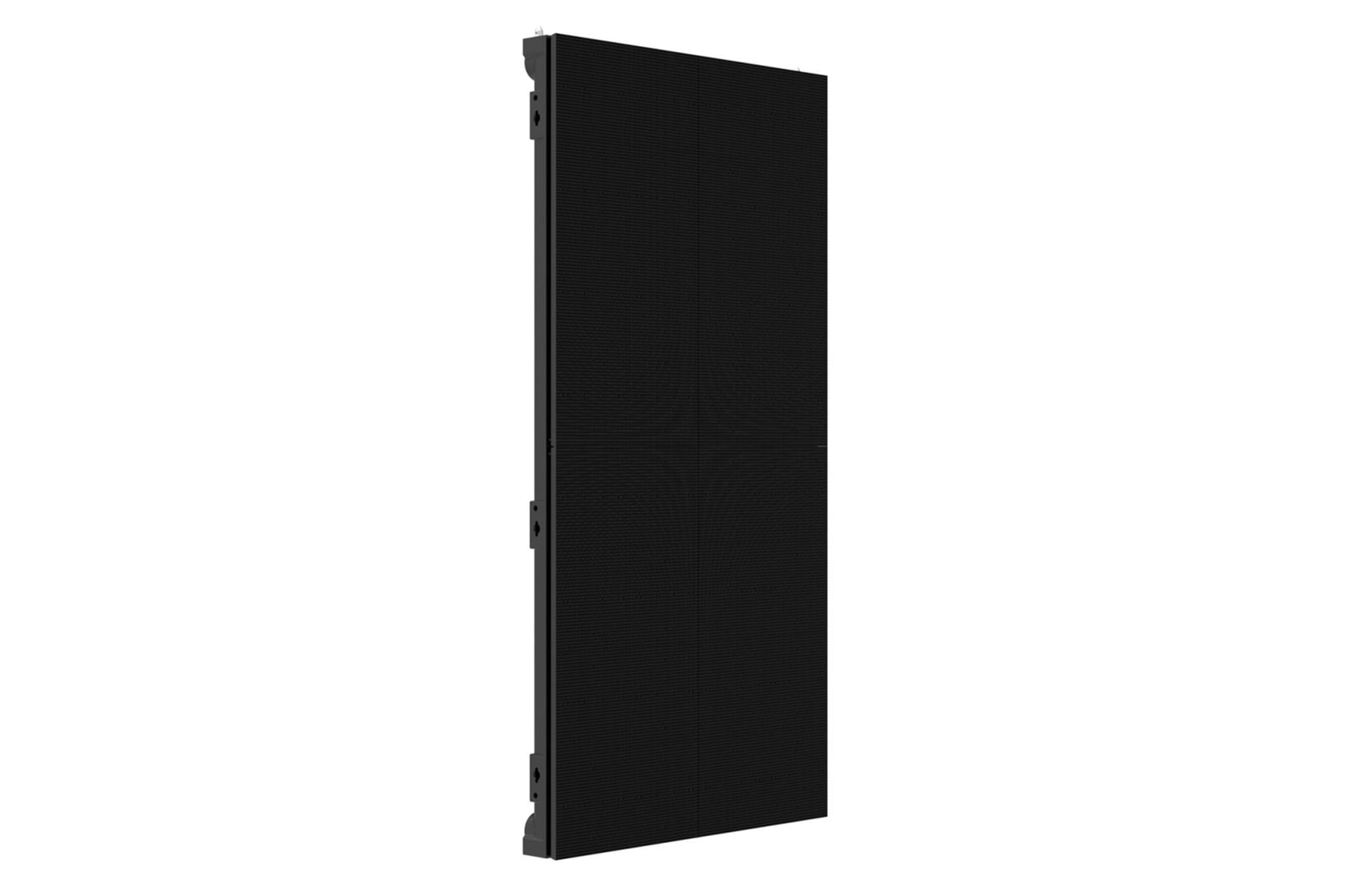

left 30 degree side view, 500x1000
right 30 degree side back view, 500x1000
back view image taken from the top left, 500x1000

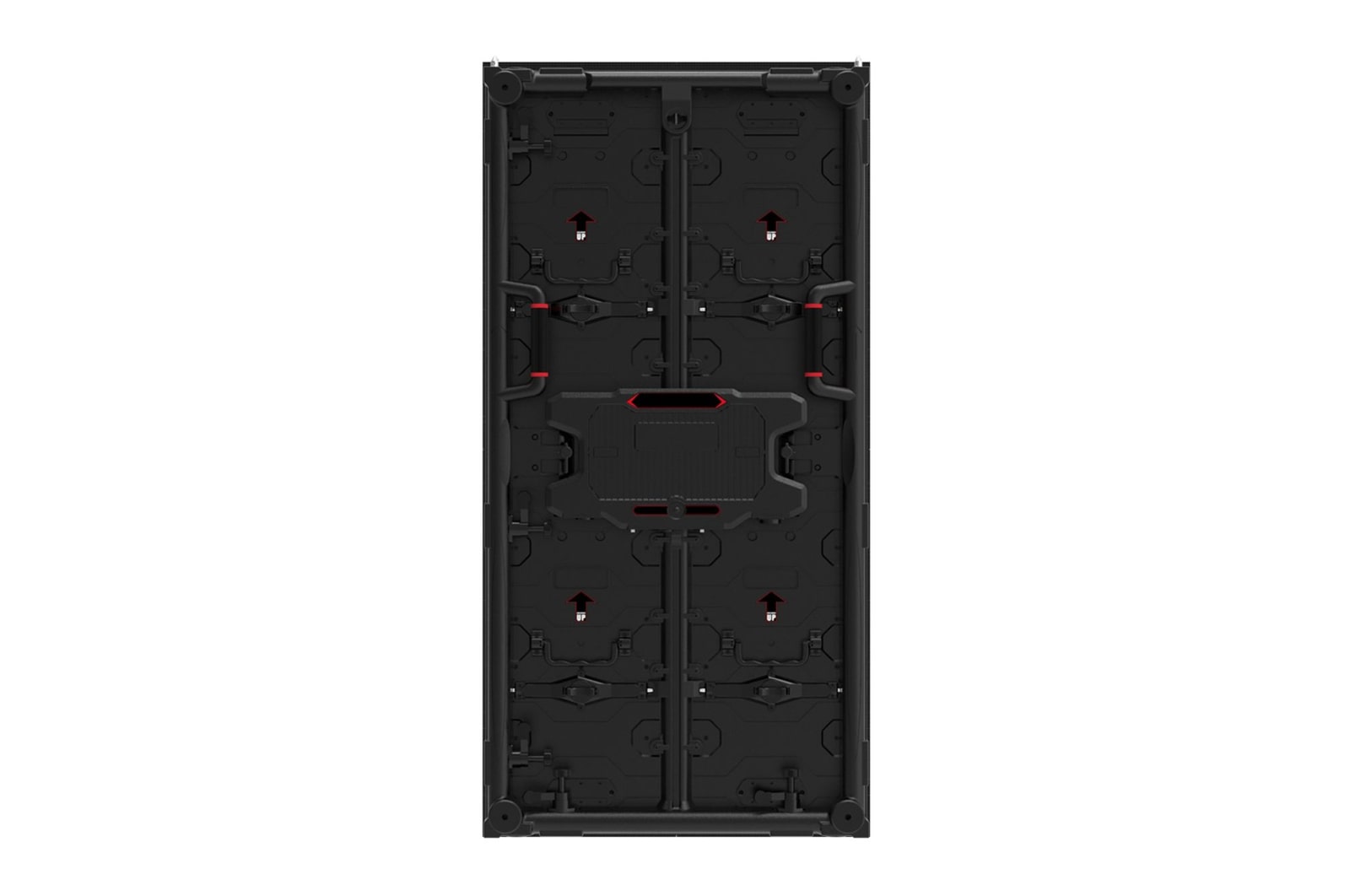

back view, 500x1000
image taken from the top right, 500x500

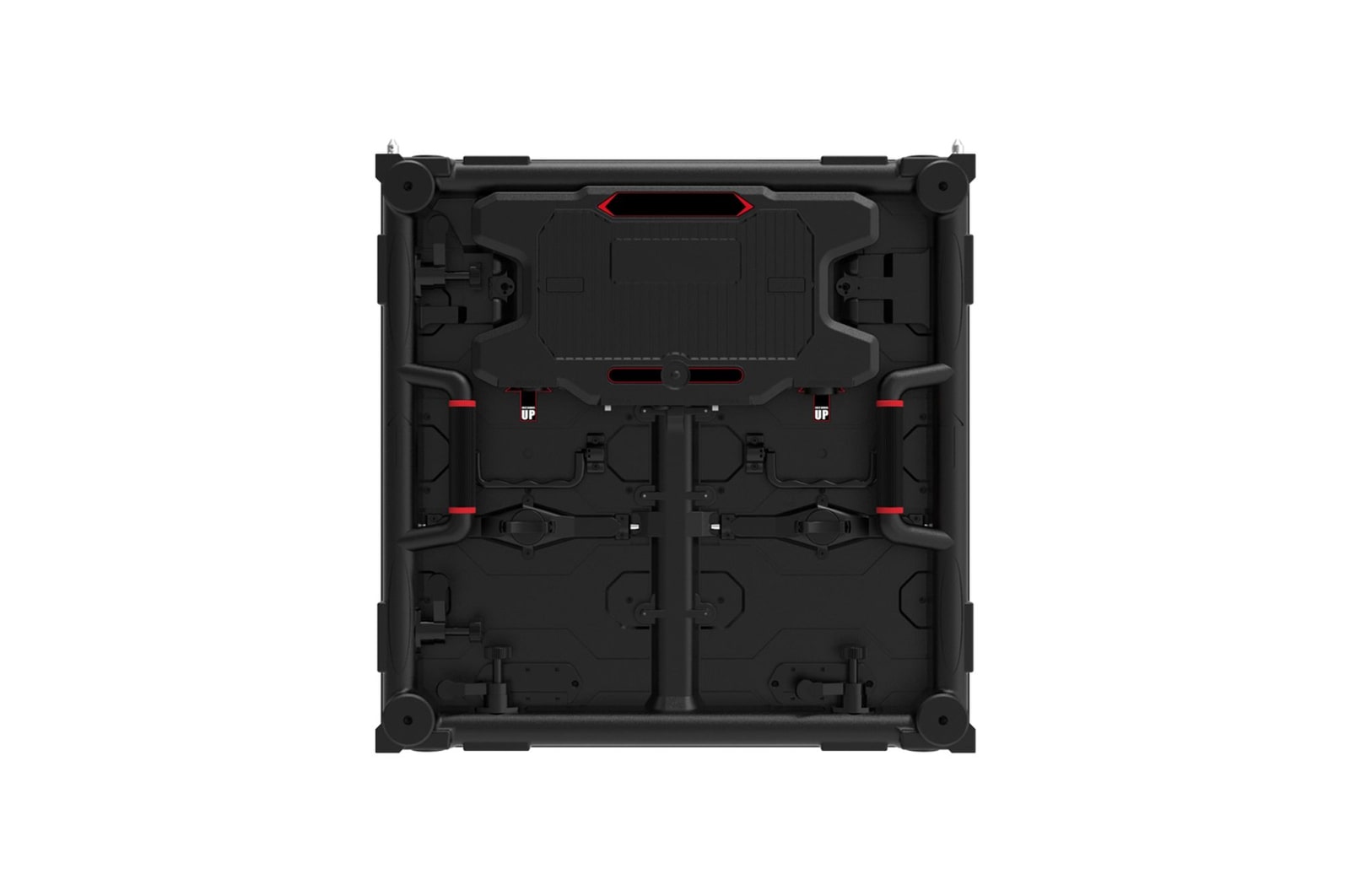

back view, 500x500
right 30 degree side back view, 500x500
back view image taken from the top left, 500x500

Key Features

  • Pixel Pitch: 3.91mm
  • Brightness: 5,000 cd/m²
  • Fast Assembly and Easy Maintenance
  • Two Cabinet Options
  • IP65 Weatherproof Design
  • 90º Corner Option Available
More

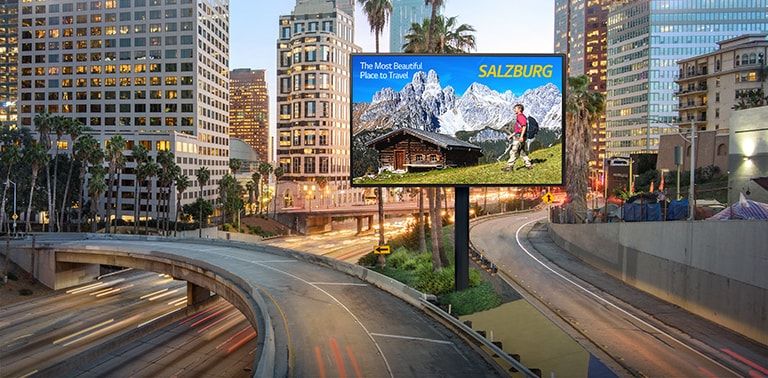

GSCA Versatile Series

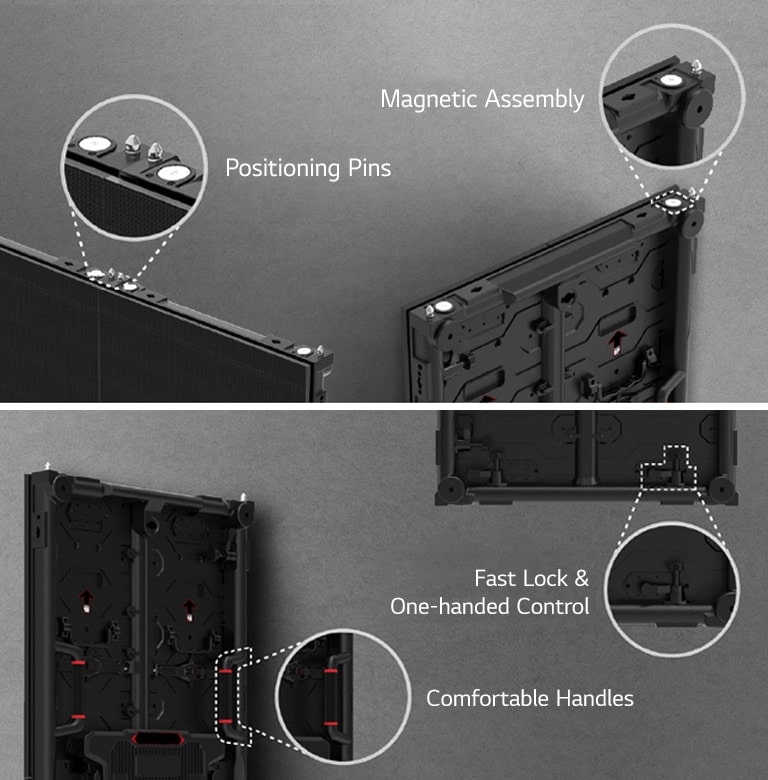

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

Fast Installation

Easy Maintenance

Easy Maintenance

The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

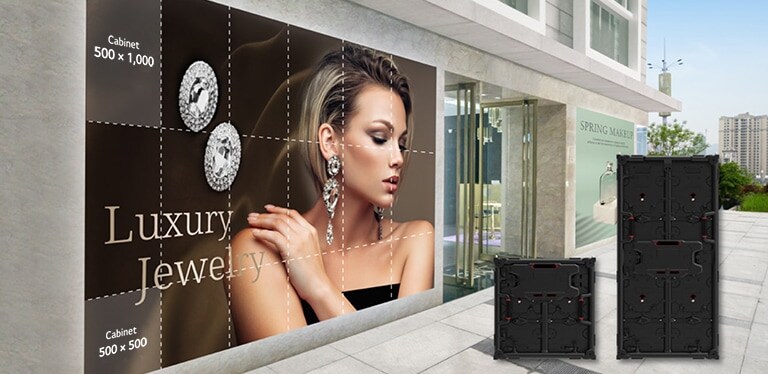

Two Cabinet Options

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.

Two Cabinet Options

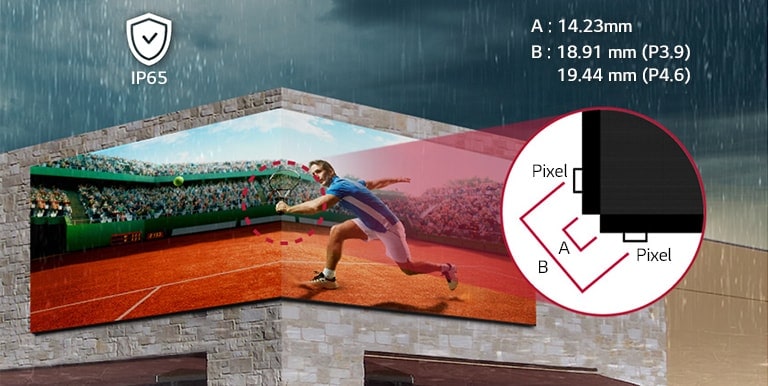

IP Rated Weatherproof
& 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

IP Rated Weatherproof<br>& 90° Corner Design

Front or Rear Serviceability

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

Explore more showroom at Digital Connect

Pool

SEE MORE

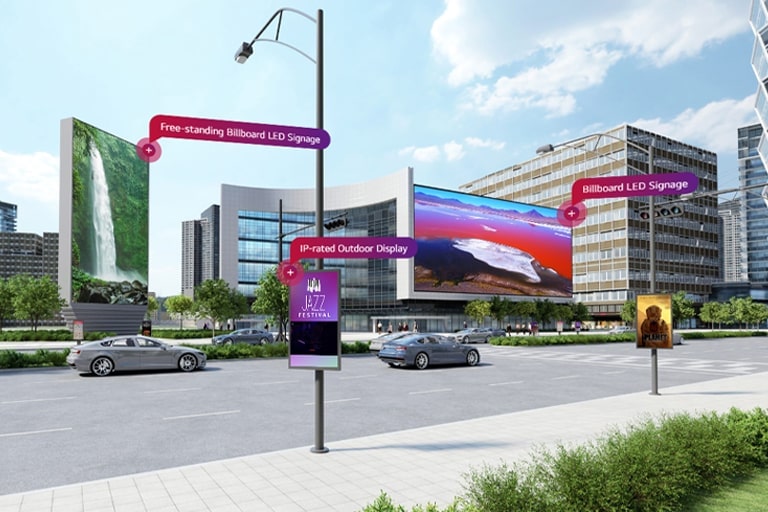

Outdoor

SEE MORE
Print

All Spec

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    3.91

  • Module Resolution (WxH)

    64 × 128

  • Module Dimensions(WxH,mm)

    250 × 500

  • Weight per Module (kg)

    1.40

  • No. of Modules per Cabinet (WxH)

    2 × 2 / 2 × 1 (Half-sized)

  • Cabinet Resolution (WxH)

    128 × 256 / 128 × 128 (Half-sized)

  • Cabinet Dimensions (W x H x D, mm)

    500 × 1,000 × 66.05
    500 × 500 × 66.05 (Half-sized)

  • Cabinet Surface Area (㎡)

    0.500 / 0.250 (Half-sized)

  • Weight per Cabinet (kg/unit)

    12.5 / 7.9 (Half-sized)

  • Weight per Square Meter (kg/㎡)

    24.9 / 31.7 (Half-sized)

  • Physical Pixel Density (pixels/㎡)

    65,536

  • Flatness of Cabinet (mm)

    ± 0.3 mm

  • Cabinet material

    Die-casting Magnesium

  • Service access

    Front or Rear (One Option Only)

INFORMATION

  • Model name

    GSCA039-GN

OPTICAL SPECIFICATIONS

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    155

  • Brightness Uniformity

    97%

  • Color Uniformity

    ± 0.003 Cx,Cy

  • Contrast Ratio

    6,000

  • Processing Depth (bit)

    14

  • Color Temperature

    3,500 ~ 9,000

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    300 / 150 (Half-sized)

  • Power Consumption (W/Cabinet, Avg.)

    100 / 50 (Half-sized)

  • Power Consumption (W/㎡, Max.)

    600

  • Heat Dissipation (BTU/h/Cabinet, Max.)

    1024 / 512 (Half-sized)

  • Heat Dissipation (BTU/h/Cabinet, Avg.)

    341 / 171 (Half-sized)

  • Heat Dissipation (BTU/h/㎡, Max.)

    2047

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • Operating Temperature(℃)

    -20℃ to +45℃

  • Operating Humidity

    10-99%RH

  • IP rating Front

    IP65

  • IP rating Rear

    IP65

ENVIRONMENT

  • Environment

    RoHS

CONTROLLER

  • Controller

    LCIN006
