Ultra High Brightness Series

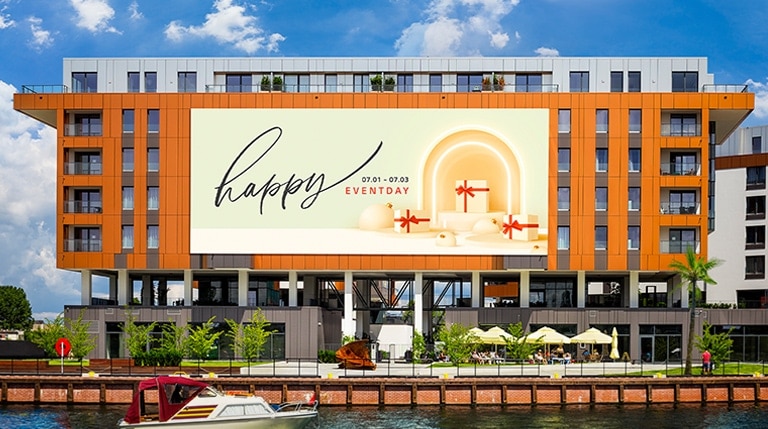

A large LED is installed on the 6th floor exterior wall of a building. Even in the strong sunlight, the screen’s contents are clearly visible.
* All images in this page are for illustrative purposes only.
With a great brightness of 8,500 nits, it clearly delivers content and attracts public attention, which is the suitable display for outdoor visibility.

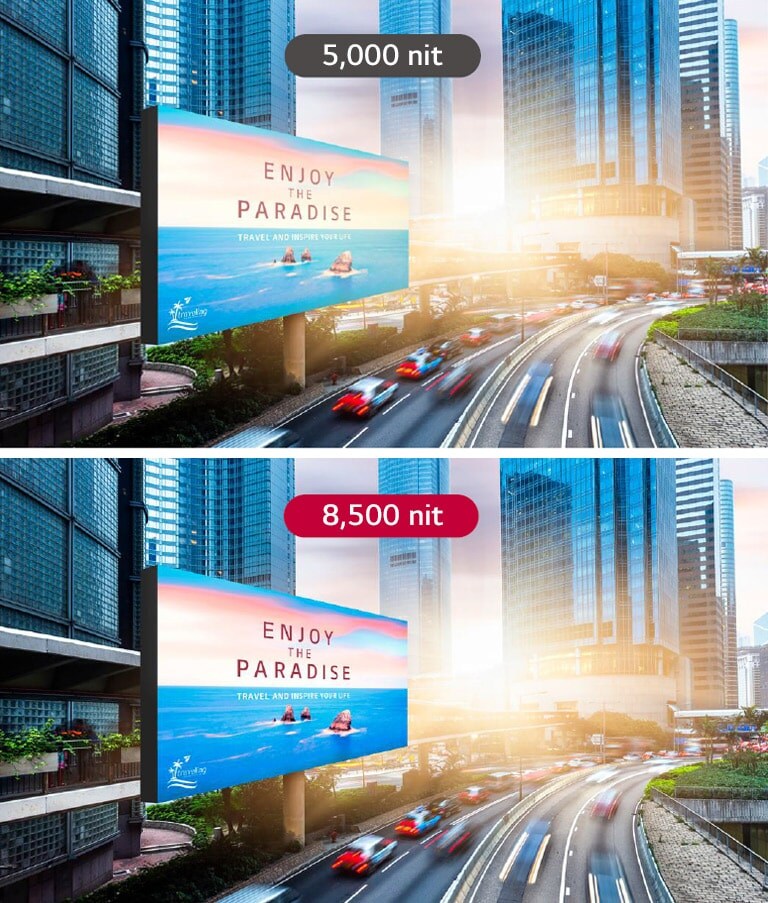

In the strong sunlight, the 5,000 nits LED screen becomes blurred by light and cannot be seen clearly, while the 8,500 nits LED screen is clearly visible.

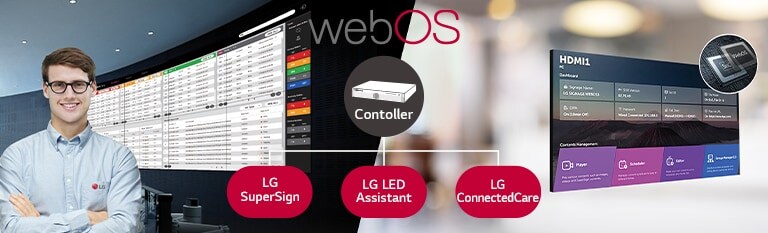

When connected with LG's CVEA system controller, the GSEH series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
The LG employee is remotely monitoring the GSEH series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GSEH series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.
Model name
GSEH100-GR
Pixel Configuration
Single SMD
Pixel Pitch (mm)
10.67
Module Resolution (WxH)
18x18
Module Dimensions(WxH,mm)
192x192
Weight per Module (kg)
0.56
No. of Modules per Cabinet (WxH)
8x8
Cabinet Resolution (WxH)
144x144
Cabinet Dimensions (W x H x D, mm)
1,536x1,536x222
Cabinet Surface Area (㎡)
2.359
Weight per Cabinet (kg/unit)
104.0
Weight per Square Meter (kg/㎡)
44.1
Physical Pixel Density (pixels/㎡)
8,789
Flatness of Cabinet (mm)
±1.0
Cabinet material
Al
Service access
Front and Rear
Max Brightness (After Calibration, nit)
8,500
Color Temperature (K)
3,500~8,500
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
97%
Color Uniformity
±0.05Cx,Cy
Contrast Ratio
8,000:1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
1,810
Power Consumption (W/Cabinet, Avg.)
724
Power Consumption (W/㎡, Max.)
767
Heat Dissipation (BTU/h/Cabinet, Max.)
6,177
Heat Dissipation (BTU/h/Cabinet, Avg.)
2,471
Heat Dissipation (BTU/h/㎡, Max.)
2,618
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
7,680
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30°C to +50°C
Operating Humidity
0~90%RH
IP rating Front
IP65
IP rating Rear
IP54
Certification
CE, FCC, ETL
Environment
RoHS, REACH
Controller
CVEA
90 degree corner cut
Yes
