UT660H Series

Specs

Support

Resource

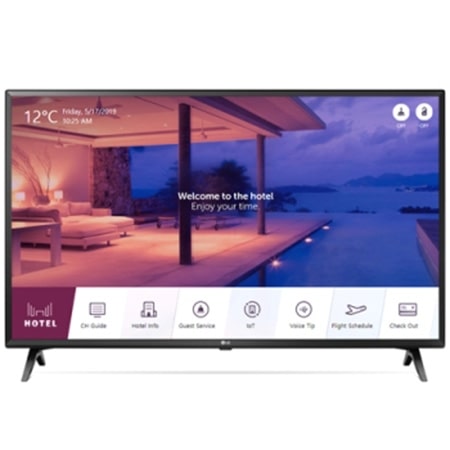

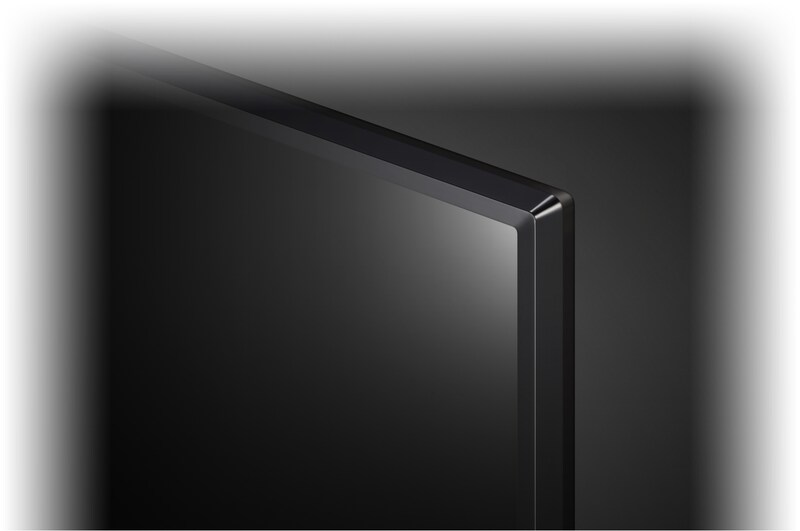

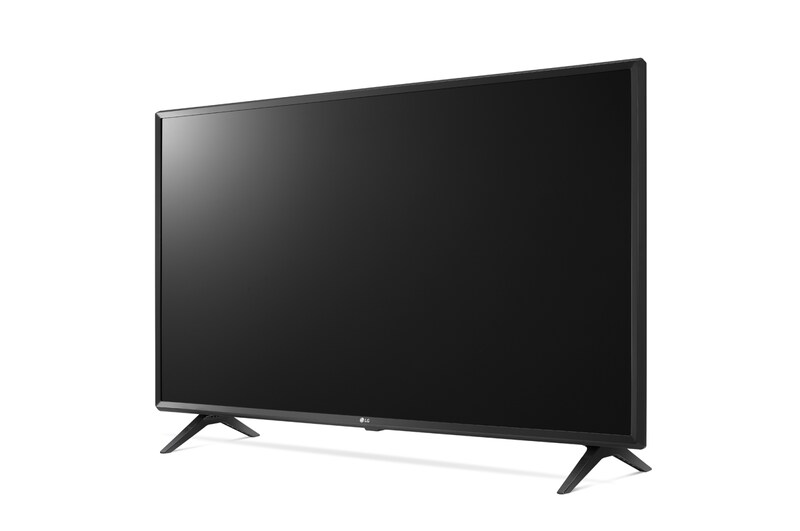

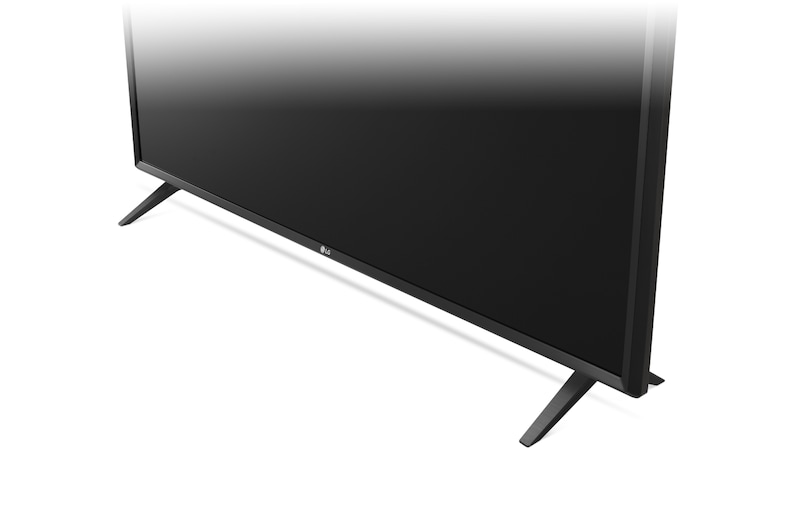

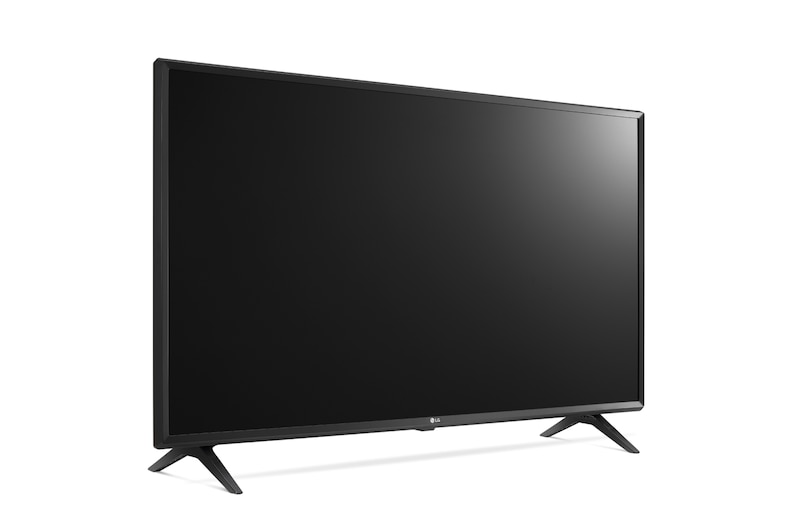

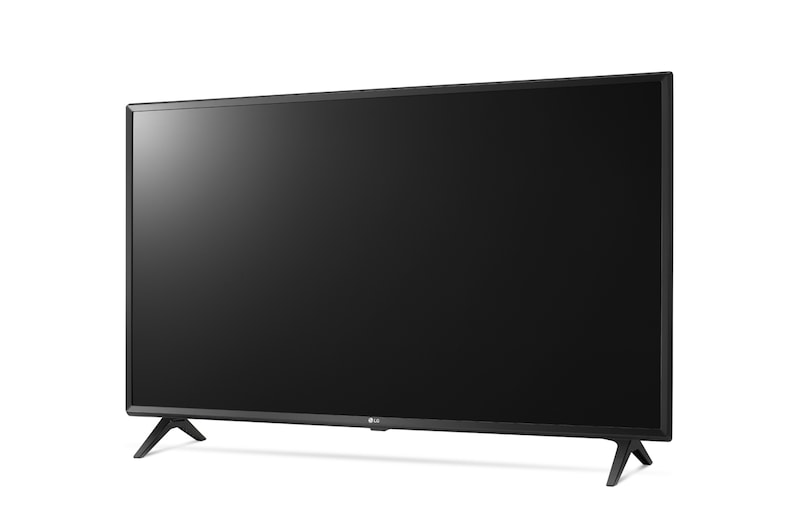

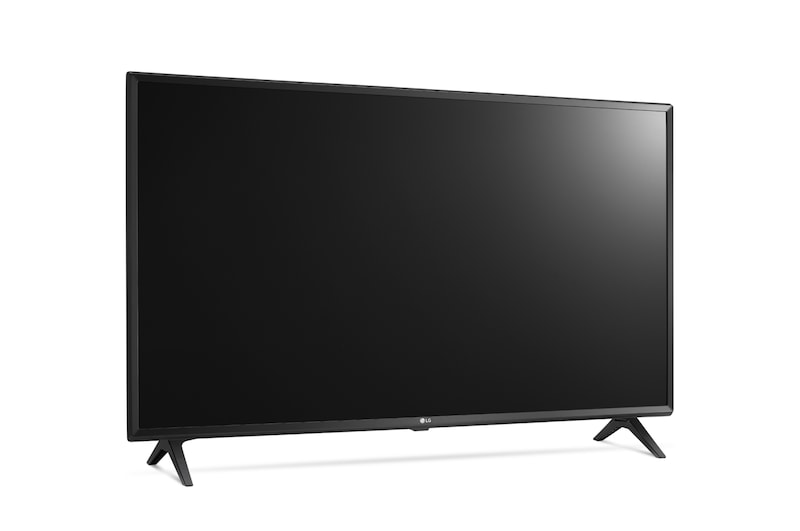

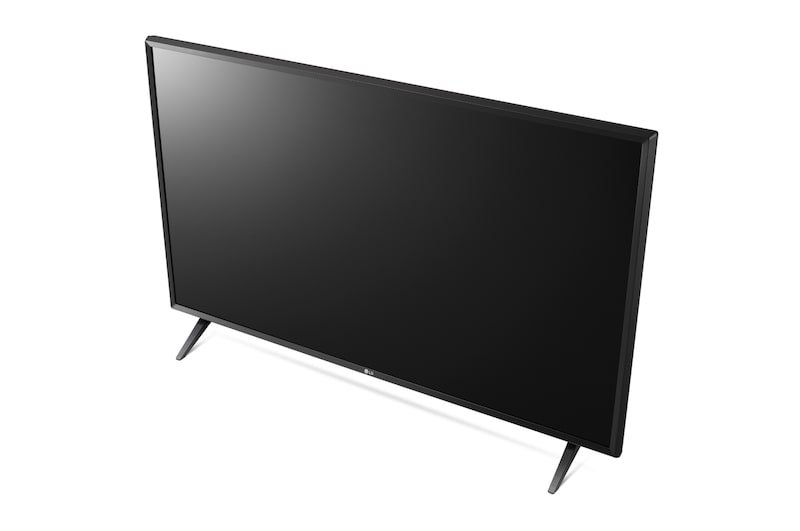

UT660H Series

UT660H Series

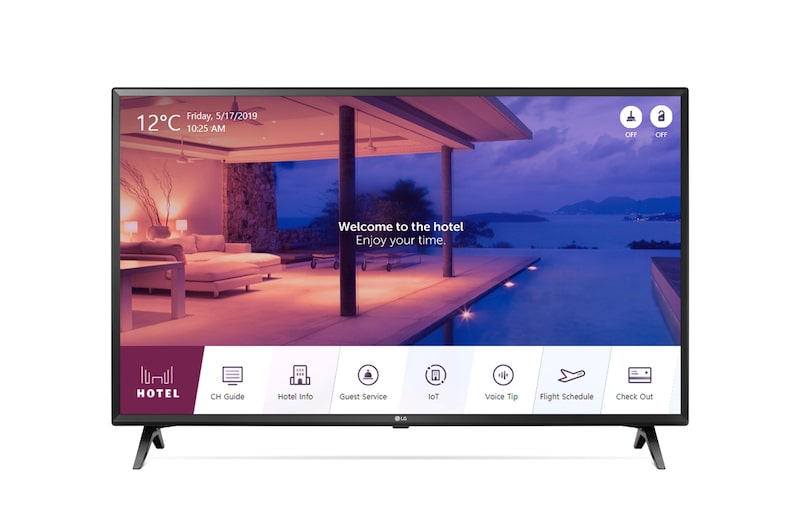

49UT660H0TA
Print

All Spec

INFO

  • Category

    Pro:Centric Smart

DESIGN

  • Tool Name

    UK63

  • Stand Type

    2 Pole

  • Front Color

    Ceramic Black

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

AUDIO (SOUND)

  • Speaker (Audio Output)

    20W

  • AI Acoustic Tuning

    YES (Ready, MMR Required)

  • LG Sound Sync

    YES

DISPLAY

  • Size (Inch)

    49

  • Resolution

    4K Ultra HD (3840 x 2160)

  • Brightness (Typ.)

    400 nit

BROADCASTING SYSTEM

  • Digital

    DVB-T2/C

  • Analog (NTSC / SECAM / PAL)

    SECAM / PAL

  • Teletext (Auto Teletext)

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Smart

    YES

  • webRTC (Real Time Communication)

    YES

  • Pro:Centric Direct

    YES

  • Pro:Centric V

    YES

  • Pro:Centric Server

    YES

  • Quick Menu (Customizable Portal)

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

SMART FUNCTION

  • webOS version

    webOS 4.5

  • Web Browser

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Wi-Fi

    YES

  • Bluetooth

    YES

  • Soft AP

    YES

  • Screen Share

    YES

  • DIAL

    YES

  • Bluetooth Audio Playback

    YES

  • Voice Recognition (Standalone/Solution)

    YES

  • IoT

    YES

HOSPITALITY FEATURE

  • EzManager

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • WOL

    YES

  • SNMP

    YES

  • Diagnostics

    YES (IP Remote)

  • HTNG-CEC (Version)

    YES (1.4)

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • IR Out

    YES (RS-232C, HDMI)

  • Multi IR Code

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • Welcome Video

    YES

  • Welcome Screen (Splash Image)

    YES

  • Insert Image

    YES

  • One Channel Map

    YES

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • Instant ON

    YES

  • V-Lan Tag

    YES

  • Lock mode

    YES (Limited)

  • RJP (Remote Jack Pack) Compatibility

    YES

  • External Power Out

    YES

  • Conformal Coating

    YES

  • Energy Saving mode

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Healthcare Headphone Mode

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • RTC (Real Time Clock)

    YES

  • NTP sync timer

    YES

  • BEACON

    YES

MECHANICAL

  • VESA Compatible

    300 x 300 mm

  • Kensington Lock

    YES

DIMENSIONS/WEIGHT

  • Dimension with Stand (W x H x D)

    1110 x 709 x 231 mm

  • Dimension in Shipping (W x H x D)

    1193 x 770 x 158 mm

  • Dimension without Stand (W x H x D)

    1110 x 650 x 81.1 mm

  • Bezel Width (L/R/U/B, On Bezel)

    18.1/18.1/18.1/22.8 mm

  • Weight in Shipping

    13.4 kg

  • Bezel Width (L/R/U/B, Off Bezel)

    16.6/16.6/16.6/21.3 mm

  • Weight with Stand

    11.3 kg

  • Weight without Stand

    11.1 kg

POWER SPEC.

  • Power Supply (Voltage, Hz)

    AC 100~240V 50/60Hz

  • Power Consumption(Max)

    122W

  • Power Consumption(Typ)

    95W

  • Standby Power Consumption

    Under 0.5W

STANDARD

  • Safety

    CB

  • EMC

    CE

  • Others

    N/A

ACCESSORIES

  • Remote type

    S-Con / MMR (Option)

  • Power Cable

    YES (1.5M / Angle Type)

STANDARD (EU_OLD LABEL(~`21.3))

  • ErP Class

    N/A

  • On Power Consumption

    N/A

  • Luminance Ratio (%)

    N/A

  • Average Annual Consumption(kWh)

    N/A

STANDARD (EU_NEW LABEL(`21.3~))

  • SDR Grade

    N/A

  • SDR On mode

    N/A

  • HDR Grade

    N/A

  • HDR On mode

    N/A

CONNECTIVITIES

  • HDMI In

    YES (2ea)

  • USB (Ver.)

    YES (2ea / 2.0)

  • RF In

    YES (1ea)

  • AV In

    YES

  • Component in (Y,Pb,Pr-Video)

    YES

  • Digital Audio Out (Optical)

    YES

  • External Speaker Out(3.5mm Phone jack)

    YES

  • Headphone Out

    YES

  • CI Slot

    YES (CI+ 1.4)

  • RJ45 (Usage Purpose)

    2 (Ethernet, Aux)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (D-Sub 9pin)
