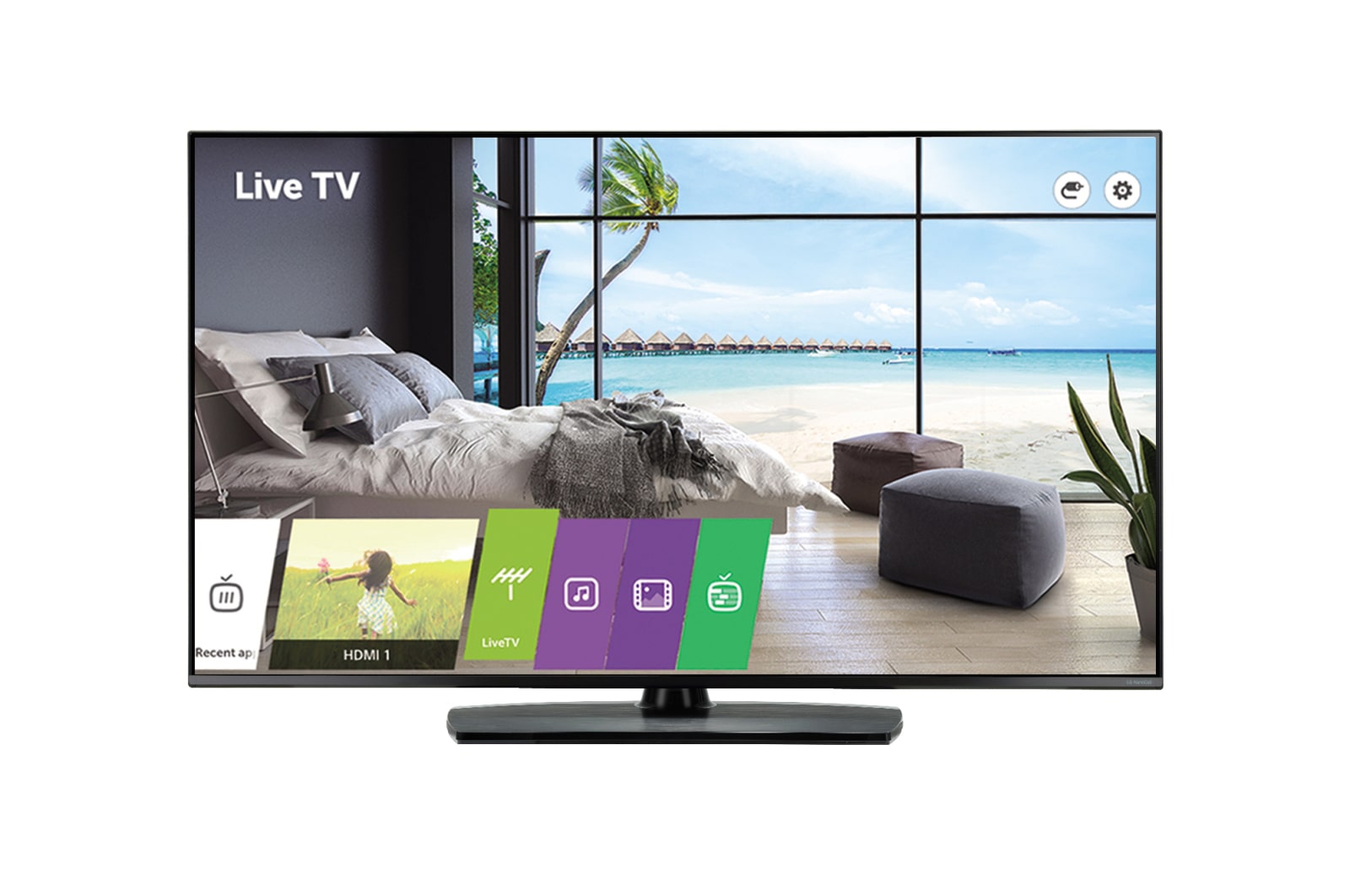

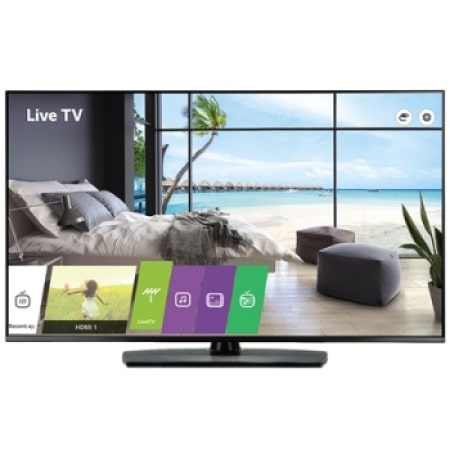

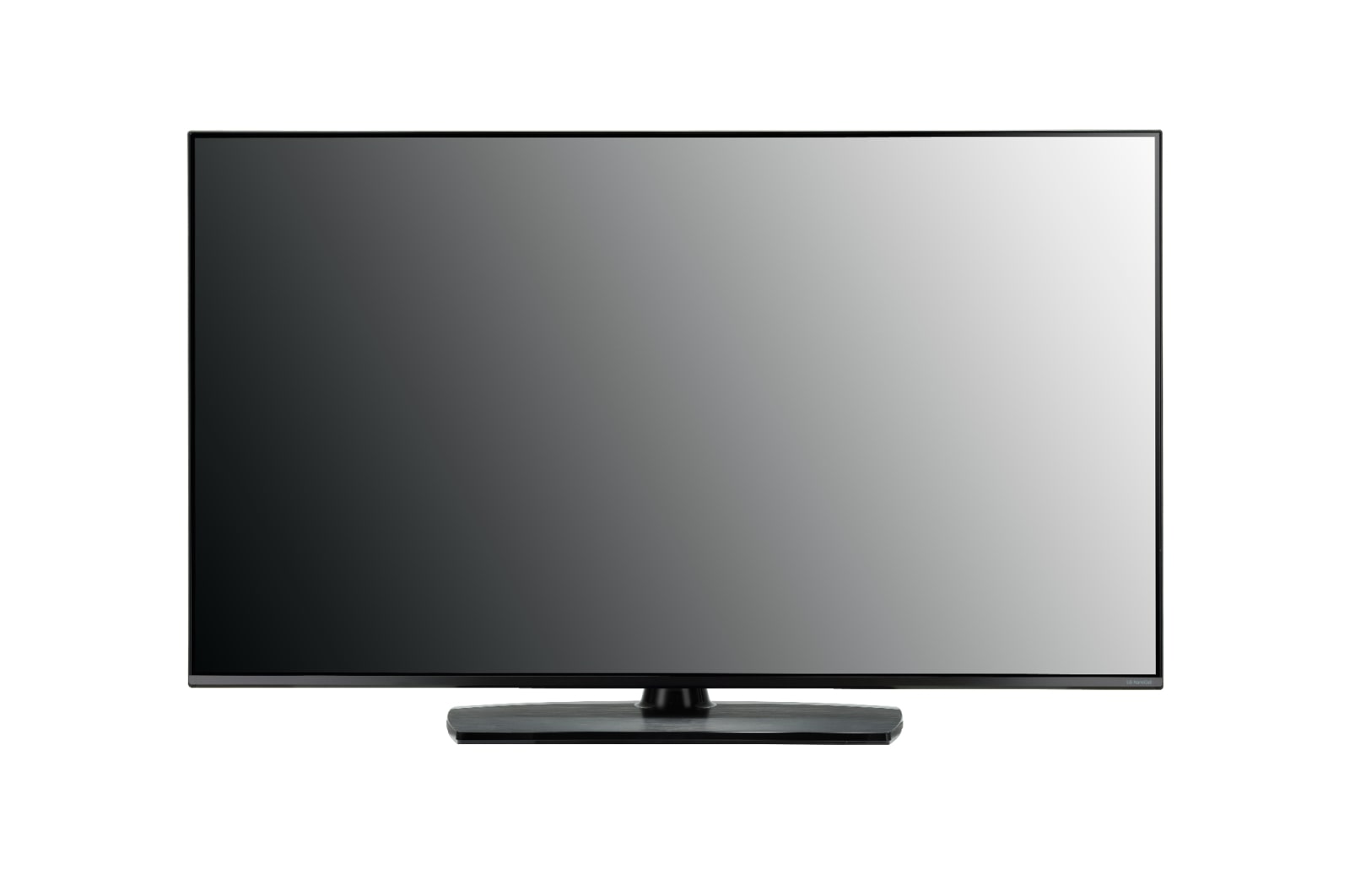

UT761H Series

49UT761H0TA

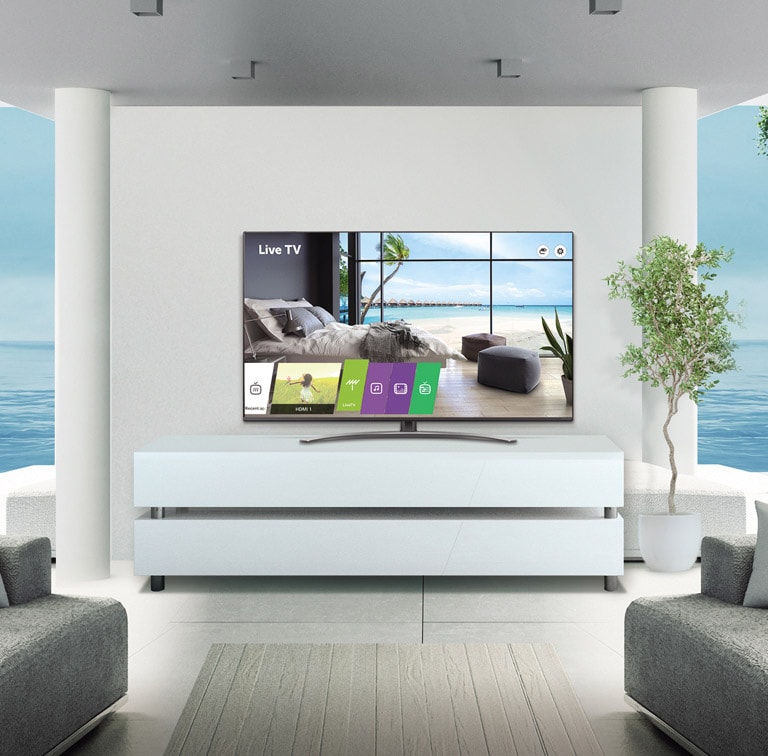

A Premium Smart Solution With UHD Content Delivery

A Premium Smart Solution With UHD Content Delivery

Provide your guests with the interactive smart solution, Pro:Centric SMART, for a superior experience. The UT761H series enables you to customize and create your own content with SDK Tools, Pre-loaded Apps, and content management software, Pro:Centric Direct.

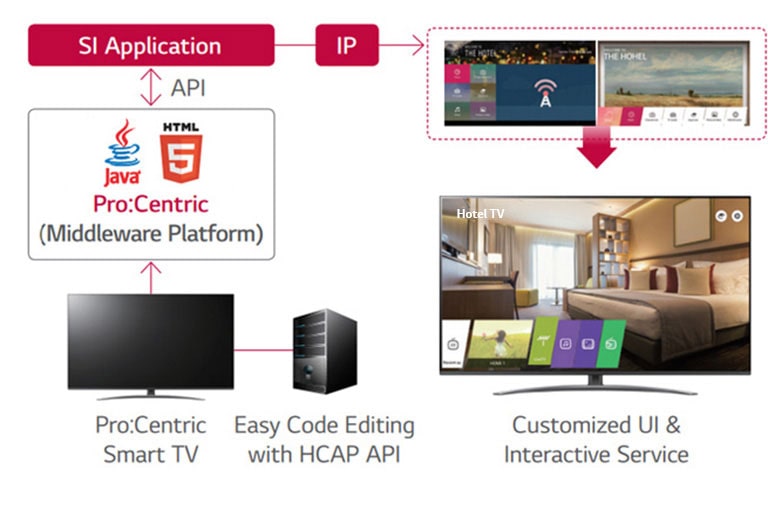

Pro:Centric Hotel Management Solution
Pro:Centric SMART APPLICATION PLATFORM

Pro:Centric Hotel Management Solution

Pro:Centric SMART is optimized for customizing hospitality services for hotel brands and guests through an IP & RF infrastructure. With its high picture quality, sophisticated design and advanced connectivity functions, it upscales in-room entertainment and increases convenience through implementation of high-end technology.

* Customized Ul may be little different.

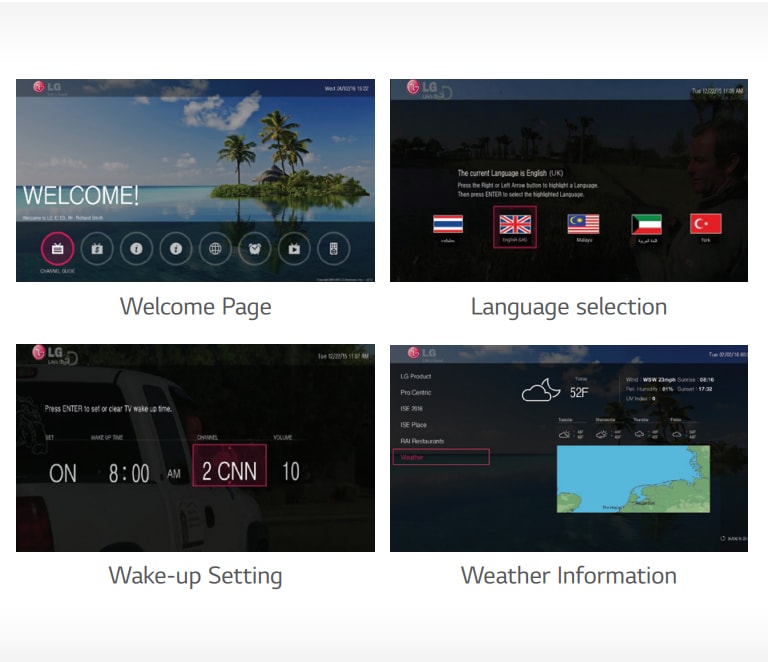

Pro:Centric Server Application
Pro:Centric SMART APPLICATION PLATFORM

Pro:Centric Server Application

You can now differentiate your hotel with our customizable templates and pages which can be specialized for your property. Pro:Centric provides you a solution that is easily customizable for your business.

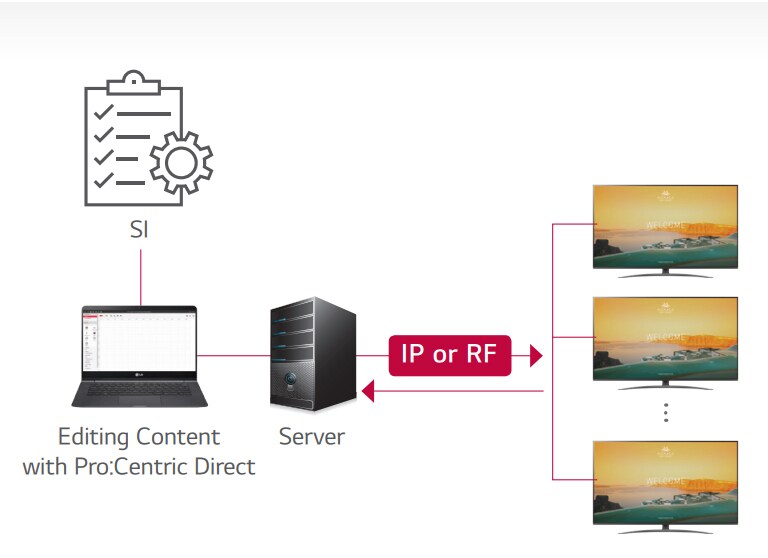

Pro:Centric Direct Solution
Pro:Centric SMART APPLICATION PLATFORM

Pro:Centric Direct Solution

Pro:Centric Direct is a hotel content management system that supports simple editing tools and provides various solutions such as 1-click service and IP-network-based remote management. With the solution, users enable to design UI easily and provide customized service while managing TV efficiently.

* Actual UI may be litter different

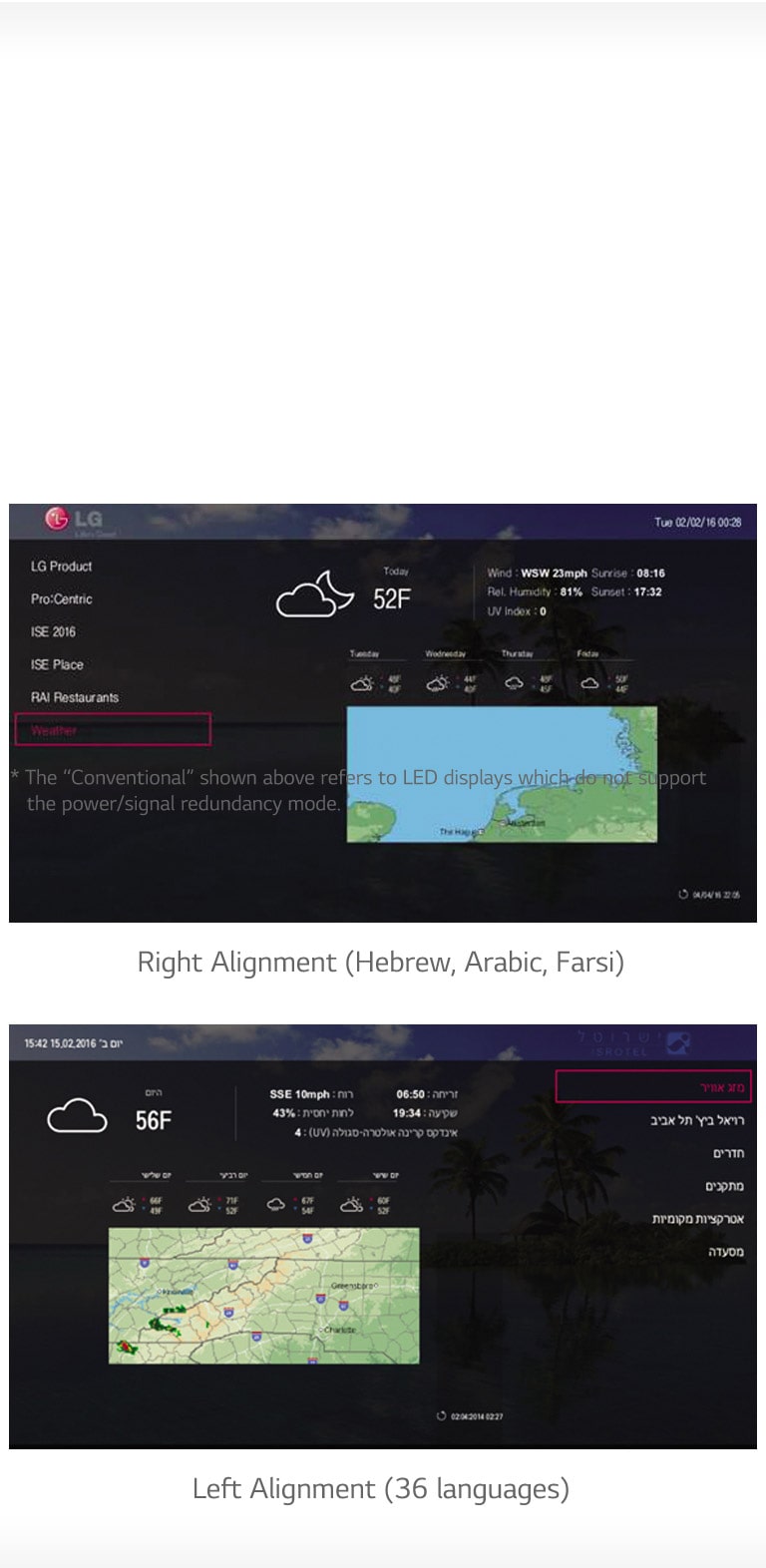

Multi Languages

Pro:Centric V HOTEL MANAGEMENT SOLUTION

Multi Languages

39 languages including Hebrew, Arabic and Farsi, and language alignment are supported, making your guests stay a more comfortable one.

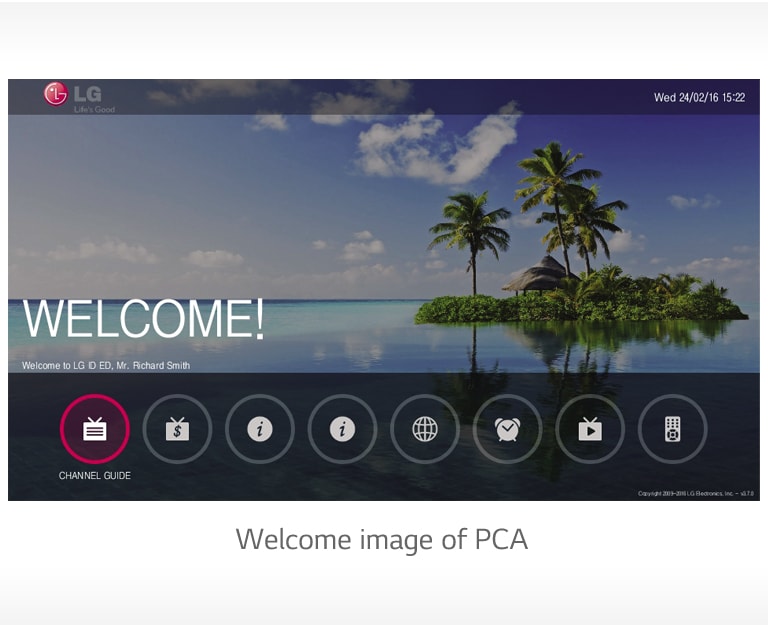

Basic & Easy Templates
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Basic & Easy Templates

Pro:Centric Application (PCA) provides one Basic & Easy Template. Making a total of three templates, that customers can select according to their preference.

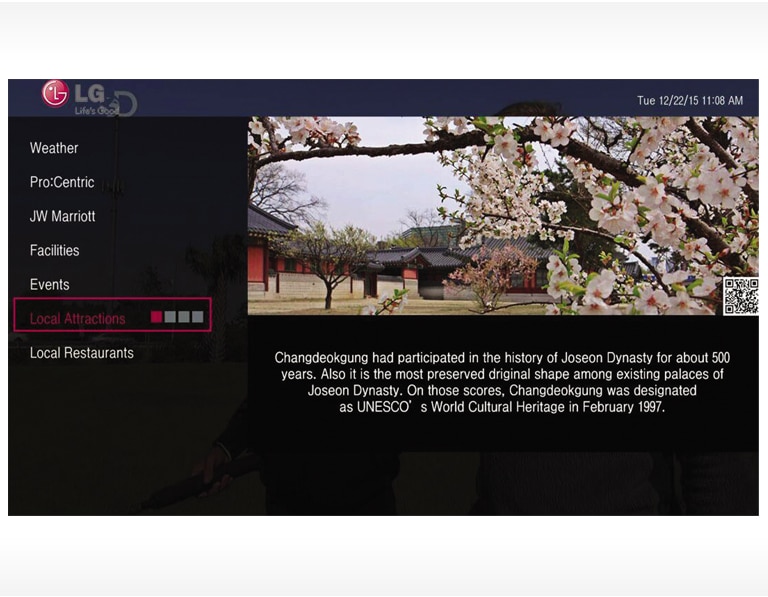

Customizable Template & Page
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Customizable Template & Page

Choose an alternative look & feel template based on your preference, and edit multiple sections with 40 pages of billboards by yourself with the web based tool. (Max. 15 pages / section Available)
Multi Channel Spooling
Pro:Centric V HOTEL MANAGEMENT SOLUTION

Multi Channel Spooling

Operation of up to 8 hotel channels (22 sub-channels) can offer various information and added services.

Conformal Coating

VALUE ADDED FEATURES

Conformal Coating

It is inevitable that TVs in hotels or resorts can be exposed to environments with Na(salt), dust, iron powder and humidity during operations, which may take unwanted effect on the products over time. Conformal coating on major circuit board(Power board) eliminates the risks from such environments by protecting it against Na, dust, etc.

* Actual images(In-screen of TV) available may differ from the above simulated ones

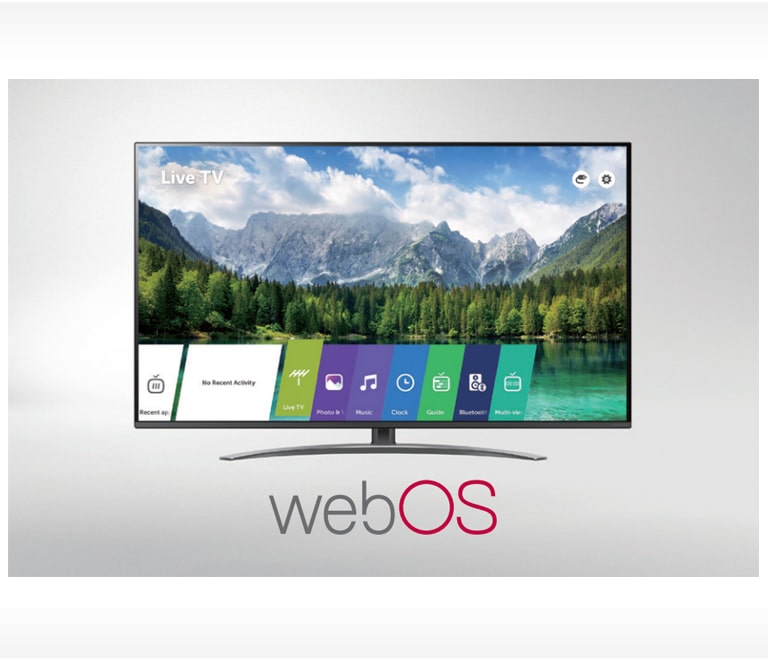

Smart TV by LG webOS 4.5
VALUE ADDED FEATURES

Smart TV by LG webOS 4.5

This is LG Smart TV with webOS 4.5. Explore the latest LG Smart TV features, and discover TVs that deliver innovative technology, remarkable clarity, and true-to-life colors.

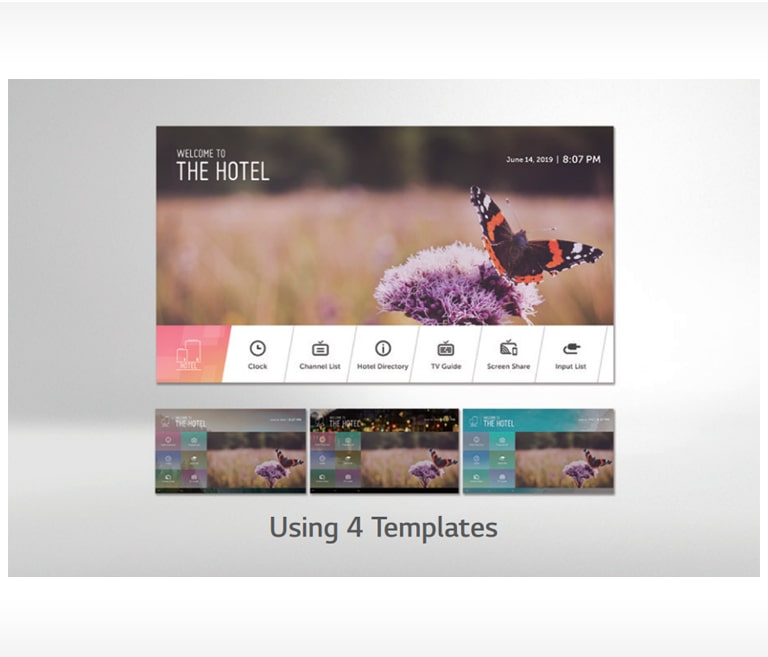

Quick Menu
VALUE ADDED FEATURES

Quick Menu

Enjoy LG's easy solution of menu home. Now LG provides the new Quick menu (Ver 3.0), making it more easy and user friendly than ever. The solution has been upgraded in a big way; Hotel Promotional Video Creation Tool is added and Quick Manager is ready to use, which allows easy information distribution throughout the same network.
Voice Recognition
VALUE ADDED FEATURES

Voice Recognition

From seamless interaction to consistent user experience, LG is going one step further to lead the commercial TV market with voice recognition, allowing users to easily control LG TVs. Our stable solutions based on webOS and Pro:Centric Direct will significantly enhance the competitiveness of your products and services.

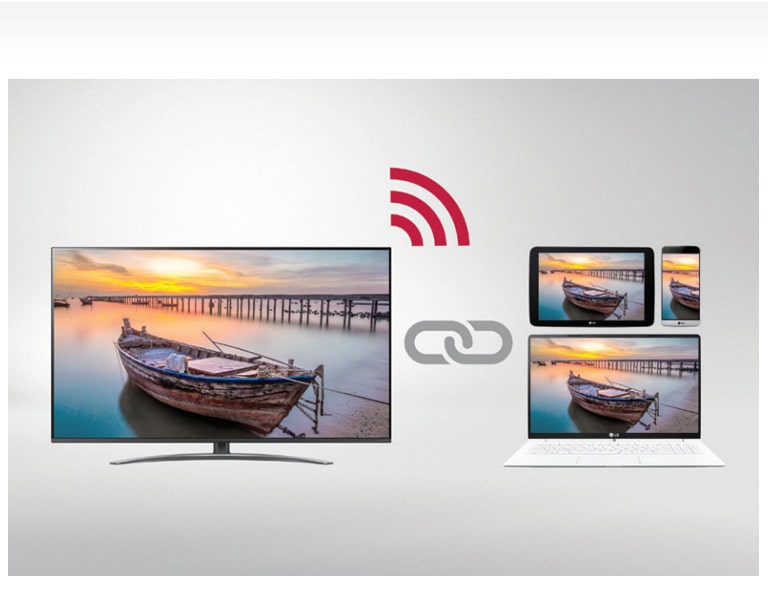

SoftAP
HOSPITALITY FEATURES

SoftAP

Software-enabled Access Point (SoftAP) is a “virtual” Wi-Fi feature that uses software to create a wireless hotspot. The current version supports Bridge Mode, which enables network managers to control connected devices.

* SoftAP should be set in installation menu after TV is on.
* Smart Mirroring may not be operated at the same time.

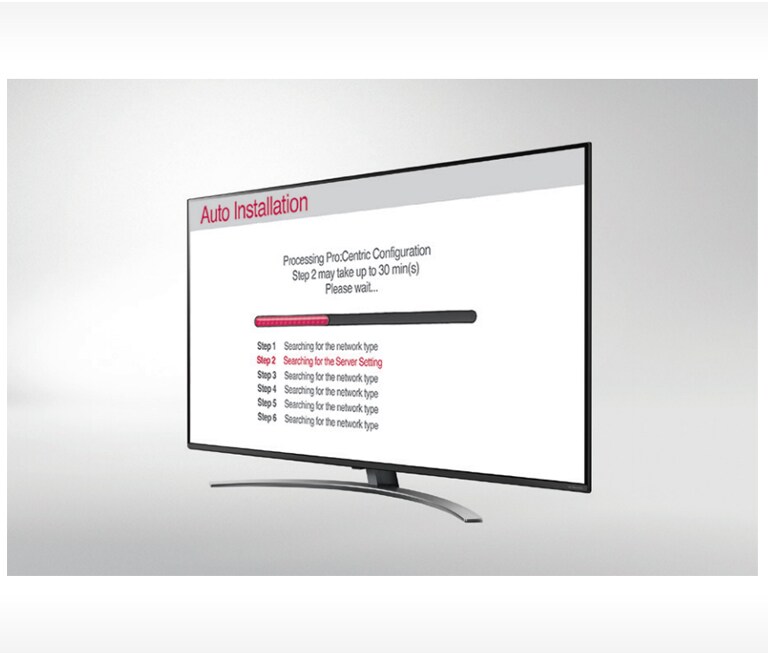

EzManger
HOSPITALITY FEATURES

EzManger

EzManager provides convenient installation function that helps to set up Pro:Centric TV settings automatically without extra effort of configuration. Auto-installation requires 1~3 minutes while manual installation requires 3~5 minutes.

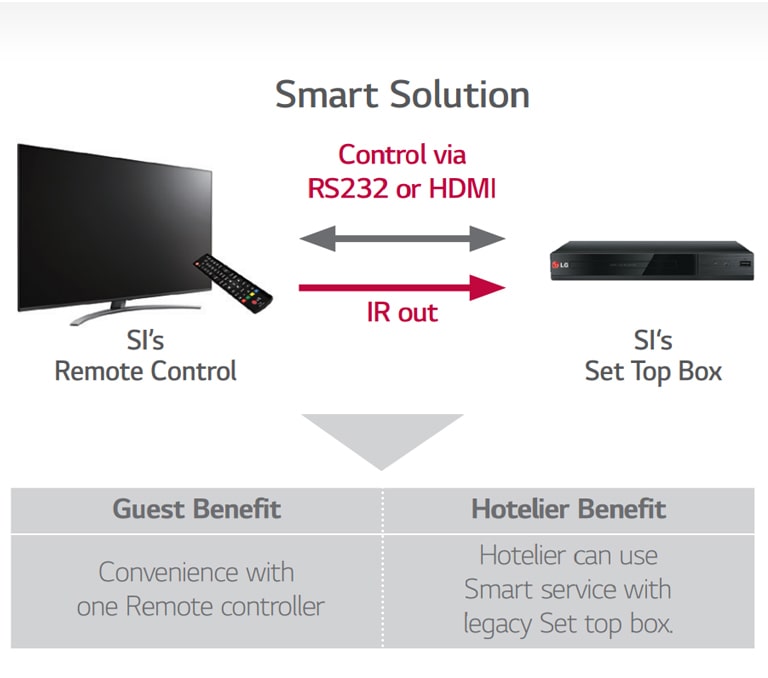

TV Link Interactive
HOSPITALITY FEATURES

TV Link Interactive

LG Protocal through RS-232 allows communication between TV and SI interface box, eventually giving smart service and more contents to Hotel guests.

* We provide two protocol for Sl solution (HTNG-CEC and TVLink)

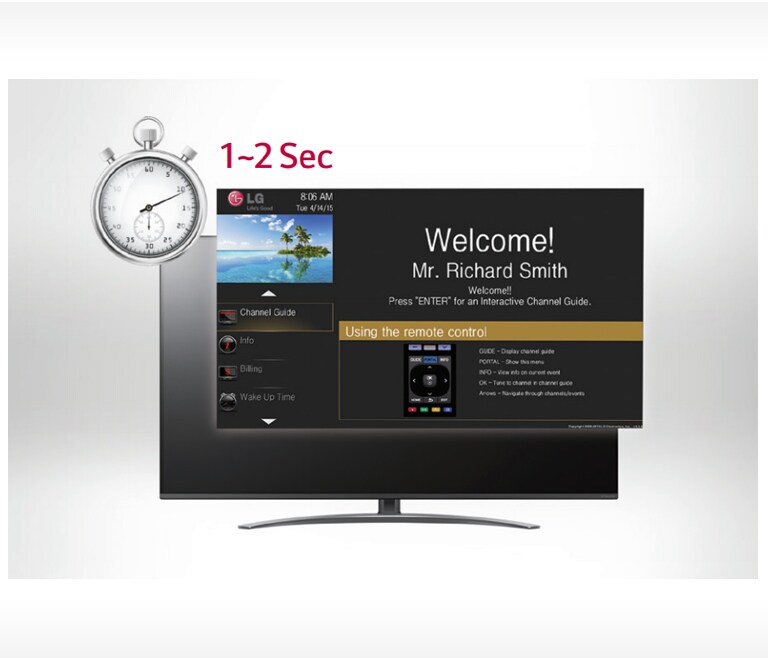

Instant On
HOSPITALITY FEATURES

Instant On

The high speed loading system enables users to enjoy content immediately after turning on the TV.
External Speaker Out
HOSPITALITY FEATURES

External Speaker Out

Enhance the entertainment experience by adding an additional speaker. Guests listen to and control the TV audio from anywhere in the business areas, including restrooms.

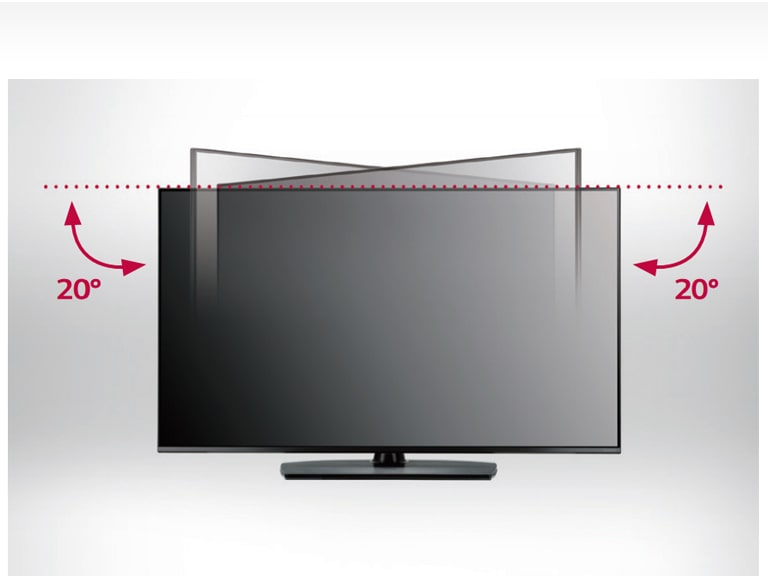

Commercial Swivel Stand
HOSPITALITY FEATURES

Commercial Swivel Stand

Expand the range of comfort for the guests with a commercial grade stand by allowing them to watch a TV from any angle.

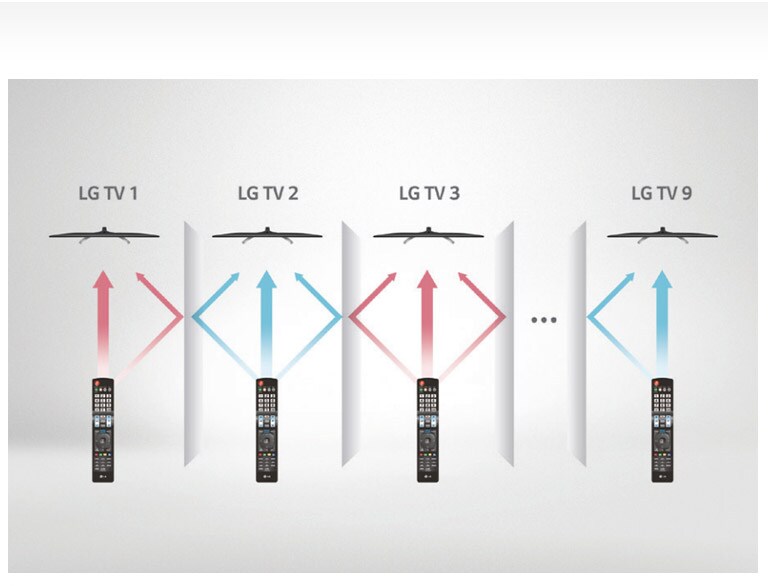

Multi IR
HOSPITALITY FEATURES

Multi IR

Multi IR function eliminates the remote control signal interference between TVs for multiple devices.

*Only available for LG TV models

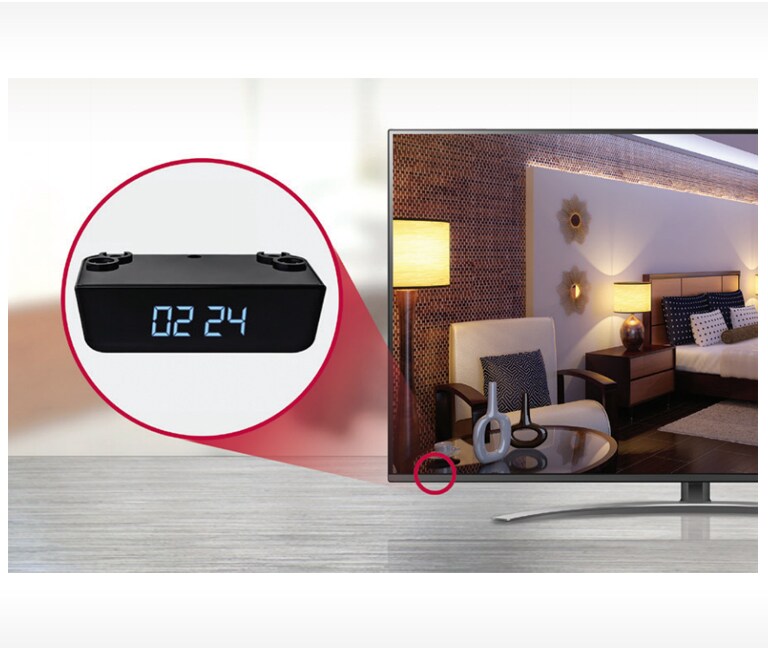

External Clock
HOSPITALITY FEATURES

External Clock

Easily attach an external clock to your hospitality TV. Guests can quickly check the time just by looking at the TV, and all it needs is an RGB interface connection.

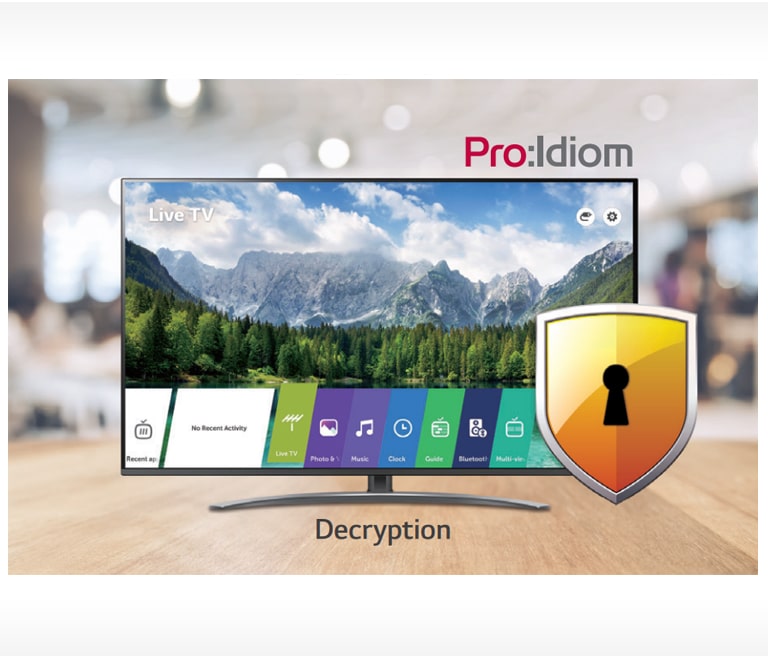

Pro:Idiom
HOSPITALITY FEATURES

Pro:Idiom

Prevent any illegal copying of content by the widely used DRM (Digital Right Management).

All Spec

INFO

  • Category

    Pro:Centric Smart

DESIGN

  • Tool Name

    49SM85

  • Stand Type

    1 Pole (Swivel)

  • Front Color

    Ceramic BK

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

AUDIO (SOUND)

  • Speaker (Audio Output)

    20W

  • AI Acoustic Tuning

    YES (Ready, MMR Required)

  • LG Sound Sync

    YES

DISPLAY

  • Size (Inch)

    49

  • Resolution

    4K Ultra HD (3840 x 2160)

  • Brightness (Typ.)

    400 nit

BROADCASTING SYSTEM

  • Digital

    DVB-T2/C

  • Analog (NTSC / SECAM / PAL)

    SECAM / PAL

  • Teletext (Auto Teletext)

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Smart

    YES

  • webRTC (Real Time Communication)

    YES

  • Pro:Centric Direct

    YES

  • Pro:Centric V

    YES

  • Pro:Centric Server

    YES

  • Quick Menu (Customizable Portal)

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

SMART FUNCTION

  • webOS version

    webOS 4.5

  • Web Browser

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Wi-Fi

    YES

  • Bluetooth

    YES

  • Soft AP

    YES

  • Screen Share

    YES

  • DIAL

    YES

  • Bluetooth Audio Playback

    YES

  • Voice Recognition (Standalone/Solution)

    YES

  • IoT

    YES

HOSPITALITY FEATURE

  • EzManager

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • WOL

    YES

  • SNMP

    YES

  • Diagnostics

    YES (IP Remote)

  • HTNG-CEC (Version)

    YES (1.4)

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • IR Out

    YES (RS-232C, HDMI)

  • Multi IR Code

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • Welcome Video

    YES

  • Welcome Screen (Splash Image)

    YES

  • Insert Image

    YES

  • One Channel Map

    YES

  • External Speaker Out / Line Out

    YES (Ext. Speaker Out)

  • Instant ON

    YES

  • V-Lan Tag

    YES

  • Lock mode

    YES (Limited)

  • RJP (Remote Jack Pack) Compatibility

    YES

  • External Power Out

    YES

  • Conformal Coating

    YES

  • Energy Saving mode

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Healthcare Headphone Mode

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • RTC (Real Time Clock)

    YES

  • NTP sync timer

    YES

  • BEACON

    YES

MECHANICAL

  • VESA Compatible

    200 x 200 mm

  • Kensington Lock

    YES

  • Credenza/Security Screw Hole

    YES (Need Stand)

  • Lock Down Plate (for easy installing)

    YES (Need Stand)

DIMENSIONS/WEIGHT

  • Dimension with Stand (W x H x D)

    1096 x 697 x 303 mm

  • Dimension in Shipping (W x H x D)

    1192 x 760 x 190 mm

  • Dimension without Stand (W x H x D)

    1096 x 640 x 63.6 mm

  • Bezel Width (L/R/U/B, On Bezel)

    11.1/11.1/11.1/19.8 mm

  • Weight in Shipping

    20.0 kg

  • Bezel Width (L/R/U/B, Off Bezel)

    4.8/4.8/4.8/16.6 mm

  • Weight with Stand

    17.2 kg

  • Weight without Stand

    14.0 kg

POWER SPEC.

  • Power Supply (Voltage, Hz)

    AC 100~240V 50/60Hz

  • Power Consumption(Max)

    152W

  • Power Consumption(Typ)

    124W

  • Standby Power Consumption

    Under 0.5W

STANDARD

  • Safety

    CB

  • EMC

    CE

  • Others

    N/A

ACCESSORIES

  • Remote type

    S-Con / MMR (Option)

  • Power Cable

    YES (1.5M / Angle Type)

STANDARD (EU_OLD LABEL(~`21.3))

  • ErP Class

    N/A

  • On Power Consumption

    N/A

  • Luminance Ratio (%)

    N/A

  • Average Annual Consumption(kWh)

    N/A

STANDARD (EU_NEW LABEL(`21.3~))

  • SDR Grade

    N/A

  • SDR On mode

    N/A

  • HDR Grade

    N/A

  • HDR On mode

    N/A

CONNECTIVITIES

  • HDMI In

    YES (2ea)

  • USB (Ver.)

    YES (2ea / 2.0)

  • RF In

    YES (1ea)

  • AV In

    YES

  • Component in (Y,Pb,Pr-Video)

    YES

  • Digital Audio Out (Optical)

    YES

  • External Speaker Out(3.5mm Phone jack)

    YES

  • Headphone Out

    YES

  • CI Slot

    YES (CI+ 1.4)

  • RJ45 (Usage Purpose)

    2 (Ethernet, Aux)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (D-Sub 9pin)
