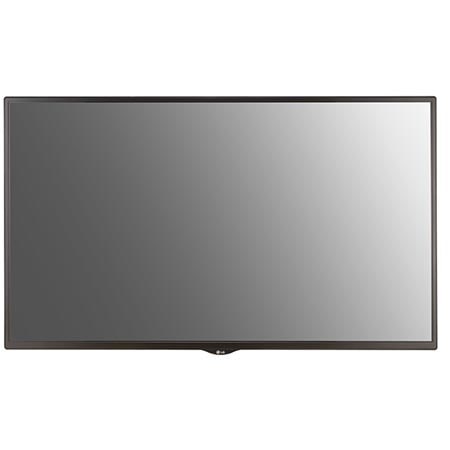

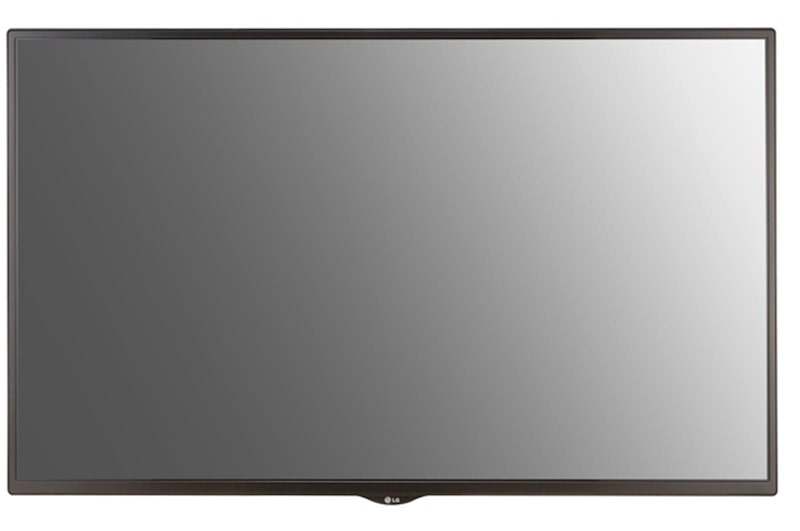

SM5KE Series

The SM5KE series provides dynamic content with clear picture quality, enhancing advertising effectiveness and helping to generate demand for your brand and products. LG webOS 4.0 Smart Platform has not only been optimized to develop and run a variety of customized apps, but user convenience has been enhanced with intuitive UI and value-added functions.

Simple Set-up & Customization

The LG webOS 4.0 smart signage platform supports HTML5 as a web-based platform and offers an SDK (Software Development Kit), so System Integrators can easily build and execute their own apps. Also, it is easy to use with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one menu.

Embedded Content Management

The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signage via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.

Multi Screen Mode

PBP (Picutre-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 2 divided split screen on landscape or portrait display format. This gives great flexibility to users to allocate space for each content source.

Video Streaming

SM5KE series can play real-time streaming content by supporting various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast*. This easy-to-manage content system is free from capacity limits for content playback and can provide live broadcasts in real time.

* RTSP (Real-Time Streaming Protocol)
RTP (Real-Time Transport Protocol)
HLS (HTTP Live Streaming)
UDP (User Datagram Protocol) Multicast

Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in realtime.

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.

Wireless Access Point

The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.

Quick Web Access via Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Secured Network Communication

HTTPS* protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on digital signage, so owners can protect their critical business assets from unwelcome pirates.

* HTTPS: Hypertext Transfer Protocol over Secure Socket Layer

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. This can function as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

* Supported model: NIPPON PRIMEX (NP-3511, NP-3611)

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Detachable Logo & Built-in Speaker

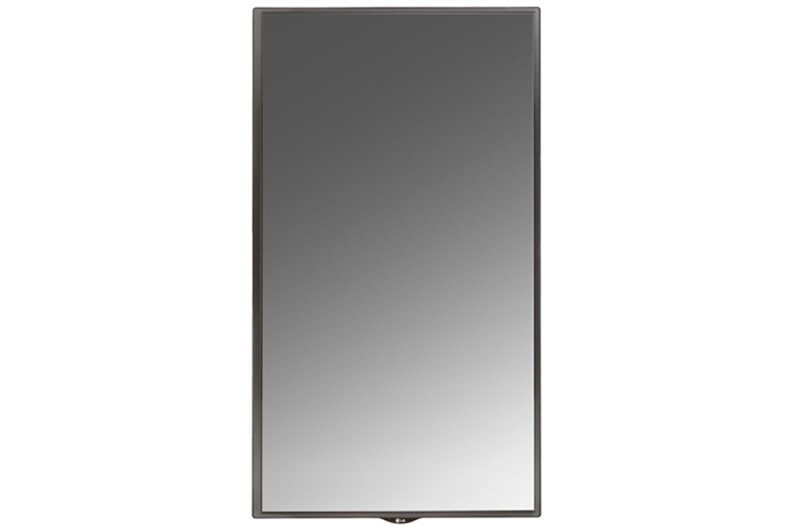

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sound can be played from built-in speakers, giving advertisements greater impact.

Conformal Coating

Electronics products can be often unavoidably exposed to dust and water during maintenance. LG applies a conformal coating on major circuit boards to minimize such circumstances by protecting against dust, iron powder, humidity, etc.

All Spec

PANEL

Screen Size

43"
Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

450

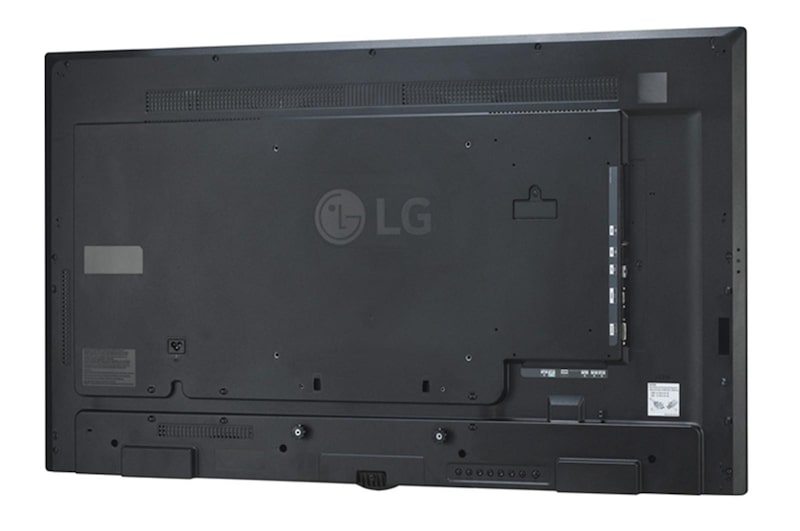

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, Audio, USB 3.0
Output

DP(SST), Audio(Off/Fixed/Variable)
External Control

RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

Bezel Width

11.9 mm (T/R/L), 18 mm (B)
Monitor Dimension (W x H x D)

969.6 x 563.9 x 54 mm
Weight (Head)

10.0 kg
Monitor with Optional Stand Dimensions (W x H x D)

969.6 x 622.2 x 193 mm
Weight (Head+Stand)

12.5 kg
Carton Dimensions (W x H x D)

1,052 x 650 x 123 mm
Packed Weight

12.6 kg
VESA™ Standard Mount Interface

200 x 200 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C
Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240 V~, 50/60 Hz
Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

75 W (TBD) / 95 W
Smart Energy Saving

52.5W

STANDARD(CERTIFICATION)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC

FCC Class "A" / CE / KC
ErP / Energy Star

N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes
External Media player Attatchable

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS
Control and Monitoring Software

SuperSign Control+/Control

ACCESSORY

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover
Optional

Stand (ST-432T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T43E)
