TA3E Series

Specs

Support

Resource

TA3E Series

TA3E Series

55TA3E-B
Print

All Spec

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Brightness1) (Typ.)

    450 cd/m2

  • Viewing Angle (H x V)

    178 x 178

  • Response Time

    12 ms (G to G BW), 9.0 ms (WOT)

  • Surface Treatment

    Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze Typ. 1%)

  • Life time (Typ.)

    50,000 Hrs

  • Operation Hours

    24 Hrs

  • Orientation

    Landscape & Portrait

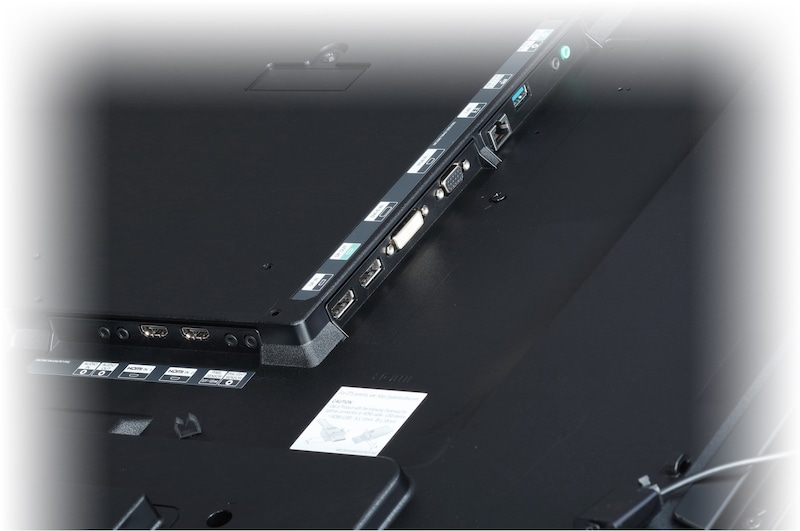

CONNECTIVITY

  • Input

    HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0

  • Output

    DP, Audio Out

  • External Control

    RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

PHYSICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    32.7 mm (Even)

  • Monitor Dimension (W x H x D)

    1,278 x 748.8 x 71.4 mm

  • Weight (Head)

    28.0 kg

  • Carton Dimensions (W x H x D)

    1,410 x 880 x 207 mm

  • Packed Weight

    33 kg

  • VESA™ Standard Mount Interface

    300 x 300 mm

ENVIRONMENTAL CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Type

    Built-In Power

  • Power Supply

    100-240V~, 50/60Hz

  • Power Consumption (Typ./Max)

    100 W / 120 W

  • Power Consumption (Smart Energy Saving)

    70 W

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class "A" / CE / KCC

  • ErP / Energy Star

    N/A / N/A

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes

  • External Media Player Attachable

    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign CMS

  • Control and Monitoring Software3)

    SuperSign Control+

ACCESSORIES

  • Basic

    Remote Controller (2ea Batteries Included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory Cover

  • Optional

    Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA)

TOUCH

  • Touch type

    IR (Scattering)

  • Scan Time

    10 ms ↓

  • Interface

    USB 2.0

  • Protection Glass Thickness

    2.8T (Anti-Glare)

  • Operating System Support

    Windows 7, Windows 8, Windows 8.1, Windows 10, Android (Kernel Version 3.5 Over), Linux(Kernel Version 3.5 Over), Mac OS X (10.9 Over), Chrome (39 Over)

  • Multi touch point

    Max 10 Points

To access more technical documentation and resources, please visit the LG B2B partner portal.
