Interactive Digital Board

Interactive Digital Board

Interactive Digital Board

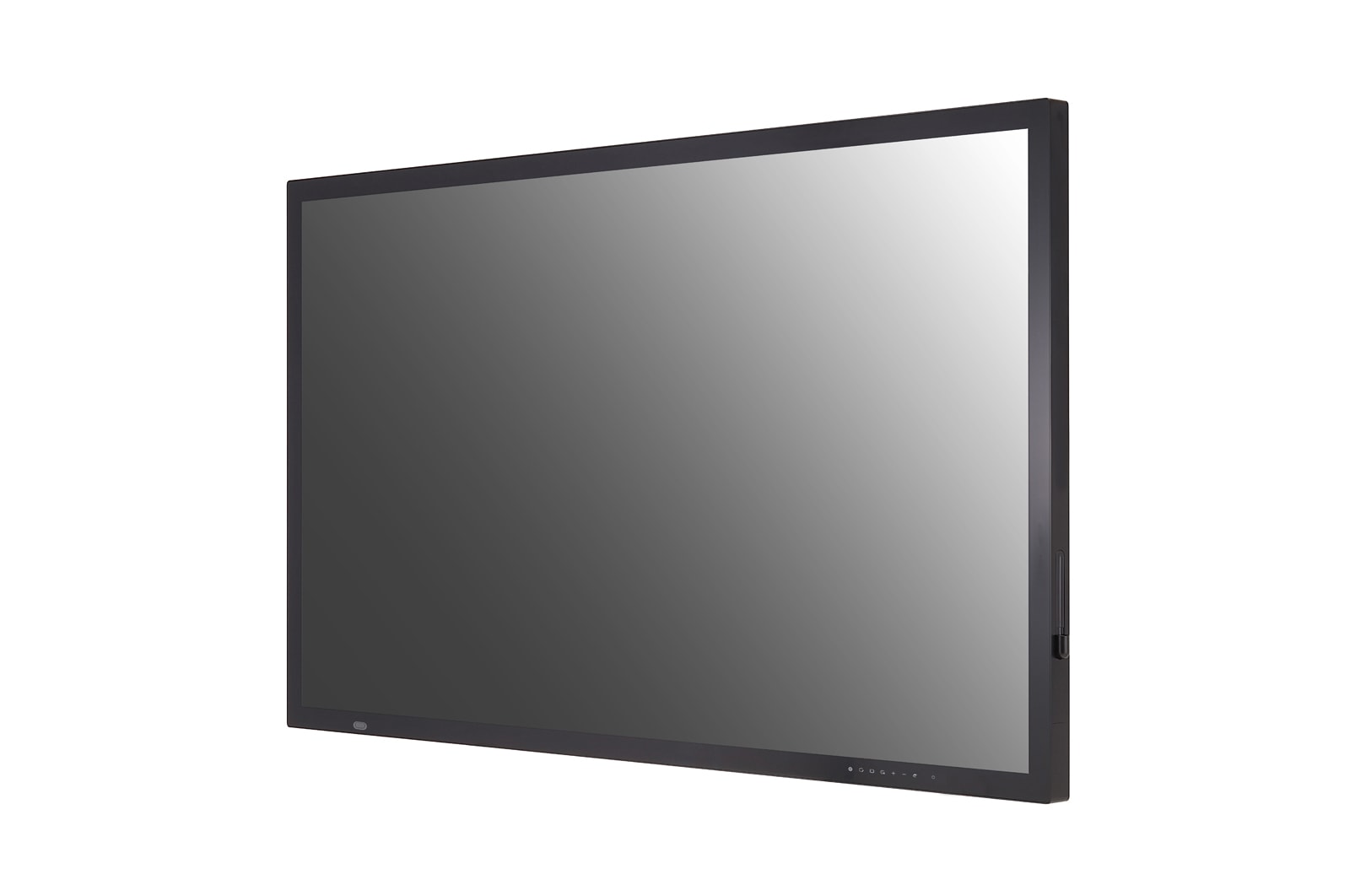

75TC3D-B

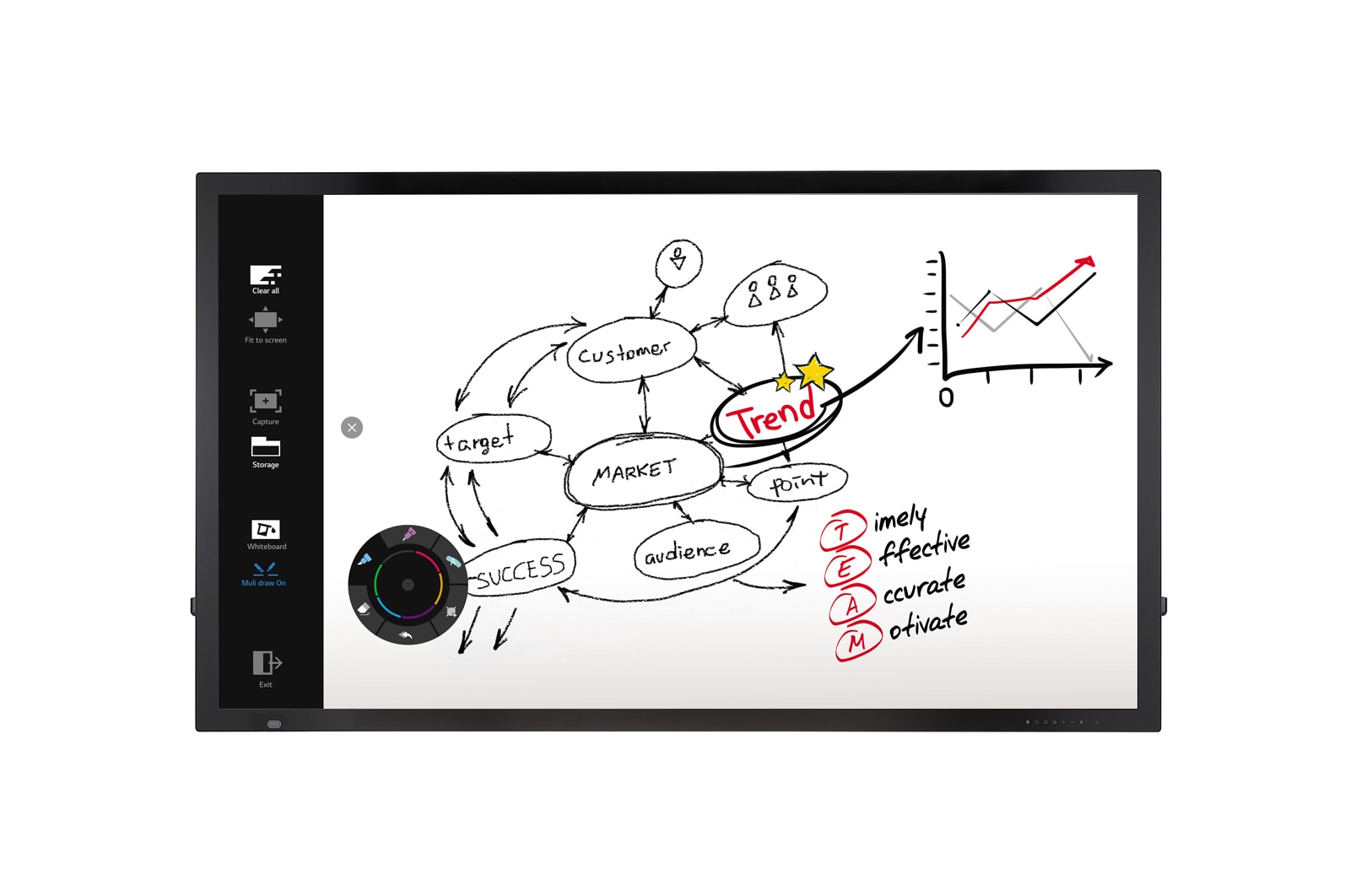

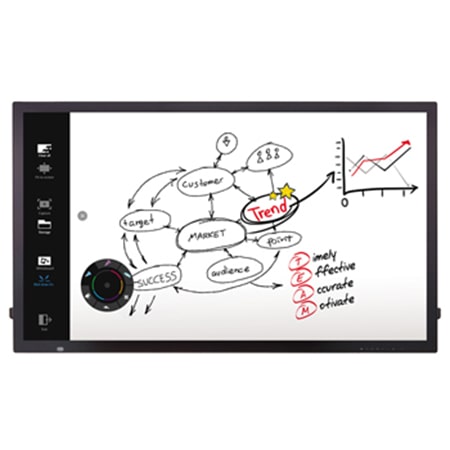

Front view with infill

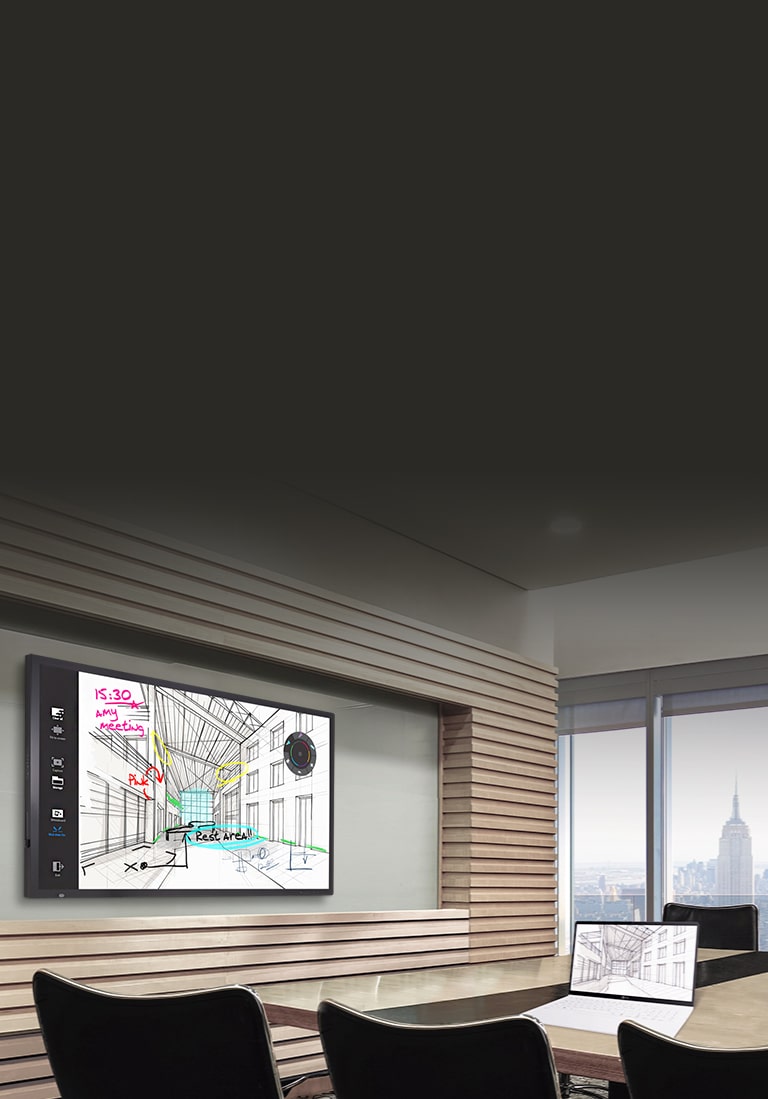

LG IDB: Do More Smartly, Simply

LG IDB: Do More Smartly, Simply

Embedded LG IDB App & webOS

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.

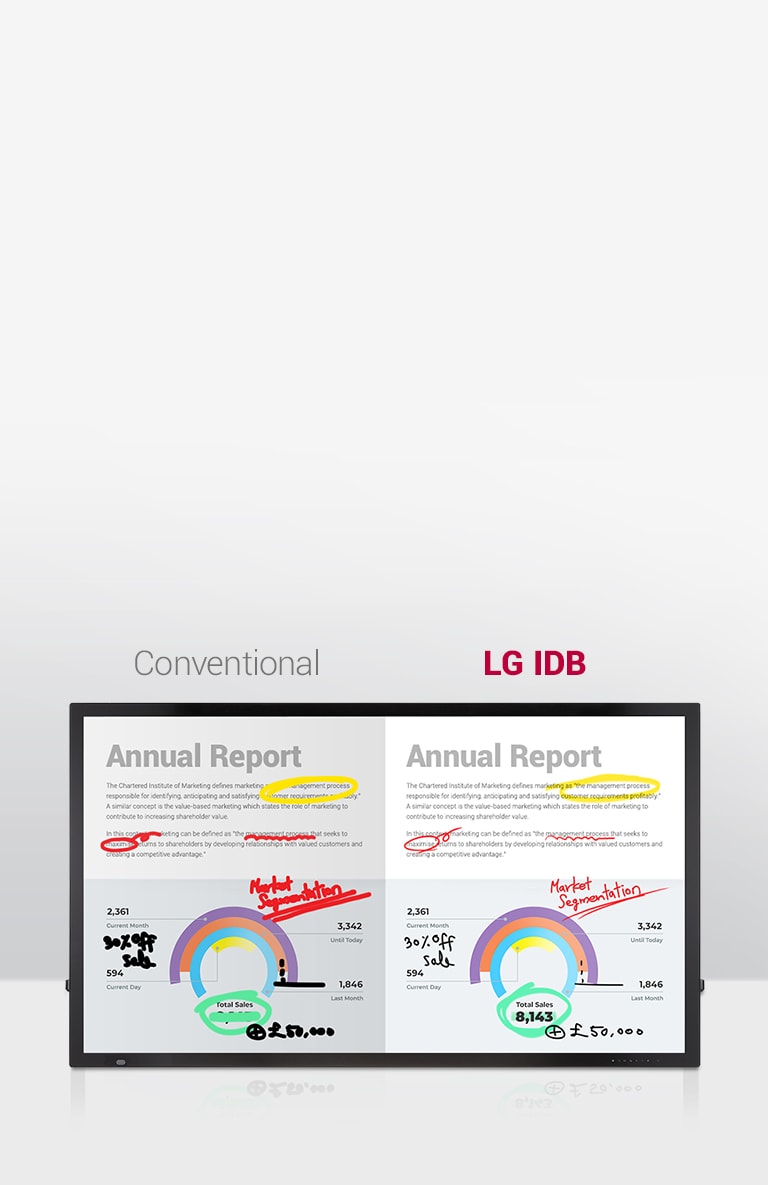

Intuitive Touch and Writing

Intuitive Touch and Writing

Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.
All-in-One Meeting Experience

All-in-One Meeting Experience

Efficient Collaboration

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless* connection, writing on a shared screen, and saving annotations.

* Installation of the PC client app is required. Go to the "Tech Spec' section of this page for the minimun requirements and then visit the Software Download Page.

Peerless Picture Quality

Peerless Picture Quality

UHD Resolution

Peerless Picture Quality

With LG IDB's UHD resolution, users can view content in the finest detail, even with full zoom-in. UHD provides the highest-quality media experience at four times higher definition than FHD.
True Color, Wide View

True Color, Wide View

IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.
Quick and Easy Screen Sharing
Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.
Easy Menu Calling, and Control
Assistive Touch Menu

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.
* The menu design(GUI) is subject to change without notice
Enjoy a Multi Screen Experience

PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.

Print

All Spec

MINIMUM REQUIREMENTS FOR LG IDB DUO

  • OS (Windows 32bit or 64bit)

    Windows 7, Windows 10

  • OS (macOS)

    macOS 10.12 Sierra, MacOS 10.13 High Sierra

  • CPU (Windows)

    2.7GHz+ Dual Core Broadwell or higher

  • CPU (macOS)

    Any CPU which supports Sierra or High Sierra

  • Memory

    4GB RAM

  • Hard Drive

    1GB of free space

  • Graphics Hardware (Windows)

    Intel Iris or higher, Nvidia, ATI

  • Graphics Hardware (macOS)

    Any GPU which supports Sierra or High Sierra

ACCESSORY

  • Basic

    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)

  • Optional

    OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)

CONNECTIVITY

  • Input

    HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0

  • Output

    Touch USB 2.0 (2)

  • External Control

    RS232C in/out, RJ45 in

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

PANEL

  • Screen Size

    75”

  • Native Resolution

    3,840 x 2,160 (UHD)

  • Brightness(Module, Typ., cd/m²)

    500

PHYSICAL SPECIFICATION

  • Bezel Width

    41.6 mm(T/L/R/B)

  • Monitor Dimension (W x H x D)

    1,732.8 x 1011.1 x 69.7 mm (w/o Handle)

  • Weight (Head)

    74.5 kg

  • Carton Dimensions (W x H x D)

    1,870 x 1,264 x 285 mm(with pallet)

  • Packed Weight

    94 kg

  • VESA™ Standard Mount Interface

    600 x 400 mm

POWER CONSUMPTION

  • Typ.

    ≤ 240 W

  • Smart Energy Saving

    ≤ 170 W

SOFTWARE COMPATIBILITY

  • Content Management Software

    SuperSign Premium

  • Control and Monitoring Software

    SuperSign Link

STANDARD(CERTIFICATION)

  • Safety

    UL / cUL / CB / TUV / KC

  • EMC

    FCC Class “A” / CE / KCC

TOUCH

  • Touch type

    P-Cap(Ag Metal Mesh)

  • Available object size for touch

    more than Ø 6 mm

  • Accuracy

    2 mm

  • Interface

    USB 2.0

  • Protection Glass Thickness

    4T (Anti-Glare)

  • Multi touch point

    Max. 40 Points

To access more technical documentation and resources, please visit the LG B2B partner portal.
