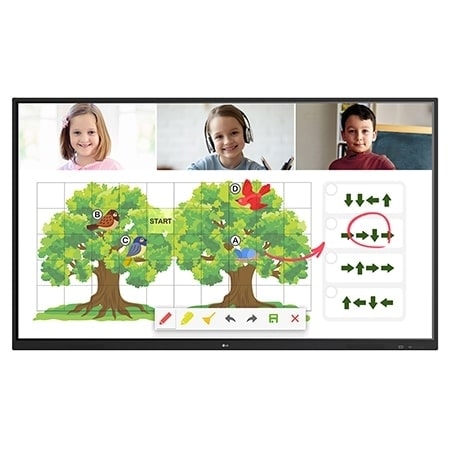

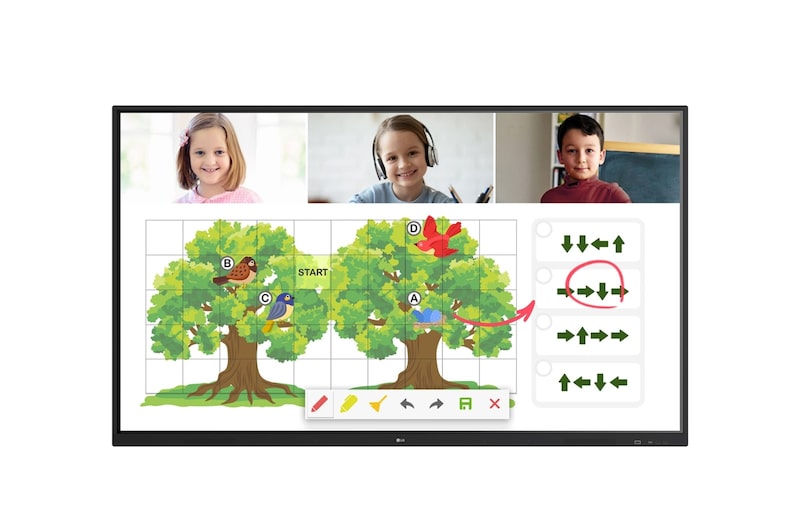

86" UHD IR-Type Touch Interactive Digital Board

86TR3DJ-B

True Interactivity for
Bringing People Together

When the teacher marks it on the TR3DJ, it is displayed on the students' electronic device screens at the same time.

* 86 inch
* All images are for illustrative purposes only.

Three children are drawing on the TR3DJ at the same time.

Multi Touch

The TR3DJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board touch experience and makes collaboration much easier.

The user writes the words 'Dreams come true' with the electronic pen on the TR3DJ with 1mm gap between the screen and tempered glass.

Enhanced Visibility with Low Parallax

With 1mm gap between the screen and tempered glass, which supports low parallax, The TR3DJ series can offer precise touch and excellent writing experience.

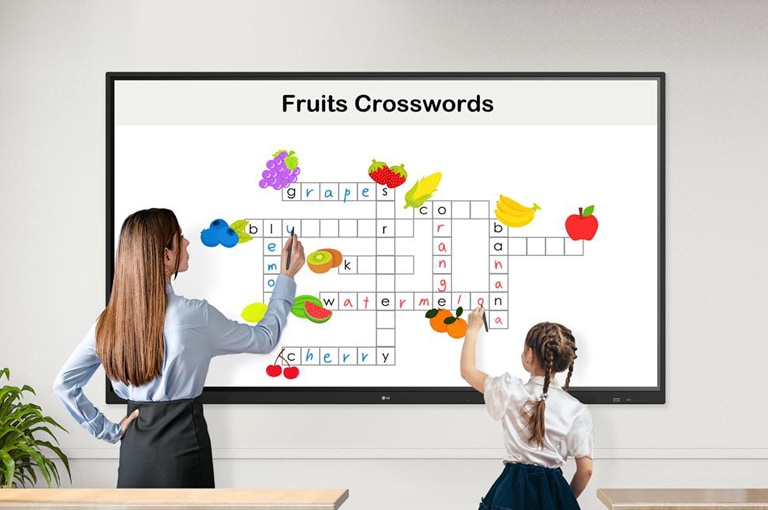

A teacher and a child are solving crosswords puzzles on the display together, using the Stylus Pens.

Dual Pen &
Dual Color

The stylus pen comes in two different colors and with two different tip sizes of 3mm and 8mm. The dual pens enable users to write or draw simultaneously.

Same image is displayed on two separate screen, showing that the TR3DJ is capable of writing and annotate on all sources.

Easy Writing Experience

The TR3DJ series allows you to write and annotate on sources, so your writing experience can be easy and satisfying.

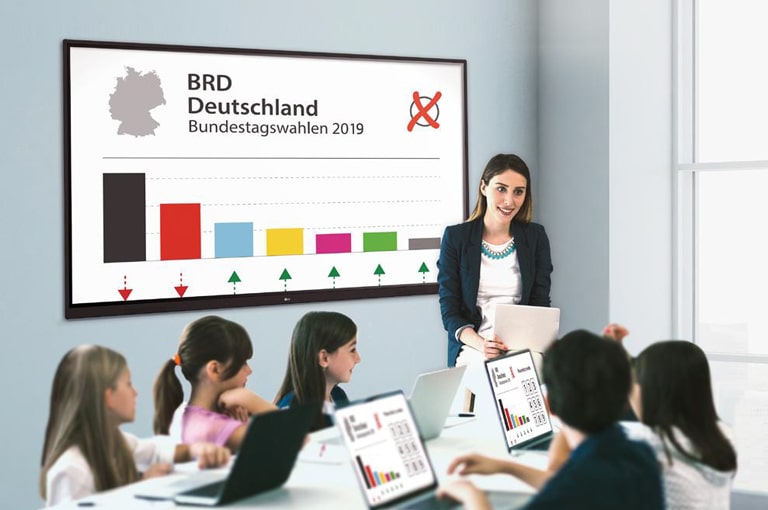

A teacher is having a class and the screen on the display is being shared to each students' laptop.

Air Class

Air Class supports connecting up to 30 students and offers interactive meetings for mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts. Air Class is easily accessible from the TR3DJ's main toolbar.

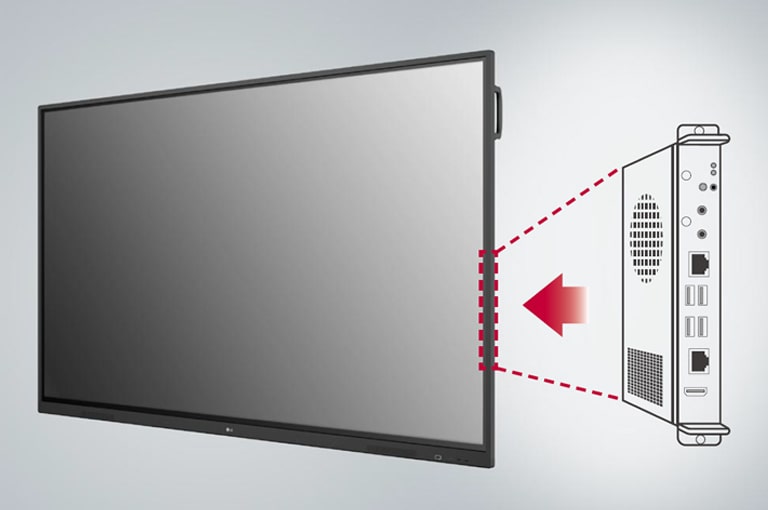

Built-in OPS Slot

The TR3DJ series supports OPS* slots, allowing you to easily and conveniently mount an OPS* device at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.

* OPS : Open Pluggable Specification

The screens of students' laptops and teacher's mobile are being shared to the display.

ScreenShare Pro

ScreenShare Pro enables you to show up to six shared screens or a file on a screen in real-time, and it has enhanced usability by allowing users to share Chromecast and Apple device mirroring on the same network without any additional application.

Three people are gathered in a conference room, having a virtual meeting with other people who are appearing on the screen.

Bluetooth Connectivity

TR3DJ supports Bluetooth wireless connections to various devices such as speaker, mouse, keyboard, etc. This is optimal for building a hybrid environment so that online and offline meetings and classes can proceed smoothly.

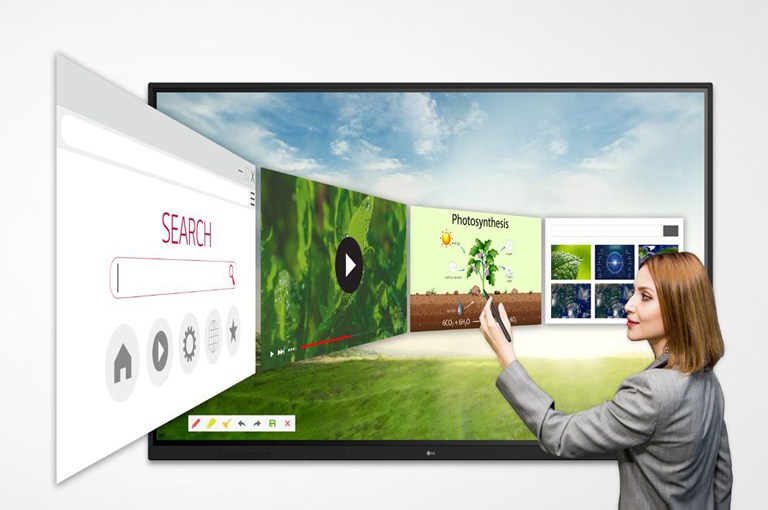

Web Browser

The TR3DJ series supports an embedded Android web browser, so you can search the web easily and quickly, without connecting to an external tablet or computer.

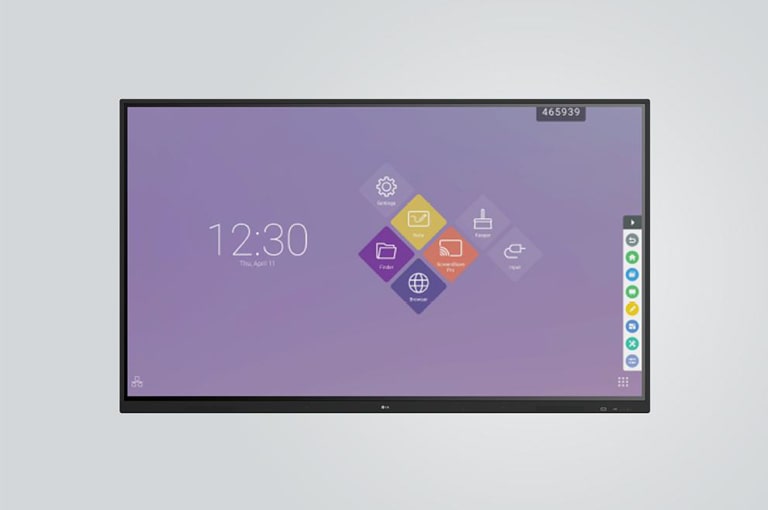

Toolbar

The Toolbar allows you to easily find and run the tool you need. The annotation feature works on virtually all file types, and you can highlight the section you wish to emphasize using the Spotlight function. The countdown and stopwatch features help you manage class time effectively.

The teacher is teaching the students in class and the students are listening to the sounds from the TR3DJ.

Audio Experience

The TR3DJ series supports built-in speakers in both sides of the front bezel which deliver clear audio experience.

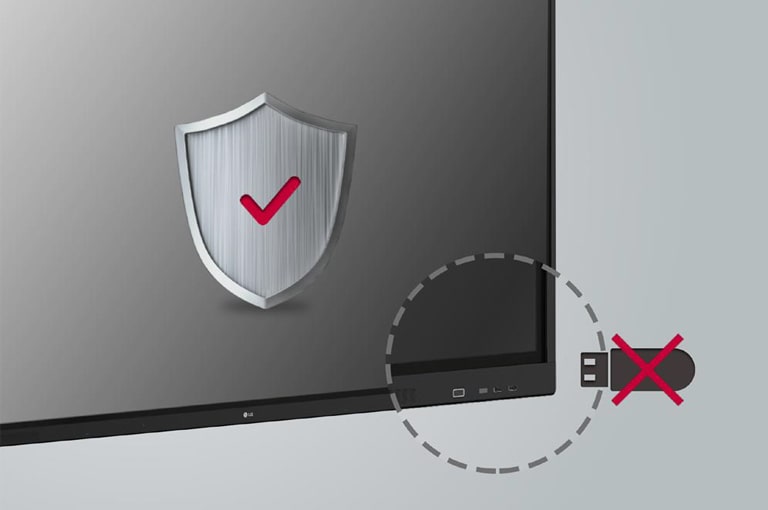

USB is not being able to be connected to a display for security.

USB Block

USB Block Mode is a security measure that helps prevent data from being copied to unauthorized devices, which is essential for being used in spaces where security is critical.

All Spec

PANEL

Screen Size (Inch)
86
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
60Hz
Brightness
390nit (Typ., without Glass)
Contrast Ratio
1,200:1
Dynamic CR
NO
Color Gamut
NTSC 68%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
30,000Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
NO / YES

CONNECTIVITY

HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
YES
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB3.0 Type A (3ea), USB2.0 Type A (3ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
USB2.0 Type B (2ea)
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 18.9/18.9/18.9/45.7mm
Weight (Head)
67.5Kg
Packed Weight
86.6Kg
Monitor Dimensions (W x H x D)
1957 x 1160 x 87mm
Carton Dimensions (W x H x D)
1863 x 1283 x 280mm
Handle
YES
VESA Standard Mount Interface
800 x 600 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
32GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
NO
Auto Brightness Sensor
NO
Power Indicator
YES
Local Key Operation
YES

FEATURE - SOFTWARE

Booting Logo Image
YES
PIP
NO
PBP
NO
Screen Share
YES
Setting Data Cloning
NO
Crestron Connected
NO
Smart Energy Saving
NO
PM mode
NO
Wake on LAN
NO
Network Ready
NO
HDMI-CEC
YES

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
370W
Max.
500W
BTU (British Thermal Unit)
1262 BTU/Hr(Typ.), 1706 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W

SOUND

Speaker (Built-in)
YES (10W x 2)

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE
ERP / Energy Star
YES / NO

OPS COMPATIBILITY

OPS Type compatible
YES (Slot)
OPS Power Built-in
YES

SOFTWARE COMPATIBILITY

Connected Care
NO

LANGUAGE

OSD
English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands(Dutch), Norwegian, Polski, Portugues(Europe), Portugues(Brazil), Romanian, Russian, Spanish, Swedish, Türkçe, Ukrainian, Traditional Chinese, Hungarian

ACCESSORY

Basic
Power Cord 3M*1, USB Cable (Type A-Type B) 5M*1, HDMI Cable 3M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
Optional
NO

SPECIAL FEATURE

Conformal Coating (Power Board)
YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch
Ø3 mm ↑
Response Time ('Paint' app on Windows 10 PC)
10ms ↓
Accuracy (Typ.)
±2.0mm
Interface
USB2.0
Protection Glass Thickness
4mm (Anti-Glare)
Protection Glass Transmission
0.87
Operating System Support
Windows 7/8/10/XP/Linux/Mac/Android (Windows XP/Linux/Mac Support one point touch)
Multi Touch Point
Max. 20 Points
