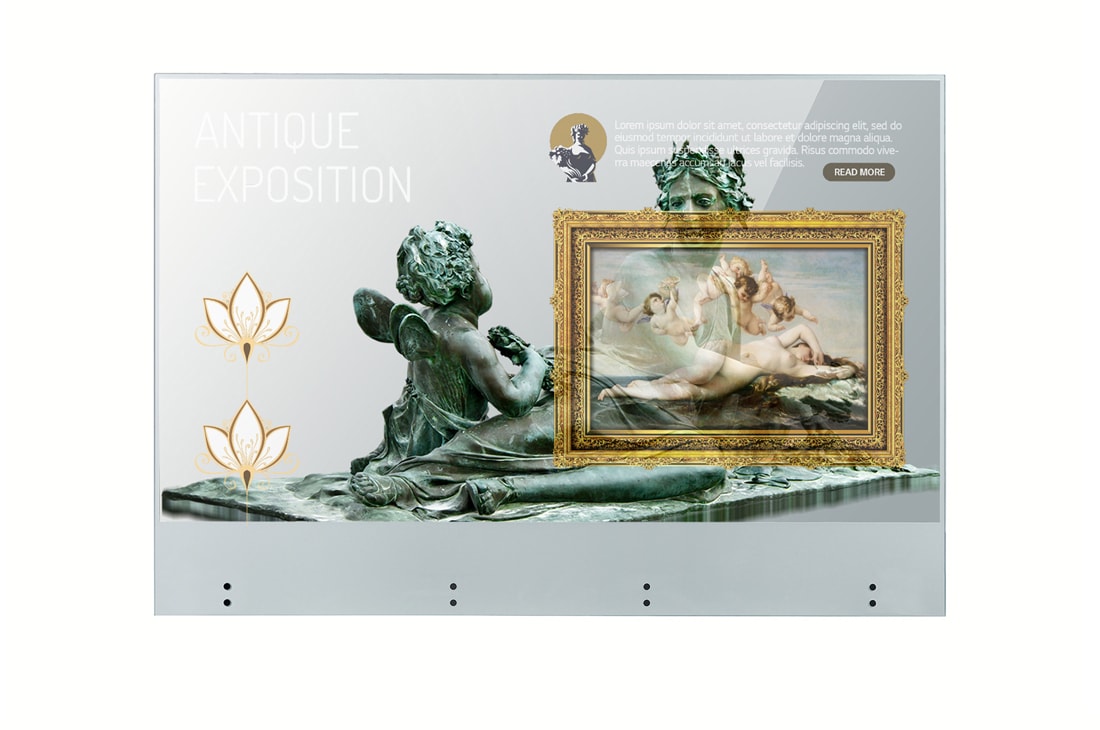

Transparent OLED Touch Signage

55EW5TK-A

Key Features

Learn More'

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)

Transparency(Typ.) : 33% (Set)

Bezel : 7.9 mm (T/B/L), 144.5 mm (B)

Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio

P-Cap Touch, Tempered Front Glass (3T)

Product specs

Explore Additional Savings

Questionnaire tooltip general description text

Each questionnaire coupon is valid for one use per product

Expand Collapse

Protect with LG Premium Care

Learn More'

Discounts with simultaneous purchase.

Learn More'

Lorem ipsum Neque porro quisquam est qui dolorem ipsum quia dolor sit amet, consectetur, adipisci velit..

Learn More'

Installation Plus

Learn More'

Delivery method

Learn More'

Additional Services

Learn More'

Preferred Delivery Date

Delivery time slot

Learn More'

Shipping options may vary by different type of product.
Shipping delays may occur due to the delivery company's circumstance, weather and traffic.

1Section 1
2Section 2

You are eligible for the following discount

Terms and Conditions

Select Yes to consent to the Terms and Conditions, and disclaimers

Yes No

T&C information

Are you sure you want to remove the coupon?

Transparent OLED Touch Signage

All Spec

PANEL

Screen Size (Inch): 55

Panel Technology: OLED

Back Light Type: OLED

Aspect Ratio: 16:9

Native Resolution: 1920 x 1080 (FHD)

Refresh Rate: 120Hz

Brightness: 150/400nit (APL 100%/25%, without Glass)

Contrast Ratio: 150,000:1

Dynamic CR: NO

Color Gamut: BT709 120%

Viewing Angle (H x V): 178º x 178º

Color Depth (Number of Colors): 1.07 Billion colors

Response Time: 1ms (G to G), 8ms (MPRT)

Surface Treatment (Haze): Haze 3% (SET)

Life time: 30,000Hrs (Typ.)

Operation Hours (Hours/Day): 18/7 (Moving Content Only)

Portait / Landscape: YES / YES

Transparency: 33% (SET)

QWP (Quarter Wave Plate): N/A

CONNECTIVITY

HDMI In: YES (1ea)

HDMI In (HDCP Ver.): 1.4

DP In: YES (HDCP 1.3)

DVI-D In: NO

RGB In: NO

Audio In: NO

RS232C In: YES

RJ45(LAN) In: YES (1ea)

IR In: YES

USB In: USB2.0 Type A (2ea)

HDMI Out: NO

DP Out: YES

Audio Out: YES

Touch USB: USB2.0 Type B (1ea)

External Speaker Out: NO

RS232C Out: YES

RJ45(LAN) Out: YES

IR Out: YES (Sharing RS232C Out)

Daisy Chain: NO

MECHANICAL SPECIFICATION

Bezel Color: Matt Silver

Bezel Width: T/R/L/B : 7.9/7.9/7.9/144.5mm

Weight (Head): 12.9Kg (Head) 3.4Kg (Signage Box)

Weight (Head+Stand): N/A

Packed Weight: 24.5Kg

Monitor Dimensions (W x H x D): 1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)

Monitor Dimension with Stand (W x H x D): N/A

Carton Dimensions (W x H x D): 1345 x 945 x 207mm

Handle: NO

VESA Standard Mount Interface: N/A

PROTECTION GLASS

Thickness: 3mm

Degree of Protection: N/A

Tempered / Chemical strengthening: Chemical strengthening

Anti-Reflective: YES

Infrared - Resistance (IR): N/A

Shatter-Proof: YES

FEATURE - HARDWARE

Internal Memory (eMMC): 16GB

Wi-Fi/BT (Built-in): NO

Temperature Sensor: YES

Auto Brightness Sensor: NO

Pixel Sensor: NO

Proximity Sensor: NO

Current Sensor: NO

BLU Sensor: NO

Humidity Sensor: NO

Acceleration(Gyro) Sensor: NO

Power Indicator: NO

Local Key Operation: NO

FAN (Built-in): NO

FEATURE - SOFTWARE

OS Ver. (webOS): webOS 4.0

Local Contents Scheduling: YES

Group Manager: YES

USB Plug & Play: YES

Fail over: YES

Booting Logo Image: NO

No Signal Image: NO

RS232C Sync: NO

Local Network Sync: NO

Backlight Sync: NO

PIP: NO

PBP: NO

Screen Share: NO

Video Tag: YES (4 Video Tag)

Play via URL: NO

Screen Rotation: YES

External Input Rotation: NO

Gapless Playback: YES

Tile Mode Setting: NO

Setting Data Cloning: YES

SNMP: YES

ISM Method: YES

Auto Set ID: YES

Status Mailing: YES

Control Manager: YES

Cisco Certification: NO

Crestron Connected: YES

Smart Energy Saving: NO

PM mode: YES

Wake on LAN: YES

Network Ready: NO

Beacon: NO

HDMI-CEC: YES

SI Server Setting: YES

webRTC: NO

Pro:Idiom: YES

Brightness Compensation: NO

W/B Setting by Grey scale: NO

Scan Inversion: NO

ENVIRONMENT CONDITIONS

Operation Temperature: 0 °C to 40 °C

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

POWER CONSUMPTION

Typ.: 84W (IEC 62087)

Max.: 300W

BTU (British Thermal Unit): 955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)

Smart Energy Saving (70%): N/A

DPM: 0.5W

Power off: 0.5W

SOUND

Speaker (Built-in): NO

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "A" / CE / KC

ERP / Energy Star: YES / NO

ePEAT(US only): NO

OPS COMPATIBILITY

OPS Type compatible: N/A

OPS Power Built-in: N/A

SOFTWARE COMPATIBILITY

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: NO

SuperSign Cloud: NO

Promota: NO

Mobile CMS: YES

Connected Care: YES

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea

Optional: NO

SPECIAL FEATURE

Overlay Touch Compatibility: N/A

Smart Calibration: N/A

Tilt (Face up): N/A

Tilt (Face down): N/A

IP Rating: N/A

Conformal Coating (Power Board): N/A

Power Protection: N/A

Direct Sunlight: N/A

DEDICATED FEATURE - TOUCH

Available Object Size for Touch: Ø12 mm ↑

Response Time ('Paint' app on Windows 10 PC): 120ms ↓

Accuracy (Typ.): 3.5mm

Interface: USB2.0

Protection Glass Thickness: 3mm (Anti-Reflective / Anti-Finger print)

Protection Glass Transmission: 84% (Typ.)

Operating System Support: Windows 8.1, Windows 10

Multi Touch Point: Max. 10 Points
