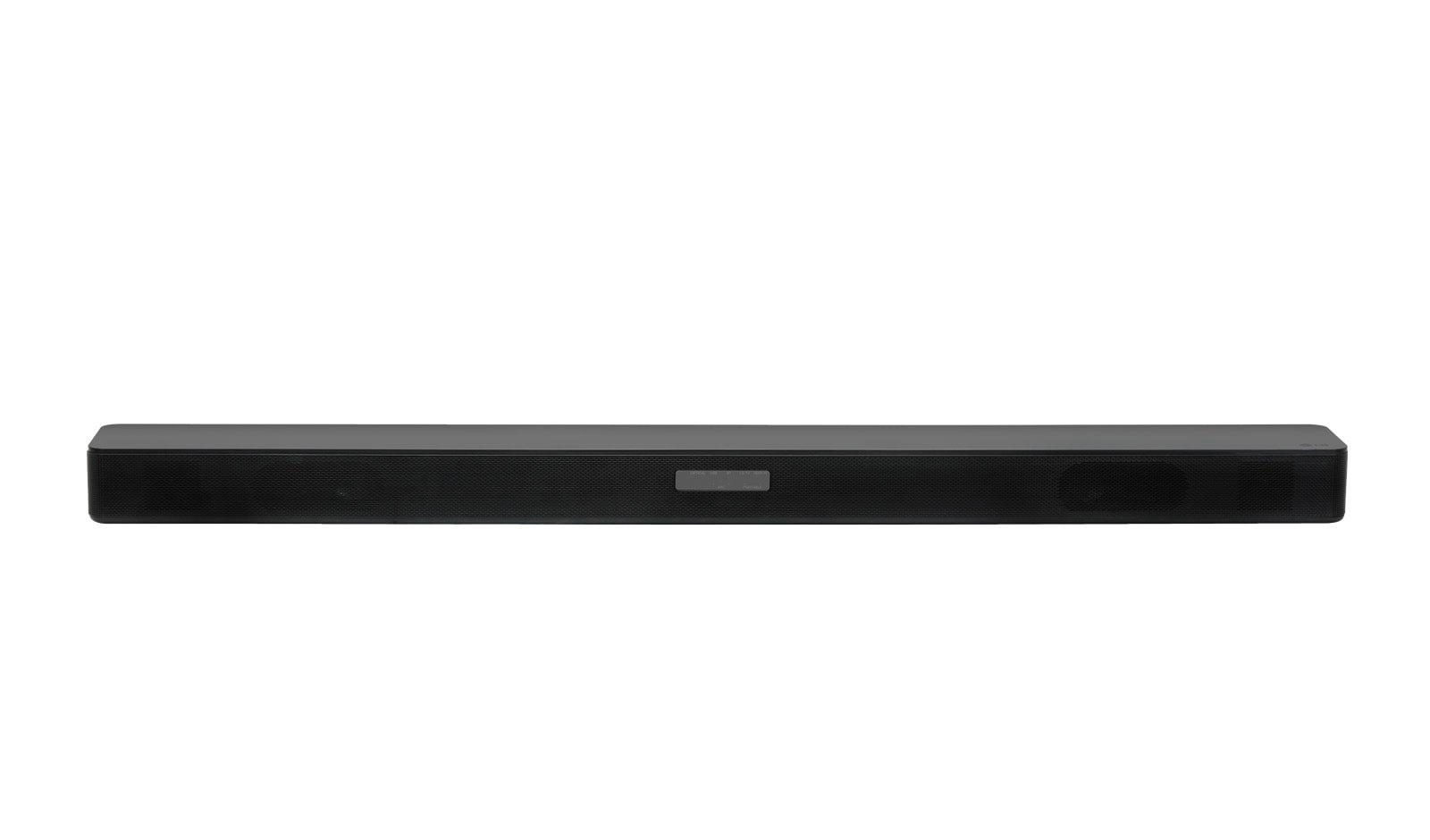

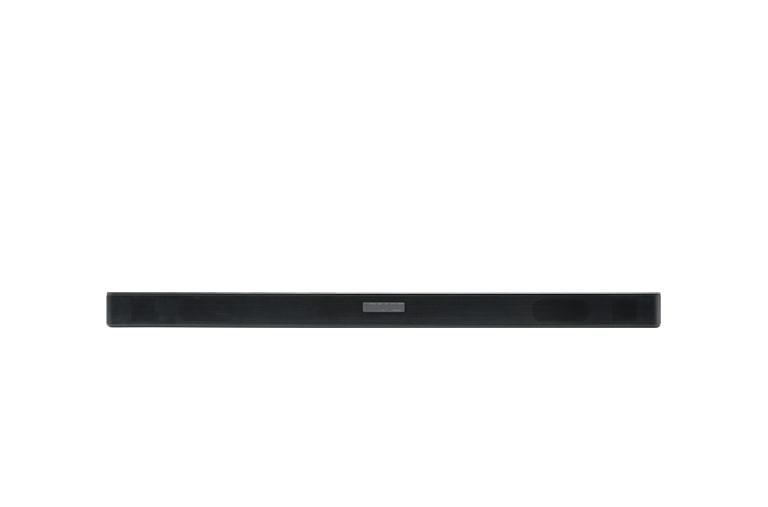

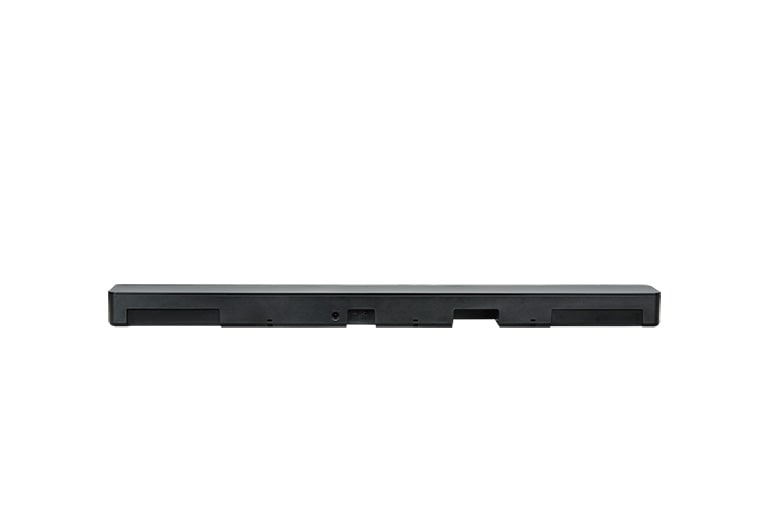

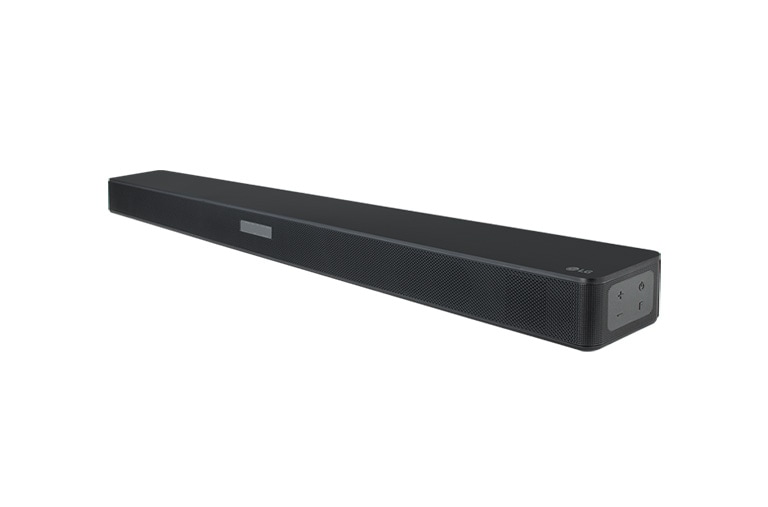

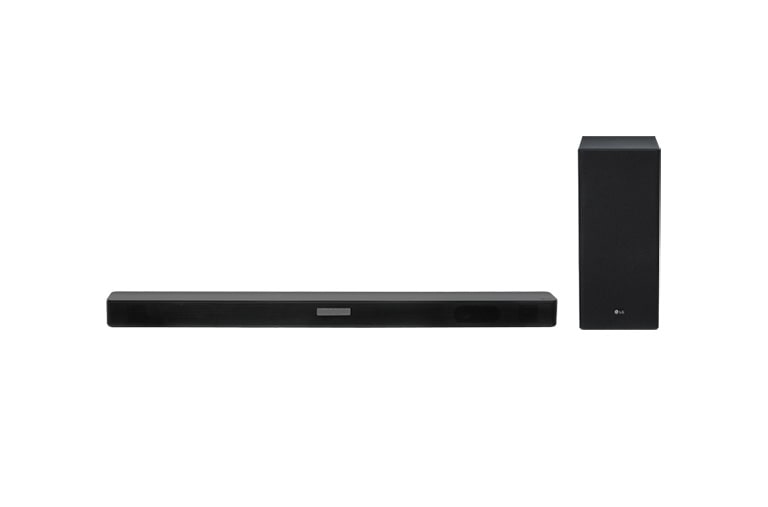

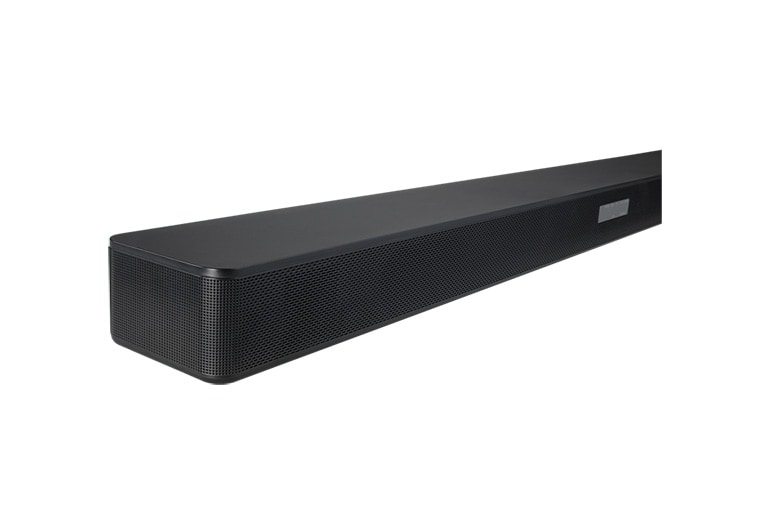

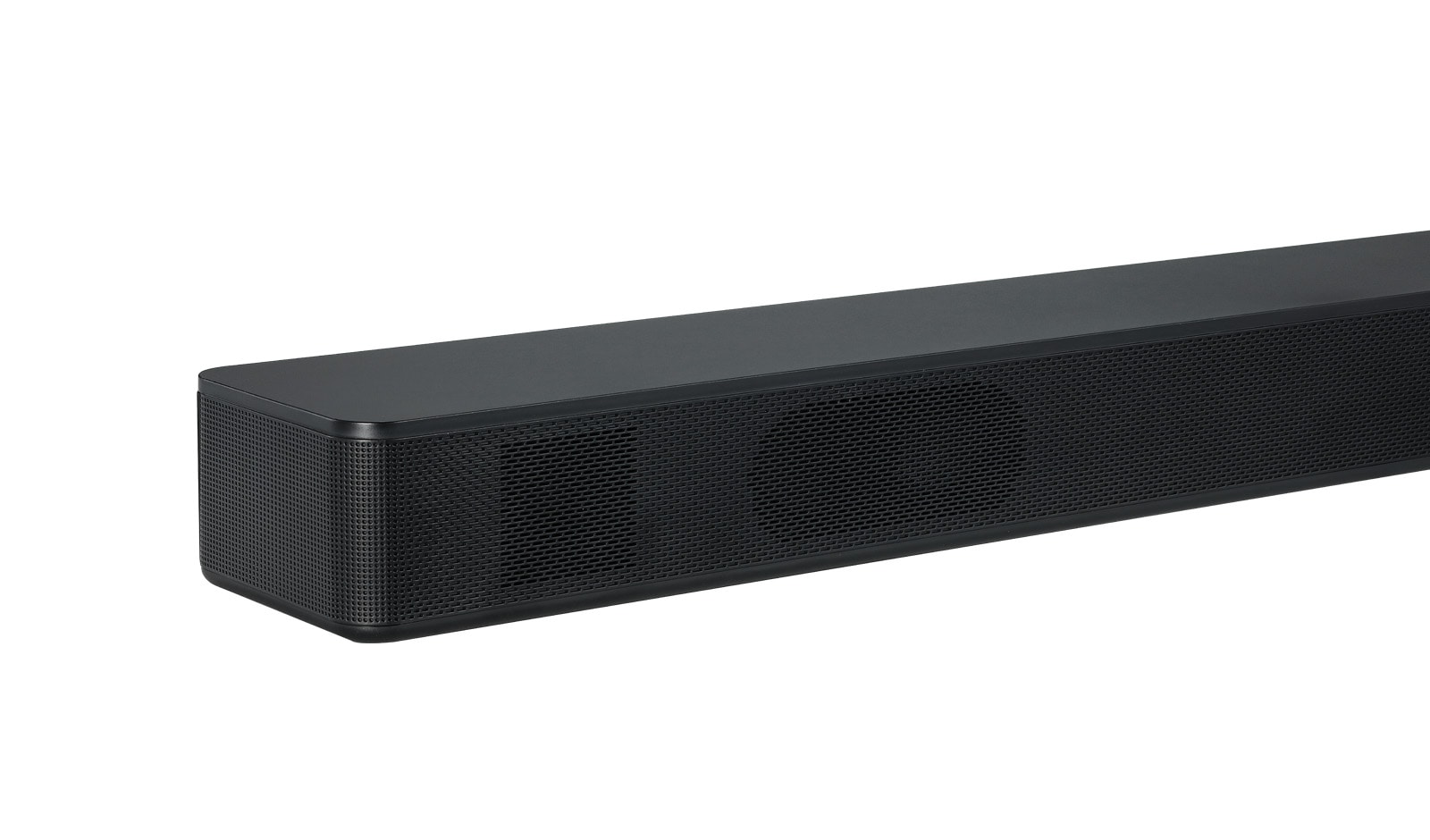

Size (W x H x D) mm - Main (w/ foot ) mm
891.0 x 57.5 x 87.8
Size (W x H x D) mm - Main (w/ foot ) mm Matching TV size ('18 New Designed LG TV)
40 inch ↑
Size (W x H x D mm) - Main (w/o foot ) mm (Built-in Foot (H) mm)
2

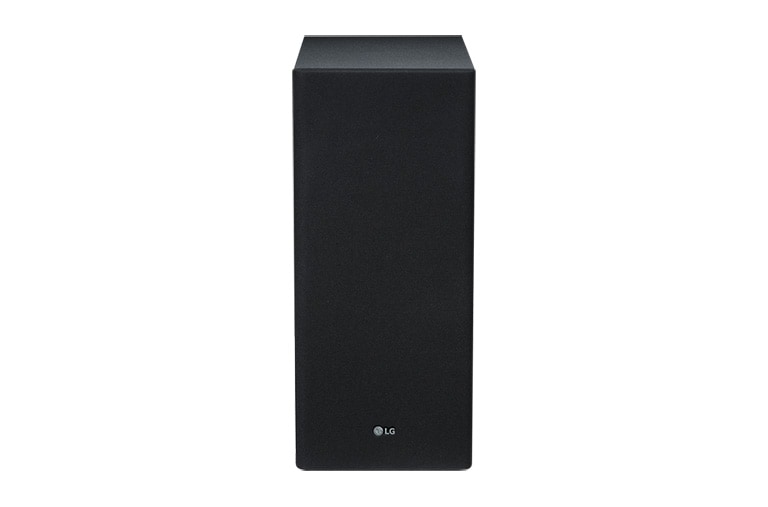

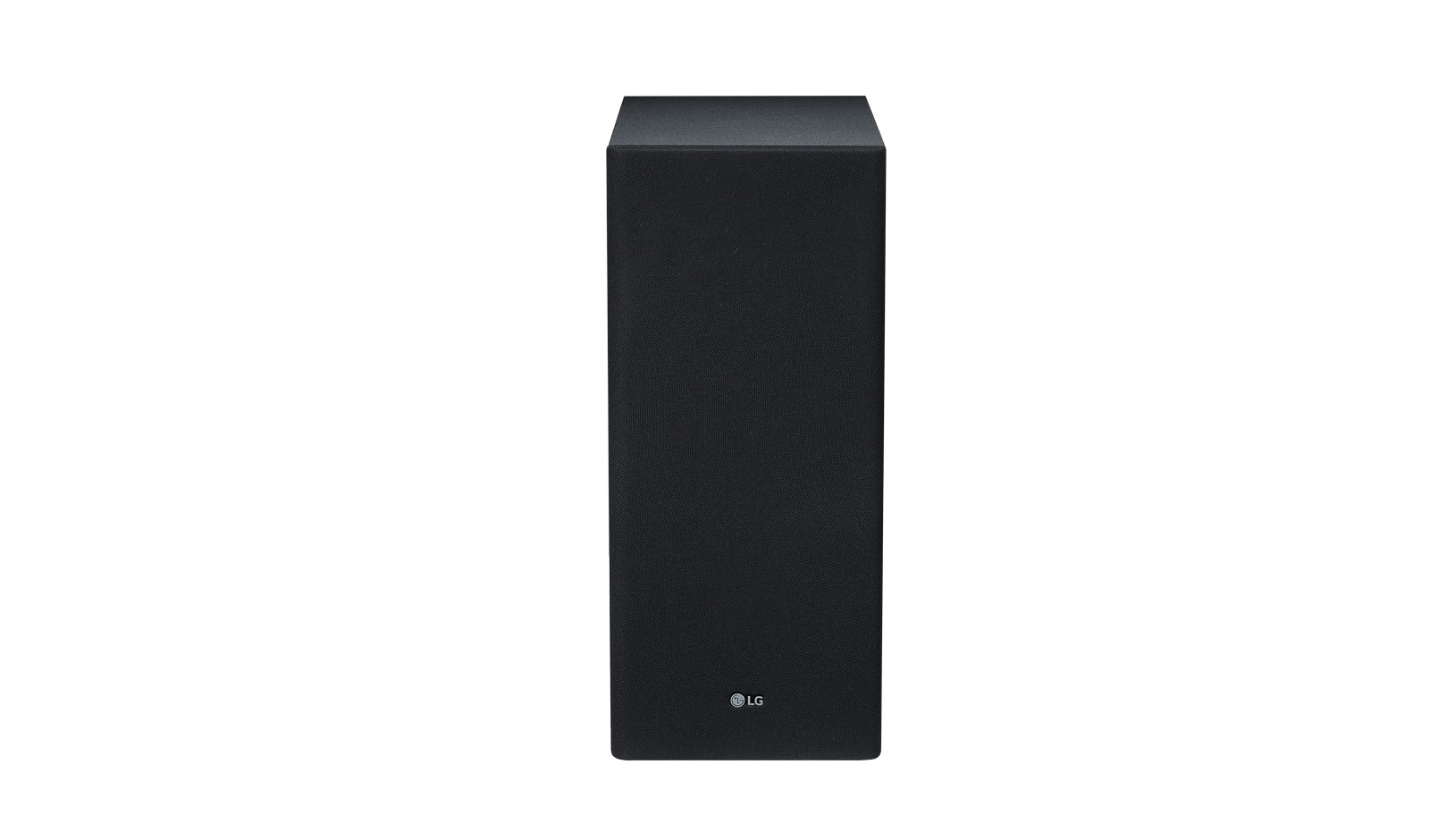

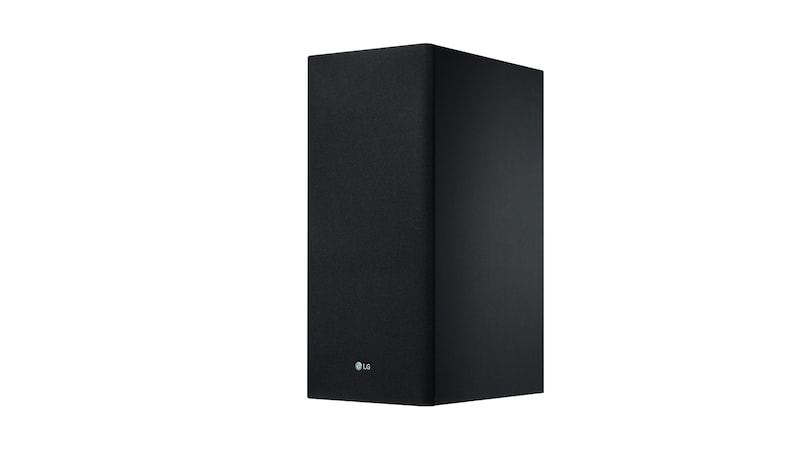

Size (W x H x D) mm - Subwoofer
171.0 x 393.0 x 248.5
Material - Mainset (Front)
Mold
Material - Mainset (Top / Bottom)
Mold
Material - Subwoofer (Front)
Jersey
Material - Subwoofer (Body)
Mold
Net Weight (Kg) - Main
2.35Kg
Net Weight (Kg) - Subwoofer
5.3Kg
Carton Size (W x H x D) mm
984 x 416 x 217
Carton Type
Offset
Gross Weight (Kg)
9.80Kg
Container Q'ty - 20ft
400
Container Q'ty - 40ft
960
Container Q'ty - 40ft (HC)
960
Channel
2.1ch
Output Power (THD 10%) - Total
360W
Output Power (THD 10%) - Front
80W X 2
Output Power (THD 10%) - Subwoofer
200W(Wireless)
Audio DAC - 24bit/96kHz
Yes
Main - SPL
82dB
Main - System
Closed
Main - Tweeter Unit - Front Only
20mm AL Dome
Main - Woofer Unit
40x100mm/4ohm
Main - Impedance
4ohm
Subwoofer - SPL
85dB
Subwoofer - System
Bass Reflex
Subwoofer - Woofer Unit
6 inch
Subwoofer - Impedance
3ohm
General - Audio Input (Portable In (3.5Ø))
Yes
General - Optical
Yes(1)
General - HDMI 1.4 (HDCP 1.4) (In / Out)
Yes(1) / Yes(1)
General - USB
Yes
Wireless - Bluetooth (ver. 4.0)
Yes
Display Type
Dot LED
LED indicator Color
Red (Stand By) + White (5)
Hi-Res Audio - Sampling (24bit/96kHz)
Yes
Sound Effect - ASC (Adaptive Sound Control)
Yes
Sound Effect - Standard
Yes
Sound Effect - Bass Blast
Yes (Bass Blast+)
Sound Effect - DTS Virtual X
Yes
Tone control - User EQ
Yes
Night Mode - On/Off
Yes
Auto Sound Engine - Default
Yes
SFX - Default
Yes
Dynamic Range Control - On/Off
Yes
Smart Phone & Tablet Remote App - iOS / Android OS
Yes
Smart Phone & Tablet Remote App - Update manager (FOTA)
Yes
Smart Phone File Playback
Yes
Control with your TV Remote - Vol + , - , Mute
Yes
Sound Sync - Bluetooth (LG TV)
Yes
Sound Sync - Optical
Yes
Automatic Power on/off - Bluetooth (LG TV)
Yes/Yes
Automatic Power on/off - Optical
Yes/Yes
SIMPLINK
Yes
Audio Return Channel (ARC)
Yes
Woofer Level - -15 ~ +6dB
Yes
Mute
Yes
Auto Dimmer
Yes
USB Host
Yes
Bluetooth Stand-By
Yes
LPCM
Yes
Dolby Digital
Yes
DTS Digital Surround
Yes
DTS Virtual X
Yes
FLAC - Up to 192kHz
Yes
OGG - Up to 48kHz
Yes
WAV
Yes
MP3
Yes
WMA
Yes
AAC / AAC+ - Bluetooth
Yes
Main - Type (Adaptor)
25V, 2A
Main - Power Off Consumption
0.5W ↓
Main - Power Consumption
26W
Subwoofer - Type (SMPS)
100~240V, 50/60Hz
Subwoofer - Power Off Consumption
0.5W ↓
Subwoofer - Power Consumption
33W
Subwoofer - Wireless Frequency
5.8GHz
Owners Manual - Web
Yes (Full)
Owners Manual - Book
Simple / Yes
Owners Manual - Wall Mount Guide
Yes
Owners Manual - Open Source : X / Yes (Full / Simple)
Yes (Full)
Remote Control Unit - Model Name
MA7
Remote Control Unit - Battery(Size)
AAA x 2
Batteries
Yes
Warranty Card
Yes
Optical Cable
Yes
Wall Mount Bracket
Yes
Box Type
Offset
