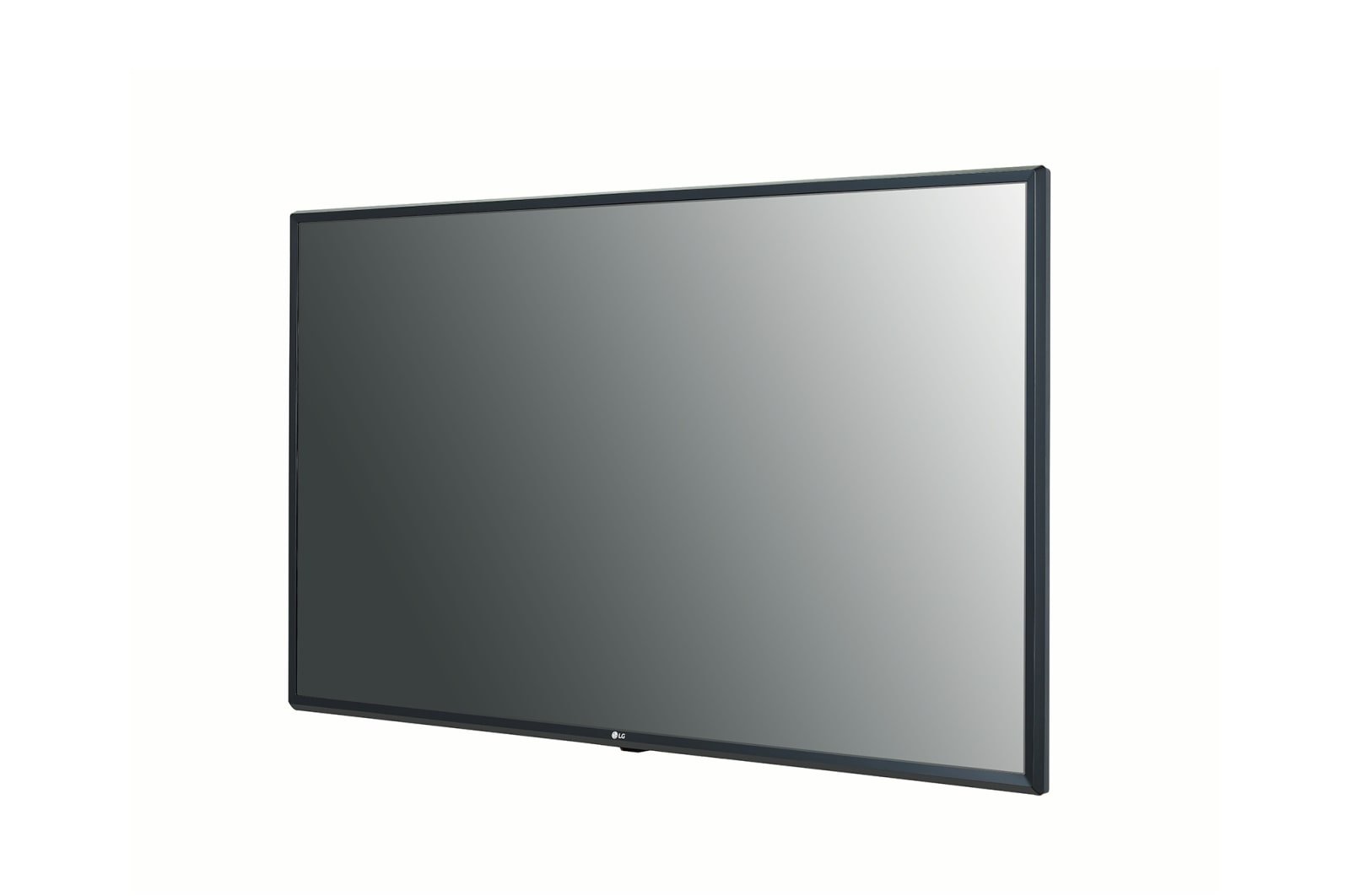

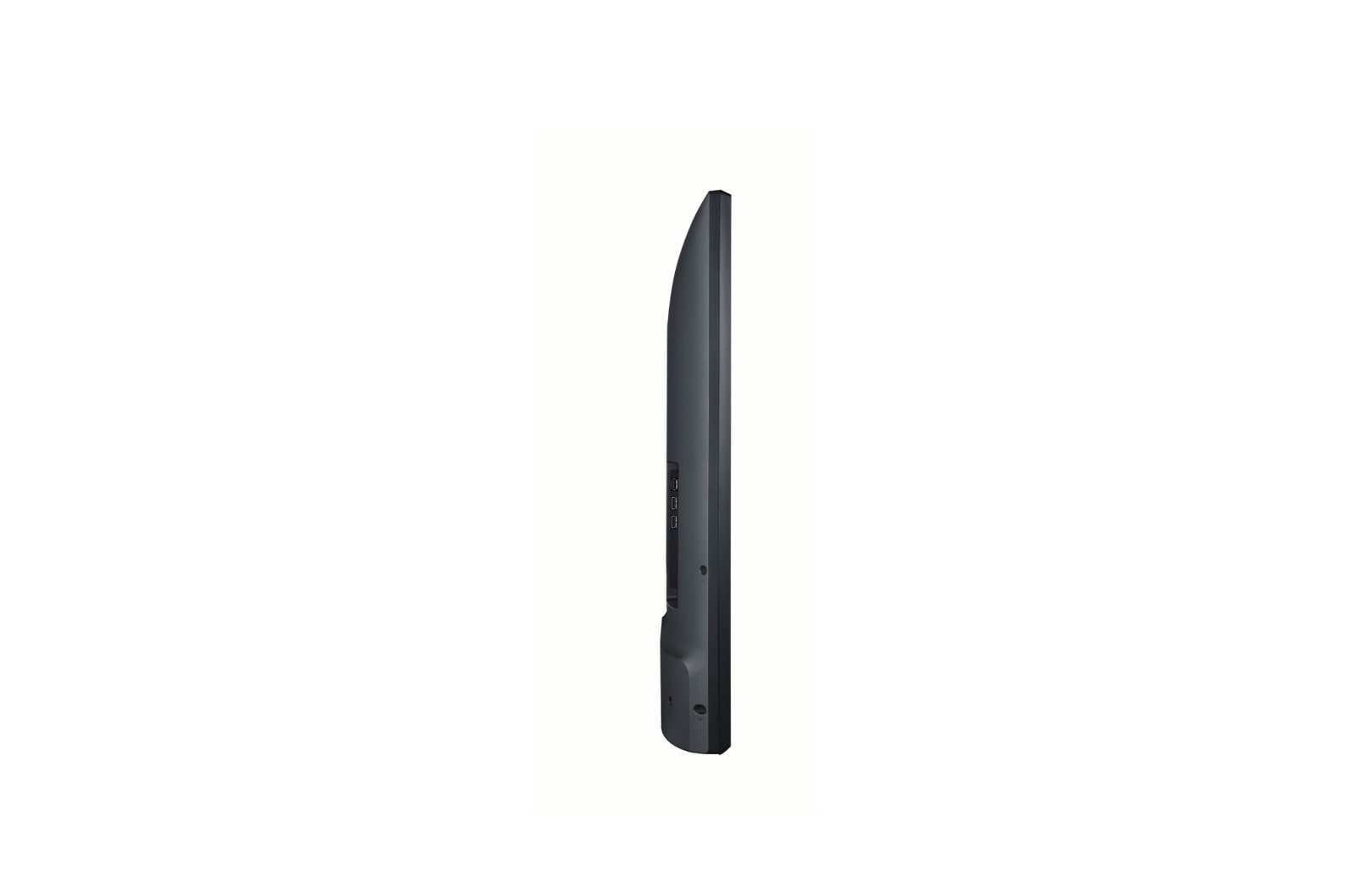

49UT662M0GC

UT662M Series

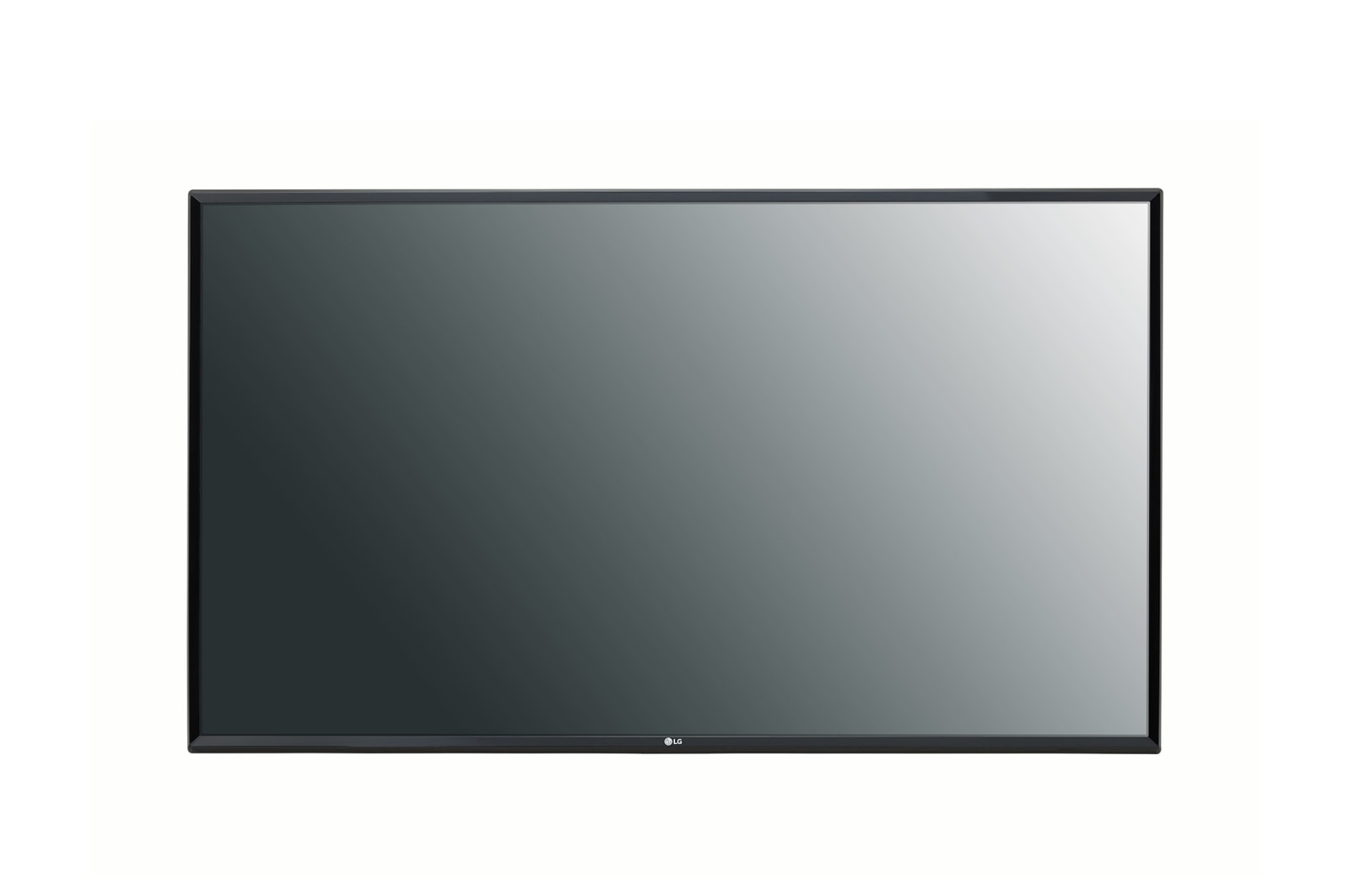

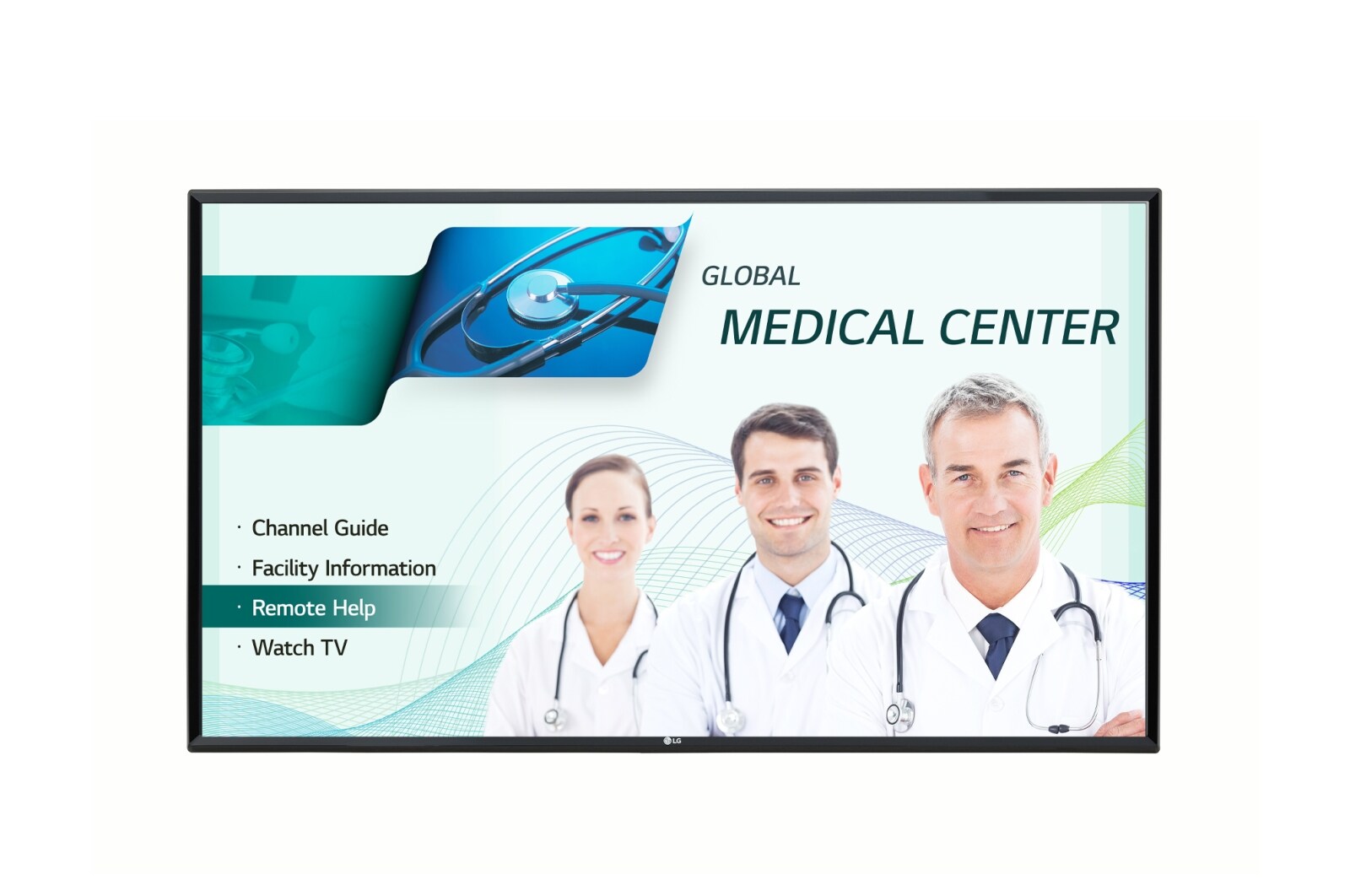

Front view with infill image

UL-Listed Hospital TVs with UHD Content Delivery

The UT662M Hospital TV series provides a cost-effective solution designed for patients and staff. All features including pillow speaker support with UL certification, are designed for patient-oriented care, meeting the specific needs of hospitals.

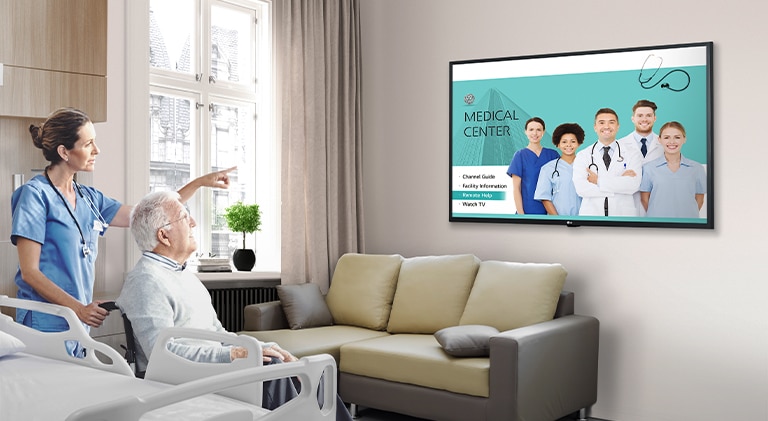

A TV is installed on the hospital room’s wall, and a nurse points to it while explaining to the patient.

*Actual product appearance may differ from the image above.

Hospital-Focused Functions

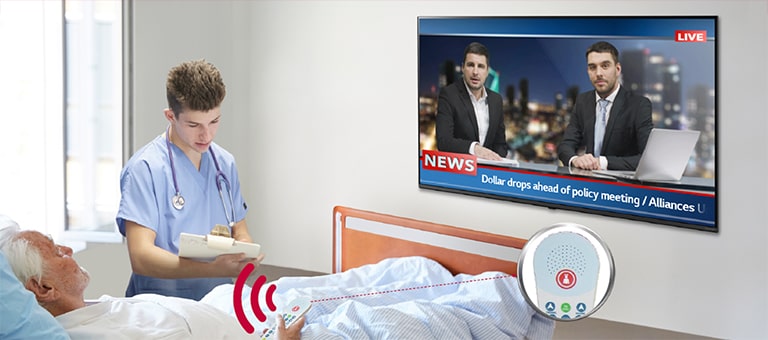

A patient lying in the bed is controlling the TV through a pillow speaker connected to the UT662M.

Pillow Speaker Ready

The hospital TV is equipped with the interface compatible with a pillow speaker* which controls sound and videos on TV directly from a patient’s bedside.* Pillow speaker is not provided by LG. (sold separately)

Nurse Call System Ready

Through nurse call system provided by a pillow speaker connected to LG hospital TV, staff can be called immediately for emergency.

  •

UL Hospital Grade Listed

The UT662M series is designed for the healthcare and hospital environment, meeting safety requirements by UL.

Pro:Centric
Hospital Management Solution

The hospital content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the hospital.

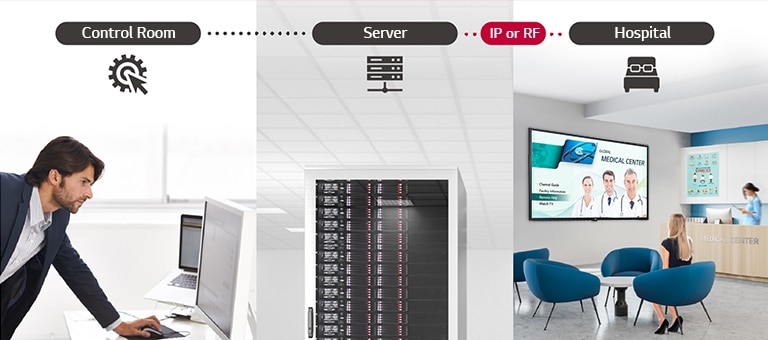

A man is managing some contents and settings of TV in the hospital using Pro:Centric Direct solution through server.

Pro:Idiom

Pro:Idiom

The UT662M provides embedded Pro:Idiom decryption, unlocking access to high-value digital content with Pro:Idiom DRM (Digital Right Management) which prevents illegal copying of the content.

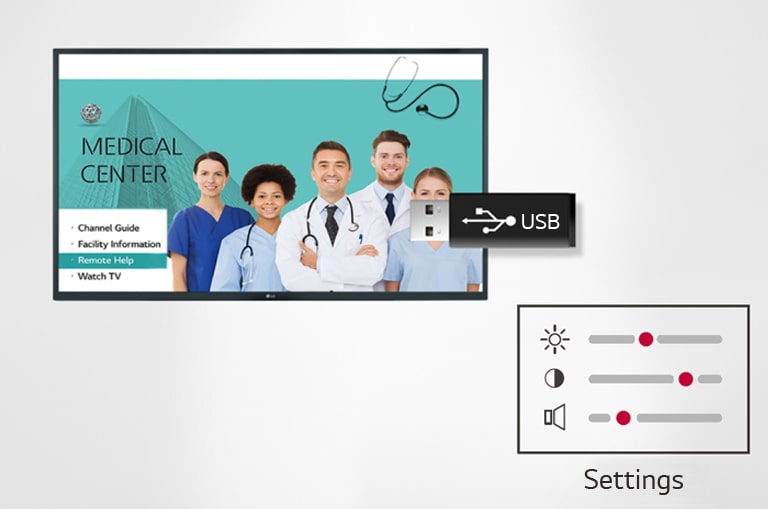

Setting data of the display can be stored on USB and transmitted to other displays.

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and be sent to the other displays through a USB plug-in.

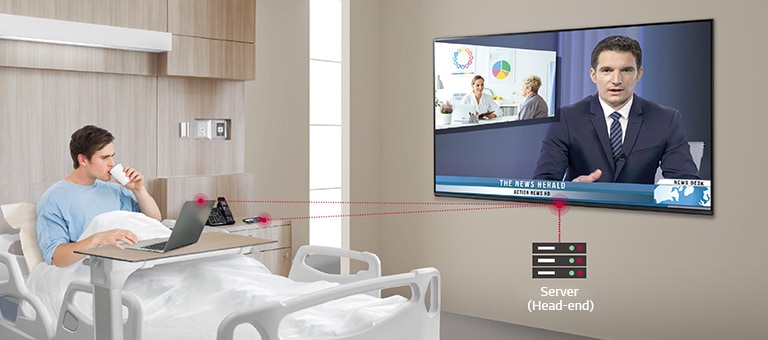

Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling patients to connect their own devices to the Soft AP. It supports Bridge Mode, allowing administrators to manage in-room Soft AP information such as signal level, Soft AP passwords, etc.

With the Virtual Wi-Fi feature, tablets, mobiles, and laptops can easily be connected to the TV.

*Soft AP should be set in the installation menu after the TV is turned on.
**Smart Mirroring may not be operated at the same time.

A woman is controlling TV by speaking to a remote control which has voice recognition.

Voice Recognition

Thanks to the embedded Natural Language Processing on webOS, Voice recognition* allows users to easily control LG hospital TV simply using their voices.

*Magic Motion Remote is required. (sold separately).

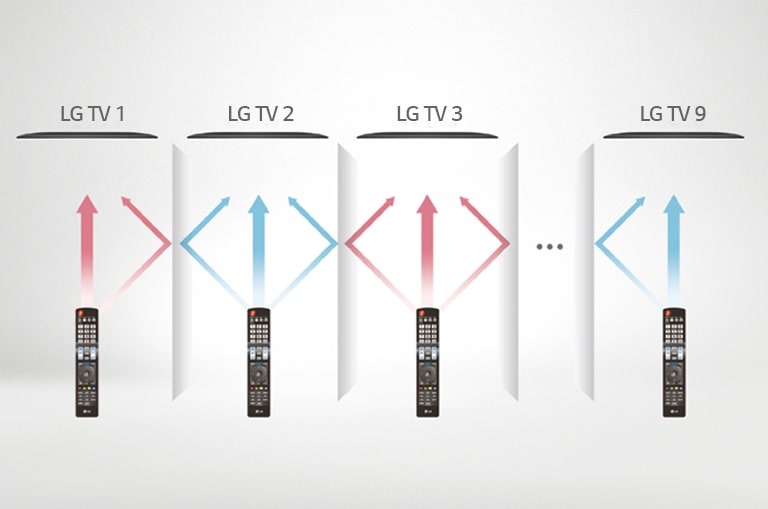

Each remote control only controls a designated TV without tangling each other.

Multi IR

Multi IR* function eliminates the signal interference of remote controls that occurs between multiple TVs in one place. LG hospital TV supports this, so users can freely control their own TVs without disturbing the others.

*Separately purchased multi-IR remote controller.

All Spec

VERTICAL FUNCTION (HOSPITAL)

  • Pillow Speaker

    YES

INFO

  • Category

    Pro:Centric Smart

POWER SPEC.

  • Power Consumption(Max)

    145W

  • Power Consumption(Typ)

    120W

  • Power Supply (Voltage, Hz)

    AC 100~240V 50/60Hz

  • Standby Power Consumption

    Under 0.5W

STANDARD

  • EMC

    CE

  • Safety

    CB, UL Hospital

ACCESSORIES

  • Power Cable

    YES (1.55M / Angle Type)

  • Remote type

    S-Con / MMR (Option)

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

BROADCASTING SYSTEM

  • Analog (NTSC / SECAM / PAL)

    SECAM / PAL

  • Digital

    DVB-T2/C/S2

  • Teletext (Auto Teletext)

    YES

AUDIO (SOUND)

  • AI Acoustic Tuning

    YES (Ready, MMR Required)

  • LG Sound Sync

    YES

  • Speaker (Audio Output)

    20W

DISPLAY

  • Brightness (Typ.)

    400 nit

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Size (Inch)

    49

MECHANICAL

  • Credenza/Security Screw Hole

    YES (Need Stand)

  • Kensington Lock

    YES

  • Lock Down Plate (for easy installing)

    YES (Need Stand)

  • VESA Compatible

    55/49"" : 300 x 300 mm 50/43"" : 200 x 200 mm

HOSPITALITY SOLUTION

  • Pro:Centric Direct

    YES

  • Pro:Centric Server

    YES

  • Pro:Centric Smart

    YES

  • Pro:Centric V

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

  • Quick Menu (Customizable Portal)

    YES

  • webRTC (Real Time Communication)

    YES

DIMENSIONS/WEIGHT

  • Bezel Width (L/R/U/B, Off Bezel)

    16.6/16.6/16.6/21.3 mm

  • Bezel Width (L/R/U/B, On Bezel)

    18.1/18.1/18.1/22.8 mm

  • Dimension in Shipping (W x H x D)

    1193 x 770 x 158 mm

  • Dimension without Stand (W x H x D)

    1110 x 650 x 81.1 mm

  • Weight in Shipping

    13.2 kg

  • Weight without Stand

    11.1 kg

HOSPITALITY FEATURE

  • Diagnostics

    YES (IP Remote)

  • Energy Saving mode

    YES

  • EzManager

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • HTNG-CEC (Version)

    YES (1.4)

  • Insert Image

    YES

  • Instant ON

    YES

  • IR Out

    YES (RS-232C, HDMI)

  • Lock mode

    YES (Limited)

  • Multi IR Code

    YES

  • One Channel Map

    YES

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • SNMP

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • Welcome Screen (Splash Image)

    YES

  • Welcome Video

    YES

  • WOL

    YES

CONNECTIVITIES

  • Digital Audio Out (Optical)

    YES

  • HDMI In

    YES (2ea)

  • LG SVC only (Phone jack type)

    YES

  • Pillow Speaker interface (6pin)

    YES

  • RF In

    YES (2ea)

  • RJ45 (Usage Purpose)

    1 (Ethernet)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

  • USB (Ver.)

    YES (2ea / 2.0)

SMART FUNCTION

  • Bluetooth

    YES

  • Bluetooth Audio Playback

    YES

  • HDMI-ARC

    YES (HDMI2)

  • IoT

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Screen Share

    YES

  • Soft AP

    YES

  • Voice Recognition (Standalone/Solution)

    YES

  • webOS version

    webOS 4.5

  • Web Browser

    YES

  • Wi-Fi

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • BEACON

    YES

  • NTP sync timer

    YES

  • RTC (Real Time Clock)

    YES

DESIGN

  • Front Color

    Ceramic BK

  • Stand Type

    No Stand (For Accessory : 1Pole) * 32~55" : Swivel / Others : Fixed

  • Tool Name

    UK63
