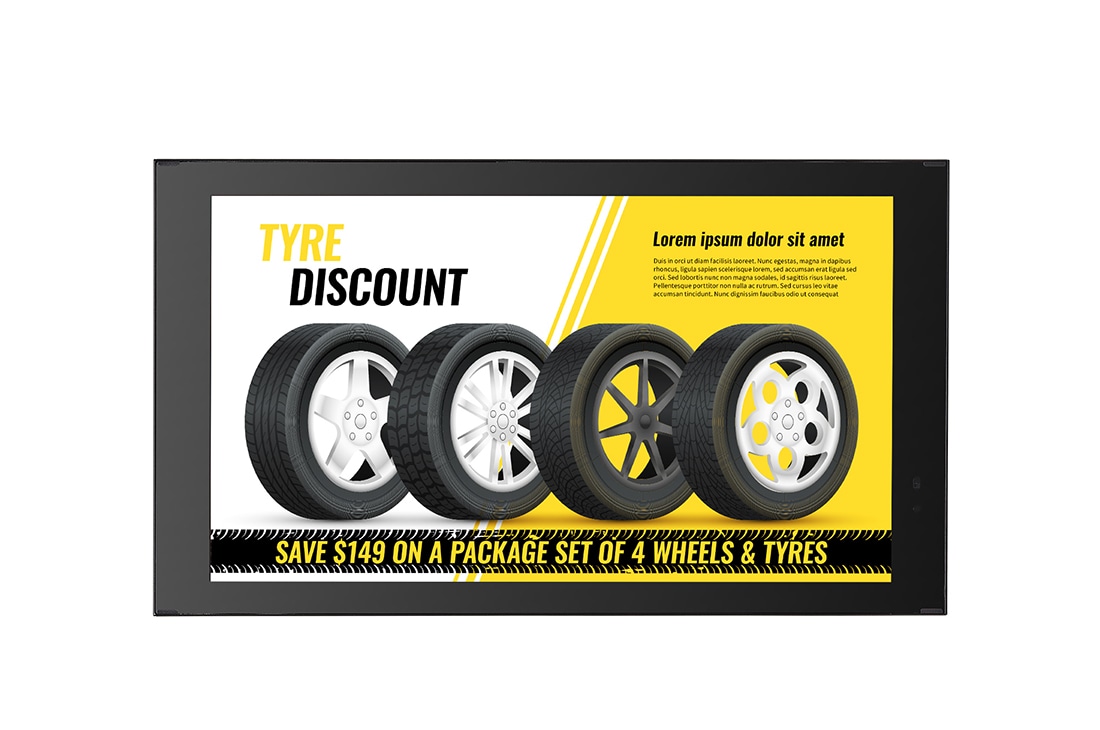

1,500nits FHD IP-rated Outdoor Display

22XE1J-B

Key Features

Brightness (Typ, w/ Glass) : 1,500 nits
IP56 Rated Dust / Water Proof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Web-based Monitoring Solution

All Spec

ACCESSORY

Basic: Remote Controller(including battery 2ea), Power Cord, Manual (EIG, IG), RS-232C Gender

Optional: NO

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

SOUND

Speaker (Built-in): NO

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

CERTIFICATION

EMC: FCC Class "A" / CE / KC / VCCI

ePEAT(US only): NO

ERP / Energy Star: YES / NO

Safety: CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity: 5 % to 100 %

Operation Temperature: -30 °C to 50 °C

OPS COMPATIBILITY

OPS Power Built-in: NO

OPS Type compatible: NO

POWER CONSUMPTION

BTU (British Thermal Unit): 290 BTU/Hr(Typ.), 392 BTU/Hr(Max.)

DPM: 0.5W

Max.: 115W

Power off: 0.5W

Typ.: 85W (Full White) 36W (IEC 62087)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): N/A

Available Object Size for Touch: N/A

Interface: N/A

Multi Touch Point: N/A

Operating System Support: N/A

Protection Glass Thickness: N/A

Protection Glass Transmission: N/A

Response Time ('Paint' app on Windows 10 PC): N/A

MECHANICAL SPECIFICATION

Weight (Head): 8.3Kg

Bezel Color: Black

Bezel Width: 38.3mm(R/L), 24.0mm(T/B)

Carton Dimensions (W x H x D): 632 x 394 x 187mm

Handle: NO

Monitor Dimensions (W x H x D): 557.3 x 319.8 x 65mm

Monitor Dimension with Stand (W x H x D): N/A

Packed Weight: 10Kg

VESA Standard Mount Interface: 100 x 100 mm

Weight (Head+Stand): N/A

PANEL

Aspect Ratio: 16:9

Back Light Type: Edge

Brightness: 1,500nit (Typ., with Glass)

Color Depth (Number of Colors): 16.7 Million colors

Color Gamut: NTSC 72%

Contrast Ratio: 1,000:1 (Typ.)

Dynamic CR: 800,000:1

Life time: 70,000Hrs (Typ.)

Native Resolution: 1920 x 1080 (FHD)

Operation Hours (Hours/Day): 24/7

Panel Technology: IPS (AHVA)

Portait / Landscape: YES / YES

QWP (Quarter Wave Plate): YES

Refresh Rate: 60Hz

Response Time: 25ms (G to G)

Screen Size (Inch): 21.5

Surface Treatment (Haze): Haze 25%

Transparency: N/A

Viewing Angle (H x V): 178º x 178º

PROTECTION GLASS

Anti-Reflective: YES

Degree of Protection: N/A

Infrared - Resistance (IR): YES

Shatter-Proof: YES

Tempered / Chemical strengthening: Tempered strengthening

Thickness: 2mm

CONNECTIVITY

Audio In: NO

Audio Out: NO

Daisy Chain: NO

DP In: NO

DP Out: NO

DVI-D In: NO

External Speaker Out: YES

HDMI In: YES (2ea)

HDMI In (HDCP Ver.): 2.2/1.4

HDMI Out: NO

IR In: NO

IR Out: NO

RGB In: NO

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: NO

RS232C In: YES

RS232C Out: NO

Touch USB: NO

USB In: USB2.0 Type A (1ea)

SPECIAL FEATURE

Conformal Coating (Power Board): YES

Direct Sunlight: YES

IP Rating: IP56

Overlay Touch Compatibility: N/A

Power Protection: N/A

Smart Calibration: N/A

Tilt (Face down): Max. 15 degree

Tilt (Face up): N/A

SOFTWARE COMPATIBILITY

Connected Care: YES

Mobile CMS: NO

Promota: YES

SuperSign Cloud: NO

SuperSign CMS: YES

SuperSign Control+: YES

SuperSign WB: NO

FEATURE - HARDWARE

Acceleration(Gyro) Sensor: YES

Auto Brightness Sensor: YES

BLU Sensor: NO

Current Sensor: NO

FAN (Built-in): YES

Humidity Sensor: YES

Internal Memory (eMMC): 16GB

Local Key Operation: NO

Pixel Sensor: NO

Power Indicator: YES

Proximity Sensor: NO

Temperature Sensor: YES

Wi-Fi/BT (Built-in): YES

FEATURE - SOFTWARE

Auto Set ID: NO

Backlight Sync: NO

Beacon: NO

Booting Logo Image: YES

Brightness Compensation: NO

Cisco Certification: NO

Control Manager: YES

Crestron Connected: NO

External Input Rotation: YES

Fail over: YES

Gapless Playback: YES

Group Manager: YES

HDMI-CEC: YES

ISM Method: YES

Local Contents Scheduling: YES

Local Network Sync: YES

Network Ready: YES

No Signal Image: YES

OS Ver. (webOS): webOS 4.1

PBP: NO

PIP: NO

Play via URL: YES

PM mode: YES

Pro:Idiom: YES

RS232C Sync: NO

Scan Inversion: NO

Screen Rotation: YES

Screen Share: NO

Setting Data Cloning: YES

SI Server Setting: YES

SNMP: YES

Status Mailing: YES

Tile Mode Setting: NO

USB Plug & Play: YES

Video Tag: YES (4 Video Tag)

Wake on LAN: YES

webRTC: YES

W/B Setting by Grey scale: NO
