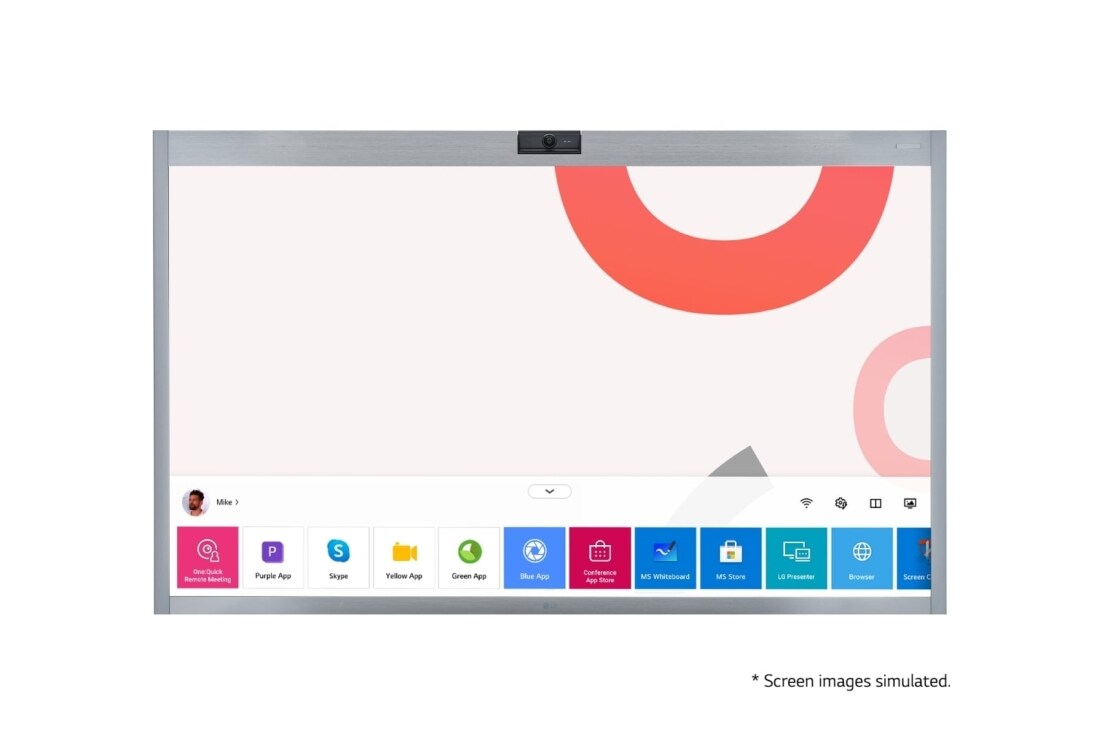

One:Quick Works for Zoom Rooms

55CT5WJ

Key Features

Resolution : 4K Ultra HD (3,840 x 2,160)
Brightness : 450 nit
BuIlt-in 4K Camera & Microphone
Sound (10W + 10W)
In-Cell Touch (Max. 10 Points)
Windows 10 IoT Enterprise (Value)
Zoom Rooms App Preloaded

All Spec

ACCESSORY

Basic: HDMI Cable, Remote Controller(include battery 2ea), Touch Pen, Pen tip, Manual, Regulation Book, Warranty Card, IG

Optional: 2 pole Stand(ST-653TW)

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-in Power

SOUND

Speaker (Built-in): YES (10W x 2)

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ENVIRONMENT CONDITIONS

Operation Humidity: 10 % to 80 %

Operation Temperature: 0 °C to 40 °C

OPS COMPATIBILITY

OPS Power Built-in: NO

OPS Type compatible: NO

CERTIFICATION

EMC: FCC Class "B" / CE

ePEAT(US only): NO

ERP / Energy Star: YES / Energy Star 8.0

Safety: CB / NRTL

DEDICATED FEATURE - TOUCH

Accuracy (Typ.): 3.5mm

Available Object Size for Touch: Ø8 mm

Interface: USB1.1

Multi Touch Point: Max. 10 Points

Operating System Support: Windows 10 or higher

Protection Glass Thickness: N/A

Protection Glass Transmission: N/A

Response Time ('Paint' app on Windows 10 PC): 35ms ↓

MECHANICAL SPECIFICATION

Weight (Head): 26Kg

Bezel Color: Silver

Bezel Width: T/R/L/B : 57.2/26.2/26.2/28.9mm

Carton Dimensions (W x H x D): 1372 x 903 x 168mm (without Stand)

Handle: NO

Monitor Dimensions (W x H x D): 1265 x 769.5 x 61.8mm

Monitor Dimension with Stand (W x H x D): 1265 x 815 x 290mm

Packed Weight: 31Kg

VESA Standard Mount Interface: 300 x 300 mm

Weight (Head+Stand): 26.6Kg

PANEL

Aspect Ratio: 16:9

Back Light Type: Edge

Brightness: 450nit (Typ.)

Color Depth (Number of Colors): 1.07 Billion colors

Color Gamut: NTSC 72%

Contrast Ratio: 1,000:1

Dynamic CR: NO

Life time: 50,000Hrs (Min.)

Native Resolution: 3840 x 2160 (UHD)

Operation Hours (Hours/Day): 24/7

Panel Technology: IPS

Portait / Landscape: NO / YES

Refresh Rate: 60Hz

Response Time: 9ms (G to G)

Screen Size (Inch): 55

Surface Treatment (Haze): Haze 12%

Viewing Angle (H x V): 178º x 178º

CONNECTIVITY

Audio In: NO

Audio Out: NO

DP In: YES (USB Type C)

DP Out: YES (USB Type C)

DVI-D In: NO

External Speaker Out: NO

HDMI In: YES (2ea)

HDMI In (HDCP Ver.): 2.2/1.4

HDMI Out: NO

IR In: NO

RGB In: NO

RJ45(LAN) In: YES (1ea)

RJ45(LAN) Out: NO

RS232C In: NO

RS232C Out: NO

Touch USB: NO

USB In: USB3.1 Type A (2ea), USB Type C (1ea)

SPECIAL FEATURE

Conformal Coating (Power Board): N/A

Direct Sunlight: N/A

IP Rating: N/A

Overlay Touch Compatibility: N/A

Power Protection: N/A

Smart Calibration: N/A

Tilt (Face down): N/A

Tilt (Face up): N/A

DEDICATED FEATURE - ONE:QUICK

Bluetooth: Bluetooth 5.0

Built-in Apps: Chrome, Skype (Preloaded) MS Whiteboard (Download link)

Camera_Field of View (FoV): 120°

Camera_Resolution: 3840 x 2160 (UHD)

Camera_Video Framing: YES

Camera_Zoom (ePTZ): 4x Zoom

Cloning: NO

Compatibility One:Quick Share: YES

CPU: AMD Ryzen Embedded V1605B

File Sharing: YES

Graphic: AMD Radeon Vega

Home Dashboard: NO

Launcher Bar: YES

Meeting(Voice) Record: YES

Memory(RAM): 8GB

MIC_Array: 10ea

MIC_Beamforming: YES

MIC_Pickup Range: 6m

One:Quick Remote Meeting: YES

OS ver.: Windows 10 IOT Enterprise (Value)

Reader Mode (Bluelight): YES

Screen Capture: YES

SplitView_Customized Template: NO

SplitView_Full / Half: YES

Storage: 128GB

Warranty: 3 Years (Panel) 1 Year (PC Board)

Wi-Fi: 802.11ac

SOFTWARE COMPATIBILITY

Connected Care: NO

FEATURE - HARDWARE

Acceleration(Gyro) Sensor: NO

Auto Brightness Sensor: YES

BLU Sensor: NO

Current Sensor: NO

Humidity Sensor: NO

Local Key Operation: YES

Pixel Sensor: NO

Power Indicator: NO

Proximity Sensor: NO

Temperature Sensor: YES

POWER CONSUMPTION

DPM: 0.5W

Max.: 245W

Power off: 0.5W

Smart Energy Saving (70%): 30±10% (for HDMI1/2)

Typ.: 127W

FEATURE - SOFTWARE

HDMI-CEC: YES

Smart Energy Saving: YES

Wake on LAN: YES
