- Operation for Multiple Rooms, Simultaneous Cooling & Heating
- E.S.P. (External Static Pressure) Control
- Two Thermistors Control to Optimize Indoor Air Temperature
- Minimized Height for Installation in Limited Space
All Spec
CAPACITY
Cooling¹ (Min. ~ Rated ~ Max.) (kW)
5.61~13.75~15.82
Cooling¹ (Min. ~ Rated ~ Max.) (Btu/h)
19,200~47,000~54,000
Cooling² (Min. ~ Rated ~ Max.) (kW)
5.61~11.70~15.82
Cooling² (Min. ~ Rated ~ Max.) (Btu/h)
19,200~40,000~54,000
Heating (Min. ~ Rated ~ Max.) (kW)
6.21~14.80~16.70
Heating (Min. ~ Rated ~ Max.) (Btu/h)
21,200~50,500~57,000
POWER INPUT
Cooling¹ (Rated) (kW)
3.73
Cooling² (Rated) (kW)
4.39
Heating (Rated) (kW)
3.70
EER / COP
Cooling 1) / Heating (W/W)
12.40/ 4.00
OUTDOOR UNIT
Power Supply (V , Ø , Hz)
220-230-240, 1, 50/60
Dimensions Net (W × H × D)(mm)
950 x 1,380 x 330
Net Weight (kg)
91.3
Compressor Type
Twin Rotary
Refrigerant Type
R410A
Fan Motor Type
BLDC
Sound Pressure Level Cooling (Rated) (dB(A))
55.00
Sound Pressure Level Heating (Rated) (dB(A))
57.00
Piping Connections Liquid (Outer Dia.) (mm (inch))
Φ9.52 (3/8)
Piping Connections Gas (Outer Dia.) (mm (inch))
Φ19.05 (3/4)
Piping Length (Max.) (m)
50

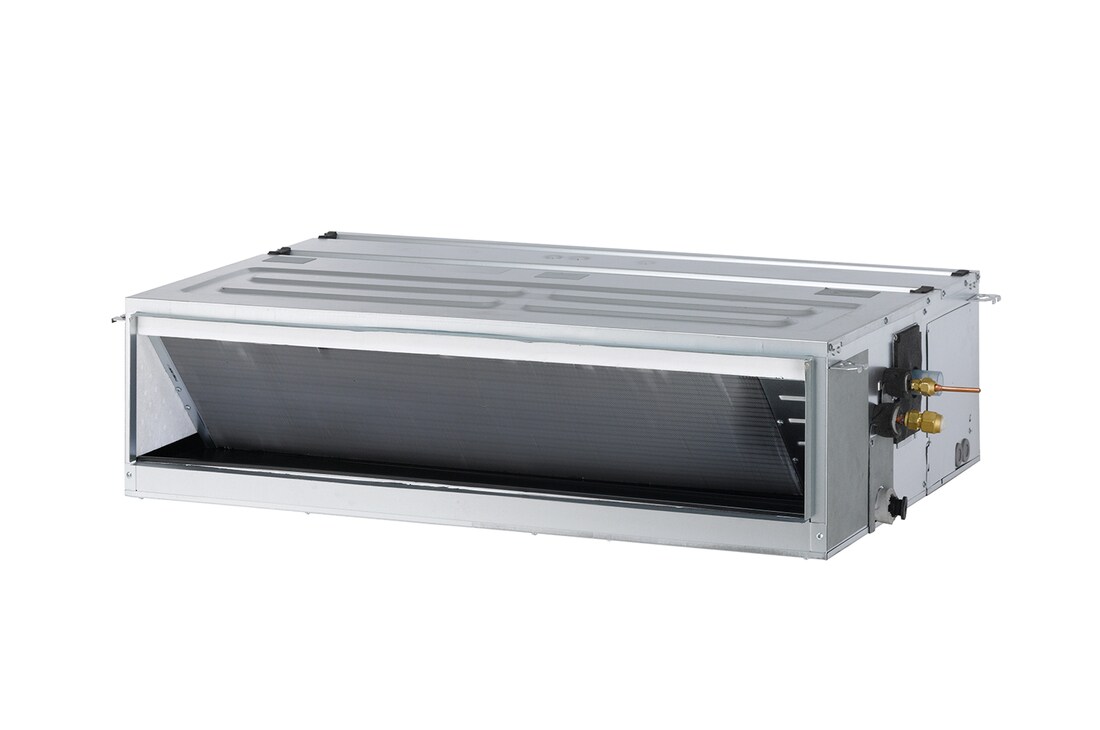

INDOOR UNIT
Power Supply (V , Ø , Hz)
220-230-240, 1, 50/60
Dimensions Net (W × H × D) (mm)
1,250 x 360 x 700
Net Weight (kg)
43.0
Fan Air Flow Rate (H / M / L) (m3/min)
38.0 / 32.0 / 26.0
Fan Motor Type
BLDC
External static pressure High Mode_Factory Set
6
Sound Pressure Level Cooling (H / M / L) (dB(A))
38.0 / 36.0 / 34.0
Sound Pressure Level Heating (H / M / L) (dB(A))
38.0 / 36.0 / 34.0
