KEY FEATURES

  • 1.7 cu.ft. Oven Capacity
  • EasyClean® Interior
  • Energy Savings Key
  • Auto Defrost
  • One-Touch Settings

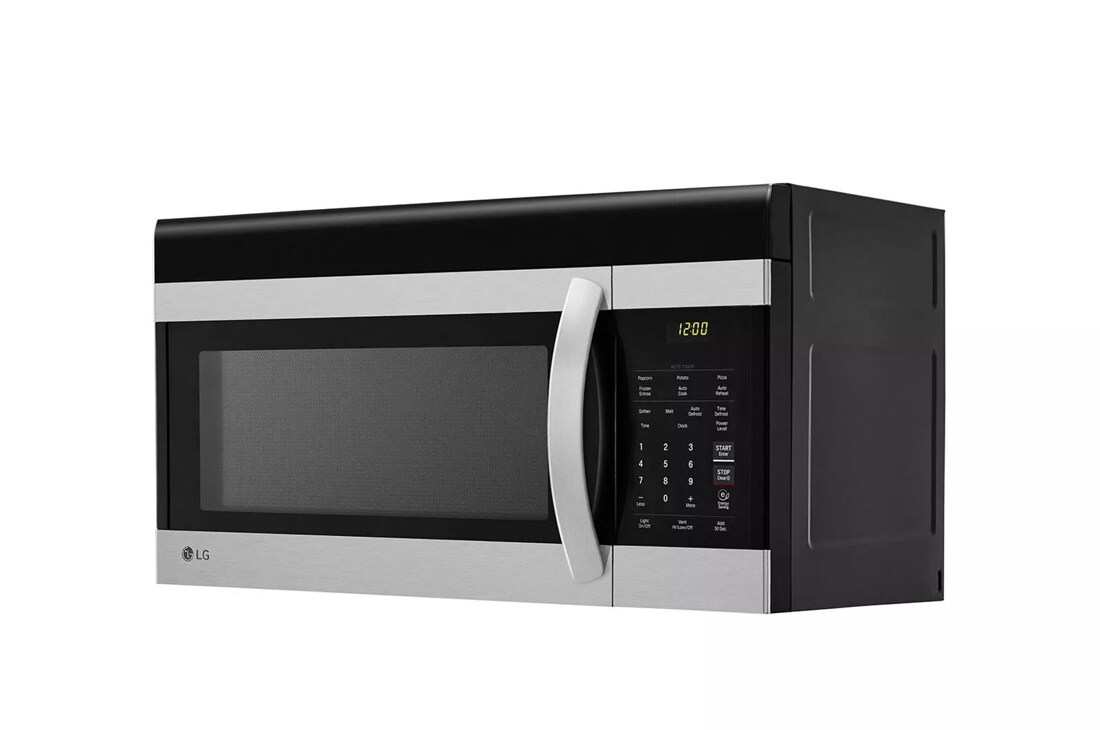

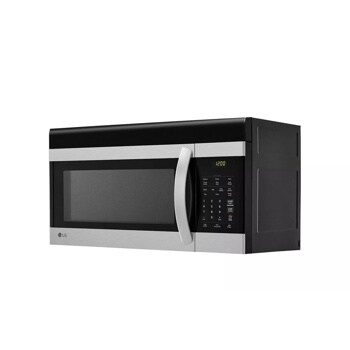

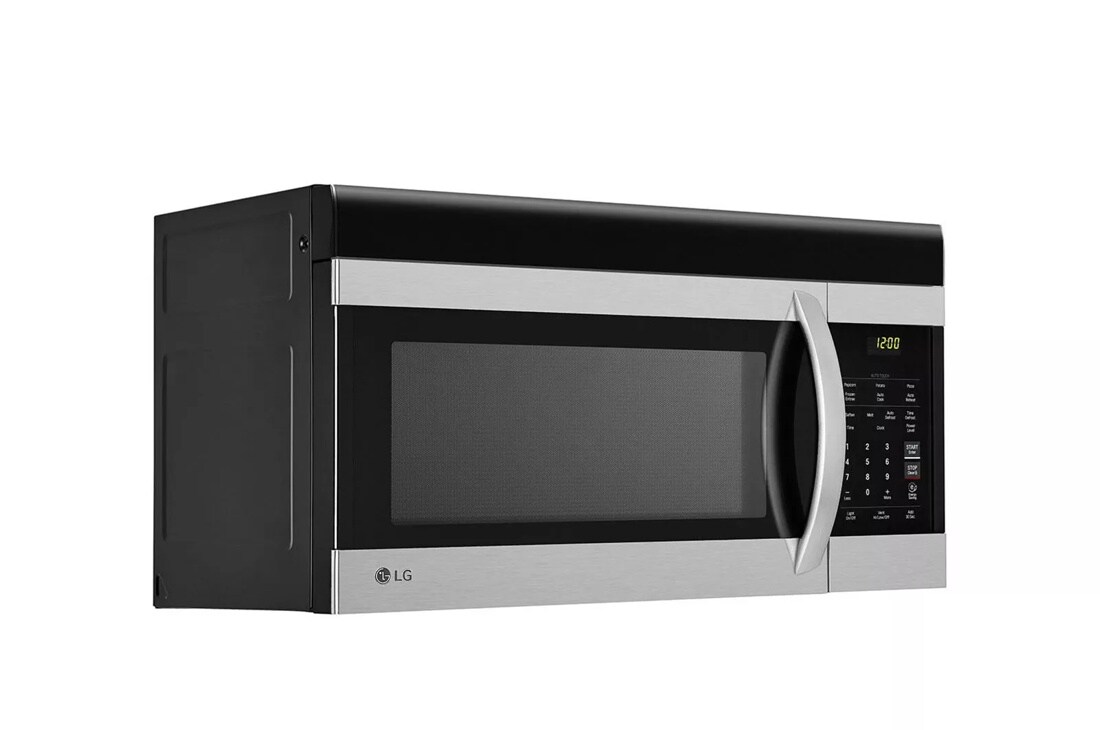

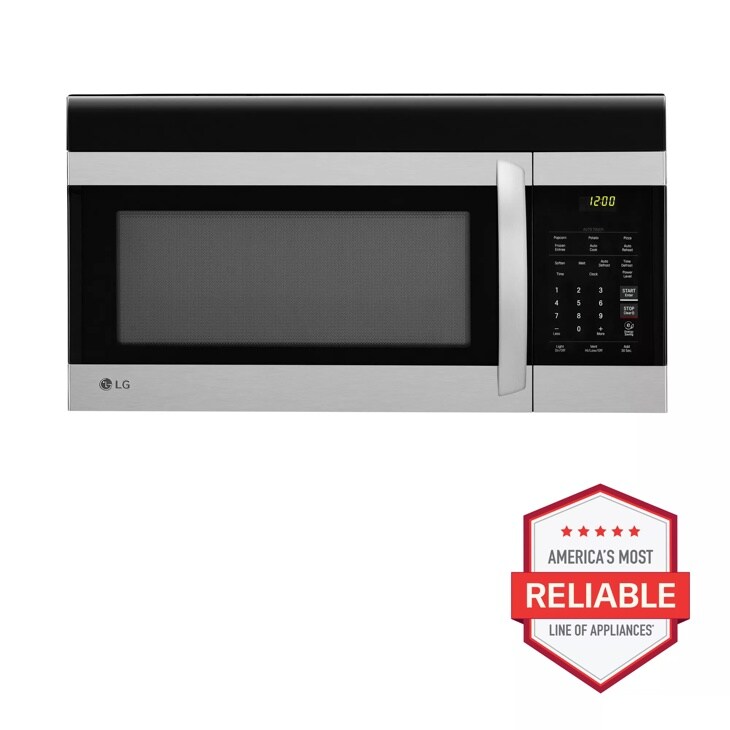

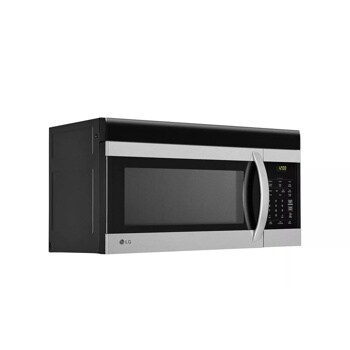

1.7 cu. ft. Over-the-Range Microwave Oven with EasyClean®
$ 229.00

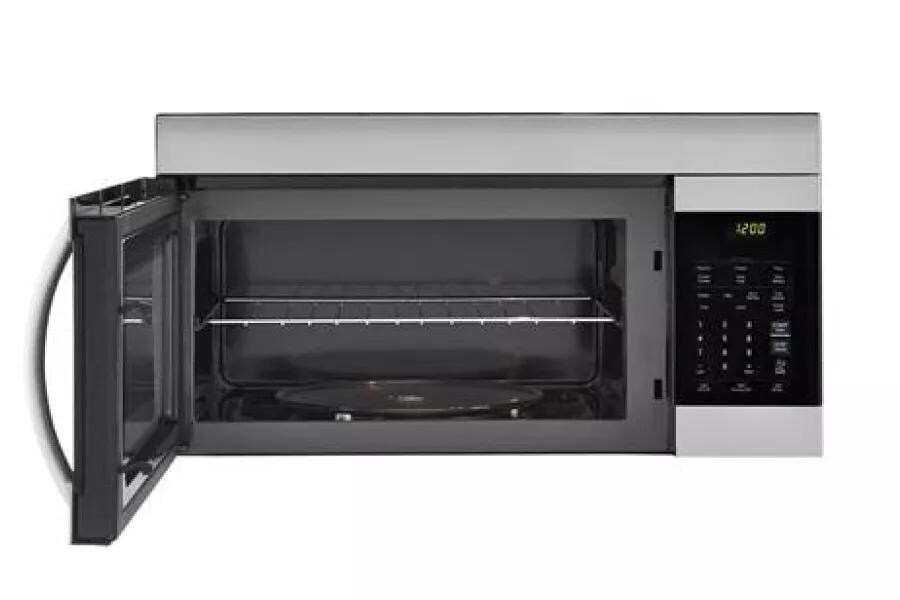

EasyClean® Interior

Spills? Splatters? Don’t sweat it. LG’s EasyClean® interior resists stains and buildup, so cleaning your microwave doesn’t have to be a chore. Simply wipe with a damp cloth—no chemicals, no scrubbing, no problem.

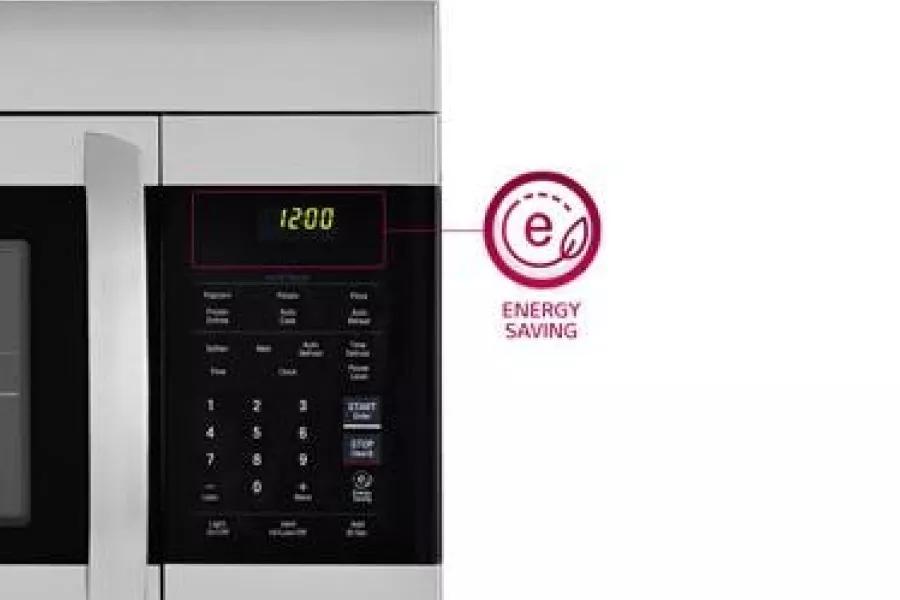

Energy Savings Key

Saves energy by turning off the display when not in use. The display will turn off when the unit is not active for 5 minutes. When this feature is in use the power consumption drops to below 0.1W.

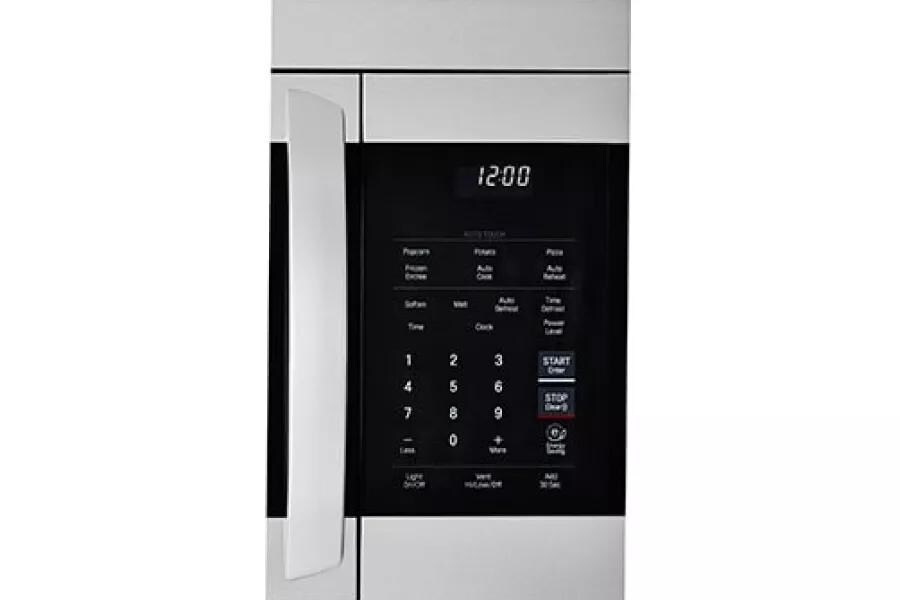

One Touch Settings

Makes it easy to cook and warm a variety of foods- from a cup of coffee to chicken nuggets.

DIMENSIONS/CLEARANCES/WEIGHT

    • Shipping Weight (lbs)
    • 61.4
    • Weight (Product)
    • 48.5
    • Cavity (WxHxD)
    • 20 11/16" x 10 6/16" x 14 3/16"
    • Exterior (WxHxD)
    • 29 14/16" x 16 7/16" x 15 11/16"
    • Microwave Shipping Dimensions (W x H x D)
    • 33 9/16" x 20" x 19 7/16"

SUMMARY

    • Cooking Type:
    • Over-The-Range Microwave
    • EasyClean®:
    • Yes

POWER/RATINGS

    • Input Volt/Hertz
    • 120/60
    • Input Amps/Watts (Microwave)
    • 14A/1600W

WARRANTY/UPC

    • UPC
    • 048231341110
    • Parts & Labor
    • 1 Year
    • Magnetron (In Home Service)
    • 10 Years

COOKING FEATURES:

    • Power Levels
    • 10
    • Defrost
    • Auto/Time/Rapid Defrost
    • Auto Cook Options
    • 4
    • EasyClean® Interior
    • Yes

CONVENIENCE FEATURES:

    • Turntable Diameter
    • 12.6"
    • Turntable On/Off
    • Yes
    • Clock
    • Yes
    • Completion Beeper
    • Yes
    • Add 30 Seconds
    • Yes

LIGHTING

    • Lighting
    • 30W Incandescent
    • Lighting (Exterior)
    • 30W Incandescent

FEATURES

    • Control Location:
    • Right Side
    • Exterior Design:
    • WideView™ Traditional
    • Microwave Watts
    • 1000
    • Microwave Control Type
    • Membrane
    • Microwave Display
    • Green LED

CAPACITY

    • Oven Capacity:
    • 1.7

MATERIALS/FINSHES :

    • Available Colors
    • Stainless Steel
    • Interior Color
    • Gray

SAFETY FEATURES:

    • Child Lock
    • Yes

VENTILATION FEATURES

    • Exhaust Grease Filter
    • 2

VENTING SYSTEM

    • Vent Grille Type
    • Hidden
    • Filtration
    • Charcoal Filter
    • Vent Air Flow (CFM)
    • 300
    • Power Levels
    • 10

What people are saying

Rated 2 out of 5 by from Poor disappointed with my microwave. I have had for one years. and my two big issues are the ventilation fan is HORRIBLE. It doesn't suck up any of the steam . literally watched the steam not be disturbed. My handle broke off. Initially, The front window fall off the light never work ,
Date published: 2023-01-16
Rated 1 out of 5 by from Wakes up the whole house! Door closing & opening is very loud, but even worse is the piercing beeping that you cannot disable or change volume on. If you are busy and cannot get to the microwave after the timer finishes, it continues beeping forever. Extremely irritating and TERRIBLE design.
Date published: 2022-12-29
Rated 2 out of 5 by from Functional but door closure problem I bought this LG over the range microwave because if the high rating. The functions are okay. The door closes awkwardly and makes a lot noise opening and closing. The door and function screen appear visually to be off center.
Date published: 2022-10-18
  • y_2023, m_3, d_30, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_80
  • loc_en_US, sid_MD06082717, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 12ms
  • REVIEWS, PRODUCT
See All Reviews

We're here to support you with our product.

View LMV1760ST Product Support

Choose a support option below:

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Can I turn of the repeat beeping if the heating cycle is complete and I can’t go to M/W right away.

Asked by: Grist299
The audible signals that are available to guide you when setting and using the LG 1.7 cu. ft. Over-the-Range Microwave Oven with EasyClean®, Model # LMV1760ST cannot be turned off. The microwave oven will beep four times to signal the end of a cooking cycle, then beep every minute for a short while after the cooking cycle ends. This is designed to remind you when the cooking time has completed. The unit will keep beeping every minute or until the door is opened....^IFV
Answered by: Ivanf
Date published: 2021-05-17

Where can I get a replacement bulb

Asked by: Judylynne42
Both the Cooktop/Night Light and Oven Light replacement bulbs for the 1.7 cu. ft. Over-the-Range Microwave Oven with EasyClean®, Model # LMV1760ST are 30-watt appliance bulbs and you can find them at Home Improvement stores like the Home Depot or LOWE's...^IFV
Answered by: Ivanf
Date published: 2020-04-24

LG over range microwave with the best ventalation system?

Asked by: mark sylvain
Hi Mark. When you review the specifications for our Over-the-Range Microwave Ovens, on each of their product pages under Venting System, it will list a rating for Vent Air Flow (CFM). For example, the Vent Air Flow (CFM) for the 1.7 cu. ft. Over-the-Range Microwave Oven with EasyClean® is listed at 300 CFM. The higher the number, the more powerful the venting system, however, that also means the louder the vent system will be...^IFV
Answered by: Ivanf
Date published: 2022-09-23

I recently asked s question about a replacement for model LMV1683SW.  The link in your response seems to be black or stainless steel .... I need white .... if I buy black is there a conversion kit to white

Asked by: SandiSam
The only LG Over-the-Range Microwave Oven we currently have in our lineup in a Smooth White finish is the LG 2.0 cu. ft. Over-the-Range Microwave Oven with EasyClean®, Model # LMV2031SW which has the same width, height and is slightly deeper (3/16" deeper) than the LMV1683SW. Regrettably, there is no conversion kit to make a black stainless steel unit white...^IFV
Answered by: Ivanf
Date published: 2020-02-18

How to set AM and PM on the microwave

Asked by: YoYo2
Instructions for setting the clock can be found on page 10 of the owner's manual https://www.lg.com/us/support/product/lg-LMV1760ST.BSBELGA
Answered by: ChrisPSM
Date published: 2022-03-22

The top panel above the door broke without any pressure. We have only had the microwave for a year. It was the floor model. However, I just noticed the panel rubbing against the door. Is there a way to purchase this part?

Asked by: Broken Top Panel
Parts and accessories can be obtained through our parts distributor, Encompass Parts. Their contact number, for placing orders and pricing information, is 866-779-7906. You can also use their website, at https://www.encompass.com/ ^CP
Answered by: ChrisPSM
Date published: 2019-12-09

I need a replacement turn table plate for my LMV1760ST microwave. Is there a exact replacement part for this? Is there a part # for the plate?

Asked by: LeLe1483
This unit uses glass part number 1B71961H which can be purchased here: https://encompass.com/item/6116492/LG/1B71961H/
Answered by: ChrisPSM
Date published: 2019-11-18

Microwave froze... cant make buttons work.

Asked by: Ann2
We hate to hear that, but would love to be able to help. We would be happy to see what's going on. Drop us a line on Twitter at @LGUSSupport or on Facebook https://www.facebook.com/LGUSA/ so we can get more info and see what we can do. ^CP
Answered by: ChrisPSM
Date published: 2019-11-12
