Graphite Steel

KEY FEATURES

  • 7.4 cu. ft. Ultra Large Capacity
  • TurboSteam™ Technology
  • ThinQ® Technology
  • Sensor Dry
  • FlowSense™ Duct Clogging Indicator
  • ENERGY STAR® Certified

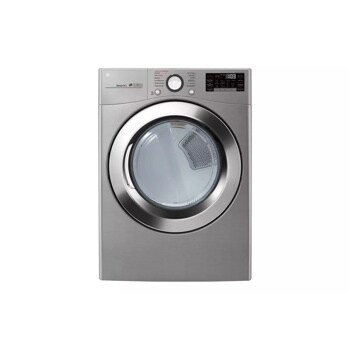

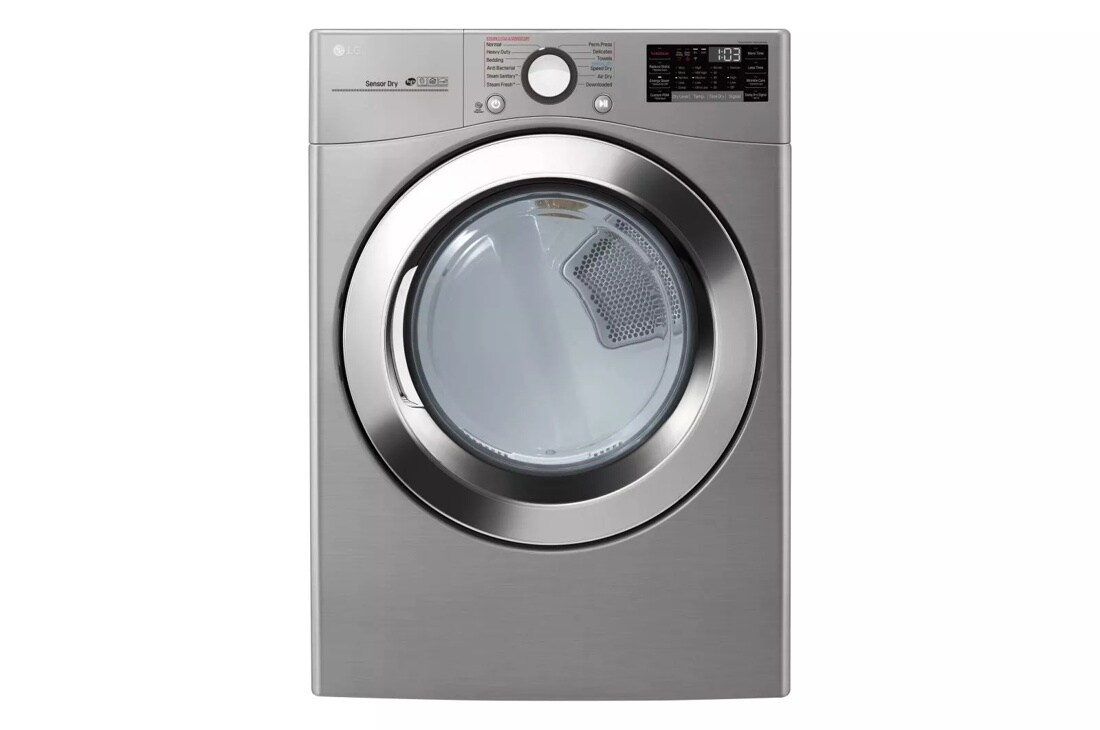

7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™

SUMMARY

    • Type
    • Front Load Dryer
    • Capacity
    • 7.4 cu. ft.

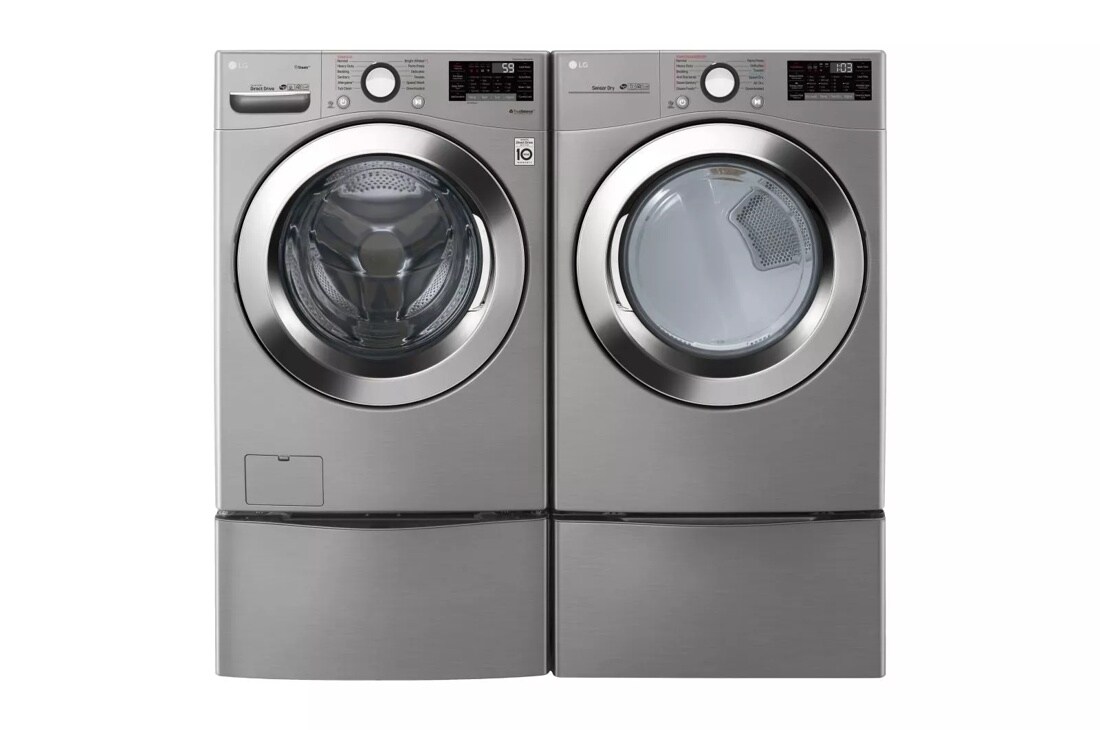

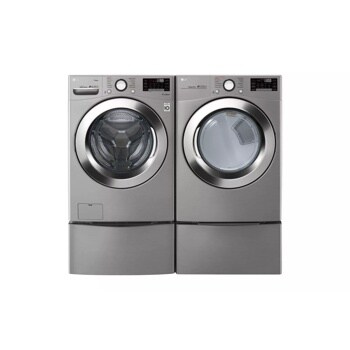

    • Matching Washer
    • WM3700HVA
    • Sensor Dry
    • Yes
    • Steam
    • Yes
    • Colors
    • White (W), Graphite Steel (V)

APPEARANCE

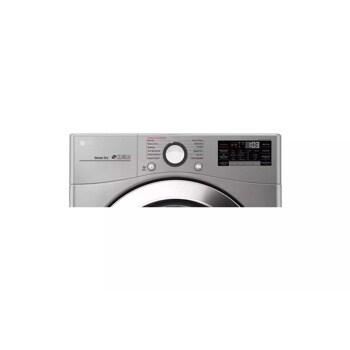

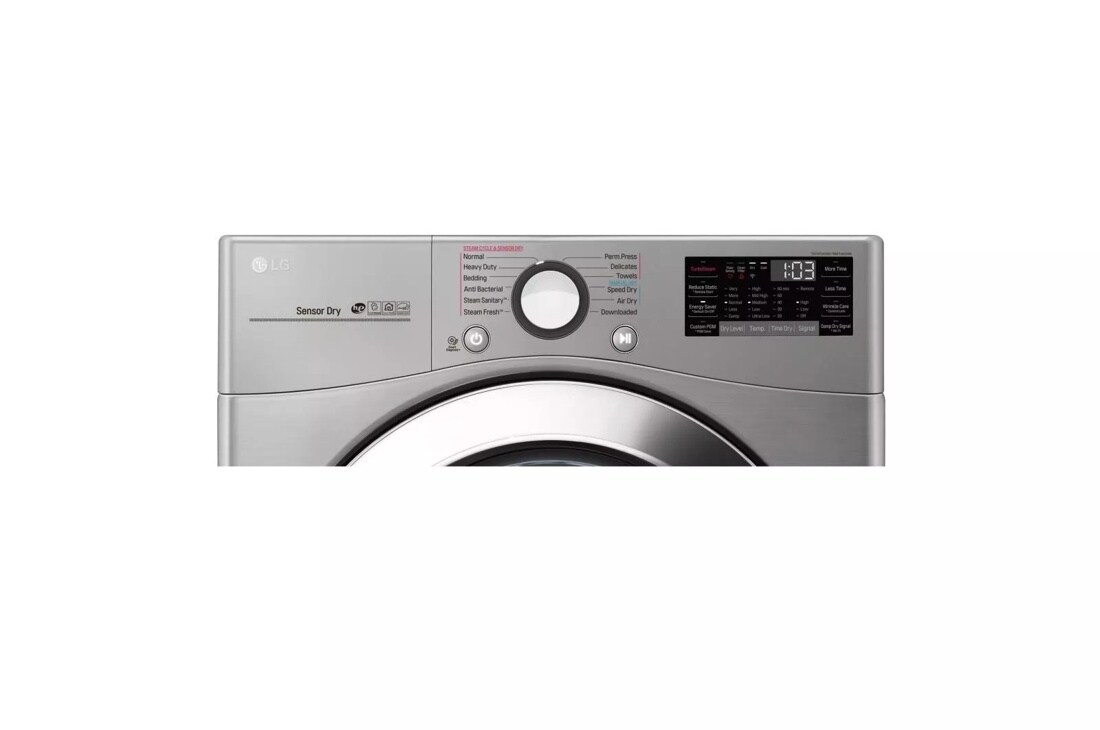

    • Intelligent Electronic Controls with LED Display
    • Yes
    • Dial-A-Cycle™
    • Yes
    • Touch Buttons
    • Yes

DRYER PROGRAMS

    • No. of Programs
    • 12
    • Programs
    • Normal, Heavy Duty, Bedding, Anti Bacterial, SteamSanitary™, SteamFresh™, Perm. Press, Delicates, Towels, Speed Dry (Manual Dry), Air Dry (Manual Dry), Downloaded

DRYER OPTIONS

    • No. of Options
    • 12
    • Options
    • More Time, Less Time, Damp Dry Signal, Wrinkle Care, Control Lock, Custom Program, PGM Save, Wi-Fi Connect, Energy Saver, TurboSteam™, Reduce Static, Remote Start
    • Temperature Settings
    • High, Medium High, Medium, Low, Ultra Low
    • Drying Levels
    • Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
    • Manual Dry Times
    • 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time

FABRIC CARE FEATURES

    • Sensor Dry
    • Yes
    • Precise Temperature Control with Variable Heater
    • Yes
    • Steam
    • TurboSteam™

CONVENIENCE FEATURES

    • 3 Minute Installation Check
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • End of Cycle Signal
    • Yes
    • Drum Light
    • Yes
    • Reversible Door
    • Yes
    • FlowSense™ Duct Clogging Indicator
    • Yes
    • Wrinkle Care Option
    • Yes
    • Child Lock
    • Yes
    • Venting Option
    • 4 Way Venting
    • 4 Adjustable Legs
    • Yes
    • Remaining Time Display/Status Indicator(s)
    • Yes

THINQ® SMART FEATURES

    • SmartDiagnosis™
    • Yes
    • Wi-Fi
    • Yes
    • Remote Start
    • Yes
    • Cycle Monitoring and Notification
    • Yes
    • Energy Monitoring
    • Yes (WiFi)

ENERGY

    • ENERGY STAR® Qualified
    • Yes
    • CEF
    • 3.94

MATERIALS AND FINISHES

    • Aluminized Alloy Steel Drum
    • Yes
    • Tub Rear
    • Painted
    • Cabinet
    • Painted Steel
    • Door
    • Round w/ Chrome trim
    • All Available Colors
    • White (W), Graphite Steel (V)

POWER SOURCE

    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 240V, 30 Amps
    • Type
    • Electric
    • BTU Rating
    • 10,000 Feet

OPTIONS

    • LP Conversion Kit
    • LPK1
    • Side Venting Kit
    • 383EEL9001B

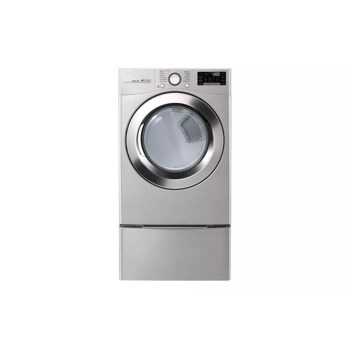

    • Pedestal
    • WDP4V
    • Pedestal (WxHxD)
    • 27" x 14 1/8" x 30 3/4" (50 1/2" D with door open)

DIMENSIONS/CLEARANCES/WEIGHTS

    • Product (WxHxD)
    • 27" x 38 11/16" x 30"
    • Depth with Door Open
    • 51"
    • Carton (WxHxD)
    • 29 19/32” x 43 3/8” x 31 3/8”
    • Weight (Product)
    • 123
    • Weight Carton
    • 136.2

WARRANTY

    • Parts & Labor
    • 1 Year

UPC CODES

    • UPC
    • 048231024921

What people are saying

Rated 5 out of 5 by from Love my "intelligent" LG Dryer! Bought my dryer 3 years ago and love the many options. If you enjoy smart appliances, I would recommend my dryer to you. After 3 years, I've used each feature and find the machine to be reliable and impressed with customizing my dryer to my needs when I need to go outside the box of traditional options. Might be my imagination but after 50 years of dryer ownership, I feel it's pretty much on the quieter side. I've downsized and moved to a 1600 sq.ft. condo where the laundry room is just off the kitchen and family room (think TV). I never close the utility/laundry room door as it doesn't interfere with TV volume or conversation. No, I don't have hearing loss. :>)
Date published: 2022-05-27
Rated 1 out of 5 by from Terrible dryer and customer service for the moment I bought it 2 years ago, I had trouble with delivery from Best Buy, then a dryer that didn't dry, installers left without testing it, and fighting between Best Buy and LG to get it replaced. For the past 2 years with this one, only 1 cycle dries: towels cycle (why so many options then) and it goes for periods of 2 or 3 days without drying at all. Of course LG tells you, it has to be the vent instead of electronics.
Date published: 2022-05-21
Rated 5 out of 5 by from Dryer I bought a washer-dryer set from LG a month ago---not top-of-the-line---but one step below. The dryer works very well. Simple to use, copious, and quiet in operation. Today, with my house-cleaners at work, I dried bed sheets and pillow cases on a "speed" setting that took a mere 25 minutes. My shirts emerge unwrinkled. This dryer will be in service for decades here.
Date published: 2022-05-19
  • y_2022, m_7, d_3, h_21
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.32
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_951
  • loc_en_US, sid_MD05981696, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 9ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

We have a Model # DLEX35700V dryer that has TurboSteam options. Do we have to hook up dryer with a steam installation kit? Where can we find a hose that is 8ft long? We can only find 6ft hoses. Thank you!

Asked by: Karen DM
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLEX3700V comes with a long and short inlet hose and a "Y" connector that allows you to split the cold water supply line to your washer and to the water inlet valve on the dryer to supply water for the steam functions on the dryer. LG only makes replacement inlet hoses for the ones that come as included accessories with the dryer and we do not make longer inlet hoses. If you are looking for longer inlet hoses, you will need to purchase third-party inlet hoses and you will need to search online to see if third-party manufacturers offer inlet hoses longer than 6 feet. Regrettably, the U.S. will not have information for retailers in Ontario that sell inlet hoses...^IFV
Answered by: Ivanf
Date published: 2021-06-01

IS THERE TOUCH UP PANIT AVAILABLE FOR MODEL# DLEX3700V

Asked by: GWTOMA2020
The touch-up paint for the graphite steel finish on the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLEX3700V is Part # TUP-3796VS. It can be ordered from our Authorized Parts Distributor Affiliate, Encompass Simply Parts, (800) 432-8542, https://encompass.com. The jar describes the paint as Stainless Steel VCM so be sure to verify with Encompass that it is compatible with your dryer...^IFV
Answered by: Ivanf
Date published: 2021-01-13

Can you stack two dryers of this model on top of each other?? I'd like to purchase two of these.

Asked by: B Morty
You can only stack one ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLEX3700W onto its matching washer. Stacking a washer and dryer would have a total height of 77 11/16". It would be too much weight to stack another dryer onto a dryer that already stacked on a washer and it would also make the top dryer unreachable because it would be at a height of 116 3/8" ! Not only would that be too high, but it would also be too unstable and a potential hazard...^IFV
Answered by: Ivanf
Date published: 2022-05-08

is this model ventless? If not, which 27" models are ventless?

Asked by: Mantrain
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLEX3700V is not a ventless model. Regrettably, we do not have any standalone 27" dryers that are ventless. Only the LG 4.5 cu.ft. Smart Wi-Fi Enabled All-In-One Washer/Dryer with TurboWash® Technology, Model # WM3998HBA has a Ventless Condensing Drying System...^IFV
Answered by: Ivanf
Date published: 2020-10-12

Is the dryer rack included with the washer or do you have to buy it separately?

Asked by: banjolaya
The Drying Rack, Part # 3750EL1001A is an optional accessory with the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLEX3700V and it has to be purchased separately...^IFV
Answered by: Ivanf
Date published: 2020-10-02

Am I able to order this with the vent on the side?

Asked by: KMark4
Hi KMark4. The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart Wi-Fi Enabled SteamDryer™, Model # DLEX3700W cannot be ordered with the vent duct configured for side venting. It is shipped from the factory configured to vent to the rear. You will need to purchase an adapter kit, Part # 3838EEL9001B that contains the duct components necessary to change the dryer vent location to the right, the left or to the bottom. The dryer has tabs on the sides and bottom that can be knocked out for the vent duct location of your preference and there is a cover plate that you can use to cover the rear duct opening...^IFV
Answered by: Ivanf
Date published: 2020-04-16

Is there a dryer rack available for DLEX3700?

Asked by: Dmeme
The ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLEX3700 is compatible with the LG Drying Rack, Part # 3750EL1001A ...^IFV
Answered by: Ivanf
Date published: 2020-02-10

I purchased a washer / dryer with pedestals and will be installing them for the first time. Are there additional kits required? Is there a special process when installing on pedestals?

Asked by: Ernie33
To stack the ENERGY STAR® Qualified LG 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled SteamDryer™, Model # DLEX3700V onto its matching washer, you will need the 27" LG Stacking Kit, Model # KSTK1. Page 17 of your owner's manual for the dryer has explicit instructions and illustrated diagrams that guide you through the stacking procedure...^IFV
Answered by: Ivanf
Date published: 2019-12-04
