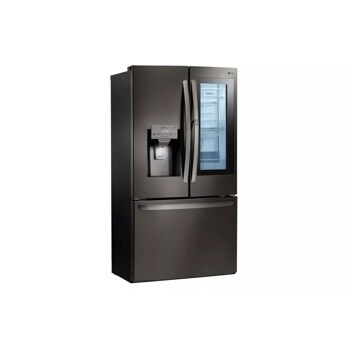

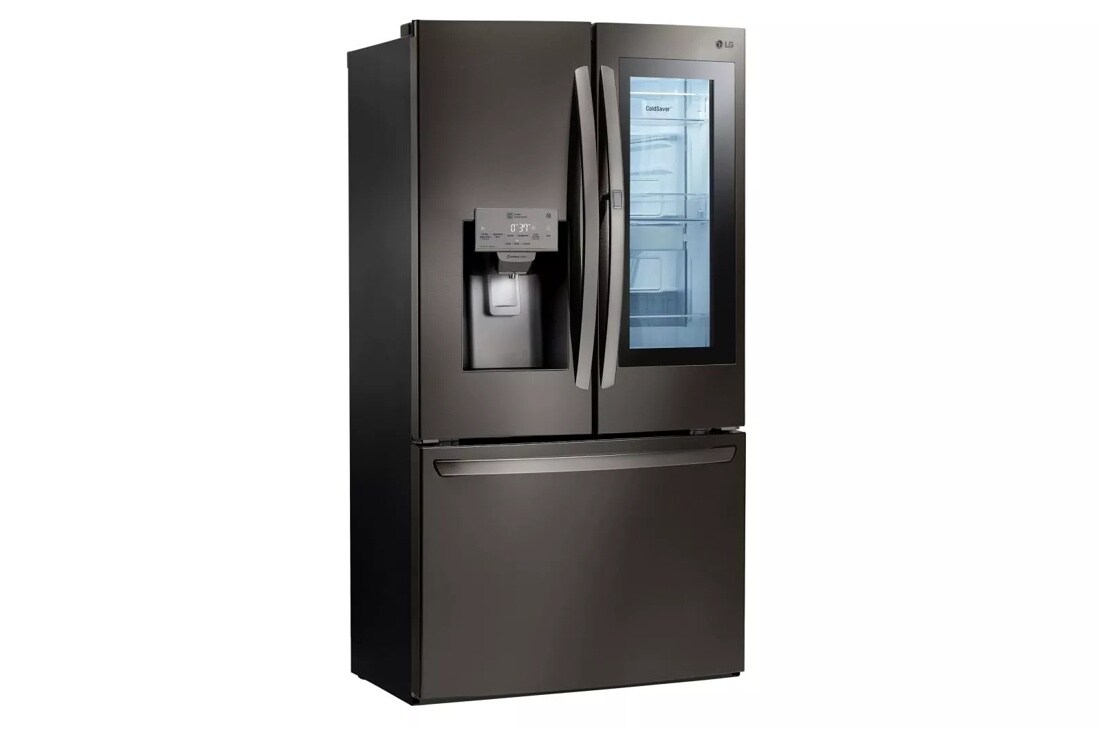

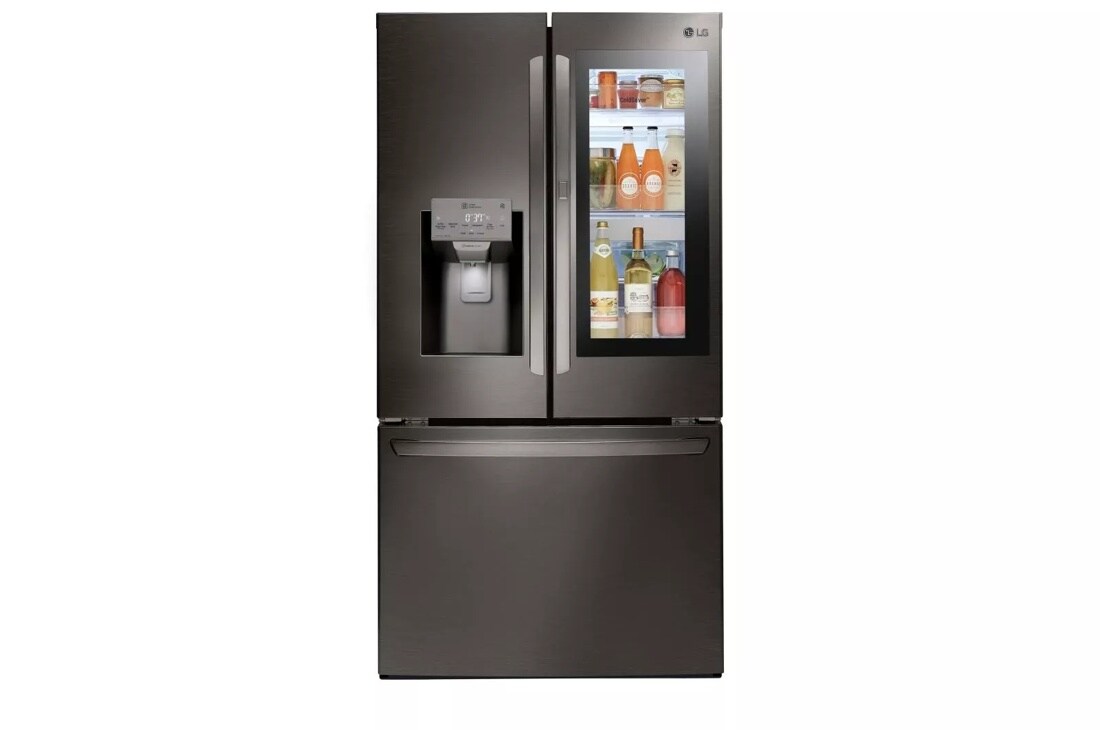

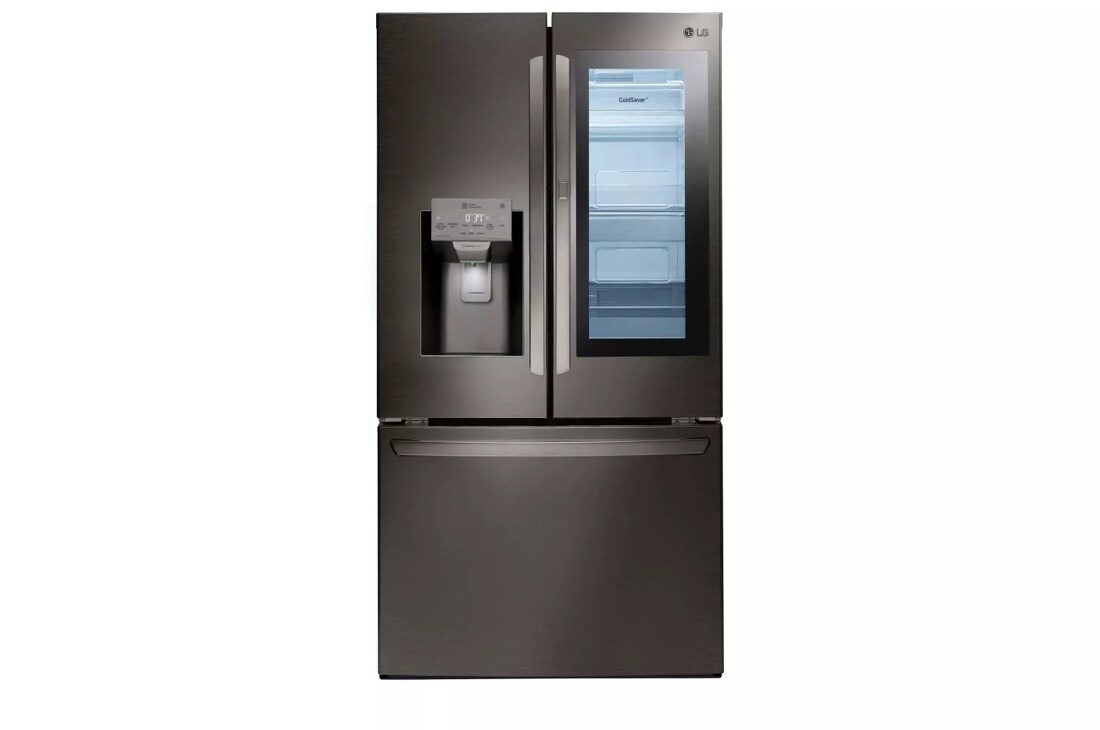

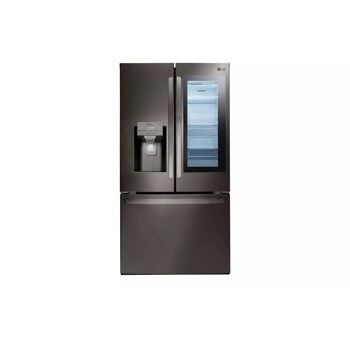

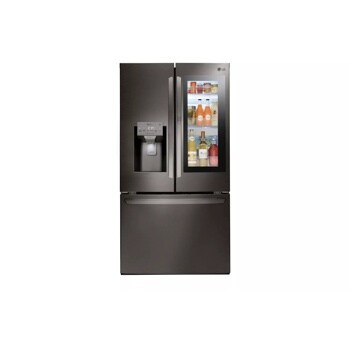

28 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator
DISCONTINUED
28 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator
LFXS28596D
Key features
- 28 cu. ft. Capacity
- PrintProof™ Finish

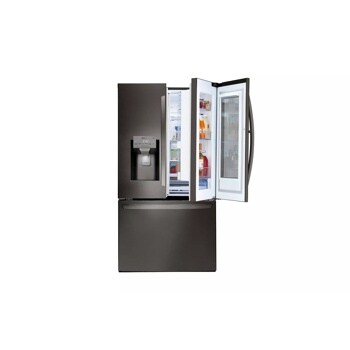

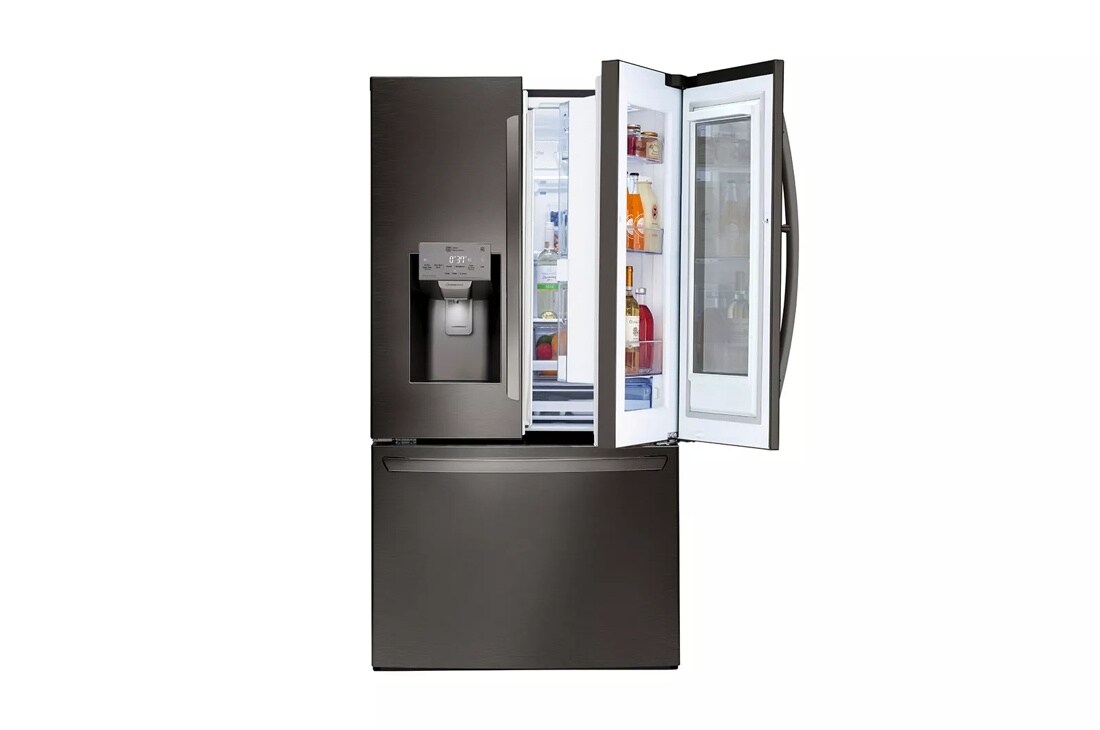

- InstaView™ Door-in-Door®
- ThinQ® Technology
- Slim SpacePlus® Ice System
- ColdSaver™ Panel
Specifications
FREEZER
MATERIALS & FINISHES
ENERGY
CAPACITY
UPC CODES
WARRANTY
REFRIGERATOR
SUMMARY
WATER & ICE SYSTEM
COOLING
REFRIGERATOR DOOR
DIMENSIONS/CLEARANCES/WEIGHT
CONVENIENCE
THINQ® SMART FEATURES
See All
FREEZER
Divider
Yes
Auto Open Drawer™ (Freezer)
Yes
Drawers
2-Tier Organization
Freezer Light
LED Lighting
Door Type
Pull Drawer
DuraBase™ Solid Drawer Base
Yes
Handle
SmartPull™ Handle
FREEZER
Divider
Yes
Auto Open Drawer™ (Freezer)
Yes
Drawers
2-Tier Organization
Freezer Light
LED Lighting
Door Type
Pull Drawer
DuraBase™ Solid Drawer Base
Yes
Handle
SmartPull™ Handle
MATERIALS & FINISHES
Handle
Matching Commercial Handles
Available Colors
Matte Black Stainless Steel, Black Stainless Steel, Stainless Steel
Back
Flush & Metal cover over mechanical parts
Contour Door
Yes
Hidden Hinges
Yes
Surface
Smooth
Blowing Agent
Cyclopentane - Low Global Warming Potential, and Zero Ozone Depletion Potential Blowing Agent
ENERGY
Energy Consumption (kWh/Year)
724
ENERGY STAR® Qualified
Yes
CAPACITY
Freezer
9.30
Total
27.5
Refrigerator
18.20
UPC CODES
UPC
048231794817
WARRANTY
Parts & Labor
1 Year
Linear Compressor (Parts Only)
6-10 Years
Sealed System (Parts & Labor)
5 Years
Compressor (Parts & Labor)
5 Years
REFRIGERATOR
Refrigerator Light
Ceiling LED
No. of Shelves
4 Split(3 Fixed+1Folding)
Crisper Bins
2 Humidity Crispers
Glide N’ Serve™ Drawer
Yes
Shelf Construction
Spill Protector™ Tempered Glass
Folding Shelf
1
Cantilevered Shelves
Hybrid Cantilevered
SUMMARY
wi-fi Enabled
Yes
Door Type
French 3-Door
ENERGY STAR® Qualified
Yes
Total Capacity
27.5
Ice & Water Dispenser
Yes
InstaView™ Door-in-Door®
Yes
Sabbath Mode
Yes
SmartDiagnosis™
Yes
ThinQ®
Yes
WATER & ICE SYSTEM
Ice & Water Dispenser
Yes
Dispenser Type
Integrated Tall Ice & Water Dispenser
Daily Ice Production (lbs)
6.0 lbs
IcePlus™ Production (lbs)
6.5 lbs.
Ice Storage Capacity (lbs)
2.5 + 4.0 lbs
Dual Ice
Yes
Dispenser Light
Yes
Water Filter
LT1000P
Ice System
Slim SpacePlus®
COOLING
Multi-Air Flow
Yes
Temperature Sensors
6
Evaporator
Yes
Smart Cooling® System
Yes
Linear Compressor
Yes
Fresh Air Filter
Yes
Refrigerant
R600a: Low Global Warming Potential, Zero Ozone Depletion Potential and More Energy Efficient Refrigerant than R134a
REFRIGERATOR DOOR
Door Bin Construction
1 Piece (clear)
InstaView™ Door-in-Door®
Yes
No. of Bins
7 Total (Including Door-in-Door®)
DIMENSIONS/CLEARANCES/WEIGHT
Width
35 3/4"
Depth with Handles
36 1/4"
Door Edge Clearance with Handle
4 1/2"
Weight (Unit/Carton)
323 lbs. / 348 lbs.
Depth (Total with Door Open)
48 1/4"
Height to Top of Case
68 3/8"
Width (Door Open 90˚ with Handle)
44 1/4"
Depth without Handles
33 3/4"
Carton Dimensions (WxHxD)
38" x 73" x 39"
Installation Clearance
Sides 1/8", Top 1", Back 2"
Depth without Door
29 7/8"
Height to Top of Door Hinge
69 3/4"
Width (Door Open 90˚ without Handle)
39 1/4"
Door Edge Clearance without Handle
1 1/3"
CONVENIENCE
Door Alarm
Yes
Auto Closing Door Hinge
Yes
Display Type
Membrane / White LED
Temperature Controls
Electronic/Digital
LoDecibel™ Quiet Operation
Yes
Child Lock
Yes
THINQ® SMART FEATURES
Wi-Fi Enabled
Yes
Works with
Google Assistant and Amazon Alexa
SmartDiagnosis™
Yes
Voice Activation
Yes
Smart Grid Ready
Yes
ThinQ®
Yes
Community Q&A
Images may be simulated and dramatized for illustrative purposes. Actual features, functionality, and other product specifications may differ and are subject to change without notice. Prices, promotions, and availability may vary by model, store, and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for their final price and availability.
