LSXC22436S

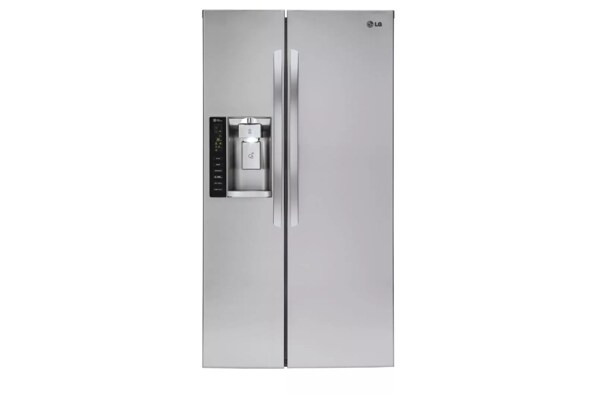

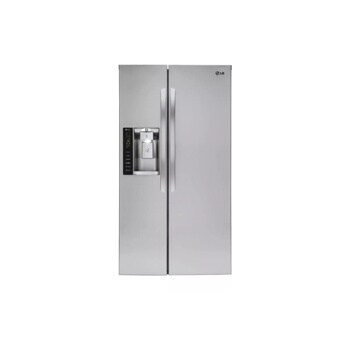

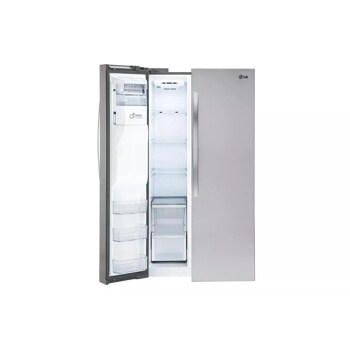

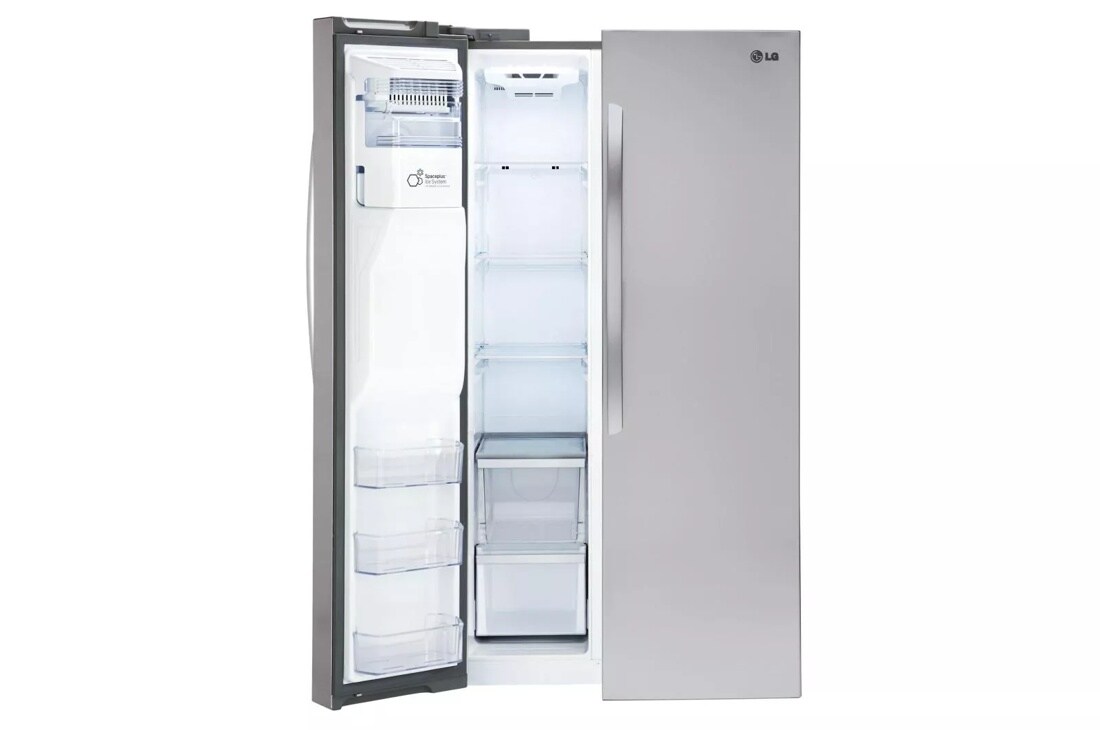

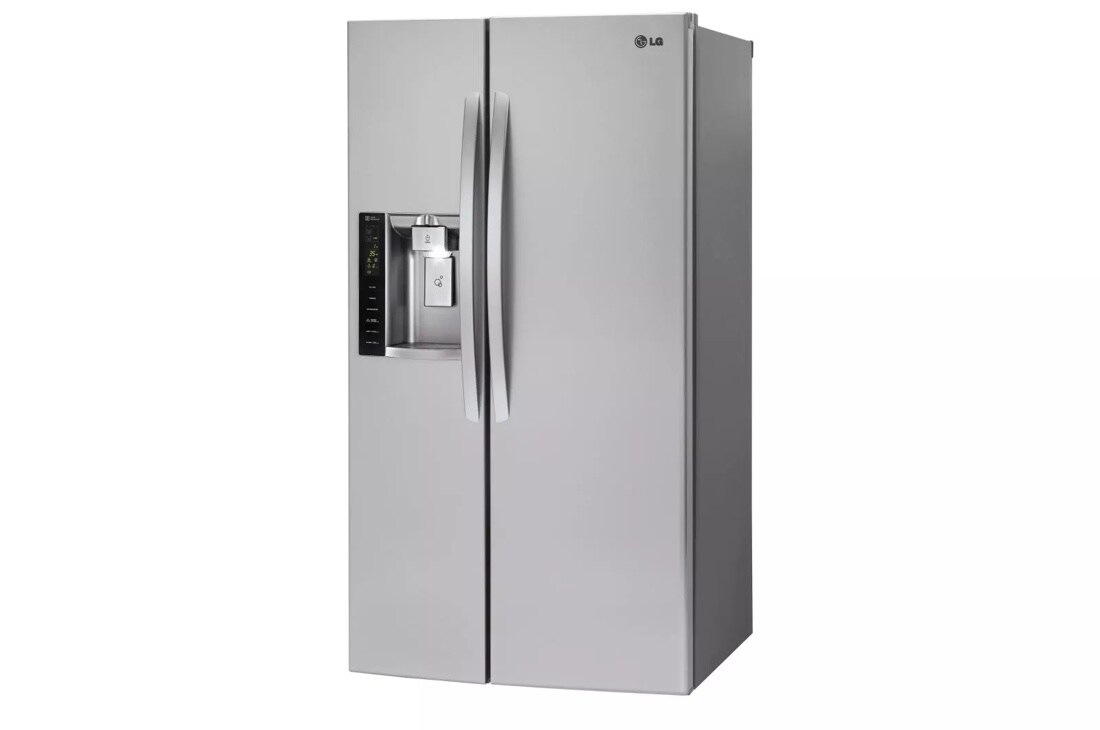

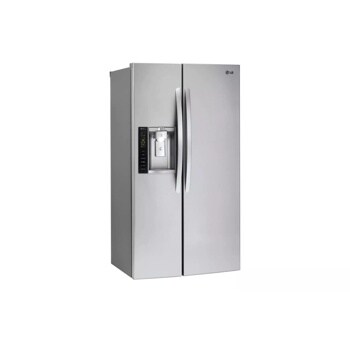

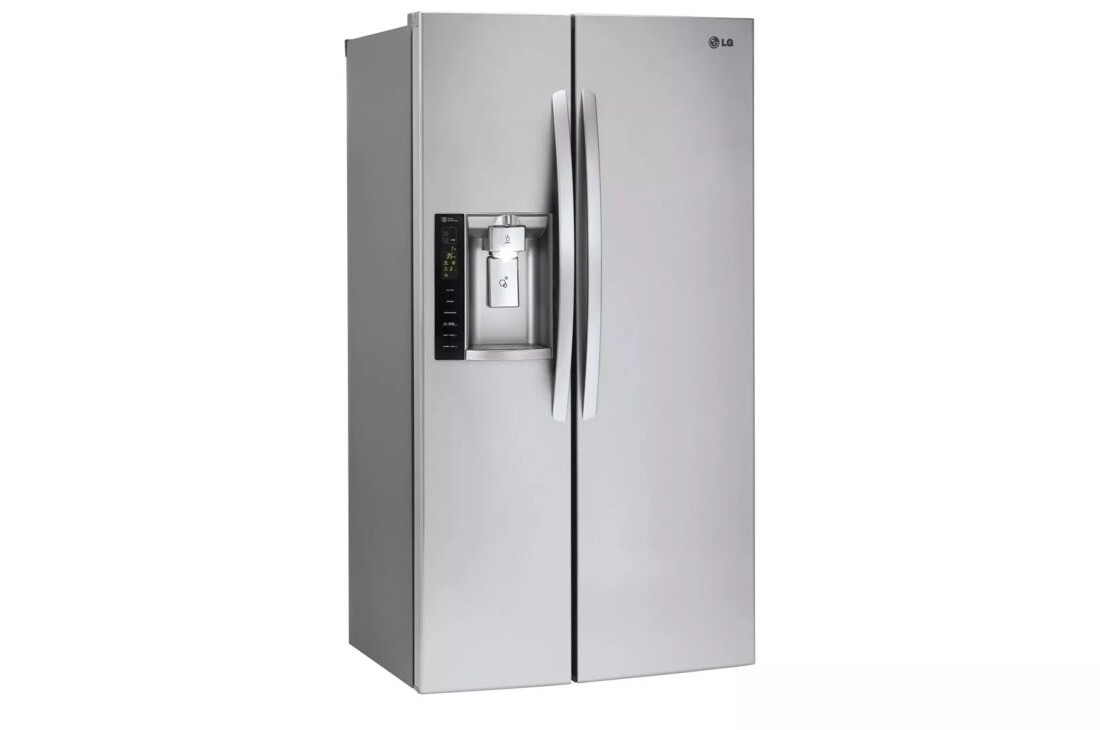

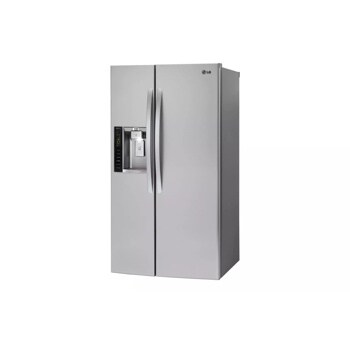

22 cu. ft. Smart wi-fi Enabled Side-by-Side Counter-Depth Refrigerator

KEY FEATURES

  • 22 cu. ft. Capacity
  • SmartThinQ® Technology
  • Counter-Depth
  • 4 Tempered Glass Shelves
  • 4 Refrigerator Door Bins
  • SpacePlus® Ice System
22 cu. ft. Smart wi-fi Enabled Side-by-Side Counter-Depth Refrigerator
Download Spec Sheet Download Energy Guide

SUMMARY

    • Door Type
    • Side-by-Side
    • SmartThinQ®
    • Yes
    • wi-fi Enabled
    • Yes
    • Total Capacity
    • 21.9
    • Ice & Water Dispenser
    • Yes
    • ENERGY STAR® Qualified
    • Yes
    • Counter Depth (in.)
    • Yes
    • SmartDiagnosis™
    • Yes

REFRIGERATOR

    • No. of Shelves
    • 4
    • No. of Door Bins
    • 4
    • Shelf Construction
    • Tempered Glass
    • Crisper Bins
    • 2
    • Refrigerator Light
    • Ceiling LED

REFRIGERATOR DOOR

    • Door Bin Construction
    • 1 Piece (clear)

FREEZER

    • Drawers
    • 2 Drawer/3 Shelves
    • Ice Bin
    • Icemaker & Ice bin in Door
    • Door Bins
    • 3 / 1 Piece(Clear)
    • Door Type
    • Side Swing
    • Handle
    • Matching Commercial Handles

DIMENSIONS/CLEARANCES/WEIGHT

    • Depth with Handles
    • 31 13/16"
    • Depth without Handles
    • 29 3/8"
    • Depth without Door
    • 24 10/16"
    • Depth (Total with Door Open)
    • 46 5/8"
    • Height to Top of Case
    • 69 11/32"
    • Height to Top of Door Hinge
    • 70 5/16"
    • Width
    • 35 7/8"
    • Width (Door Open 90˚ with Handle)
    • 44 5/16"
    • Width (Door Open 90˚ without Handle)
    • 39 5/8"
    • Door Edge Clearance with Handle
    • 1 3/8"
    • Door Edge Clearance without Handle
    • 5/16"
    • Installation Clearance
    • Sides 1/8", Top 1", Back 2"
    • Weight (Unit/Carton)
    • 280 lbs / 304 lbs
    • Carton Dimensions (WxHxD)
    • 38" x 72 5/9" x 33"

MATERIALS & FINISHES

    • Available Colors
    • Stainless Steel
    • Hidden Hinges
    • Yes
    • Surface
    • Smooth
    • Contour Door
    • Yes

CAPACITY

    • Refrigerator
    • 14.51 cu. ft.
    • Freezer
    • 7.40 cu. ft.
    • Total
    • 21.9 cu. ft.

RATINGS

    • Energy Consumption
    • 520
    • CEE Tier
    • 3

CONVENIENCE

    • Temperature Controls
    • Electronic/Digital
    • Door Alarm
    • Yes
    • Auto Closing Door Hinge
    • Yes (Cam Hinge Type)
    • Child Lock
    • Yes
    • Display Type
    • Membrane (Green LED)

WATER & ICE SYSTEM

    • Ice System
    • SpacePlus®
    • Ice & Water Dispenser
    • Yes
    • Dispenser Type
    • Integrated Tall Ice & Water Dispenser
    • Daily Ice Production (lbs)
    • 3.5 lbs
    • IcePlus™ Production (lbs)
    • 4.1 lbs
    • Ice Storage Capacity (lbs)
    • 4.5 lbs
    • Dispenser Light
    • Yes
    • Water Filter
    • LT1000P

COOLING

    • Linear Compressor
    • Yes
    • Multi-Air Flow
    • Yes
    • Temperature Sensors
    • 5

THINQ® SMART FEATURES

    • Wi-Fi
    • Yes
    • SmartDiagnosis™
    • Yes
    • Voice Activation
    • Yes
    • Works with
    • Google Assistant and Amazon Alexa
    • Smart Grid Ready
    • Yes

WARRANTY

    • UPC
    • 048231788823
    • Parts & Labor
    • 1 Year
    • Sealed System (Parts & Labor)
    • 5 Years
    • Compressor (Parts & Labor)
    • 5 Years
    • Linear Compressor (Parts Only)
    • 6-10 Years

What people are saying

Rated 1 out of 5 by from Worst Fridge The fridge is barely 3 years old and it will cost close $1000 to repair. I have 3 different quotes. Will not be repairing it not worth $1000 to repair. Will be purchasing a different brand. I would expected LG to have good quality product and they don't. I had to repair my stove already that was LG.DO NOT BUY LG!!!!
Date published: 2020-01-08
Rated 1 out of 5 by from Horrible We bought this Refrigerator two and half years ago and the mother board went out. Which would cost us anywhere from 600-800 will never buy another LG stick to making TV's
Date published: 2019-05-24
Rated 1 out of 5 by from We thought it was a good product... We bought this fridge the end of 2017 when our house was being built and after several hiccups we finally got the fridge we actually ordered. For the most part the fridge worked quite well but last weekend (July 14th) my wife told me the filtered water wasn't working. After a while and some checking I saw that the icemaker wasn't working either. On further inspection the next day I noticed the upper compartment of the refrigerator wasn't properly cooling the milk, but the vegetables and fruit in the bottom bins were frozen, and items in the freezer compartment weren't freezing. I'm sure that's not how this should work. After finally getting someone from LG customer service to come out 4 days later, then he had to order a part, which won't be here until Monday, another 4 days later. So we've been without this fridge for well over a week now. If I had to do it again I would have gone with my first instincts and bought the brand I wanted. After this experience I won't be looking at LG products for any electronics in the future.
Date published: 2018-07-20
  • y_2021, m_4, d_17, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_3
  • loc_en_US, sid_MD05801371, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
See All Reviews

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

My water dispenser stopped working what could the problem be

Asked by: Terri64
We are sorry to see you are having an issue with your water dispenser on your refrigerator. You can troubleshoot this issue using the following help article: https://www.lg.com/us/support/help-library/water-does-not-dispense-refrigerator-CT00023125-20150177934291 If you need further assistance, you can contact our Customer Support by any of the below options: Phone: 1-800-243-0000 LiveChat: https://www.lg.com/us/support/chatbot Email: https://www.lg.com/us/support/email-appointment Facebook Messenger: https://www.facebook.com/LGUSA/ Twitter: @LGUSSupport The LG Community Forum is also a great resource for getting help from other LG customers: https://lgcommunity.us.com/
Answered by: ChrisPSM
Date published: 2019-11-18

how many amps?

Asked by: bobbiM
The ENERGY STAR® Qualified LG 22 cu. ft. Smart wi-fi Enabled Side-by-Side Counter-Depth Refrigerator, Model # LSXC22436S has to be plugged into its own individual grounded outlet rated at 115 V ~ 60 Hz and fused at 15 A or 127 V ~ 60 Hz and fused at 15 A. Actual voltage will be 120V...^IFV
Answered by: Ivanf
Date published: 2019-08-12

I can get water to dispenser but not to ice maker , why

Asked by: Rankin62
Please refer to the following help library article for issues with the ice maker not producing ice: http://www.lg.com/us/support/product-help/CT10000021-1400773605181-no-ice ^CP
Answered by: ChrisPSM
Date published: 2019-03-14

Want a stainless side by side 33” wide, finger print resistant ?

Asked by: Tom Eastman
Regrettably, we do not have any Side-by-Side Refrigerators that have a width of 33". They only come in widths of 36" (Actual 35 7/8") or 42"...^IFV
Answered by: LGJoel
Date published: 2018-12-03

When will this model be available for the US? If I order, what would the realistic ETA? Ordered the previous model and after 2 months of waiting my order was cancelled b/c it was discontinued. Want to wait if can for the replacement model - need soon.

Asked by: Teresa in Oz
