KEY FEATURES

  • Ultra Large 4.3 cu. ft. Capacity
  • Front Control Design
  • Direct Drive Motor 10 Year Limited Warranty
  • ColdWash™ Technology
  • ENERGY STAR® Qualified

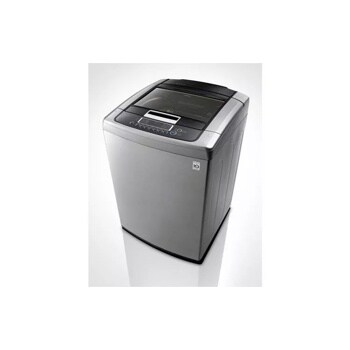

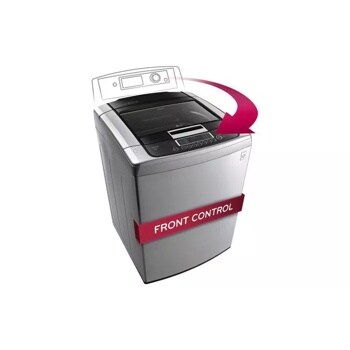

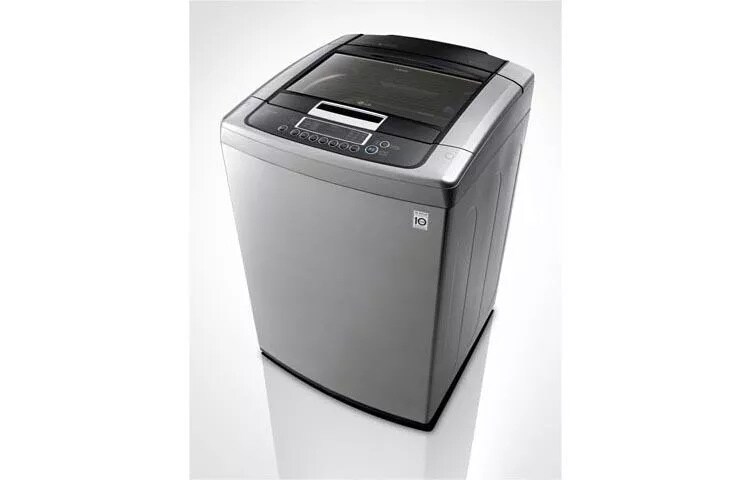

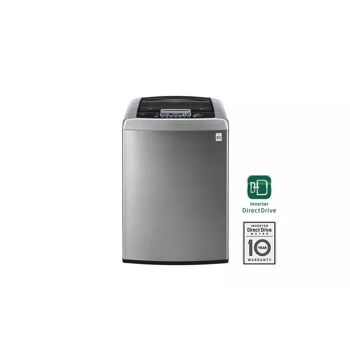

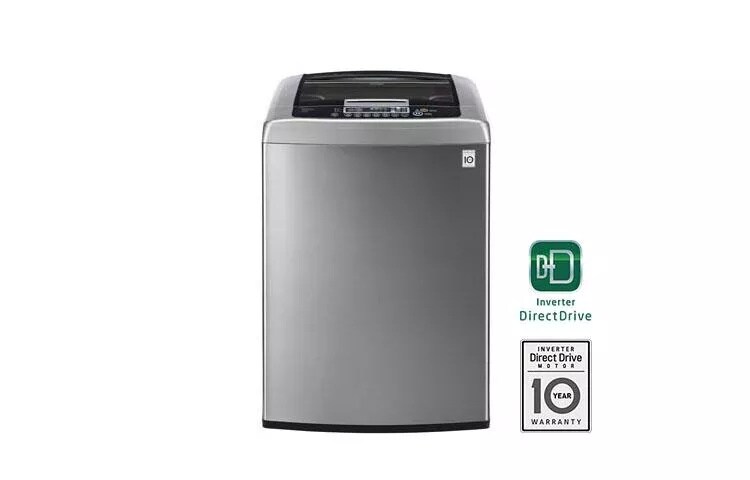

4.3 cu. ft. Ultra Large Capacity Top Load Washer with Front Control Design and WaveForce™ Technology

SUMMARY

    • Design Style
    • Front Control Top Loader
    • Control Panel Design
    • Front Control
    • Energy Star Qualified
    • Yes
    • Capacity (cu.ft.)
    • 4.3 cu. ft.
    • Dimensions (WxHxD)
    • 27" x 40 5/32" x 28 3/8" (54 1/3" H with lid open)
    • Available Colors
    • Graphite Steel (V)

CAPACITY

    • Capacity
    • 4.3 cu. ft.

APPEARANCE

    • Design Look
    • Front Control
    • Front Electronic Control Panel with LED Display
    • Yes

ENERGY

    • ENERGY STAR® Qualified
    • Yes

WASH PROGRAMS

    • No. of Programs
    • 8
    • Wash Programs
    • Cotton/Normal, Bulky/Bedding, PureColor™, Speed Wash, Heavy Duty, BrightWhites™, Delicates, Tub Clean
    • No. of Options
    • 9
    • Options
    • Rinse+Spin, Spin Only, Soak, ColdWash™, Extra Rinse, Fabric Softener, Delay Wash, Child Lock, Signal On/Off
    • No. of Wash/Rinse Temps
    • Hot, Warm, Eco Warm, Cold, Tap Cold (All Cold Rinses)
    • Spin Speeds
    • High, Medium, Low, No Spin
    • No. of Water Levels
    • Automatically adjusts to the size of load
    • No. of Soil Levels
    • 3

FABRIC CARE FEATURES

    • SmartRinse™ Jet Spray System
    • Yes
    • ColdWash™ Option
    • Yes
    • SenseClean™ System
    • Yes
    • WaveForce™
    • Yes

CONVENIENCE FEATURES

    • 2+1 Dispenser
    • Main Wash, Fabric Softener + Liquid Bleach
    • TrueBalance™ Anti-Vibration System
    • Yes
    • SmartDiagnosis™
    • Yes
    • LoadSense
    • Yes
    • Status Indicator(s)
    • Yes
    • End of Cycle Signal
    • Yes
    • Child Lock
    • Yes
    • Auto Suds Removal
    • Yes
    • Forced Drain System
    • Yes
    • LoDecibel™ Quiet Operation
    • Yes
    • Leveling Legs
    • 4 Adjustable Legs

MOTOR AND AGITATOR

    • Motor Type
    • Direct Drive Motor
    • Motor Speed
    • Variable
    • Max RPM
    • 1,100
    • Axis
    • Vertical

MATERIALS AND FINISHES

    • NeveRust™ Stainless Steel Drum
    • Yes
    • Cabinet
    • Painted Steel
    • Control Panel
    • Plastic
    • Top Cover
    • Plastic
    • Diamond Glass Lid
    • Yes
    • Available Colors
    • White (W), Graphite Steel (V)

POWER SOURCE

    • Ratings
    • CSA Listed
    • Electrical Requirements
    • 120V, 10 Amps
    • Type
    • Electric

DIMENSIONS

    • Product (WxHxD)
    • 27" x 40 5/32" x 28 3/8" (54 1/3" H with lid open)
    • Carton (WxHxD)
    • 29 1/2" x 43 7/10" x 31 1/4"
    • Weight (Product/Carton)
    • 134.2 lbs/151.8 lbs

WARRANTY

    • Limited Warranty
    • 1 Year Parts and Labor, 10 Years Motor, Lifetime on Drum
    • UPC
    • 048231013369

What people are saying

Rated 2 out of 5 by from Had To Replace With A New Brand After 5 years Bought the matching LG washer dryer set Dec 2016. The washing machine spin cycle recently stopped working. LG certified tech came to the house to diagnose the situation. He did some research and he made a call to LG it was believed to be a sensor issue. However it was mentioned that actual electronic board could be an issue as well. Just to get the part and replace the sensor the cost was almost half of what you would pay for a new washing machine. Because of the uncertainty between the sensor and computer board we made the decision to purchase a new washing machine. There was a fair deal on another brand washing machine so we made the purchase and had it delivered and installed. Because of the coast of the part and repair, it seemed to make sense but unfortunately we no longer have a matching washer dryer set or even the same brand.
Date published: 2022-01-08
Rated 1 out of 5 by from Help! Looking for Replacement Hello- my wife and I absolutely loved this model washer and dryer bundle. Unfortunately we moved and they were left behind. Now that this model is discontinued does anyone know what model replaced it or is closest to it? Thank. You
Date published: 2021-10-18
Rated 4 out of 5 by from Overall good washer with lots of features We've owned this for 8 years now. Within the first couple years we had one of the fill valves in the back leak. It was fixed, but we had to pay for it so that wasn't great for such a new washer. Outside of that, it has been solid with the exception of some periodic odor from the tub. You need to run clean cycles on this washer on a regular basis to avoid that. Not the washers fault, but be sure you do this. The only other issue we have is ergonomic rather than the washer not performing. It has a deep tub, so if you are short (or your spouse is short), you need a stool to reach the bottom of the tub. All that said, after the fill valve issue, it has been a solid washer with no major concerns. It cleans well and washes a lot of clothes, sheets, or whatever you throw at it and does a good job.
Date published: 2021-06-03
  • y_2022, m_1, d_25, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.20
  • cp_1, bvpage1
  • co_hasreviews, tv_8, tr_417
  • loc_en_US, sid_MD05036501, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 10ms
  • REVIEWS, PRODUCT

ASK & ANSWER

Ask your questions. Share your answers.
Please review the detailed product information and help guides in the
Product Support section for this product prior to posting a question.

Where is the drain filter located on the lg smart drum WT1201C?

Asked by: Jamie1424
The ENERGY STAR® Qualified LG 4.3 cu. ft. Ultra Large Capacity Top Load Washer with Front Control Design and WaveForce™ Technology, Model # WT1201CV relies on a filter in the pump that self-cleans, meaning that there's no need for maintenance on your end...^Ivan
Answered by: Ivanf
Date published: 2022-01-07

My washer keeps claiming the loads are uneven.  4 out of every 5 loads takes multiple times of readjusting and starting again only to stop again within minutes no matter the setting I use!  Is there anything that can be done or is this a flawed machine

Asked by: Tae788387
Have you checked to make sure that the ENERGY STAR® Qualified LG 4.3 cu. ft. Ultra Large Capacity Top Load Washer with Front Control Design and WaveForce™ Technology, Model # WT1201CV is leveled properly? If the washer is not leveled properly, that will cause it to display the uE error code to indicate that the washer has detected an out-of-balance load or the UE error code to indicate that the automatic attempt to rebalance the load was unsuccessful. The UE error code will also display if the load is too small or if heavy items are mixed with lighter items. With the washer empty, select the RINSE and SPIN cycle then press start to run the Rinse and Spinn cycle to see if it displays the uE/UE error codes again. If the error codes are displayed again, it means that the unit is not working properly and will require repair service. If it does not display the error codes, it does not require repair service. It means that the washer is not properly leveled. Open the lid and look inside to see if the plastic guard is exposed more to one side than the other. If one side is exposed more than the other, you will need to raise the side to which the tub is leaning. You can also use a level to see if the washer is properly leveled. Inspect the tub level by opening the lid to see if the tub is centered and not tilted to one side. Again, if the tub is not centered, adjust the leveling feet. After the washer is properly leveled, run a test load by placing about six pounds of laundry in the washer then press Power & select Rinse Spin, and press Start/Pause. When the washer starts running, check to see if it rocks or vibrates during the spin cycle. If it does, repeat the leveling procedure. Getting the washer exactly level can be tricky...^IFV
Answered by: Ivanf
Date published: 2021-07-13

I have a LG inverter direct drive smart drum model number wt1201cv the serial number 304kwdj3r546 I push the power button on and no lights come on and lid is locked and will not open. I checked breaker's and plug outlet and there all fine.

Asked by: Kim Trotter
We hate to hear that you are having power issues with your washing machine, but would love to be able to help. We would be happy to see what's going on. Drop us a line on Twitter at @LGUSSupport or on Facebook https://www.facebook.com/LGUSA/ so we can get more info and see what we can do. ^CP
Answered by: ChrisPSM
Date published: 2019-09-03

The lid to my washer is broken at the hinge.  The plastic just fell off into the washer one day.  Is this repairable/replaceable?

Asked by: RiRe
Hello, hate to hear, sounds like you might need a technician. This may be done through our website: https://www.lg.com/us/support/repair-service/schedule-repair-continued or for a list of service centers in your area: https://www.lg.com/us/support/repair-service/find-repair-provider ^AC
Answered by: Amber C
Date published: 2019-01-24

Out of washers load sensing light keeps blinking and no water will go in the washer

Asked by: Jj7765
Sounds like we need to troubleshoot. Please give us a ring at 1-800-243-0000 when you are with the unit. ^AC
Answered by: Amber C
Date published: 2018-02-26

what model is the matching dryer

Asked by: Mahob
For the Electric it is DLEY1201V and the gas is DLGY1202V. ^AC
Answered by: Amber C
Date published: 2018-02-09

I checked and clean all the hoses to stop the o e error code but it's still not draining and still showing the error code. What is the problem

Asked by: Timothy0418
Hello Timothy0418, sounds like we may need to perform some troubleshooting. Please give us a call at 1-800-243-0000 when you are with your unit. ^AC
Answered by: amber
Date published: 2018-01-31

How do i smart diagnos a problem

Asked by: Littlesissy
You will need to call in, when you are with your unit, at 1-800-243-0000. ^AC
Answered by: amber
Date published: 2018-01-22
